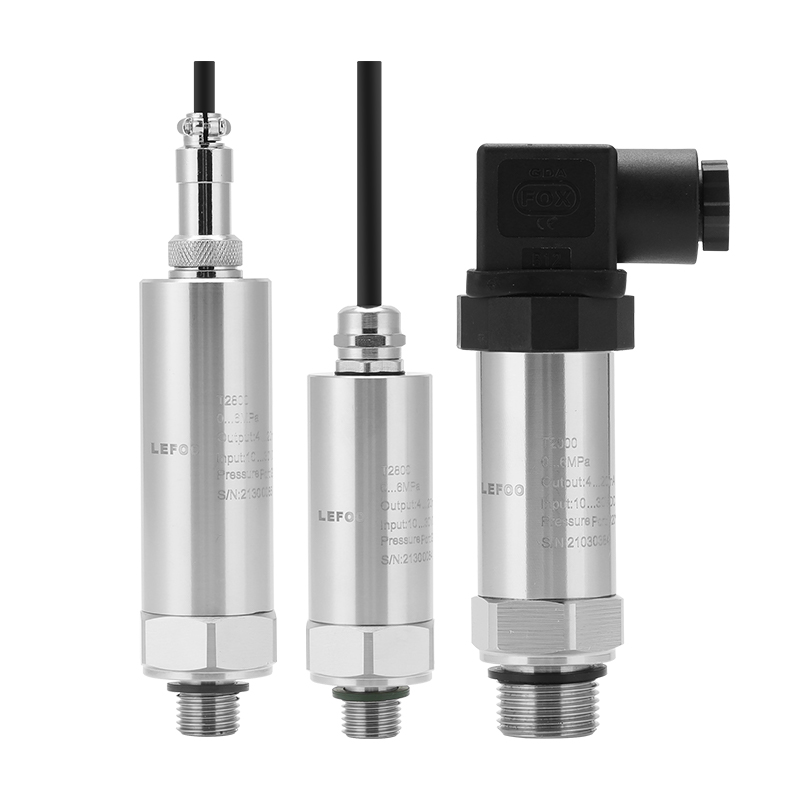

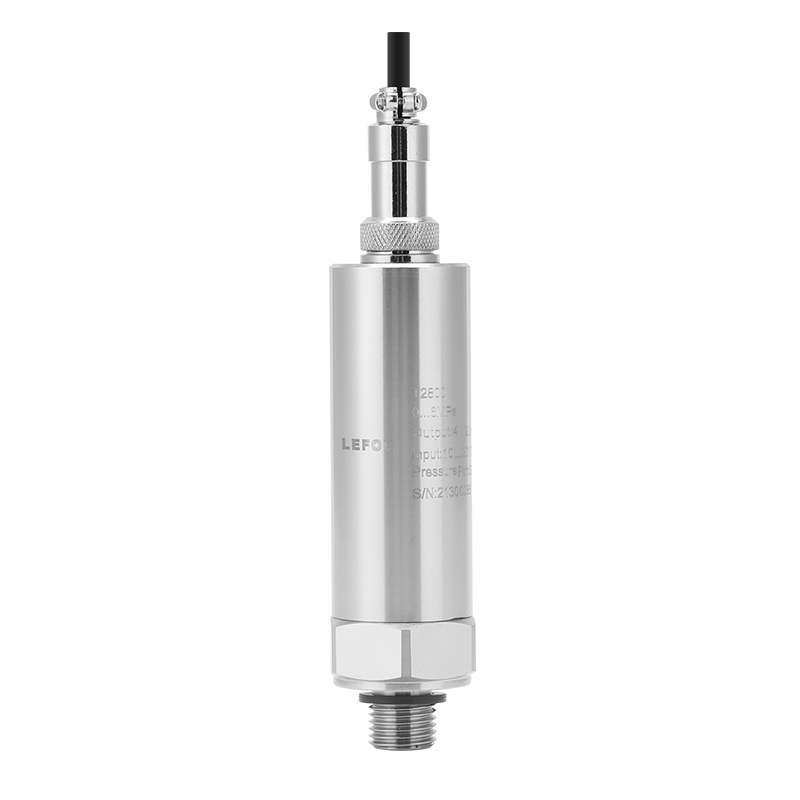

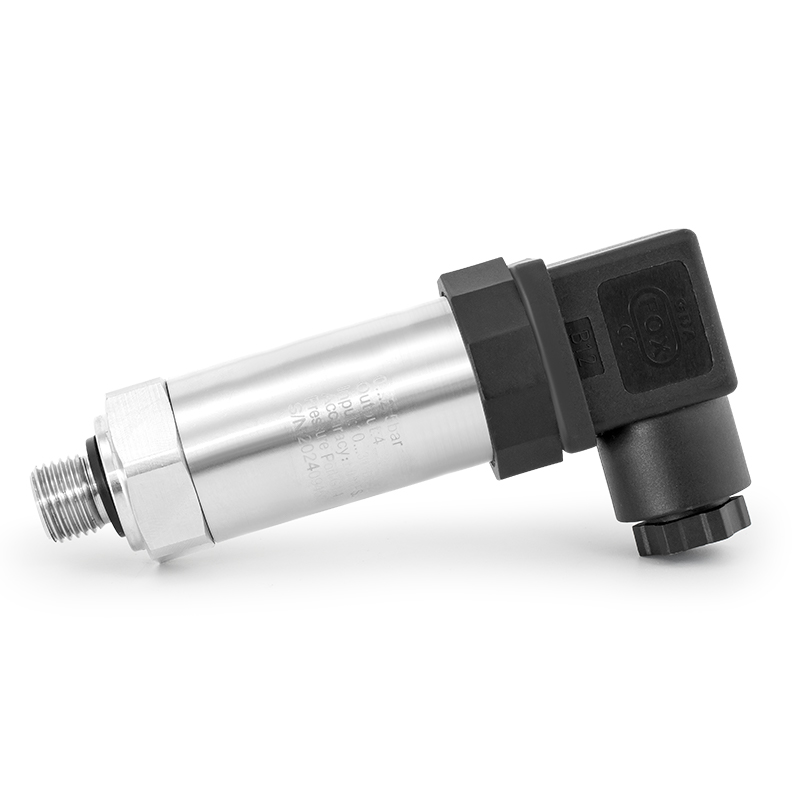

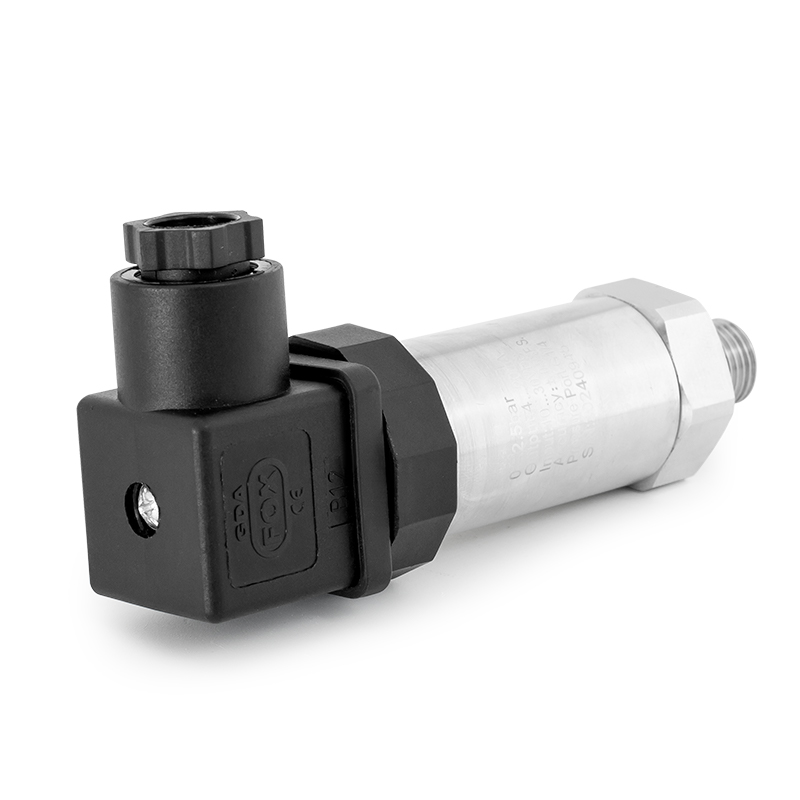

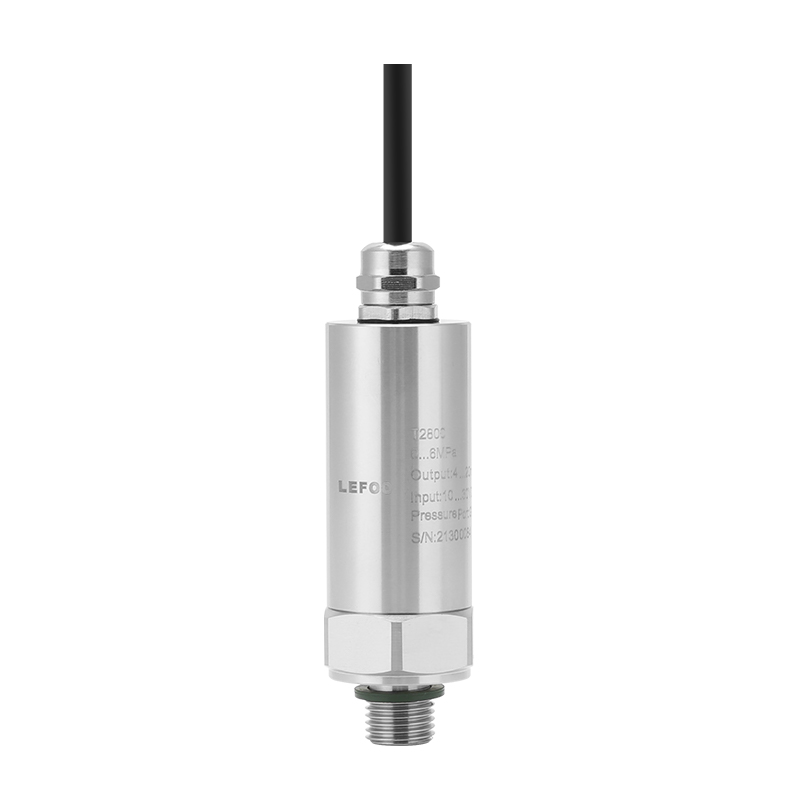

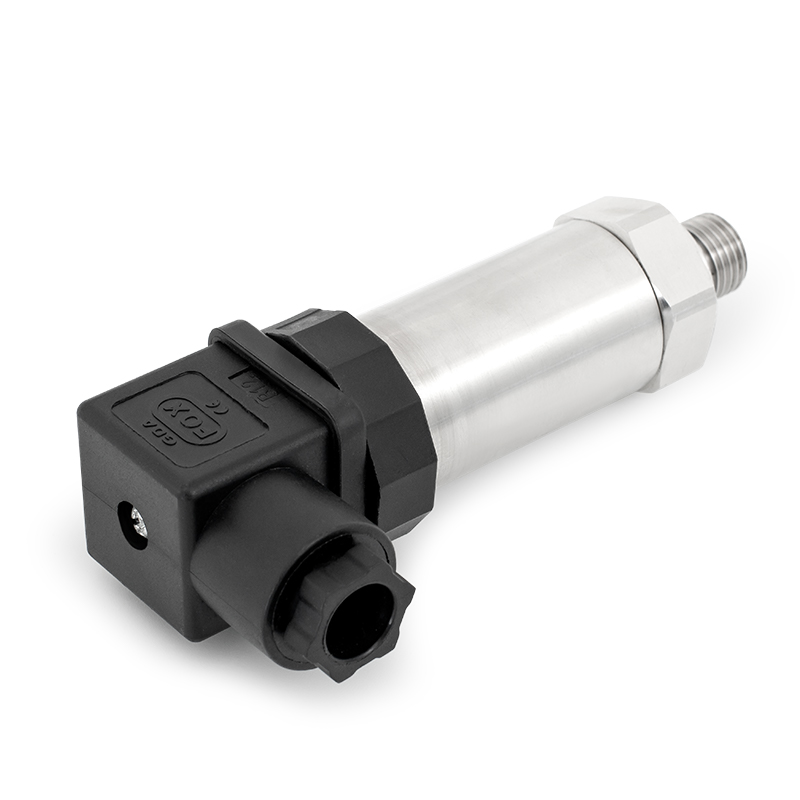

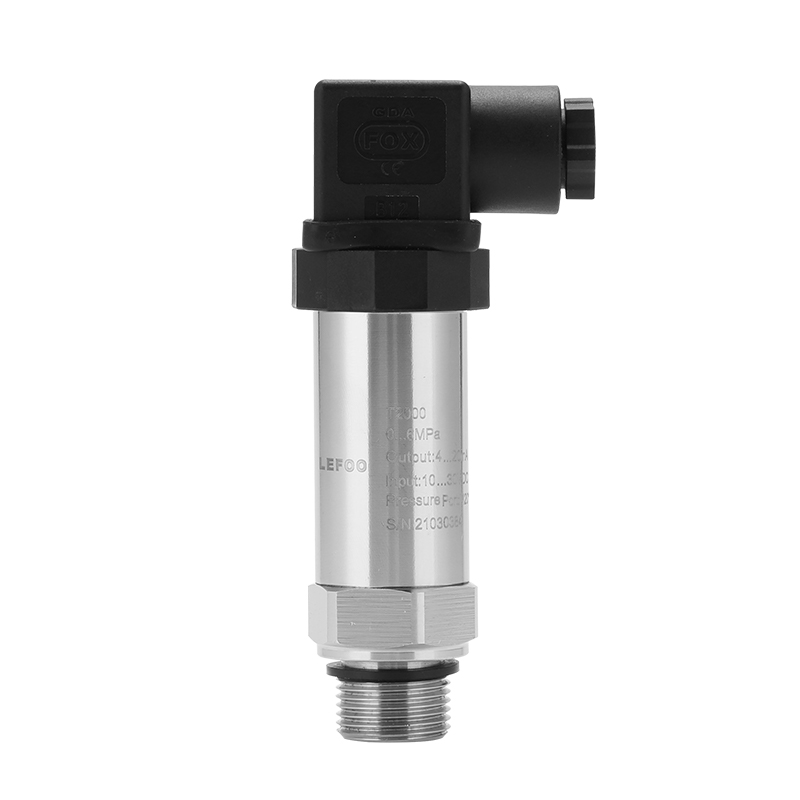

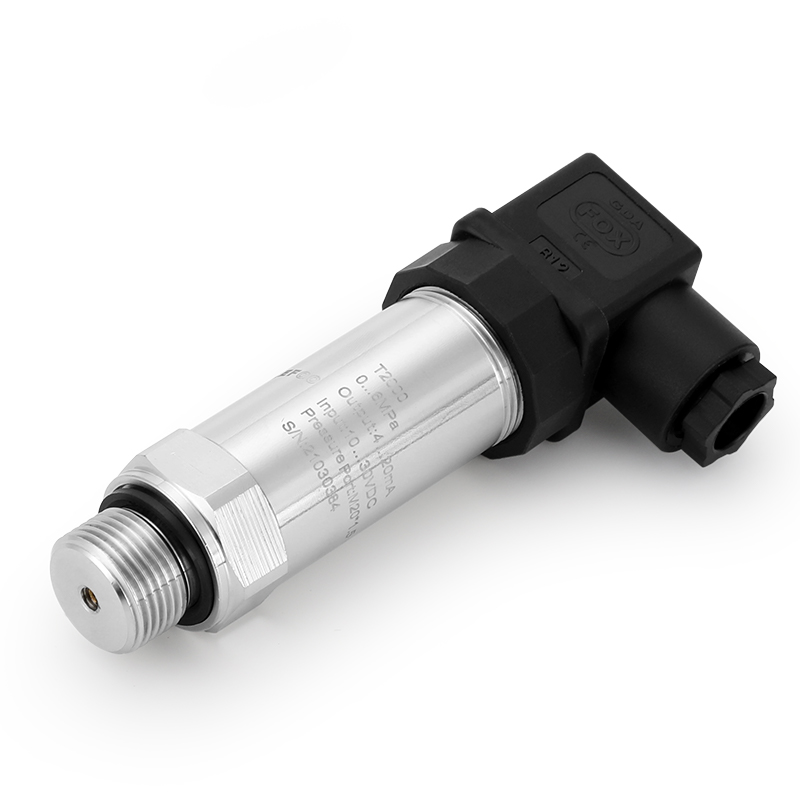

Lefoo I-Transmitter ye-Temperature ne-Pressure 2 ngo-1 i-LFT3100

Name: I-Transmitter ye-Temperature ne-Pressure 2 ngo-1 i-LFT3100
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

I-LEFOO LFT3100 i-transmitter yokushintsha i-temperature ne-pressure 2 ku-1 isebenzisa i-piezoresistive pressure sensor ethuthukile kanye ne-PT-100 temperature sensor, eguqulwa ibe isignali yokukhipha ejwayelekile nge-circuit ekhethekile yokulungisa isignali, ene-digital compensation ethuthukile yezinga lokushisa, uhla olubanzi lokusebenza kwezinga lokushisa, kanye nesignali egcwele yokukhipha. Ifanele ukuqapha ukucindezela nezinga lokushisa ezinhlelweni zokudla okungahleliwe nokwelashwa kwamanzi.

Izici

* Amukela i-core ye-silicon egcwele uwoyela enokunemba okuphezulu namandla okugcwala aphezulu

* Ukukhipha kabili kwezinga lokushisa nokucindezela, isakhiwo esihlanganisiwe, ukonga indawo yokufaka

* Sekela iphrothokholi yokuxhumana ye-Modbus-485 (uhlobo oluhlakaniphile)

* I-elementi ezwela izinga lokushisa ne-elementi ezwela ukucindezela zipakethwe njengento eyodwa, okusondele kakhulu ezingeni lokushisa le-medium

Thola Isicaphuno Layisha phansi i-PDF

Umdluliseli

Impompu

Ukucaciswa
Izici:
Izisebenziso

Ukucaciswa kokushisa Nengcindezi 2 ku-1 Transmitter LFT310

Ukulinganisa kwezobuchwephesha

I-LIFOO Amazinga Okushisa Kanye Nengcindezi 2 ku-1 Transmitter LFT3100
Uhla lwengcindezi	0 ~ 10 KPA 70MPa
Ibanga lokushisa	-20 ~ 100℃ (PT-100)
Ingcindezi Yokulayisha Kakhulu	Izikali ezigcwele izikhathi eziphindwe ka-1.5
Ukuqondisa	Ingcindezi: ± 0.5% F.S. Izinga lokushisa: ± 2% F.S.
Ukuzima	<0.5%F.S./Nyaka
Ukushisa Okusebenzayo	-20 ~ 85℃
Izinga lokushisa	-40 ~ 100℃
Ukuvumelana Okuphakathi	Zonke izindlela ezonakalisayo zingahambisana ne-304/316 insimbi engagqwali, iFloroelastomer noma i-NBR.
Ukusebenza kukagesi	Izintambo ezimbili	Izintambo ezintathu	Izintambo ezine
Isibonakaliso esikhitshayo	4 ~ 20mA	0.5 ~ 4.5 VDC	RS485
Ukunikezwa Kwamandlanje	10 ~ 30 VDC	4.75 ~ 5.25VDC	10 ~ 30 VDC
Ukuxhumana kukagesi	I-DIN43650A (Big Hirschmann), i-M12 Waterproof outlet, Isixhumi sezindiza se-GX12 (ama-cores amathathu / ama-cores amane), isixhumi se-M12 esine semikhumbi
Ibanga Lokuvikela	IP54, IP65
Ukuxhumana Kwengcindezi	G1/4, M12 * 1, M10 * 1, NPT1/4, G1/2, M20 * 1.5, njll.
Ifomu Ingcindezi	Ingcindezi ye-Guge G / Ingcindezi Ephelele A
Izinto zesiqinisekiso	Uhlobo lokuqhuma kwezokuphepha u-E, i-RoHS, amazinga okuphepha kagesi we-EU CE

Ubungakho

Umhlahlandlela wokukhetha

Ikhodi Nencazelo

Amagqaba

LFT3100

Izinga lokushisa Nengcindezi 2 ku-1

Imodeli

Uhla lwengcindezi

0 ~ 10 KPA 70MPa

Ububanzi bokilinganisa

Ububanzi bokushisa

-20 ~ 100℃

A4 = 4 ~ 20 mA (Izintambo ezimbili)

Okukhishwayo

V05

V05 = 0.5 ~ 4.5 V (Izintambo ezintathu)

RS = RRS485

K = kpa

Iyunithi

B = ibhar

M = Mpa

0,5

0.5 = 0.5% F.S.

Ukuqondisa

D1 = DIN43650A Big Hirschmann

Ukuxhumana kukagesi

M = M12 i-Waterproofs

I-C3 = GX12 isixhumi sezindiza ezintathu

I-C4 = GX12 isixhumi sezindiza ezine

H = M12 isixhumi sezindiza ezine

G = G1/4

Ukuxhumana kwengcindezi

G2 = G1/2

N = NPT1/4

M20

M20 = M20 * 1.5

M10

M10 = M10 * 1

M12

M12 = M12 * 1

1.0

1.0 = 1m

Ubude bentababa

2.0

2.0 = 2m

3.0

3.0 = 3m

LFT3100

0-60 /-20-100℃

0,5

1.0

Isibonelo sokukhetha

Izici zezinga lokushisa Nengcindezi 2 ku-1 Transmitter LFT310

Thola umgogodla we-silicon ogcwele uwoyela onokunemba okuphezulu futhi amandla aphezulu okulayisha
Ukushisa nokucindezela okukhishwa okubili, ukwakheka okuhlangene, ukonga isikhala sokufaka
Ukusekela i-Modbus-485 yokuxhumana (uhlobo oluhlakaniphile)
Isici sokushisa esibucayi kanye nento ebucayi yengcindezi ihlanganiswe njengeyodwa, eseduze kokushisa okuphakathi nendawo

Ukusetshenziswa Kokushisa Nengcindezi 2 ku-1 Transmitter LFT310

Ukwelashwa kwamanzi

Umkhiqizi we-Ozone

Iphrojekthi yokuhlinzeka kwamanzi kaMasipala

Izimboni zokudla

Izimboni Zokukhiqiza

Imboni yamakhemikhali

Imishini yokuhlinzeka kwamanzi engcindezi njalo
