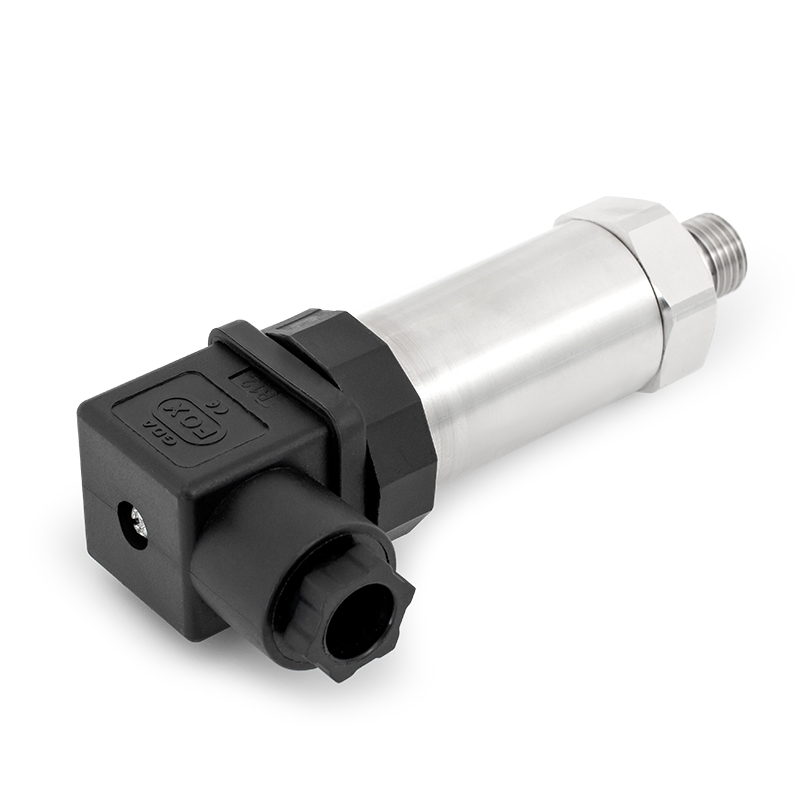

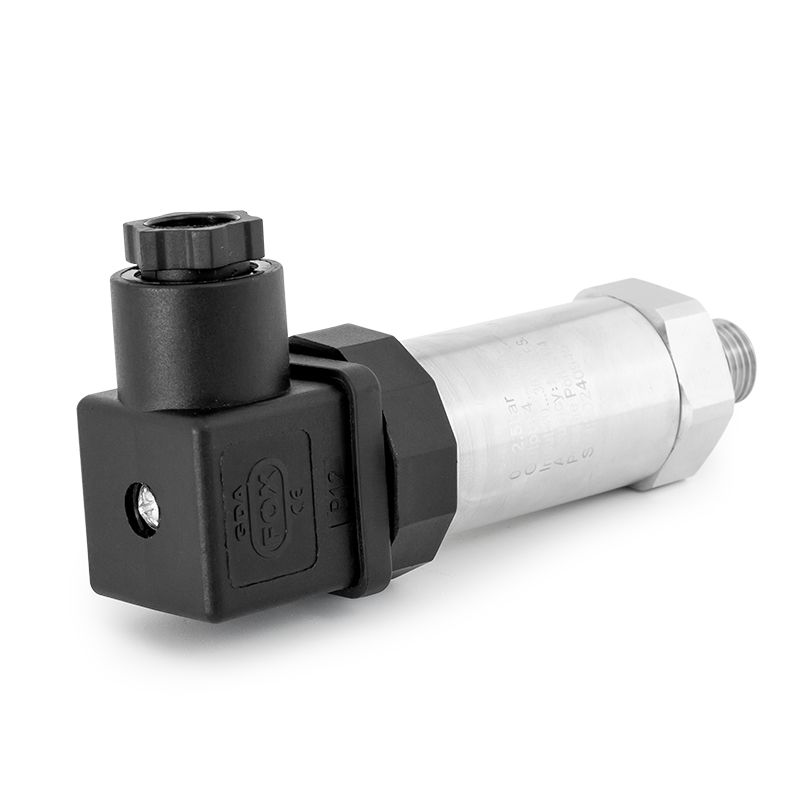

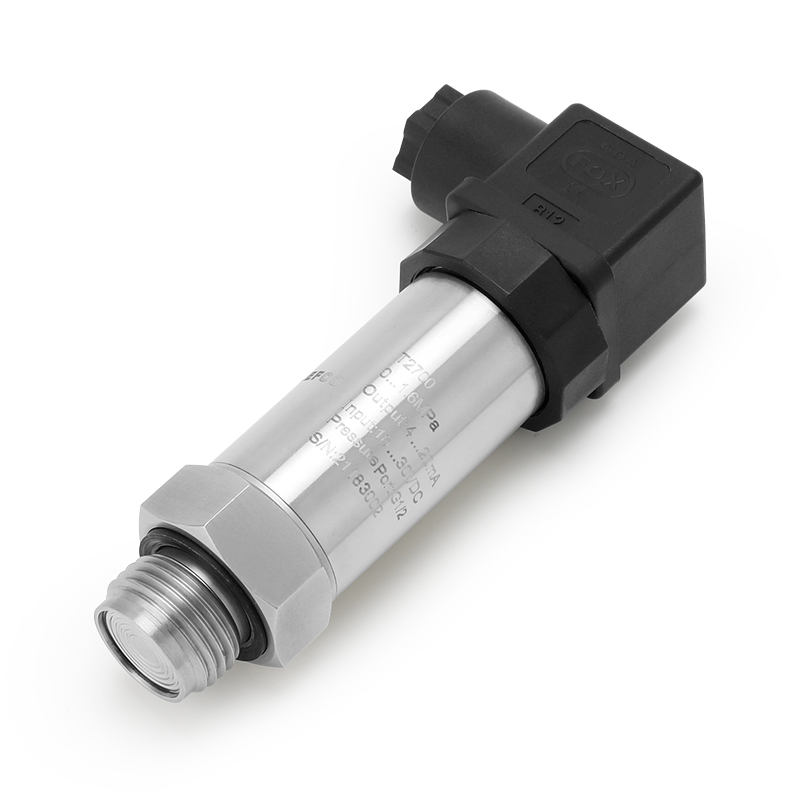

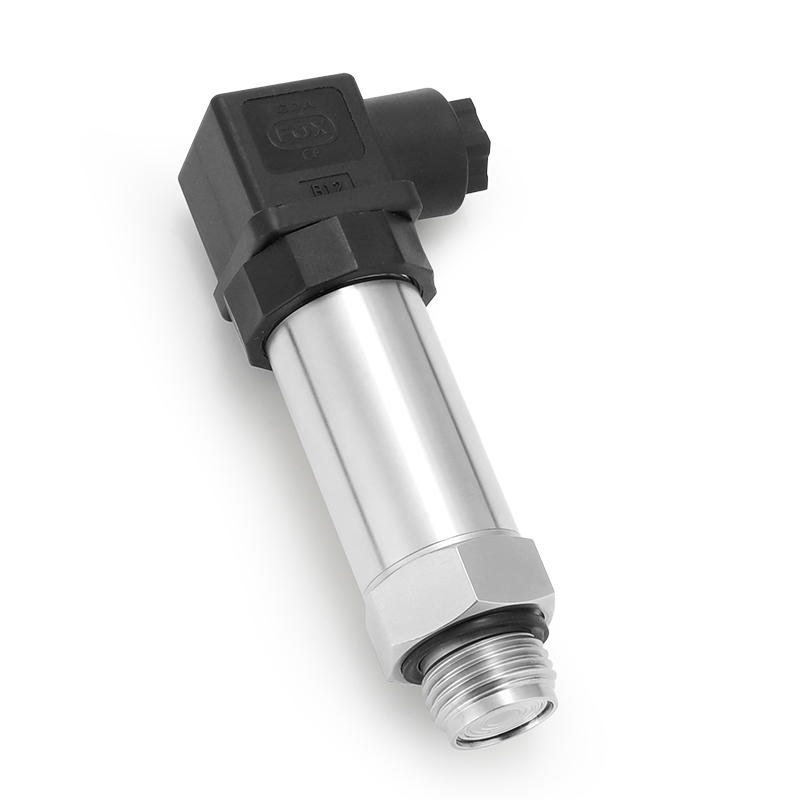

Lefoo Umthumeli Wengcindezi Yefilimu Eyisicaba Yohlobo Olujwayelekile LFT2700

Name: Umthumeli Wengcindezi Yefilimu Eyisicaba Yohlobo Olujwayelekile LFT2700
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

I-LEFOO LFT2700 i-flat film pressure transmitter isebenzisa i-316L flush membrane sensor, evimbela ukuvaleka, kulula ukuyihlanza, ingakala ngqo umfutho woketshezi ophukelayo, njll., futhi inokusebenza okuhle kakhulu kokumelana nokugqwala nokugqoka. Inzwa ye-membrane ye-Fflush isebenzisa ubuchwepheshe be-ASIC, isinxephezelo sedijithali, ukuxhuma okunemicu, futhi kulula ukuyifaka nokuyigcina. Isixhumanisi esinemicu siyakhethwa, ukwakheka kwangaphandle kuncane, futhi kunezindlela ezihlukahlukene zokuxhuma okukhiphayo okukagesi ongazikhethela. I-diffusion silicon flat-membrane thread sensors yezinhlelo zomfutho we-gauge noma we-absolute ingakala ngqo izinto ezinamandla ezinjengama-chemical coatings, upende, uwoyela ongahluziwe, njll. Lokhu i-flat film pressure transmitter isetshenziswa kabanzi embonini yamakhemikhali, izinhlelo zokuthola upende, ukuvikela imvelo, izimayini zamalahle, ukwenza amaphepha, ukucubungula ukudla, kanye nemishini ye-polyurethane.

Izici ze-Lefoo General Type Flat Film Pressure Transmitter LFT2700

* Isebenzisa i-316L flush membrane sensor, evimbela ukuvaleka, kulula ukuyihlanza

* Ingakala ngqo umfutho woketshezi ophukelayo

* Isebenzisa ubuchwepheshe be-ASIC, ubuchwepheshe besinxephezelo sedijithali

* Ukumelana nokugqwala nokugqoka okuhle kakhulu

* Ukuxhuma okunemicu ukuze kufakwe kalula

Thola Isicaphuno Layisha phansi i-PDF

Umdluliseli

Impompu

Ukucaciswa
Izici:
Izisebenziso

Ukuchazwa kwe-General Type Flat Film Pressure Transmitter LFT2700

Ukulinganisa kwezobuchwephesha

I-LEFOO General Type Flat Film Pressure Transmitter LFT2700
Ubanga lokulingana	-100 Kpa…0 ~ 20KPa…35MPa
Ingcindezi Yokulayisha Kakhulu	Isikhathi esingu-1.5 sesikali esigcwele.
Ukuqondisa	± 0.5% F.S., ± 1-0% F.S.
Ukuzima	<0.5%F.S./Nyaka
Ukushisa Okusebenzayo	-20 ~ 85℃
Izinga lokushisa	-40 ~ 100℃
Iphakathi elilinganisiwe	Zonke izindlela ezonakalisayo zingahambisana ne-304/316 insimbi engagqwali, iFloroelastomer noma i-NBR.
Izakhiwo zikagesi	Izintambo ezimbili	Izintambo ezintathu			Izintambo ezine
Isibonakaliso esikhitshayo	4 ~ 20mA	0.5 ~ 4.5V	0 ~ 5V	0 ~ 10V	RS485
Ukunikezwa Kwamandlanje	10 ~ 36 VDC	4.75 ~ 5.25VDC	10 ~ 36 VDC	12 ~ 36 VDC	10 ~ 30 VDC
Ukuxhumana kukagesi	I-DIN43650A (Big Hirschmann), i-M12 yokuphumela amanzi, Isixhumi sezindiza se-GX12 (ama-cores amathathu / ama-cores amane)
Ibanga Lokuvikela	IP65 / IP4
Ukuxhumana Kwengcindezi	G1 / 2 、 M20 * 1.5 njll.
Ifomu Ingcindezi	Ingcindezi ye-Gage G / Ingcindezi Ephelele A
Isiqinisekiso	I-RoHS, izinga lokuphepha likagesi le-EU CE

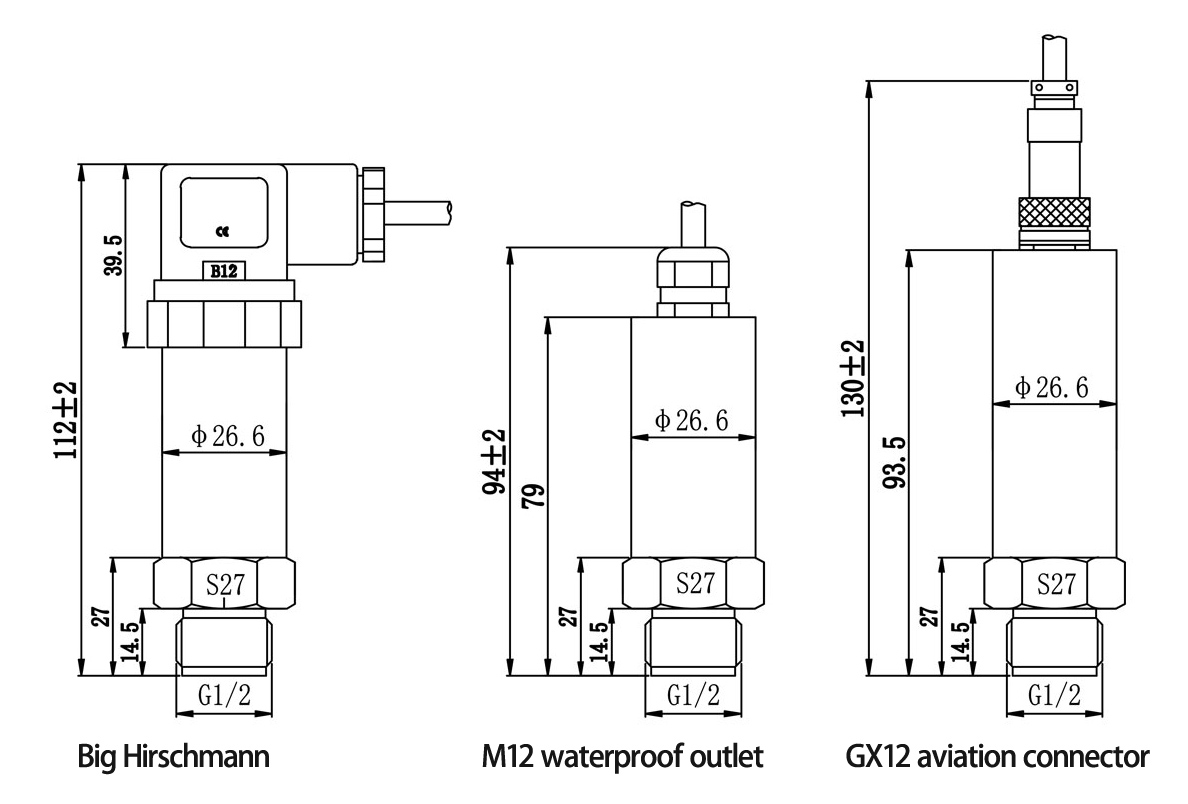

Ubungakho

Umhlahlandlela wokukhetha

Ikhodi Nencazelo									Amagqaba
LFT2700	Uhlobo Jikelele lweFlat Film Pressure Transducer								Imodeli
	Ububanzi	-100 Kpa…0 ~ 20KPa…35MPa							Ububanzi bokilinganisa
		A4	A4 = 4 ~ 20 mA (Izintambo ezimbili)						Indlela yokukhishwa:
		V05	V05 = 0.5 ~ 4.5 V (Izintambo ezintathu)
		V0	V0 = 0 ~ 5V (Izintambo ezintathu)
		V10	V10 = 0 ~ 10 V (Izintambo ezintathu)
		RS	I-RS485 = RS485 (i-wired ezine)
			K	K = kpa					Iyunithi
			P.	P = psi
			B
			M	M = Mpa
				0,5	0.5 = ± 0.5% F.S.				Ukuqondisa
				1.0	1.0 = ± 1.0% F.S
					D1	D1 = DIN43650A Big Hirschmann			Ukuxhumana kukagesi
					M	M = M12 i-Waterproofs
					C3	I-C3 = GX12 isixhumi sezindiza ezintathu
					C4	C1 = GX12 isixhumi sezindiza ezine
					H	H = M12 isixhumi sezindiza ezine
						G	G = G1/2		Ukuxhumana kwengcindezi
						M	M = M20 * 1.5
							1.0	1.0 = 1m	Ubude bentababa
							2.0	2.0 = 2m
							3.0	3.0 = 3m

LFT2700	0-60	A4	B	1.0	D1	G	1.0		Isibonelo sokukhetha

Izici ze-General Type Flat Film Pressure Transmitter LFT2700

Kusetshenziswa i-316L flush inzwa ye-membrane, ukulwa nokuvalwa, okulula ukuyihlanza
Ingalinganisa ngqo ingcindezi yoketshezi oluyi - viscous
Yamukela ubuchwepheshe be-ASIC, ubuchwepheshe bezinxephezelo zedijithali
Ukuwohloka okuhle kakhulu nokugqoka ukumelana
Ukuxhumeka okumsontshiwe ukufakwa kalula

Izicelo ze-General Type Flat Film Pressure Transmitter LFT2700

Ukusebenza ne - LEFOO

Okuhlukile kolunye uhlobo lokudlulisa ingcindezi ye-diaphragm, Ingcindezi i-LFT2700 isetshenziswa ngokuphelele nemishini elandelayo. I-LEFOO ingumhlinzeki kaNdunankulu we-diaphragms ngcindezi yensimbi emhlabeni jikelele. Siyajabula ukuhlinzeka nge-diaphragm ingcindezi yekhwalithi ephezulu ye-transducer ye:

Ukuqapha ukucindezelwa koketshezi kanye noketshezi;

I-Glue dispenser;

Izimboni zokudla;

Izimboni zekhefu;

Izimboni ze-pulp nephepha;

Ukucubungula amanzi angcolile;

Izimboni ze-petrochemical.

Ukukhiqizwa nokukhiqiza

Kusebenza Kanjani Ukucindezela Okudlulisayo?

Izinga lokucindezela nokuguquguquka kubhaliswe ngokuguquguquka kwe-diaphragm kanye nomgogodla wokuzwa kwe-silicon. Ukufuduswa kwe-diaphragm nomnyombo kuguqulwa ngokulinganayo kube ngugesi. Leso siginali kagesi siyahlaziywa ukuthola izilinganiso ezinembile zengcindezi.

Ama-diaphragms ama-transducers wengcindezi angakhiwa ngezinto zensimbi noma ezingezona zensimbi. Ama-diaphragms angewona wensimbi anesikhathi eside kepha athambeka ukungabi nama-diaphragms wensimbi. Lokhu kubenza bangafuneki kancane ezinhlelweni zokusebenza ezidinga izilinganiso eziqondile ngevolumu yokugeleza ephansi.

Iyini i-Metal Diaphragm?

Ama-diaphragms wensimbi angamapuleti ayisiyingi akhiwe ngensimbi encane, eguquguqukayo ekhombisa ukukhubazeka lapho kucindezelwa. Ama-diaphragms asetshenziselwa ukubeka uphawu nokudluliswa kwengcindezi. Izimpawu ze-diaphragm zivimbela uketshezi ekuvuzeni kwezinye izingxenye zohlelo ngenkathi ngasikhathi sinye zivimbela ukungcola koketshezi uqobo. Ngaphakathi kwenzwa yengcindezi, ama-diaphragms ahlukanisa uhlelo futhi adlulise imiphumela yokushintsha kwengcindezi kumageji, lapho izinguquko ziguqulwa zibe amanje kagesi ukuze zihlaziywe.

I-transducer Diaphragms

Ama-diaphragms wensimbi angalungiswa ngokukhethekile ukuhlangabezana nezidingo zezimboni nezicelo eziningi. Kunemiklamo emibili eyinhloko ye-diaphragm: High-Sensitivity Low-Pressure (HSLP) kanye ne-Low-Sensitivity High-Pressure (LSHP)..

Yini i-High-Senstivity Oluphansi-Pressure Diaphragms?

Ama-diaphragms we-HSLP asetshenziselwa izinhlelo zokusebenza ezidinga i-diaphragm ukuthi isebenze ngokuguquguquka okukhulu ngaphansi komshini ophansi. izimo. Zisetshenziswa kaningi kunabalingani babo be-LSHP futhi ziwusizo ikakhulukazi kuzinhlelo zokusebenza ezinengcindezi ephansi ezidinga izinga eliphakeme lokunema, njengokukhiqizwa kokudla nokukhiqizwa kwemithi.

Yini i-Low-Sensitivity High-Pressure Diaphragms?

Ama-diaphragms we-LSHP kufanele aziqine kakhulu futhi akwazi ukugcina ukwakheka nokuma kwawo kuzinhlelo zokusebenza okuphezulu. Ukuqina kwabo kwenza i-diaphragms ye-LHSP ibaluleke njengezithiyo zokuvikela emishini yengcindezi ephezulu. Zingaba wusizo kakhulu ekuguqulweni kokufuduka kwengcindezi kube amasiginali kagesi. Ama-diaphragms we-LHSP avame ukwenzelwa ukuvula ezingcindezi eziqondile, ukwenza kube wusizo ezinhlelweni ezidinga izilinganiso zengcindezi ezinembile kakhulu. Imishini yezokwelapha esekwe engcindezi nezinhlelo ezisebenza ezindaweni ezimbi kakhulu nazo ziyazuza ekusetshenzisweni kwama-diaphragms we-LHSP.

Izinhlobo Zomthunywa We-Insiml

Sisebenzisa izindlela ezimbili zamathuluzi ezikhethekile kakhulu ukwenza ama-diaphragms wensimbi esezingeni eliphezulu. Indlela esetshenzisiwe incike kakhulu ebubini obuhlosiwe bengxenye nevolumu yokukhiqiza elindelwe.

Ithuluzi yensimbi-to-Rubber

Nge-prototyping, isampula, kanye nemithamo yokukhiqiza ephansi engaphansi kuka-50 000 minyaka yonke, Ithuluzi lensimbi-to-rubber lifanelekile kuma-diaphragms anobukhulu obukhulu kunamasentimitha angu-0.0015. Le nqubo ayibiza kakhulu kunezinye izindlela zokuthuluzi futhi ilungele ukukhiqizwa okusheshayo okuncane kwezinto ezinembile kakhulu.

Ithuluzi yensimbi-to-Metal

Ithuluzi lensimbi-to-simbi lilungele imithamo yokukhiqiza edlula izingxenye ezingama-50 000 minyaka yonke, futhi ye-diaphragms enobukhulu obungaphansi kwamasentimitha angu-0.0015. Lolu hlobo lwethuluzi lungathembelwa kubo ukukhiqiza izinto ezinembile kakhulu ngaphakathi kokubekezelelana okuqinile kokuphakama kwe-burr, ukumiswa kwengxenye, nokuqina.

Izicelo Nekhono Le-Metal Diaphragms

Ama-diaphragms wensimbi asebenza okuhlukahlukene kakhulu futhi anokusetshenziswa okubanzi kwemishini nemishini yezimboni, amadivayisi wezokwelapha, nama-transducers wengcindezi. Ukusetshenziswa okuvamile kwama-diaphragms wensimbi kufaka:

Abalawuli bezingcindezi

Ukuguqulwa kokuhamba kube yizimpawu zikagesi

Isithiyo sokuvikela uketshezi

Ulwelwesi oluguquguqukayo lwamaphampu oketshezi

Izithiyo ezivikelayo namaphuzu okuhluleka

Ngenxa yokuqina kwabo okuhlanganisiwe nokuguquguquka kwabo, Ama-diaphragms wensimbi angakhuthazelela ukuhamba ngebhayisikili okuphindaphindwayo ngezigidi zezinhlamvu futhi ayakwazi ukwenza i-operatiI-ng ngokunembile ezindaweni ezimbi kakhulu lapho zingavezwa khona ekuguquguqukeni okubanzi kokushisa, izinto ezonakalisayo, kanye nengcindezi eyedlulele.

Amakhono ethu obunjiniyela nawokukhiqiza angabikho okwesibili futhi abasebenzi bethu abaqeqeshiwe kakhulu bazibophezele ekukhiqizeni okunembile kwengcindezi ethembekile Ama-transducers avela ekwakhiweni kokuqala ngokusebenzisa i-prototyping nokukhiqizwa kokugcina. Ithuluzi lethu lokushintsha ngokushesha lisivumela ukukhiqiza imikhiqizo ehlukahlukene ngasikhathi sinye ngokushintsha ngokushesha nokunciphisa isikhathi sokuhola amas.

Sigxile ekuhlaziyweni nasekuklanyweni kwezixazululo zokuzwa ingcindezi zokuhlangabezana nezidingo ezahlukahlukene zamakhasimende ethu. Funda okwengeziwe ngathi ukuze ufunde ngokuzibophezela kwethu emakhambini amasha.

Ukuthola ulwazi olwengeziwe nge-diaphragms yethu yengcindezi yensimbi kanye namanye ama-transducers wengcindezi yekhwalithi, Xhumana namuhla noma ucele isicaphuno.
