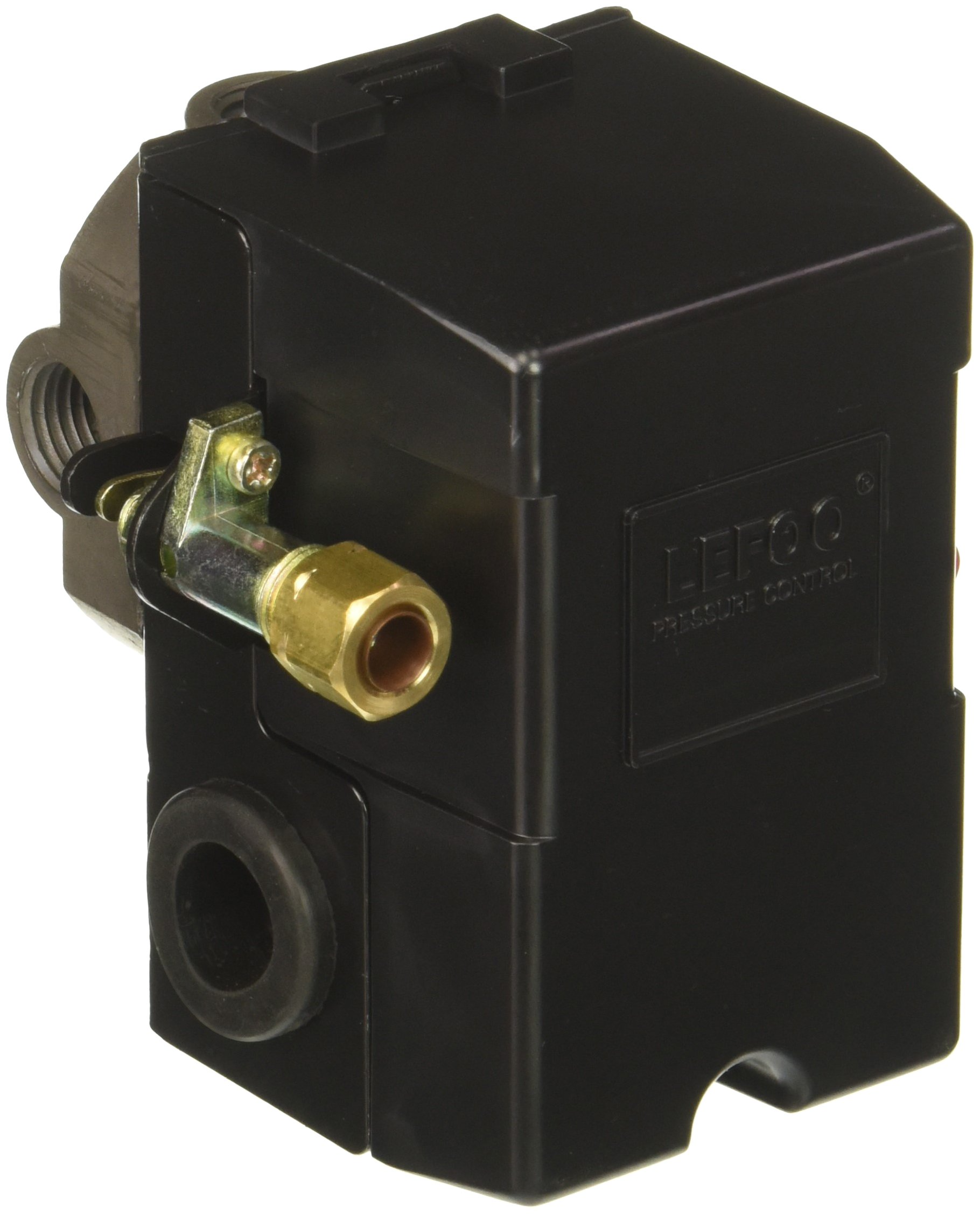

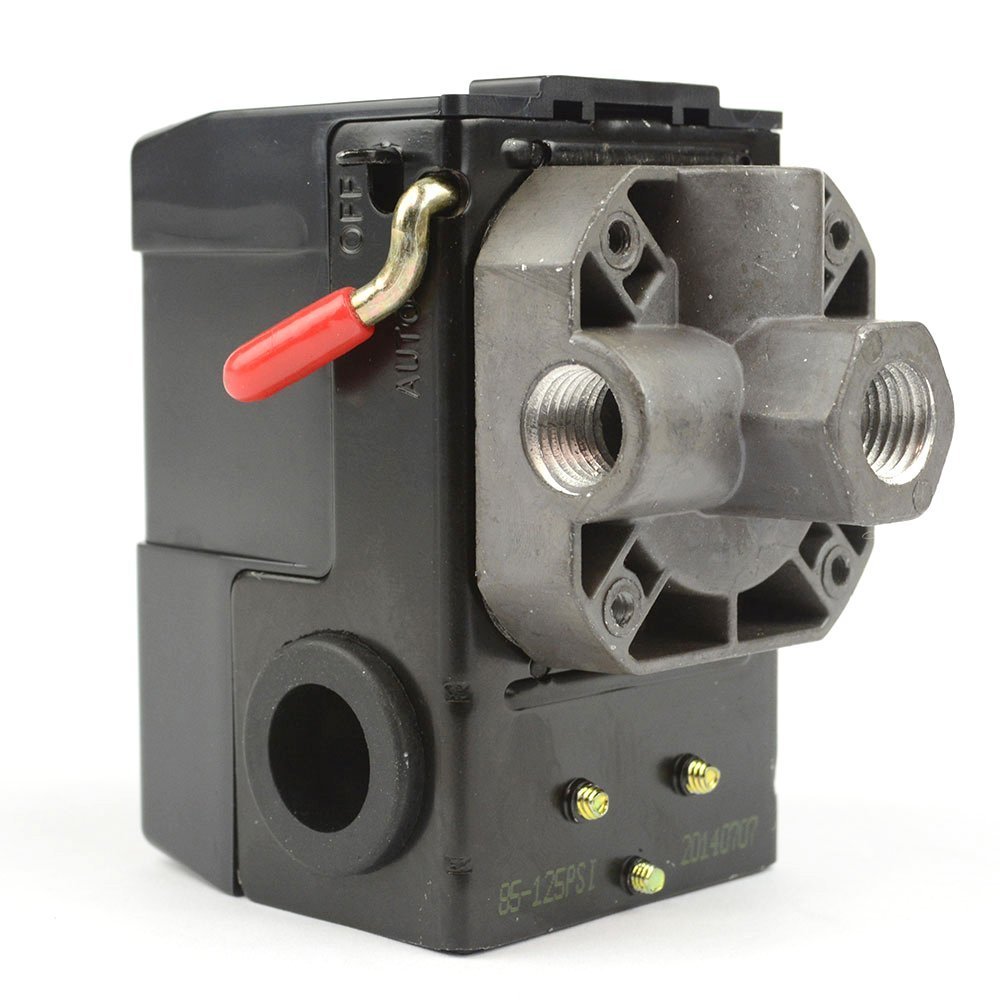

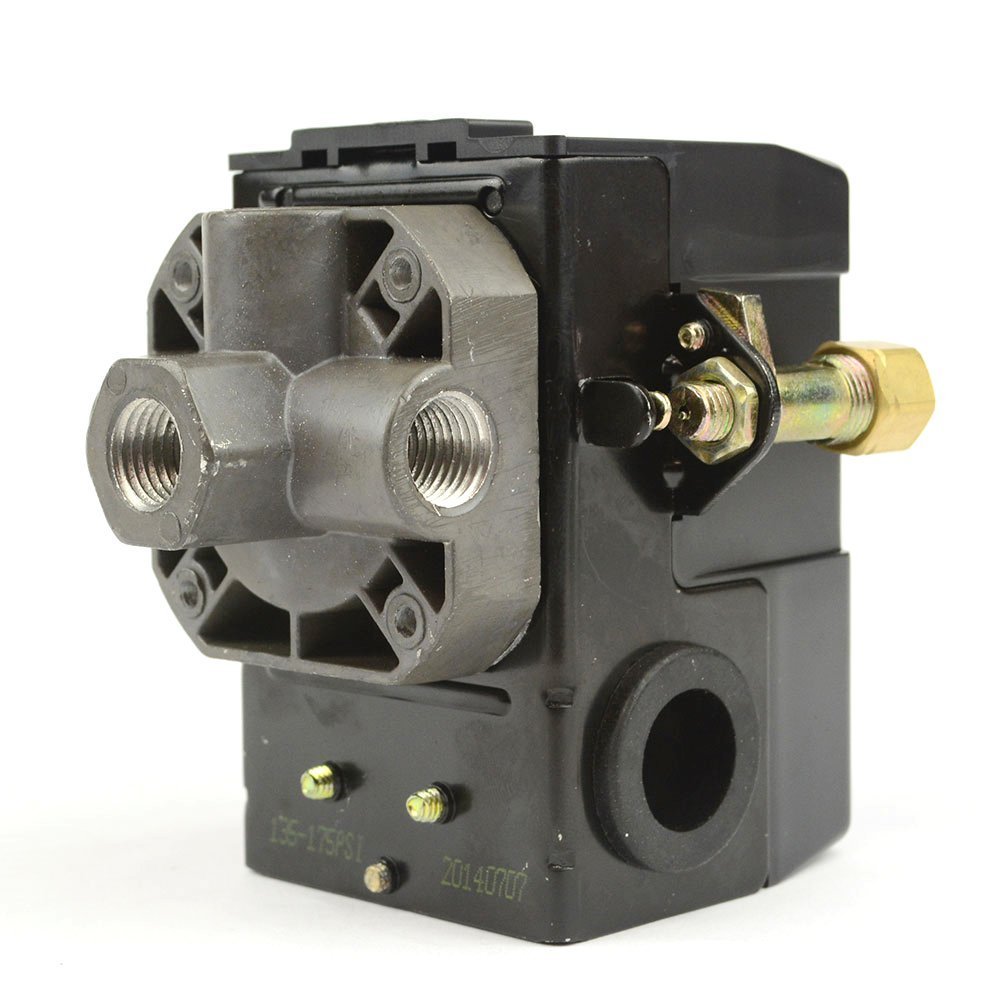

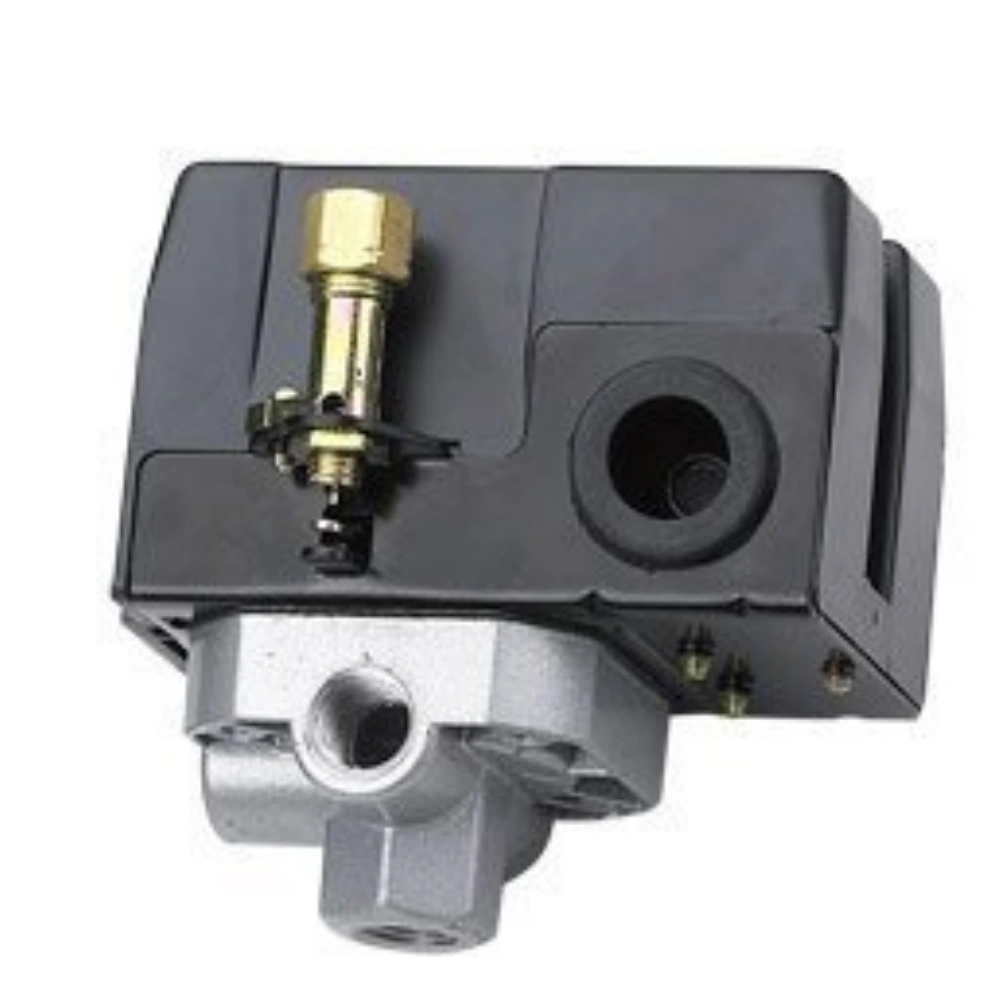

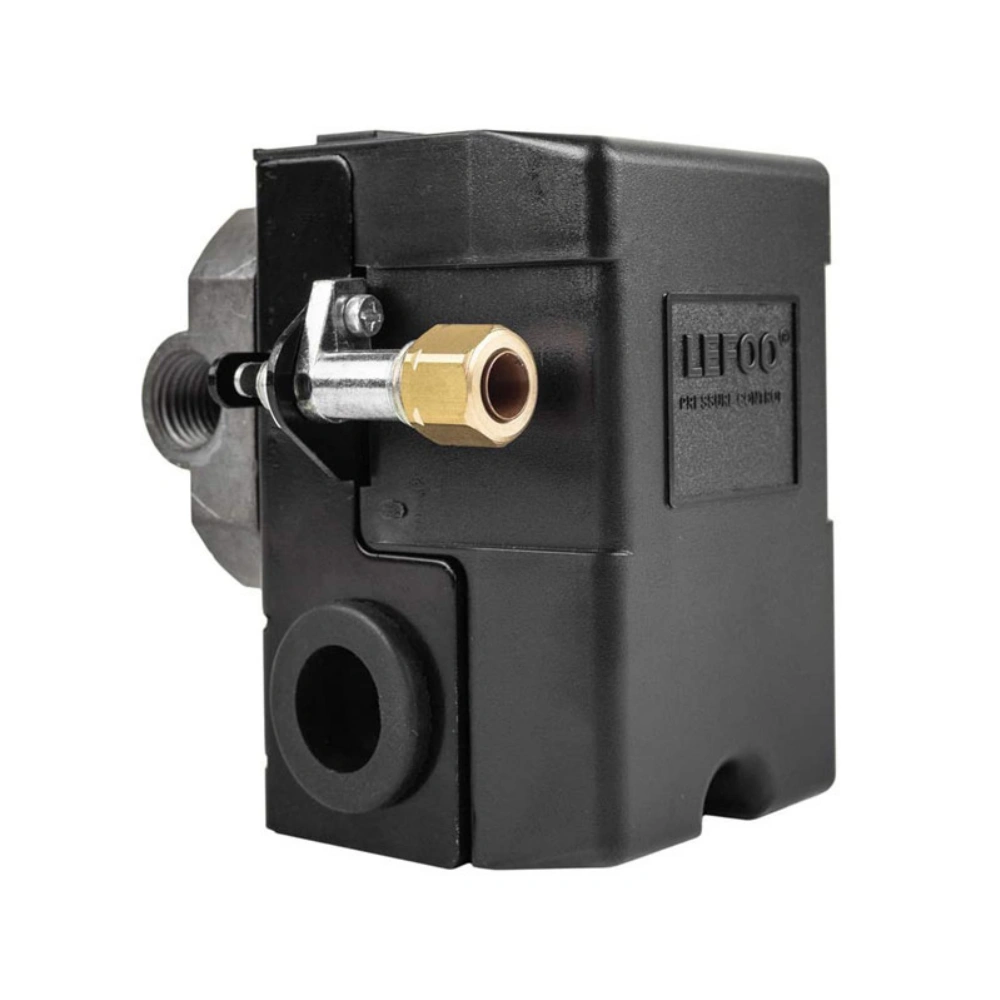

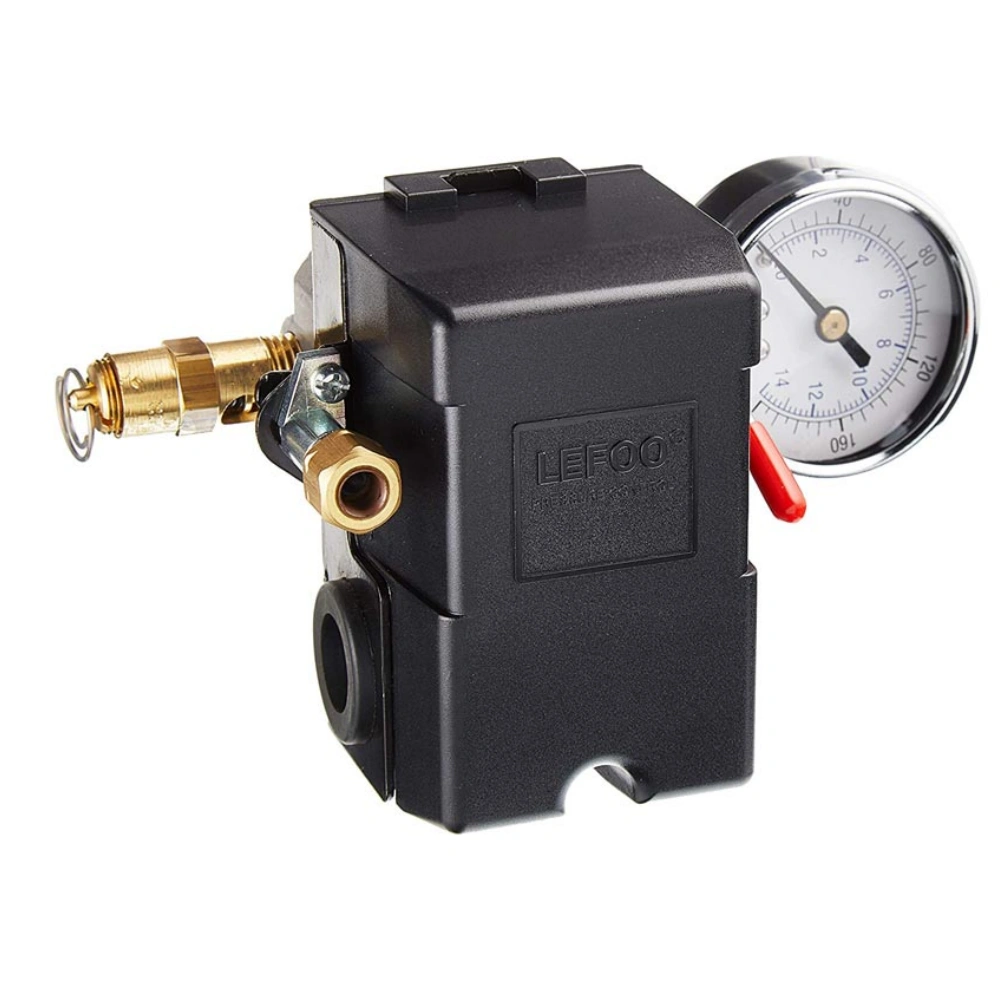

Lefoo I-Compressor Yomoya Iswishi Yokucindezela LF10

Name: I-Compressor Yomoya Iswishi Yokucindezela LF10
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

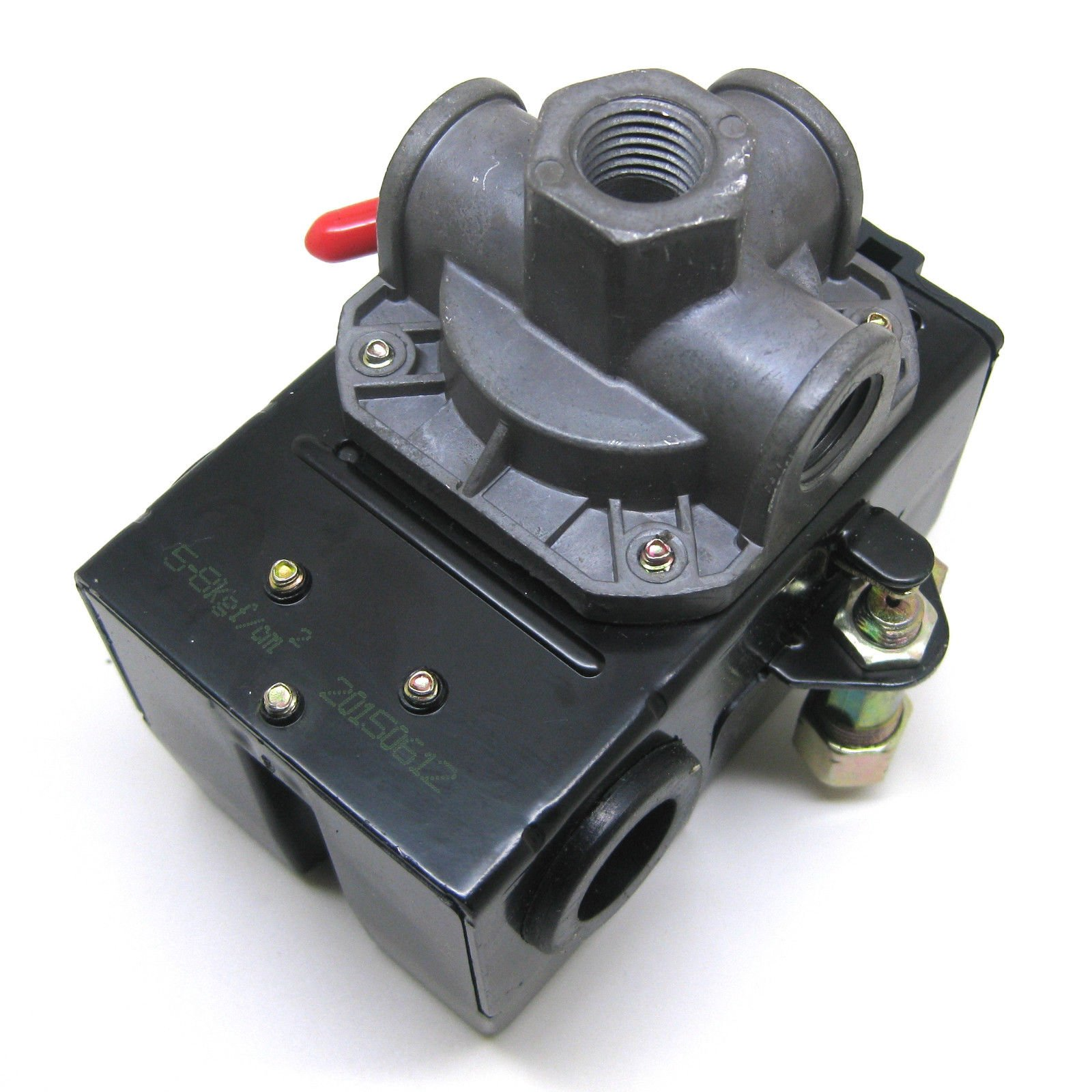

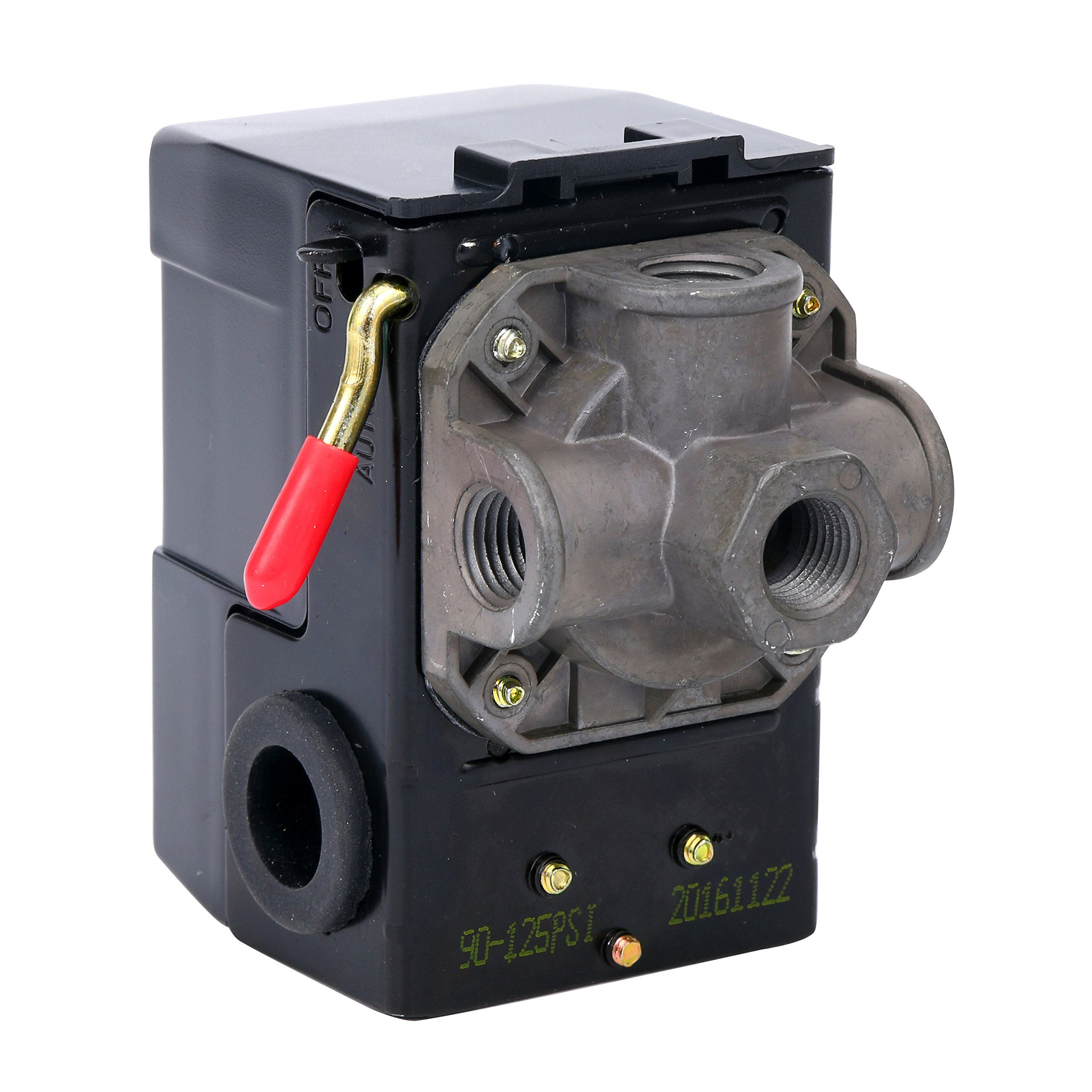

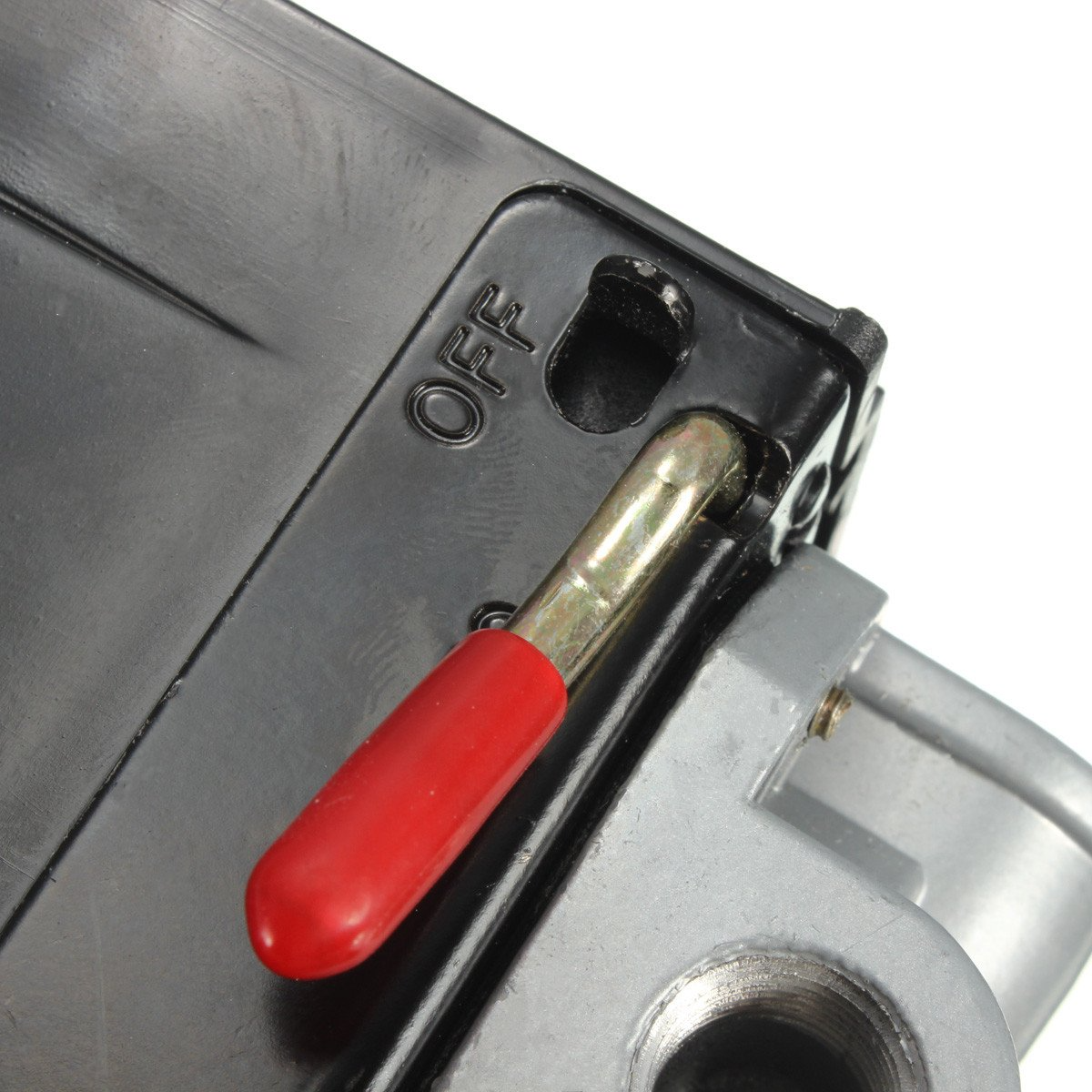

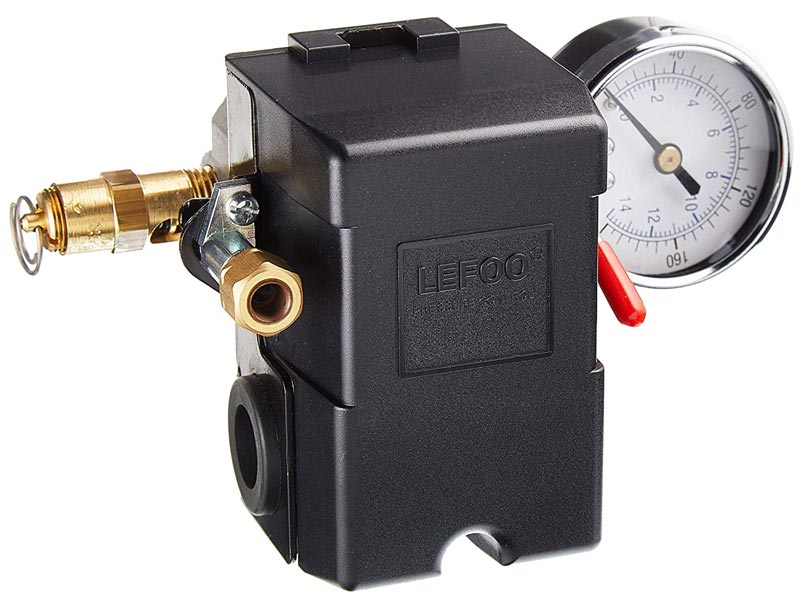

I-valve yokulawula iswishi yomfutho womoya we-LF10 iyithuluzi elihlanganisa ukuzwa komfutho ngomshini kanye nokuvula nokuvala okunembayo ekusetshenzisweni komfutho ophezulu. Inezici zokusebenza okulula, ukonga izindleko, ukuzinza, kanye namazinga okusebenza ayizigidi eziyikhulu (0.1 million). Emkhakheni we-umkhiqizi weswishi yomfutho, i-26 Amp LEFOO LF10 28-175 PSI, i-air compressor, iswishi yomfutho, i-valve yokulawula ene-manifold yokuxhuma ene-port ezine. Iswishi ebaliwe iyiswishi yomfutho esikhundleni esisebenza jikelele ethatha indawo yezinhlobo ezinjenge-Furnas, Square-D, nezinye. Lesi swishi sifakwe i-valve yokukhipha umfutho (unloader valve), i-manifold yokufaka ene-port ezine, kanye nenduku yokuvula nokuvala (on/off lever). Lokhu kufana neswishi yomfutho evamile ene-port ezine, kodwa lesi swishi sifakwe ama-contact asindayo angu-26 Amp ukuze kube neswishi ehlala isikhathi eside ezimweni ezinzima. I-manifold ene-port ezine ikunikeza ithuba lokuyifaka kunoma iyiphi indlela futhi inethuba lokungeza i-valve yokukhipha umfutho (relief valve), i-gauge, noma ama-port amaningi okuphuma komoya. Lawa ma-port angavalwa uma engadingeki, yilokho okwenza lesi swishi sibe iswishi yomfutho esikhundleni esihle kakhulu. I-valve yokukhipha umfutho efakwe kulesi swishi isetshenziselwa ukukhipha umfutho womoya ekhanda le-compressor lapho i-iswishi yokunqamula i-air compressor ivala, ngale ndlela uma iqala akukho mfutho ku-piston futhi i-compressor iyakwazi ukuqala ingenawo umthwalo. Le valve ngokuvamile inomugqa we-1/4" wopulasitiki noma wethusi ohamba uye ku-check valve noma ekhanda le-compressor. Uma i-compressor yakho ingenawo umugqa wokukhipha umfutho, le valve ingashiywa ingaxhunywa futhi iswishi yomfutho izosebenza kahle. Lesi swishi singasetshenziswa ku-compressor yesigaba esisodwa noma emibili inqobo nje uma i-amperage ingaphansi kwama-26 amps ku-120 volt noma ku-240 volt, kodwa-ke, uma lokhu kusetshenziswa ne-magnetic starter ku-compressor enkulu, i-amperage ayinankinga, kulokhu isetshenziselwa ukuvula nokuvala i-starter ngomfutho omisiwe.

Thola Isicaphuno

Umdluliseli

Impompu

Ukucaciswa
Izici:
Isisebenziso

Ukucaciswa kokushintshwa Kwengcindezi Yomoya Umoya

MODELI	Okuncane (Cut-In) I-PSI	I-Max (Cut-Out) I-PSI	Okuhlukileyo I-PSI	Ukusetha i-PSI	Ukulinganiswa kukagesi		Izindlela zamapayipi	Ukuhlelwa Koxhumana
MODELI	Okuncane (Cut-In) I-PSI	I-Max (Cut-Out) I-PSI	Okuhlukileyo I-PSI	Ukusetha i-PSI	120VAC	240VAC	Izindlela zamapayipi	Ukuhlelwa Koxhumana
LF10-1H1	25	100	20-30	50-80	20A	12A	I-NPT 1/4 Owesilisa noma i-NPT	NC
LF10-1H2	35	150	30-40	85-115	20A	12A	1/4 "Owesilisa noma owesifazane i-NPT	NC
LF10-1H3	50	175	35-55	110-150	20A	12A	1/4 "Owesilisa noma owesifazane i-NPT	NC
LF10-4H1	25	100	20-30	50-80	20A	12A	1/4 "Owesifazane NPT (4 Port)	NC
LF10-4H2	35	150	30-40	85-115	20A	12A	1/4 "Owesifazane NPT (4 Port)	NC
LF10-4H3	50	175	35-55	110-150	20A	12A	1/4 "Owesifazane NPT (4 Port)	NC

MODELI	Okuncane (Cut-In) I-PSI	I-Max	I-PSI ehlukile	Ukusetha i-PSI	Ukulinganiswa kukagesi		Izindlela zamapayipi	Ukuhlelwa Koxhumana
		(Cut-Out) I-PSI			120VAC	240VAC
LF10A-1H1	25	100	20-30	50-80	26A	26A	I-NPT 1/4 Owesilisa noma i-NPT	NC
LF10A-1H2	35	150	30-40	85-115	26A	26A	1/4 "Owesilisa noma owesifazane i-NPT	NC
LF10A-1H3	50	175	35-55	110-150	26A	26A	1/4 "Owesilisa noma owesifazane i-NPT	NC
LF10A-1H4	70	200	40-55	130-175	26A	26A	1/4 "Owesilisa noma owesifazane i-NPT	NC
LF10A-4H1	25	100	20-30	50-80	26A	26A	1/4 "Owesifazane NPT (4 Port)	NC
LF10A-4H2	35	150	30-40	85-115	26A	26A	1/4 "Owesifazane NPT (4 Port)	NC
LF10A-4H3	50	175	35-55	110-150	26A	26A	1/4 "Owesifazane NPT (4 Port)	NC
LF10A-4H4	70	200	40-55	130-175	26A	26A	1/4 "Owesifazane NPT (4 Port)	NC

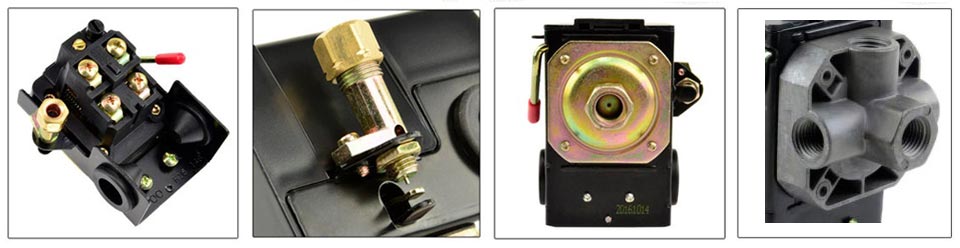

Izici ze-Air Compressor Pressure Switch

Isilinganiso sokusebenza ngokwezifiso

Ukunemba okuphezulu, ukumelana nokudlidliza, umjikelezo womsebenzi we-0.1 million.

Ukulawulwa kwe-valve okuzenzakalelayo

Izilungiselelo zokucindezela ezilungisiwe

Isakhiwo esihlangene	I-Vent	I-Singal	Amachweba amane

Ukusetshenziswa Kwengcindezi Yokucindezela Umoya

Ukulawulwa Okuzenzakalelayo Kwe-Air Compressor, i-Vacuum pomp, ipompo zamanzi Ezimboni.

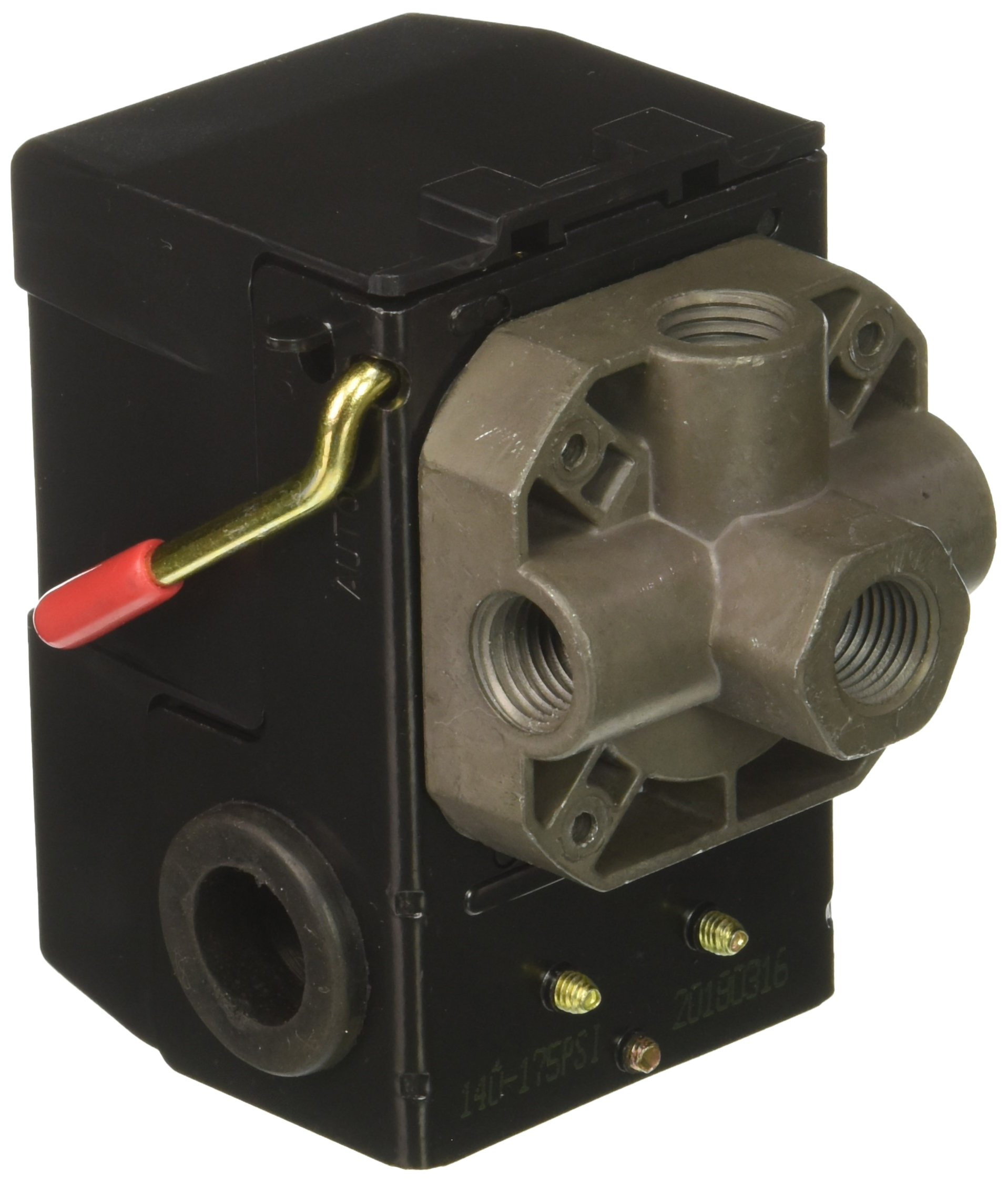

Isibonelo, Lesi switch senziwe ngokwezifiso futhi siza kusethwa ngaphambilini ukuguqula i-compressor ku-140 PSI bese sivalwa ku-175 PSI. Lokhu kungalungiswa kunoma iyiphi ingcindezi ngaphakathi kwefektri encane kanye namaphuzu asethiwe aphezulu abhalwe ngezansi. Sinesithombe esibonisa umdwebo wokulungiswa kwengcindezi. Ukuchazwa: 175 PSI • UKUPHELA UKUPHILA: I-35-55 PSI • ¼ "I-MPRESSION UNLOADER VALVE CONNECTION• ¼" FEMALE NPT TANK CONNEC UKUPHATHI NGE-3 EXTRA 1/4 "MEALE NTP PORTS. • MAX AMPS, 26 AMPS AT 120VOLT / 26 AMP AT 240 VOLT (Indawo Yokuqala) • 2-5 / 8 "Ubanzi (Uphoyinti Omkhulu) • 3-3 / 4 "(Phansi kweManifold kuya phezulu kweLid)
