Umsakazi Womehluko Wengcindezi LFT2050

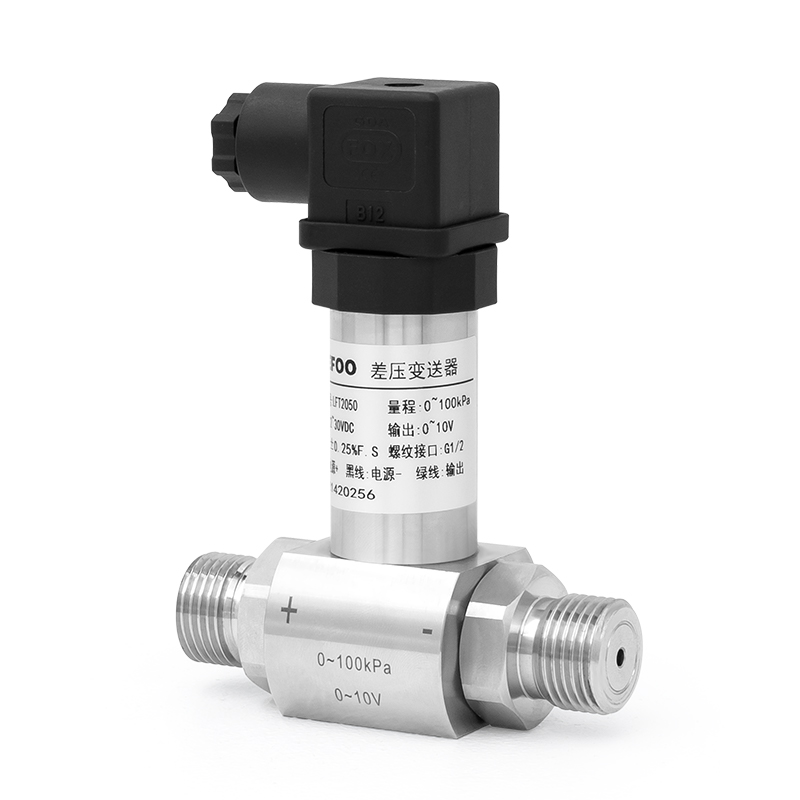

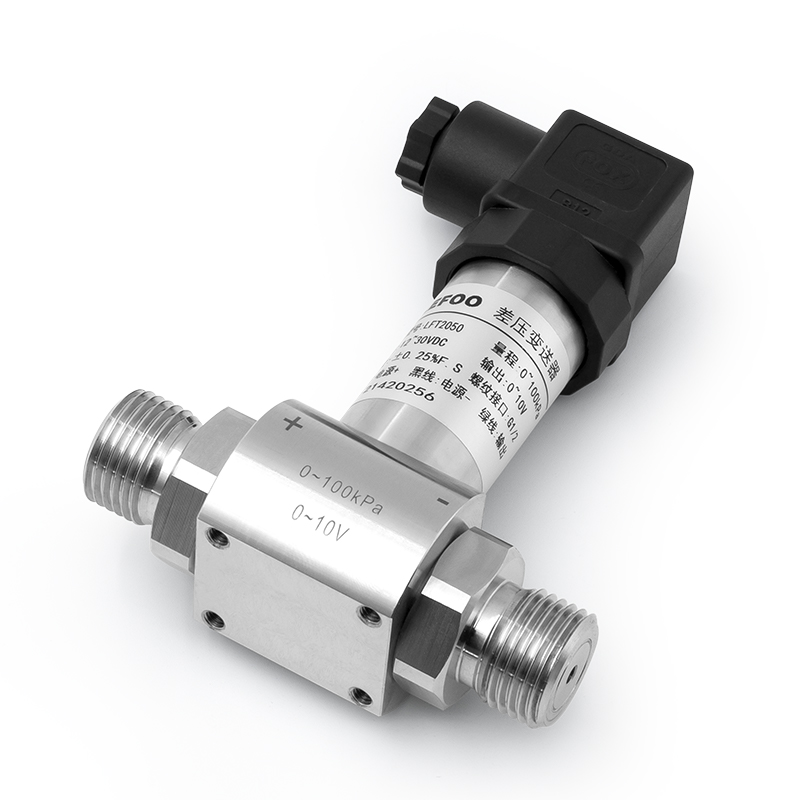

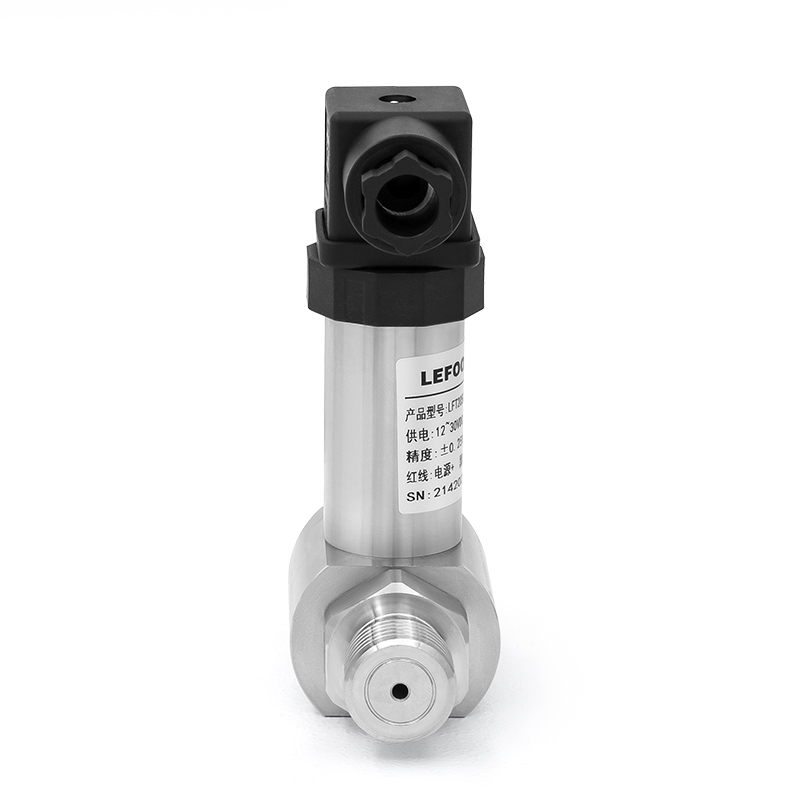

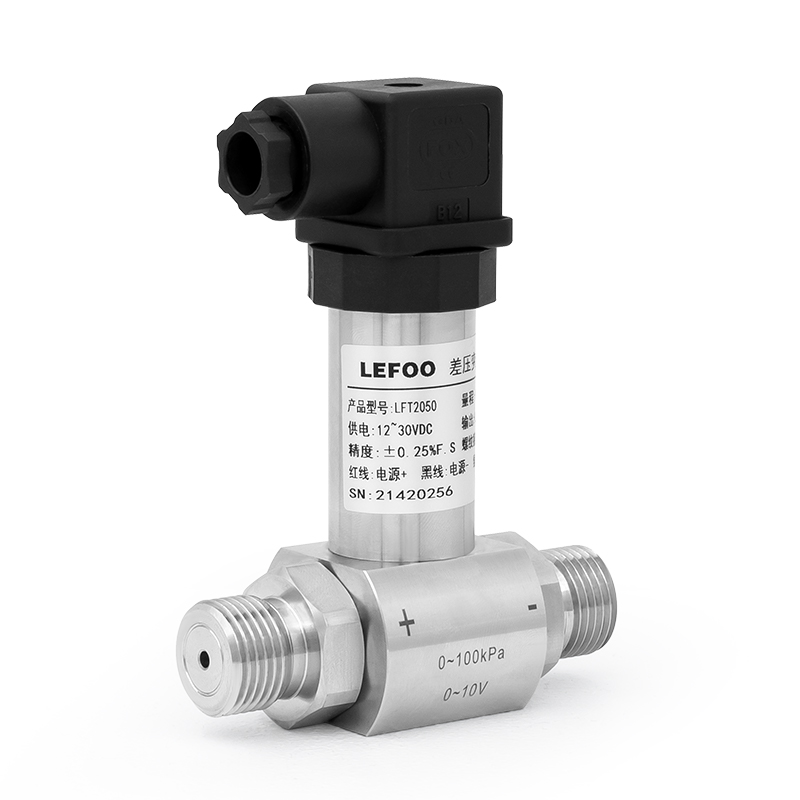

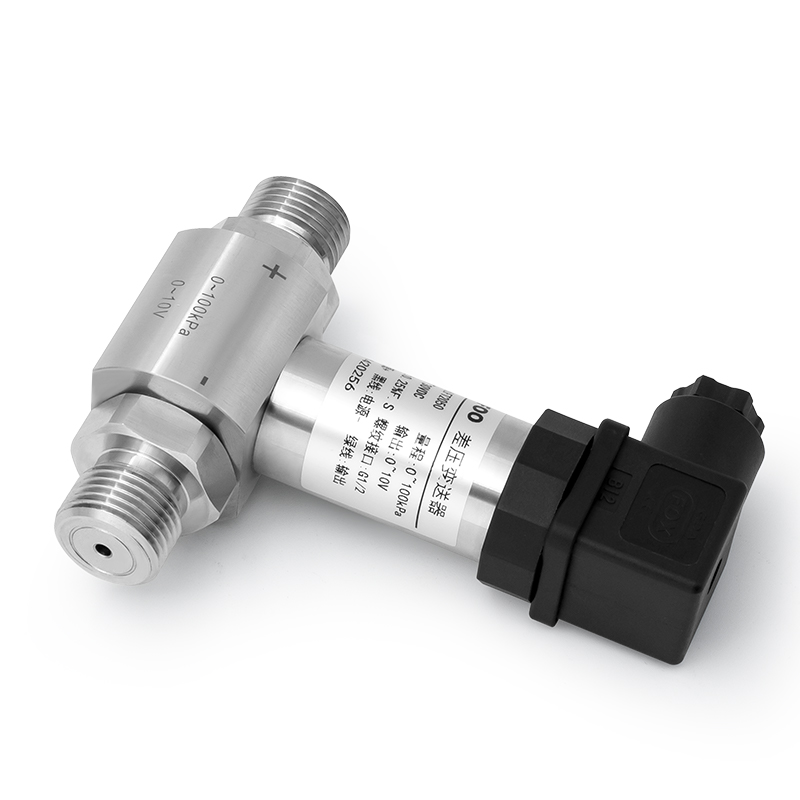

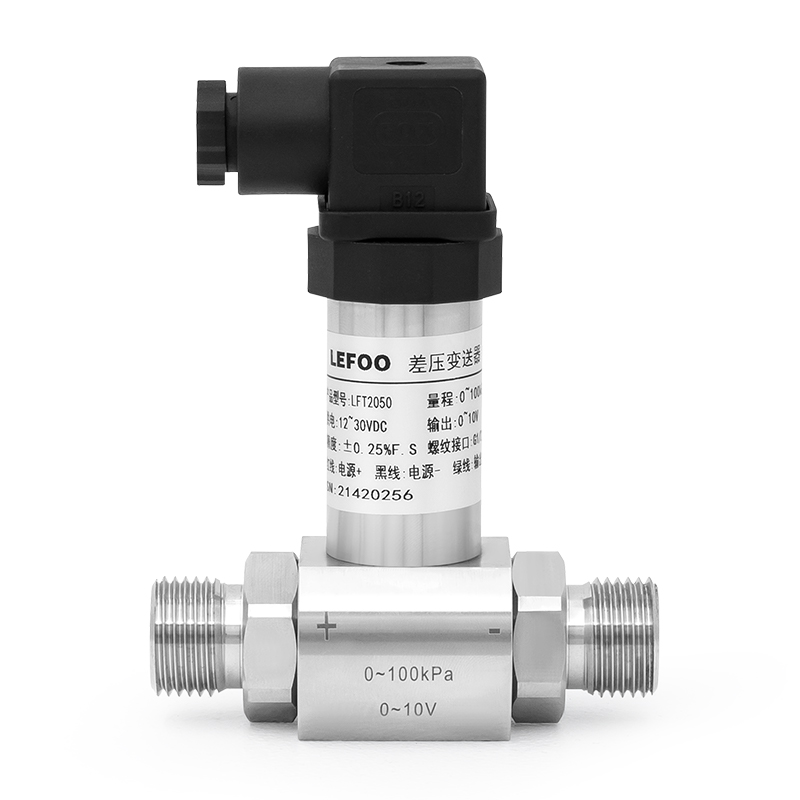

Lefoo Umsakazi Womehluko Wengcindezi LFT2050

I-LEFOO LFT2050 differential pressure transmitter isebenzisa izinzwa ze-silicon piezoresistive differential pressure njengezingxenye eziyinhloko, futhi ikhipha amasiginali ajwayelekile ezimboni ngokusebenzisa isinxephezelo sezinga lokushisa, ukulungiswa kwesekethe yedijithali, nokulungiswa kwesignali. Igobolondo lisebenzisa isakhiwo sensimbi engagqwali ngokuphelele, elinamandla okumelana nokugqwala. Lo LFT2050 differential pressure transmitter umkhiqizo unomklamo othuthukile, ubuchwepheshe obuphelele, imishini eyinkimbinkimbi, uzinzile futhi unokwethenjelwa, futhi usetshenziswa kabanzi ekulawuleni izinqubo zezimboni, ukulinganisa ukugeleza, amathuluzi ezokwelapha, ukulinganisa i-aerodynamic, imishini ye-hydraulic ne-pneumatic, nezinye izindawo.


Izici

* Ihlanganisiwe futhi kulula ukuyifaka

* Uzinzo oluphezulu, ukukhukhuleka okuphansi

* Izinhlobo ezahlukene zokwakhiwa ongakhetha kuzo

* Ingasetshenziswa ezinhlelweni zezimboni

Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Izisebenziso

Ukucaciswa kokudlulisa Ingcindezi ehlukile LFT2050

Ukulinganisa kwezobuchwephesha

I-LEFOO ehlukile Ukudlulisa Umfutho LFT20500
Ubanga lokulingana0 ~ 10 kPa…3.5MPa
Ingcindezi Yokulayisha KakhuluIzikhathi eziyi-1.5 zesikali esigcwele.
Ukuqondisa± 0.25% F.S. (100 kPa ~ 3.5MPa) / ± 0.5% F.S. (0 ~ 100 kPa)
Ukuzima<0.5%F.S./Nyaka
Ukushisa Okusebenzayo-10℃ ~ 60 ℃
Izinga lokushisa-40 ~ 100℃
OkuphakathiIgesi noma uketshezi oluhambisana ne-S304, 316L, injoloba ye-fluoro noma injoloba ye-nitrile
Ukusebenza kukagesiIzintambo ezimbiliIzintambo ezintathuIzintambo ezine
Isibonakaliso esikhitshayo4 ~ 20mA0-10VRS485
Ukunikezwa Kwamandlanje10 ~ 36 VDC12 ~ 36 VDC10 ~ 30 VDC
Ukuxhumana kukagesiI-DIN43650A (Big Hirschmann), i-M12 Waterproof outlet, Isixhumi sezindiza se-GX12 (ama-cores amathathu / ama-cores amane),
Isixhumi sezindiza ezine ezine
Ukuxhumana KwengcindeziG1 / 4 、 NNPT1/4 、 R1 / 4 、 G1 / 2 、 7 / 16-20UNF 、 M20 * 1.5 、 M10 * 1 、 M14 * 1.5 njll.
Ifomu IngcindeziUkuqinisekiswa okuhlukile u-D
Isigaba sokuvikelaIP65
IsiqinisekisoI-RoHS, amazinga okuphepha kagesi we-EU CE

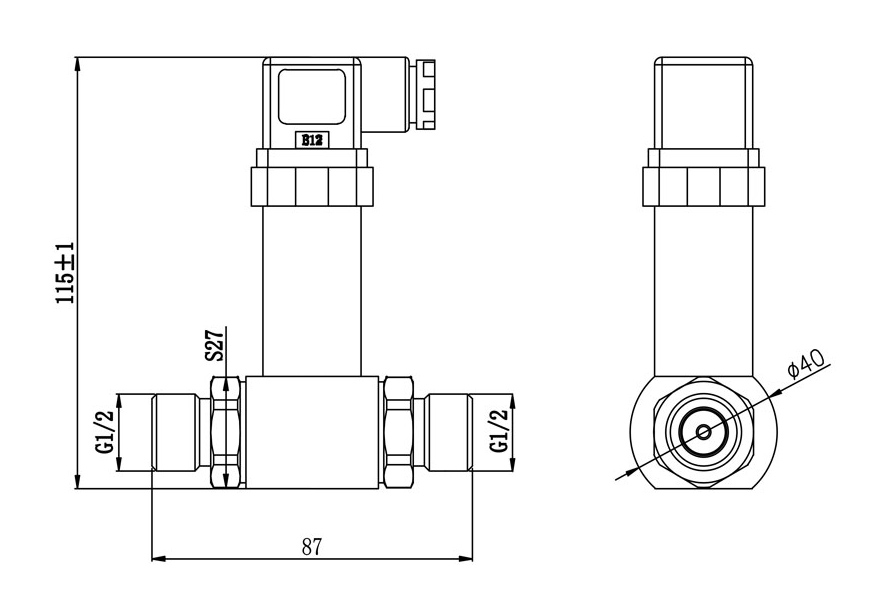

Ubungakho


Umhlahlandlela wokukhetha

Ikhodi nencazeloAmagqaba
LFT2050Isidluliseli Sokucindezela OkuhlukileImodeli

Ububanzi0 ~ 10 kPa…3.5MPaUbubanzi

A4A4 = 4 ~ 20 mA (Izintambo ezimbili)Ukukhiqiza
V10V10 = 0 ~ 10 V (Izintambo ezintathu)
RSI-RS = RS485 (Izintambo ezine)

KK = kPaIyunithi
P.P = psi
BB = ibhar
MM = MPa

0.250.25 = 0.25% F.S.Ukuqondisa
0,50.5 = 0.5% F.S.

D1D1 = DIN43650A (Big Hirschmann)Ukuxhumana kukagesi
MM = M12 i-Waterproofs
C3I-C3 = GX12 isixhumi sezindiza ezintathu
C4I-C4 = GX12 isixhumi sezindiza ezine
HH = M12 isixhumi sezindiza ezine

GG = G1/4Ukuxhumana kwengcindezi
NIN = NPT1/4
G2G2 = G1/2
M20M20 = M20 * 1.5
M14M14 = M14 * 1.5
M10M10 = M10 * 1
U.U = 7/16-20UNF

Intambo yangaphandle

RR = R1/4

1.01.0 = 1mUbude bentababa
2.02.0 = 2m
3.03.0 = 3m


LFT20500-60A4B0.25D1G1.0
Isibonelo Sokukhetha


Izici zokudlulisa Ukucindezela Okuhlukile LFT20500

  • Qinisekisa futhi kulula

  • Ukuzinza okuphezulu, ukuhamba okuphansi

  • Izakhiwo ezahlukahlukene okufanele zikhethe

  • Kungasetshenziswa ezinhlelweni zezimboni

Izicelo zokudlulisa Ingcindezi ehlukile LFT2050

Isetshenziswa kabanzi ekuhlolweni kwengcindezi yokuhlukaniswa kwamanzi. Okufana nokuhlolwa kokugeleza. Ukwelashwa kwamanzi, ukuhlolwa kwengcindezi yokukhipha imayini. Ukushisa kwamanzi kokulawulwa kwezikhukhula kwedolobha lamanzi kanye nokuhambisa amanzi, ubunjiniyela ngaphansi kwamanzi, ukuhlolwa kwamanzi ngaphansi kwamanzi, ukunisela kokulondoloza amanzi, Ukulawulwa kokugcina komoya ophakathi nendawo, ect.
