Lefoo Isidlulisi somfutho esinemba ephezulu LFT2010

Name: Isidlulisi somfutho esinemba ephezulu LFT2010
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

I-LEFOO LFT2010 iyithuluzi lokucindezela elinembe eliphakeme elisebenzisa i-diffusion silicon core egcwele uwoyela enembile kakhulu, futhi ihlolwa ngokuzenzakalela ngomshini wekhompyutha. Ukulungiswa kwe-zero point kanye nokusebenza kwezinga lokushisa ebangeni elibanzi lokushisa kwenziwa nge-laser resistance trimmer. Leli thuluzi lokucindezela elikagesi linembe eliphakeme, ikhwalithi ephezulu, usayizi omncane, futhi lifakwa kalula. Lisebenzisa i-MCU enamandla aphansi nokusebenza okuphezulu, uphawu lokucindezela lutholwa futhi luguqulwa lube uphawu lwe-analog ejwayelekile olukhiphayo.

Ithuluzi lokucindezela elinembe eliphakeme lisetshenziswa kabanzi ekulinganiseni ukucindezela kukawoyela emanzini ezinhlelweni zokuhlola ezinembe eliphakeme ezifana nezomlilo, ukwelashwa kwamanzi, izinhlelo zokuhambisa amanzi, ama-compressor omoya, izinto eziphefumulayo, kanye ne-automation yasefekthri.

Izici

* Sebenzisa i-diffusion silicon core egcwele uwoyela enembile kakhulu futhi enomthamo omkhulu wokugcwala.

* Sebenzisa ubuchwepheshe obukhethekile bokulungisa izinga lokushisa.

* Ukumelana nokugqwala nokugqekezeka okuhle kakhulu.

* Ukunemba komkhiqizo kungafinyelela ku-0.1%.

Thola Isicaphuno Layisha phansi i-PDF

Umdluliseli

Impompu

Ukucaciswa
Izici:
Izisebenziso

Ukucaciswa kokuthunyelwa kwengcindezi ephezulu kwe-LFT10

Ukulinganisa kwezobuchwephesha

I-LIFOO Ephakeme Ukucindezela Okunembile I-Transducer LFT10
Ubanga lokulingana	0 ~ 0.1 ~ 4MPa
Ukulayisha ngokweqile	Izikhathi eziyi-1.5 zesikali esigcwele.
Ukuqondisa	± 0.1% F.S.
Ukuzima	<0.1% F.S./Nyaka
Ukusebenza.	-20 ~ 85℃
Izinga lokushisa	-40 ~ 100℃
Ukuvumelana Okuphakathi	Zonke izindlela ezonakalisayo zingahambisana ne-304/316 insimbi engagqwali, iFloroelastomer noma i-NBR.
Ukukhiqiza	Izintambo ezimbili	Izintambo ezintathu		Izintambo ezine
Isibonakaliso esikhitshayo	4 ~ 20mA	0 ~ 5V	0 ~ 10V	RS485
Ukunikezwa Kwamandlanje	10-36VDC	10-36VDC	14-36VDC	10-30VDC
Ukuxhumana kukagesi	I-DIN43650A (Big Hirschmann), i-M12 yokuphumela amanzi, Isixhumi sezindiza se-GX12 (ama-cores amathathu / ama-cores amane), isixhumi se-M12 esine semikhumbi
Isigaba Sokuvikela	IP65 、 IIP67
Ukuxhumana kwengcindezi	G1 / 4 、 NNPT1 / 4 、 R1 / 4 、 G1 / 2 、7 / 16-20UNF 、 M20 * 1.5 、 M10 * 1 、 M14 * 1.5etc.
Ifomu Ingcindezi	Ingcindezi yegage G
Isiqinisekiso	Uhlobo lokuqhuma kwezokuphepha u-E, i-RoHS, amazinga okuphepha kagesi we-EU CE

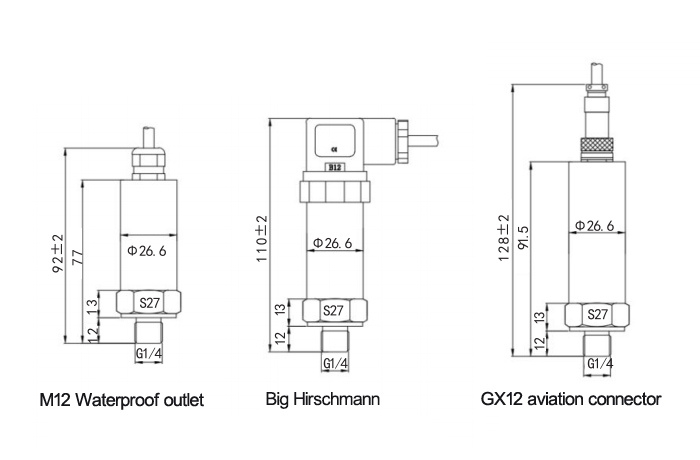

Ubungakho

Umhlahlandlela wokukhetha

Ikhodi nencazelo									Amagqaba
LFT10	Isizwa Sokucindezela Okunemba Okuphakeme								Imodeli
	Ububanzi	0 ~ 0.1 ~ 4MPa							Ubanga lokulingana
		A4	A4 = 4 ~ 20 mA (Izintambo ezimbili)						Ukukhiqiza
		V0	V0 = 0 ~ 5V (Izintambo ezintathu)
		V10	V10 = 0 ~ 10 V (Izintambo ezintathu)
		RS	RS = RRS485 (Intambo emine)
			K	K = kpa					Iyunithi
			P.	P = psi
			B	B = baR
			M	M = Mpa
				0.1	0.1 = 0.1% F.S.				Ukuqondisa
					D1	D1 = DIN43650A Big Hirschmann			Ukuxhumana kukagesi
					M	M = M12 i-Waterproofs
					C3	I-C3 = GX12 isixhumi sezindiza ezintathu
					C4	I-C4 = GX12 isixhumi sezindiza ezine
					H	H = M12 isixhumi sezindiza ezine
						G	G = G1/4		Ukuxhumana kwengcindezi
						G2	G2 = G1/2
						NI	N = NPT1/4
						M20	M20 = M20 * 1.5
						M10	M10 = M10 * 1
						M12	M12 = M12 * 1
						R	R = R1/4
						U.	U = 7/16-20UNF Intambo yangaphandle
							1.0	1.0 = 1m	Ubude bentababa
							2.0	2.0 = 2m
							3.0	3.0 = 3m

LFT10	0-30	A4	B	0.1	D1	G	1.0		Isibonelo sokukhetha

Izici ze-High Accuracy Pressure Transmitter LFT10

Thola umgogodla we-silicon ogcwele uwoyela onokunemba okuphezulu futhi amandla aphezulu okulayisha
Usebenzisa ubuchwepheshe obukhethekile bokunxephezelwa kwezinga lokushisa
Ukuwohloka okuhle kakhulu nokugqoka ukumelana
Ukunemba komkhiqizo kungafinyelela ku-0.1%

Isidlulisi sokucindezela siqala ngokukhethwa kwenzwa, futhi i-LEFOO ikunikeza izidlulisi zokucindezela ezisezingeni eliphakeme ngokusebenzisa amasheke amaningi
