Lefoo Umthumeli wokushisa kanye nomswakama enombukiso LFH30

Name: Umthumeli wokushisa kanye nomswakama enombukiso LFH30
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

Izingxenye ezibucayi ze-LFH30 zokudlulisa izinga lokushisa nomswakama zisebenzisa ama-capacitor akhiwe ngefilimu ye-polymer angeniswa kwamanye amazwe kanye nama-resistor azwela izinga lokushisa i-PT1000. Ukumbozwa okukhethekile okuphefumulayo kanye nenqubo yokujovwa kwe-SMD kungenza isiqinisekiso sokusebenza isikhathi eside kweprobe endaweni enothuli, ukungcola kukasawoti kanye nokujiya okuphezulu komswakama. Lesi sithwebuli esinembile sokushisa nomswakama sikalwe ngobuchwepheshe obuvuthiwe bokulinganisa umswakama nokushisa ukuqinisekisa ukunemba. Sifanele izakhiwo ezihlakaniphile ezisezingeni eliphezulu, izinkomba, ama-dehumidifier ezimboni kanye nezinye izindawo.

Isici

*Ukunemba kokulinganisa umswakama kungafinyelela ku-±2%RH.

*Ama-capacitor omswakama angeniswe kwamanye amazwe angamelana nokujiya nokungcola.

*Umphumela wokushisa okungakhethwa osetshenziswayo.

*Induku yeprobe yensimbi engenasici engakhethwa, isihlungi socingo lwensimbi engenasici/esindiwe, eqinile futhi ivimbela ukuvaleka.

*Isitifiketi se-CE, IP65, isitifiketi se-ROHS.

Thola Isicaphuno Layisha phansi i-PDF

Umdluliseli

Impompu

Ukucaciswa
Izici:
Izisebenziso

Ukucaciswa kwezinga lokushisa ne-Humidity Transmitter nge-Splay LFH30

I-LIFOO Amazinga okushisa kanye ne-Humidity Transmitter nge-Splay LFH30
Ubuzwe Obuhlobene		Ukushisa
Umqondisi	I-Somidity Senucative Capacitor	Umqondisi	I-Pt1000 noma ukumelana nokushisa , Bheka i-oda Ref No.
Ububanzi	0% ~ 100%RH	Ububanzi	0 ~ 50℃, -20 ~ 60℃Njlle
Okukhishwayo	RS485 / Modbus, 0 ~ 10 VDC, 4-20mA	Okukhishwayo	4-20mA, 0-10VDC, RS485 / Modbus Optional
Ukuqondisa	± 2% @ 20℃ & 20 ~ 80% RH	Umsebenzi Imvelo	-20 ~ 60℃, 5%-95% RH (Ayi-condensing)
Isikhathi sokuphendula	≤10s (20℃, ukugeleza komoya okuncane)	Ukushisa Ukumelana nolo	Bheka i-Order Ref No. Ithebula lokukhombaya
Ukufakwa komkhiqo Nhlobo	Uhlobo lwe-LFH301 olufakwe ngodonga	Umthwalo wokukhishwayo	≤500 Ω (uhlobo lwamanje), ≥ 2KΩ(Uhlobo lwe-Voltage)
		Ukuqondisa	Inzwa yedijithali: 0.3℃ @ 5 ~ 60℃; Uhlobo lokumelana nokushisa: Okujwayelekile: ± 0. 2 ~ 0. 4℃ @ 25℃; Bona i-Order Ref No.
Ukufakwa komkhiqo Nhlobo	Uhlobo lwe-LFH302 Duct	Bonisa Bona	Isiboniso se-LCD sokuzikhethela, nesibonisi seyunithi nokukhanya emuva (4-20 mA ngaphandle kokukhanya emuva)
		Ukunikezwa kwamandlane	Uhlobo lwe-RS485: 9 ~ 35VDC / 24VAC 20%	Uhlobo lwe-voltage: 12-35 VDC124VDC 20%
Ukufakwa komkhiqo Nhlobo	Uhlobo LFH303		Uhlobo lwe-exter: 19.5 ~ 35VDC (RL = 500 Ω) / 9.5VDC (RL = 00)
		Ibanga Lokuvikela	IP65
Izinto zeShell	Izindlu ze-PC, isihlungi se-PC ne-polymer (Indudu yensimbi engagqwali i-prcbe, i-sintered / ingagqwali insimbi ye-mesh fiter)

UKUPHANDLE KWA.
Ikhodi nencazelo									Amagqaba

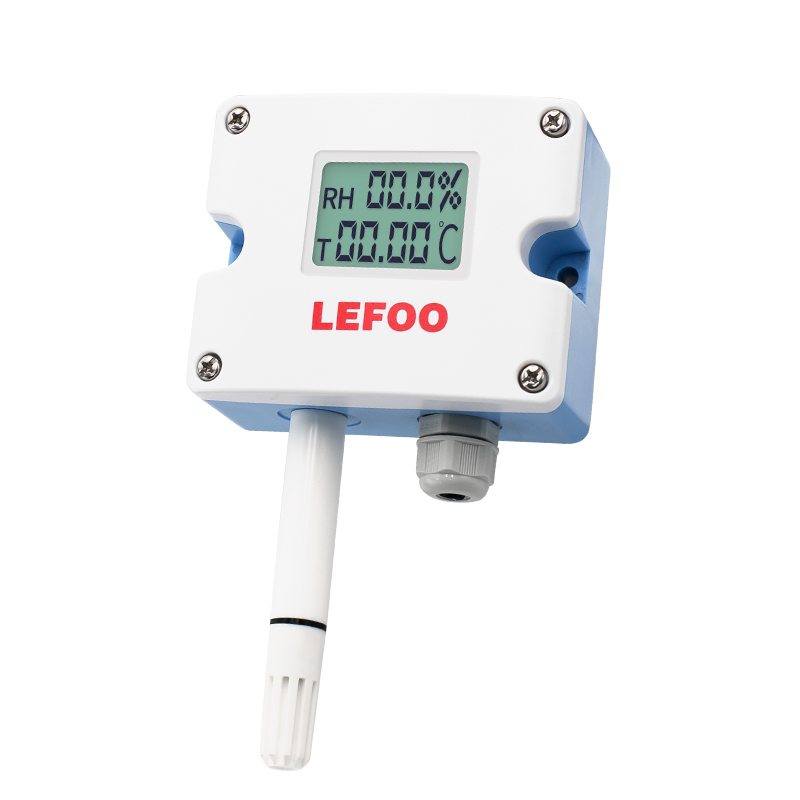

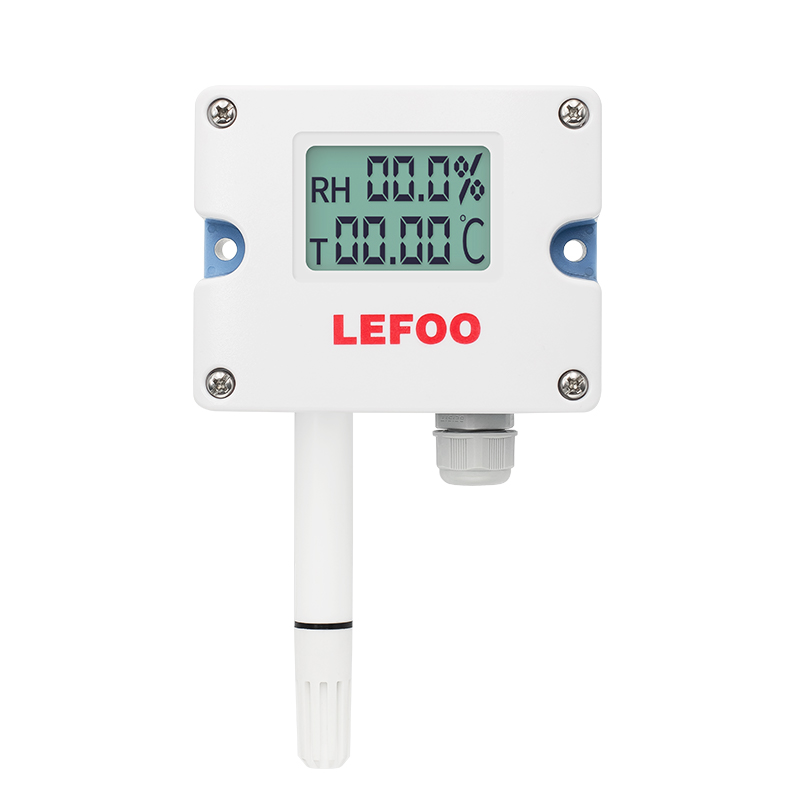

LFH301 -	Isidlulisi sohlobo lokushisa nohlobo olufakwe ngodonga								Imodeli

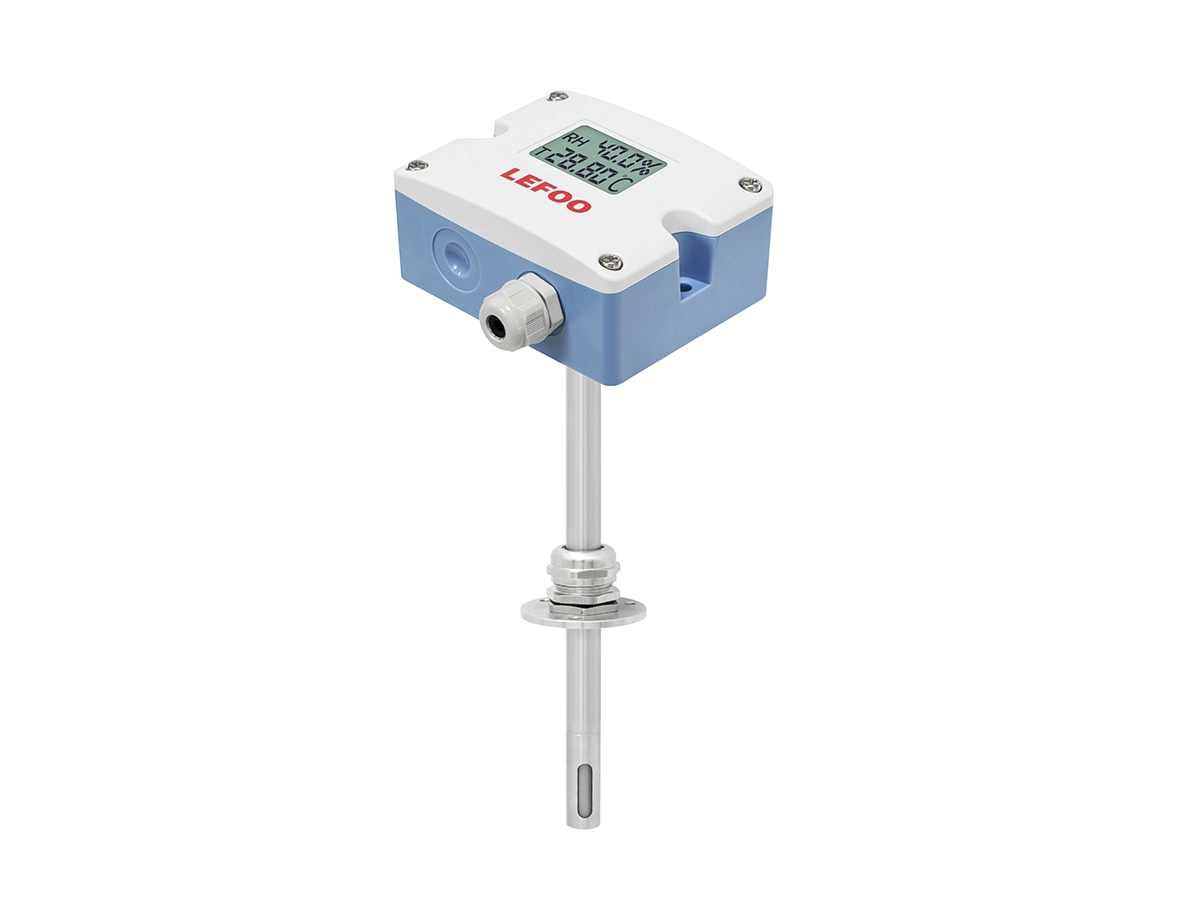

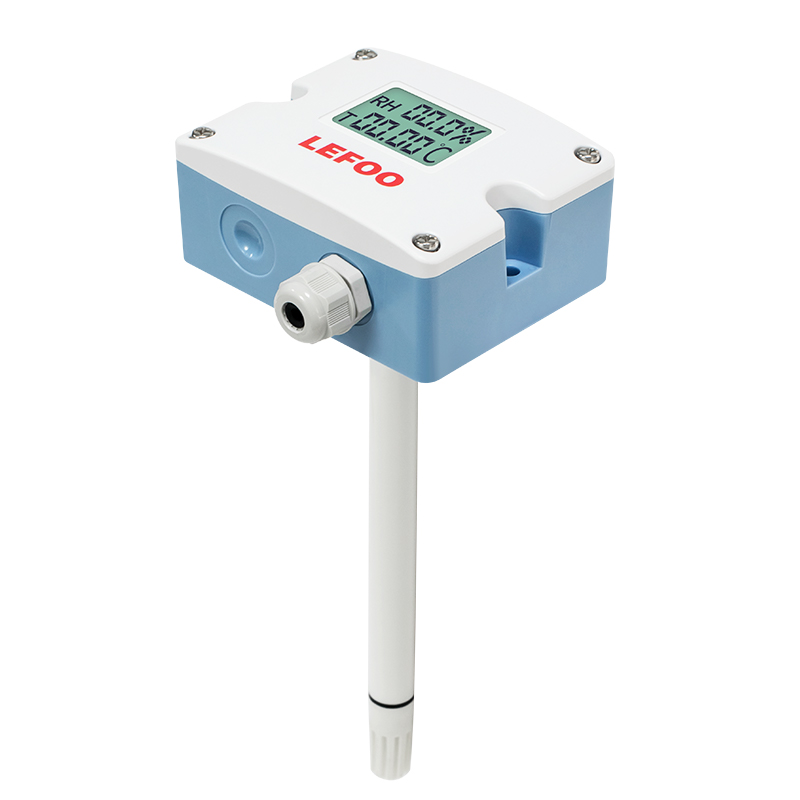

LFH302	Ukushisa kohlobo lwe-Duct nokudlulisa komswama

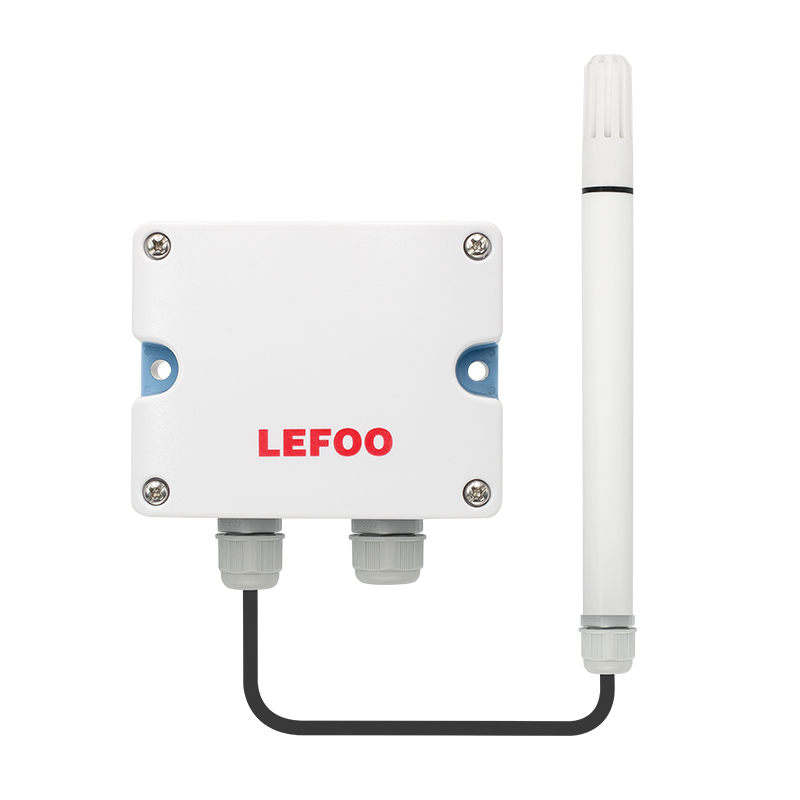

LFH303 -	Hlukanisa uhlobo lokushisa nokudlulisa komswamo
	2	± 2% RH (0.3℃)							Ibanga lokuqondisa
		V10	0 ~ 10 VDC (3-with)						Ukukhishwa kwe-Humidity
		A4	4 ~ 20mA (2-with)
		RS	RS485 / Modbus
			V10	0 ~ 10 VDC (3-with)			0	PT1000,± 2℃@ 0℃	Ukukhishwa kokushisa
			A4	4 ~ 20mA (2-wired)			1	PT100,± 2℃@ 0℃
			RS	RS485 / Modbus			2	I-NTC20K,± 4℃@ 25℃
							6	I-NTC10K,± 4℃@ 25℃
				0	HO				Ububanzi bokushisa
				1	0~ 500℃
				2	Kususa 20℃~ 60℃
				8	Abanye (isisebenzisi sichaziwe)
					0	Isiboniso			Bonisa isimo
					1	Isiboniso se-LCD
LFH301 -	2	A4	A4	1	1				Isibonelo sokukhetha

1. Kufanele kukhethwe kuphela lapho inketho yokukhipha okushisa kuyi-V10 noma i-A4, ibanga lokushisa elihambelanayo ngo-1-8; kungenjalo, kuphela u-0 ongakhethwa.

2. Isibonelo se-LFH301-2A4A411 simele uhlobo olufakwe ngodonga, ukunemba 2% RH (0. 3

Namabanga okushisa 0-50°CNgombukiso.

3. Ukuvezwa kwenzwa yenzwa yalo mkhiqizo ekugxileni okuphezulu kwamagesi wamakhemikhali isikhathi eside kungadala ukufundwa kwenzwa ukushisa ft.

4. Lapho ukhetha ukushisa kwensimbi nokudlulisa komswakama, kufanele kucaciswe imininingwane yenduku yensimbi nekhava yangaphambili.

Izici zezinga lokushisa ne-Humidity Transmitter nge-Display LFH30

Ukulawulwa kokunemba kwe-Humidity, iphutha liyi- ± 2% RH kuphela, linembe kakhulu.
I-capacitor ebucayi yomswakama engenisiwe, akukho ukukhathazeka nge-condensation, ikhono eliqinile lokulwa ne-fouling.
Ukukhishwa kokushisa okuguquguqukayo, imodi engasebenzi ingakhethwa ngokuthanda.
Induku yokuhlola insimbi engagqwali, isihlungi sensimbi esine-sintered / esingenasimbimbi, isikhathi eside nokulwa nokuvimba.
Isitifiketi se-CE kanye nesitifiketi se-ROHS sesitifiketi esibili samazwe omhlaba, i-IP65 yokungenwa amanzi nokungavimbi uthuli, okuluhlaza nobungani bemvelo.

Ukusetshenziswa Kwezinga lokushisa ne-Humidity Transmitter nge-Splay LFH30

Ukuqapha kokushisa kanye neHumidity. Izindawo zokusebenza ngokuvamile zinjenge-campus yebhizinisi, imidlalo yaseshashalazini neminyuziyamu, igumbi lesitoko, i-workshop, amahholo kanye nesiteshi esingaphansi komhlaba, Iphrojekthi yokuhamba kwezitimela, igumbi elihlanzekile lesibhedlela, Igumbi leBoiler

I-Temperature Humidity Transmitters isetshenziswa ku-PLC, dehumidifier, i-air conditioner ephezulu ejwayelekile, amaphrojekthi wokusekela ingqalasizinda, I-Metlurgical Automation, imishini yokudweba
