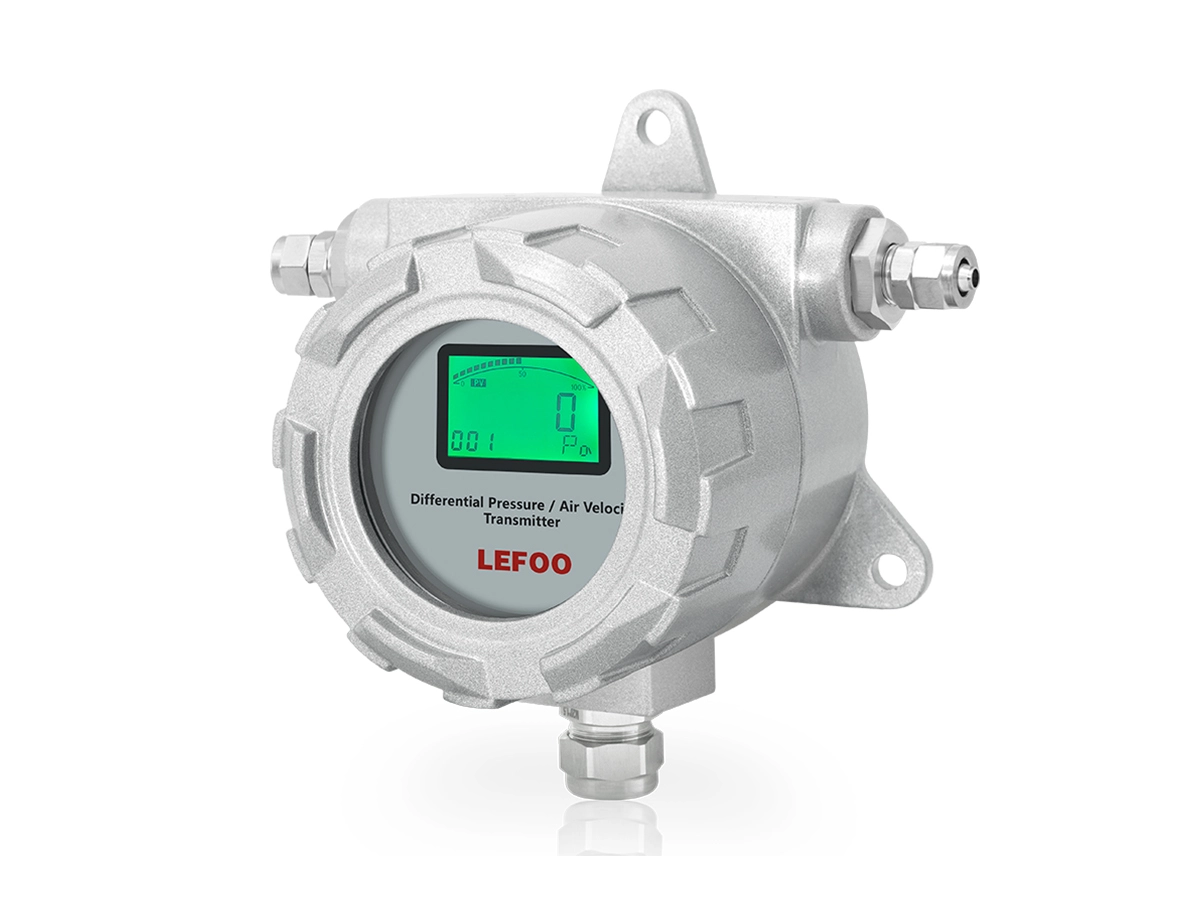

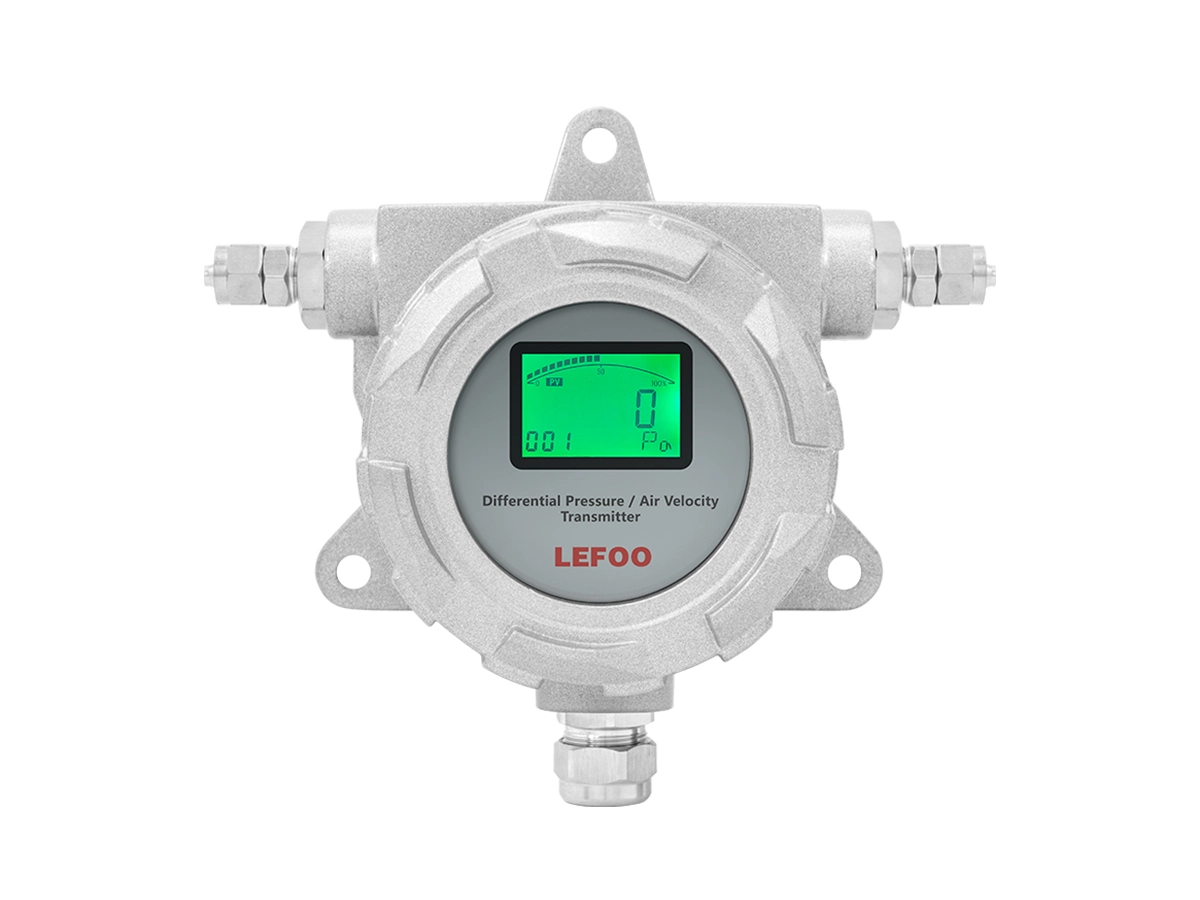

I-Explosion-proof Differential Pressure Transmitter LFM77

Lefoo I-Explosion-proof Differential Pressure Transmitter LFM77

I-LFM77 i-Explosion-proof Differential Pressure Transmitter iwumshini onembile futhi ozinzile oklanyelwe indawo enengozi yokudubula. Ihlonyiswe ngezilinganiso zokucindezela eziningi ezikhethwayo nokulungiswa kalula endaweni ngezinkinobho. Isebenzisa i-ip65 housing, le LFM77 Explosion-proof differential pressure transmitter ifanele amasistimu okuphatha amandla, i-HVAC, i-VAV nokulawula ama-fan, ukulawula ukungcoliswa kwemvelo, ukulawula ukucindezela nesmoke hood yamapayipi angashintshi kanye negumbi elihlanzekile, ukufaka umfutho we-oven, nokulawula ukuvuleka kwe-boiler.


Izici

* Sebenzisa i-MEMS micro pressure core, ngokunemba okuphezulu nobubanzi bokushisa obubanzi;

* I-LCD digital display enokufunda okucacile;

* Inkinobho ye-Zero iyatholakala, ububanzi bokucindezela buyalungiseka;

* Ukuzinza okuqinile, impilo ende yesevisi;

* Indawo yokuvikela ye-lP65 housing.


Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Izisebenziso

Ukucaciswa kokuqhuma okuhlukile kokuhanjiswa kwengcindezi i-LFM77

Ukulinganisa UphakathiUmoya noma igesi engathathi hlangothi
Uhla lwengcindezi± 100Pa ~±10000Pa (ukuhleleka)
Ngaphezulu kwe-Voltage10KPa; 80KPa (LFM77-3)
Ukuqondisa± 1.0% FS
Ukushisa Okusebenzayo-20℃-80 ° C
Izinga lokushisa-10℃ ~ 60℃
Izinga lokushisa-40℃ ~ 85℃
Isikhathi sokuphendula0.5s (okuzenzekelayo) / 1.0s / 2s / 4s
Isiqu SokuvikelaIP65
Ukuxhumana KwengcindeziInsimbi engagcwalisi 1/2 "ukuxhumana okusheshayo
Isibonakaliso esikhitshayo4-20mA / 0-10VDC / RS485
Ukunikezwa kwamandla①12-30VDC / 24VAC ± 20%
Ukuhlakazeka kwamandlane≤1.5W
Izinto zeShellI-Cast Aluminium
UkuxhumanaIsixhumi esijwayelekile se-RS-485, i-Modbus RTU
IsiqinisekisoROHS, CE
Isitifiketi Sokuqhuma-UbufakaziEXd lIC T6 Gb
Bonisa BonaIsiboniso sedijithali se-LCD
Isisindo (Ukulinganiselwa)1238g

① Qaphela: (Lapho umkhiqizo unikezwa amandla e-AC, kunconywa ukuthi usebenzise amandla kagesi we-AC ahlukanisiwe.)




Izici zokuphumusha Okuhlukile Ukuhanjiswa Kwezingcindezi LFM77

  • Sebenzisa umnyombo wengcindezi ye-MEMS micro, ngokunemba okuphezulu nobubanzi bezinga lokushisa elisebenzayo;

  • Isibonisi sedijithali se-LCD ngokufundwa okucacile;

  • Inkinobho ye-zero etholakala, ibanga lokucindezela elungiswayo;

  • Ukuzinza okuqinile, impilo yenkonzo ende;

  • Izindlu zokuvikela ze-lP65.


Izicelo zokuphumusha Okuhlukile Ukudlulisa I-LFM7

  • Izinhlelo zokuphathwa kwamandlanje

  • I-HVAC, VAV kanye nokulawulwa kwabafani

  • Ukulawulwa kokungcola kwemvelo

  • Ukulawulwa kwengcindezi kanye nentuthu yokulawulwa kwepayipi elimile negumbi elihlanzekile

  • Ingcindezi ye-oven

  • Ukulawula umoya we-boiler
