Intambo yokushaja izimoto zikagesi epholile ngoketshezi idinga ukulawulwa kokushisa okuthembekile. I-BLDC circulation pump yethu iletha ukugeleza okuzinzile, ukusebenza kahle okuphezulu, kanye nokuphila isikhathi eside. Ngokulawula ijubane ngokunembile nokwakheka okuhlangene, iqinisekisa ukupholisa okuphephile ezinhlelweni zokushaja ezinamandla aphezulu.
IZINTO EZIPHATHELENE NOBUCHWEPHESHE
| Uchungechunge lwamamodeli | UmkhiqizoImodeli | I-volage eklasiwe（VDC） |
Isilinganiso sokugelezae （L/Min） |
Ukuphakama (M) |
Okungaphezulu Isikhathi samanje（A） |
Okungaphezulu Amandla（w） |
Ukulungisa umsebenzi |
| LFP0XXB0-060N | LFP062B0-060N | 12 |
14 | 16 | 5.2 |
62 |
I-PWM ongayikhetha/ Ukulawula ijubane nge-5V |
| LFP070B0-060N | 15 | 18 | 5.8 | 70 | |||
| LFP083B0-060N | 15 | 20 | 6.9 | 83 | |||
| LFP090B0-060N | 15 | 24 | 7.5 | 90 | |||
| LFP1XXB0-060N | LFP162B0-060N | 24 |
14 | 16 | 2.6 | 62 |
|
| LFP170B0-060N | 15 | 18 | 2.9 | 70 | |||
| LFP183B0-060N | 15 | 20 | 3.5 | 83 | |||
| LFP190B0-060N | 15 | 24 | 3.8 | 90 | |||
| Uhlobo lwepompo | Ipompo ye-centrifugal yesigaba esisodwa, i-impeller evalekile | ||||||
| Izinga lokushisa lendawo | -40℃~+60℃ (Okungabiwaqhwa) | ||||||
| Izinga lokushisa eliphakathi | -40℃~+90℃(Okungabiwaqhwa) |
||||||
| Imidiya efanelekile | Amanzi ne-ethylene glycol engenazo izinhlayiya eziqinile nezikazibuthe | ||||||
| Ibanga lamandla okusebenza | 9~16V | ||||||
| Isigaba sokufaka i-insulation | F | ||||||
| Isigaba sokuvikela | IP67 | ||||||
| Isikhathi sokuphila | 20000H | ||||||
| Izidingo zemvelo | Akukho ukukhanya kwelanga okuqondile noma imisebe ye-ultraviolet, futhi indawo ayinawo umthombo kazibuthe. Umswakama wendawo ungaphansi kuka-95%RH. | ||||||
| Umsebenzi wokuvikela | Ukuvikela ukuxhunywa okuhlanekezelayo; Ukuvikela i-overvoltage; Ukuvikela i-undervoltage; Ukuvikela ukungabi nalayishe; Ukuvikela i-rotor evaliwe / i-overcurrent; Ukuvikela ukushisa ngokweqile. | ||||||

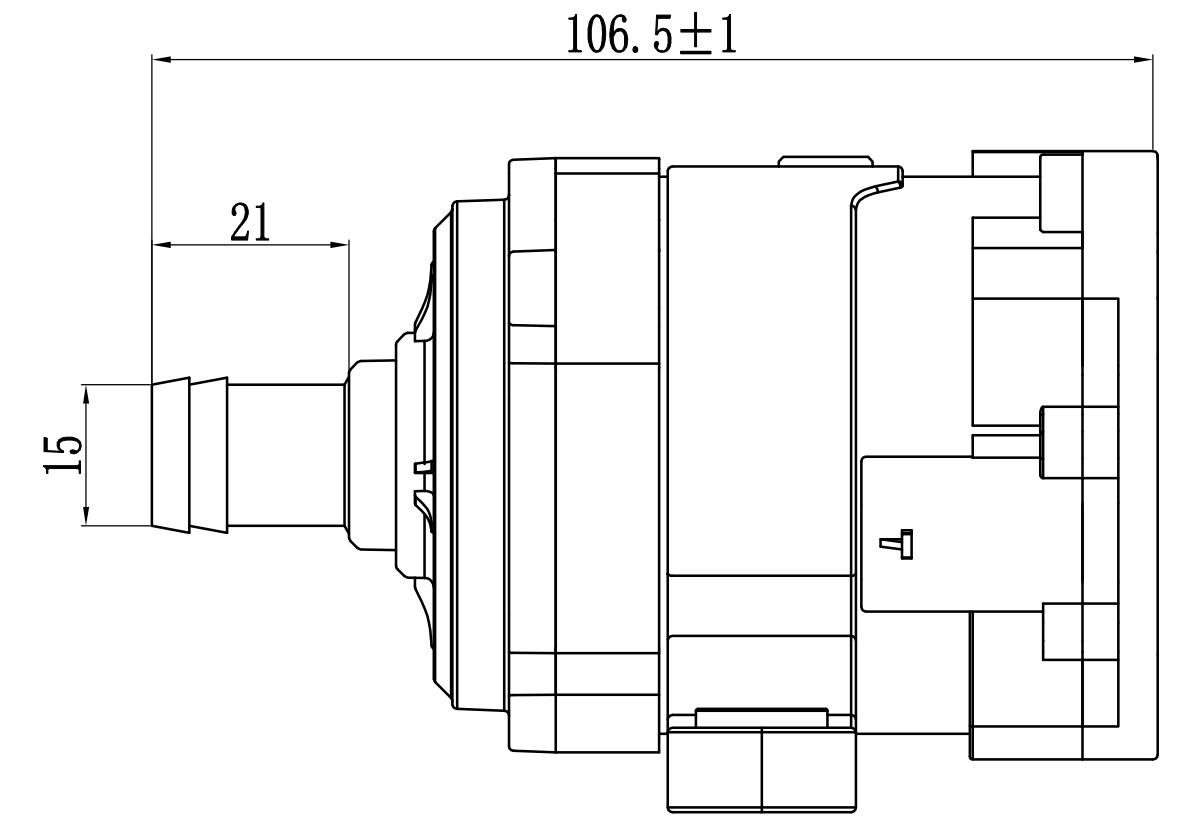

ISHADI LOBUKHULU (ububanzi: MM)
UKUFAKA
Isikhathi Sokuphila Esinde: Inhlanganisela yenjini ye-DC engenamabhulashi enezigaba ezintathu kanye nesakhiwo esizithambisayo esijikelezayo, okunokuhamba kahle kokugeleza nokuphakama okungaguquguquki. Isikhathi sokuphila singaphezu kwamahora angu-20,000. Izinto Eziphambili: Ukusebenzisa isivalo sangemuva se-aluminium alloy, amashibhu asezingeni lemoto kanye ne-MOS, ikhwalithi ithembeke kakhulu.
Umklamo omusha we-hydraulic: ukusebenza okuphezulu nokusetshenziswa kwamandla okuncane.
Izinga Elikhulu Lokuphuma, Ukuphakama Okuphezulu Kwepompo: Ukusebenzisa i-impeller evaliwe esebenza kahle kakhulu kanye nenjini yokulawula ehlakaniphile, ukusebenza kokuphuma nokuphakama kuzinzile futhi ukuphakama kwepompo kuphakeme.
Ukwenza ngokwezifiso kuyatholakala: Imisebenzi engenziwa ngokwezifiso njengokulawula isivinini kwe-PwM, ukulawula isivinini nge-0-5V, njll.
Yonke Imisebenzi Yokuvikela: Ukuvikela ukuxhunywa okuphambene; Ukuvikela i-overvoltage; Ukuvikela i-undervoltage; Ukuvikela lapho kungekho mthwalo; Ukuvikela i-rotor ekhiyiwe/ukuvikela i-overcurrent; Ukushisa ngokweqile
ukuvikela.
Izitifiketi: Ihambisana nezitifiketi ze-CE, i-RoHS, i-FDA, ne-CQC.
