Lefoo Umthumeli Wezinga Loketshezi

Izinzuzo ze-LEFOO pressure transmitter

I-pressure transmitter yizinga lokushisa okuphezuluinzwa yengcindezi ye-vacuumukusetshenziswa kokugada izinga ngokunemba. Inzwa yezinga lolwelo inikeza izilinganiso ezinembile zezinga lezixazululo ze-acidi encane nezisekelo ezincane ze-alkaline, kanye namanzi.

• Isakhiwo sensimbi eqinile eklanyhelwe ukumelana nokugqwala.

• Idiaphramu ye-ceramic emelana nokugqwala, enemba ephezulu nokuhlala isikhathi eside isetshenziswa.

• Ukufakwa okusha kwepayipi endaweni yokuxhuma kagesi, amaphutha aphansi e-static, kanye namaphutha okushisa.

• Ububanzi obubanzi bokushisa kokusebenza.

• Ukusebenza okuthembekile nokusebenzisa ugesi omncane.

UNGAKUBALA KANJANI Ukujula nezinga lama-submersible pressure transmitters

Ku-Lefoo, enye yezindawo eziphezuluabathengisi be-pressure transmitter, Idiaphramu engaphakathi kwe-high temperature pressure water level transmitter izoqhubeka nokuzwa ingcindezi eqhubekayo ye-hydrostatic kusuka phansi kwendawo yokukala bese iguqula leyo ngcindezi ibe amasiginali e-analog, njengoba amathangi amaningi amanzi esesimweni esiyindilinga, futhi ingcindezi yolwelo =ΠR²gh. Futhi ingcindezi ilingana nokuphakama kolwelo olungaphezulu kwayo. Ngakho-ke, Singakwazi ukwazi ukuphakama kwamanje kolwelo ngokwazi ingcindezi. Esimweni samanzi angaphandle noma ithangi linomoya ovulekele emkhathini, i-pressure transducer ingaphinde futhi ilungiselelwe ngezinzwa zengcindezi yamanzi zohlobo lwe-gauge ezisebenzisa ithubhu lomoya ngaphakathi kwekhebula ukuze kulungiswe ireferensi yengcindezi yendawo.

Ukukalwa kokujula nezinga kufaneleka kahle ukukalwa yi-liquid level transducer ngokuvumelana ne,LefooLapho i-transducer ibekwe endaweni yokukala (ngokuvamile ngaphansi kwe-liquid storage tank noma i-waste liquid cistern), Ingcindezi engaphansi kwethangi noma emzimbeni woketshezi ihambelana nokujula kolwelo. Le ngcindezi esezingeni elingaphansi ibizwa nge-hydrostatic pressure. Amayunithi ajwayelekile okukala ingcindezi esezingeni elingaphansi yimitha, iyintshi, noma izinyawo. Amamitha angu-0.703 wekholomu yamanzi acishe alingane no-1 PSI ku-37.8℃. Umthamo wamanzi noma isimo sethangi ngeke sibe nomthelela engcindezini esezingeni elingaphansi; Ingcindezi = amandla ahlukaniswe ngomthamo, futhi umthamo ulingana namandla. Ukujula yikho okuthinta ingcindezi. Kungakhathaliseki ukuthi amamitha angu-0.703 ukushona maphakathi nendawo enamanzi amaningi noma esitsheni esincane samanzi, izinga lengcindezi esezingeni elingaphansi liyefana. Singakwazi ukubala izinga lolwelo ethangini ngokufaka i-geometry yethangi kanye ne-specific gravity yoketshezi. Ukuminyana kwamanzi ku-37.8°celsius (100°F) = 961.107802 kg / m3. Njengoba ubona kulesi sibonelo, ingcindezi eyenziwa yikholomu yamanzi incike kuphela ebudeni bekholomu yamanzi futhi ayixhomekile emthanjeni othintekayo.

ISIBONELO

(Ubude bethangi (amamitha) / amamitha angu-0.703 ekholomu yamanzi) x ukuminyana koketshezi = Ububanzi bokukala nge-PSI

Umthombo wamanzi ojule ngamamitha angu-12 (amayintshi angu-472.44)

(12 / 0.703) x 1.00 = 17.07 PSI

Ithangi likadizili elide ngamamitha angu-12 (amayintshi angu-472.44)

(12 / 0.703) x 1.00 = 17.07 PSI

Zisetshenziselwa ini Izinzwa Zomoya Ongacwiliswa emanzini?

Inzwa yengcindezi ecwiliswayo ikwazi ukukala izinga ngezinhlobo eziningi zoketshezi ezihlanganisa amanzi, uphethiloli, nesixazululo samakhemikhali esinokuhlushwa okuzinzile nokuminyana okuzinzile. Ezinye izindlela zokusetshenziswa okujwayelekile kwama-submersible pressure transducers yilezi:

izitsha zamakhemikhali zokucubungula izimboni

i-waste water cistern

Izilinganiso Zamanzi Zendawo

amathangi kaphethiloli ezindaweni zokwakha

Ukukala Amanzi Angaphansi Komhlaba

izinhlelo zokunisela

izinga lamanzi aswakeme

Izilawuli Zokuzenzakalela Kwezindlu

Izimboni zeziphuzo newayini

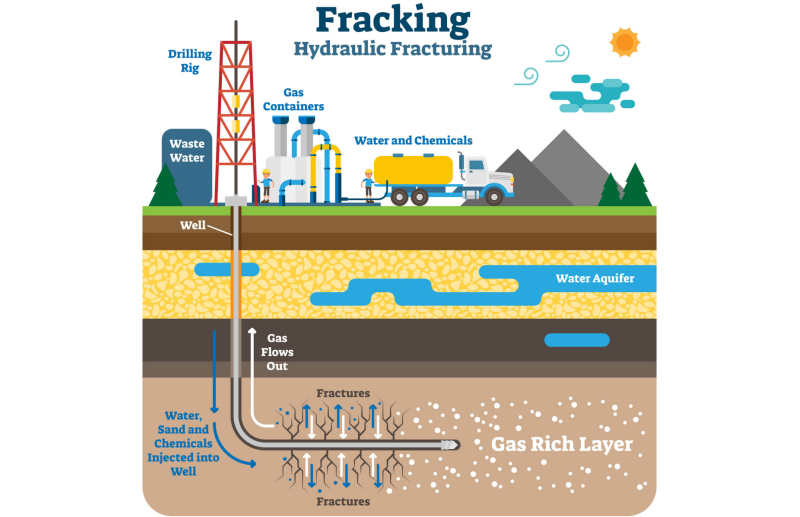

amakhemikhali omjovo endaweni yemithombo

Amathangi Oketshezi
