Isidluli Sokuhlola I-CO2 Yasendlini LFG203

Lefoo Isidluli Sokuhlola I-CO2 Yasendlini LFG203

I-LEFOO LFG203 ye-carbon dioxide transmitter yangaphakathi isekelwe ekutheni amagesi ahlukene anamandla ahlukene okumunca ukukhanya kwe-infrared ebhondeni elithile, futhi ilinganisa ukugcwala kwegezi elikaliwe ngokulinganisa izinga lokumunca ukukhanya kwe-infrared. Uma iqhathaniswa ne-electrochemical sensor, inezici zempilo ende nokuzinza okuhle. I-NDIR sensor engenisiwe ephezulu isetshenziselwa ukukala ukugcwala kwe-CO2, ephendula ngokushesha, isebenza ngokuzinza, inemba ephezulu, ibanga elibanzi lokunikezwa kukagesi, usayizi omncane nokufakwa okulula, okuyindlela ekahle yokukala i-carbon dioxide yangaphakathi. Ingasetshenziswa kabanzi ekukaleni ukugcwala kwe-CO2 emakhaya, ezindaweni zokusebenza, emabhukwini wezimboni kanye nezindawo ezinjengegaraji.



Izici

* I-NDIR sensor engenisiwe ephezulu

* Umklamo wegobolondo olula nomuhle, usebenzisa isibonisi se-LCD esikhanyayo

* Ukuzinza okuhle kwesikhathi eside nokwethembeka, nokuzilungisa kwe-ABC

* Izindlela eziningi zokukhipha umphumela ziyakhethwa, indlela yokufaka ebhokisini elijwayelekile lika-86

Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Izisebenziso

Ukuchazwa kwe-Indoor CO2 Monitor Transmitter LFG203

Ukulinganisa kwezobuchwephesha

I-LEFOO Indoor CO2 Monitor Transmitter LFG203
Okukhishwayo4-20mA0-5V0-10VRS485
Umsebenzi Wokusebenza10-30VDC10-30VDC16-30VDC10-30VDC
UmqondisiInzwa ye-NDIR
Isilinganiso samanje<45mA
Ukushisa okusebenzayo0-50℃
Umswakama osebenzayo0-80%
Ububanzi besilinganiso0-2000PPM, 0-5000PPM
Ukuqondisa± (40PPM 3% MV) PM
Isikhathi sokuphendula2min.
Isigaba SokuvikelaIP30

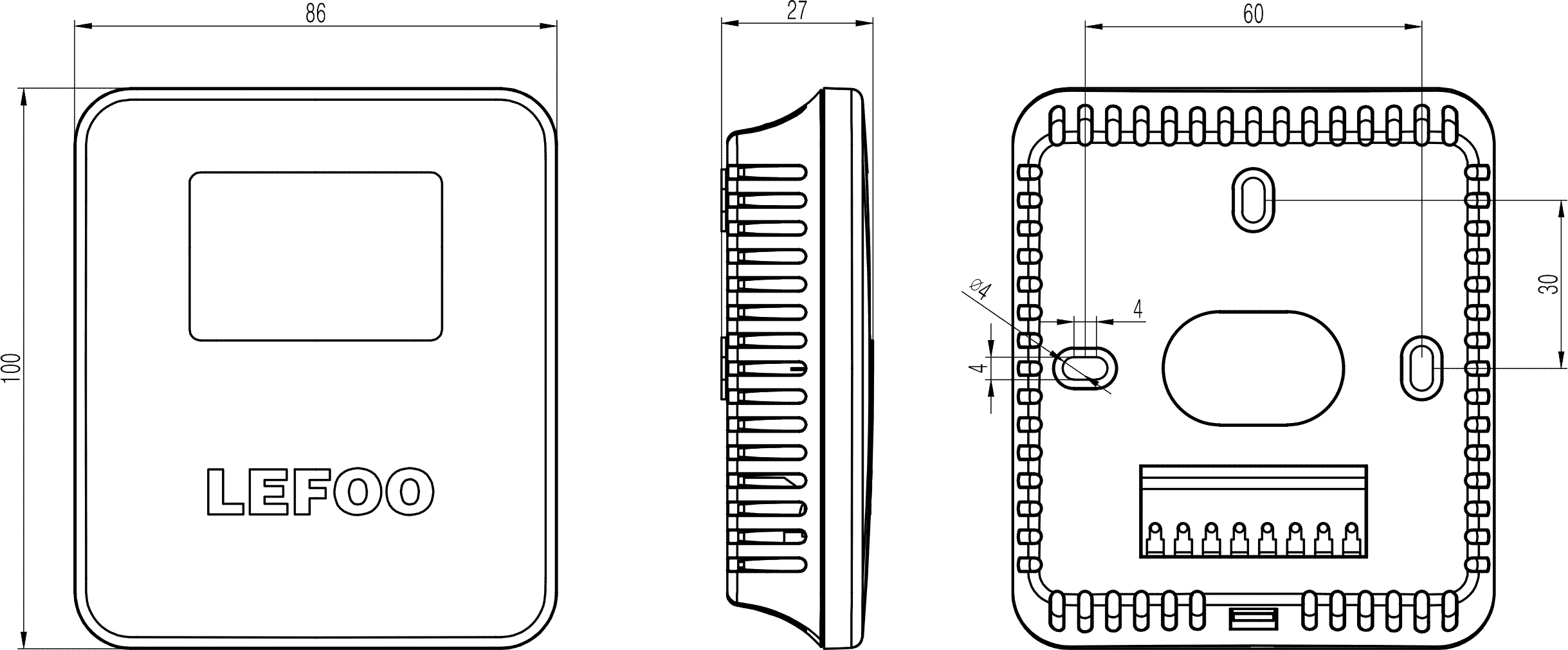

Ubungakho

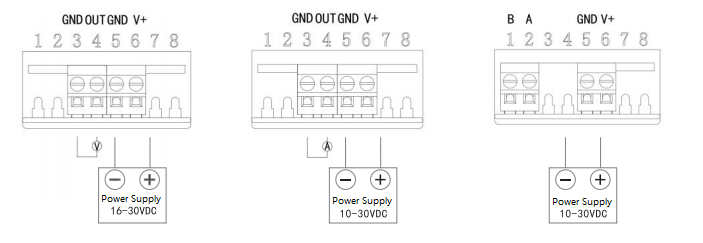

Umhlahlandlela wokuqosha



Umhlahlandlela wokufaka



IZIHLOKO:

1. Cindela inkinobho evulekile ngaphansi kwekhava yangemuva ye-transmitter ukuvula i-transmitter (njengoba kukhonjisiwe ku-Fit 1 no-2);

2. Qedela ukuxhuma kukagesi ngokuya ngomdwebo wezintambo, futhi wethule ikhebula kusuka emgodini wekhebula (njengoba kukhonjisiwe kuMdwebo 4);

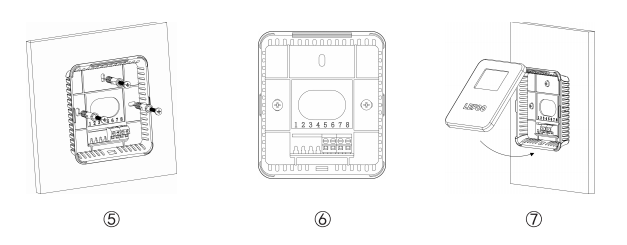

3. Kunezimbobo ezintathu ezifakwayo esembozweni sangemuva somthumeli, okungalungiswa odongeni ngezikulufu zokunweba (njengoba kukhonjisiwe kuMdwebo 5), noma kumabhokisi angama-86 abokwe ngaphambilini odongeni (njengoba kukhonjisiwe kuMdwebo 6);

4. Hlanganisa bese uhlanganisa ikhava yangaphambili ngecala elingaphansi ukuqedela ukufakwa (njengoba kukhonjisiwe kuMdwebo 7).



Umhlahlandlela wokukhetha

Ikhodi nencazeloAmagqaba
LFG203Ukuqapha kwe-CO2 ngaphakathi

12000ppmUbubanzi besilinganiso
25000 ppm

V50-5VOkukhishwayo
V100-10V
A44-20ma
RSRS485

DNge-dijithaliBonisa Bona
NINgaphandle kokukhombisa kwedijithali

LFG2031V10D
Isibonelo sokukhetha



Izici ze-Indoor CO2 Monitor Transmitter LFG203

  • Ingenisa ye-NDIR esebenza okuphezulu engenisiwe

  • Idizayini enhle yegobolondo, kusetshenziswa isibonisi esingemuva se-LCD

  • Ukuzinza okuhle kwesikhathi eside nokuthembeka, ngokuzenzakalela kwe-ABC

  • Izindlela ezahlukahlukene zokukhipha zizikhethela, izindlela ezijwayelekile ezingama-86 zokufaka ibhokisi


Izicelo ze-Indoor CO2 Monitor Transmitter LFG203

I-CO2 Transmitter ikhombisa ukuhlushwa kwe-carbon dioxide (CO2) emoyeni we-ezinhlangothi njengesilinganiso sekhwalithi yomoya wasendlini. Isicelo esivamile uhlelo lwe-HVAC nezimboni zokwakha. Ingasetshenziselwa kabanzi isilinganiso sokuhlushwa kwe-CO2 esikhaleni sasekhaya, isikhala sehhovisi, indawo yokugcina umtapo wolwazi wezimoto ezifemini nezinye izindawo.
