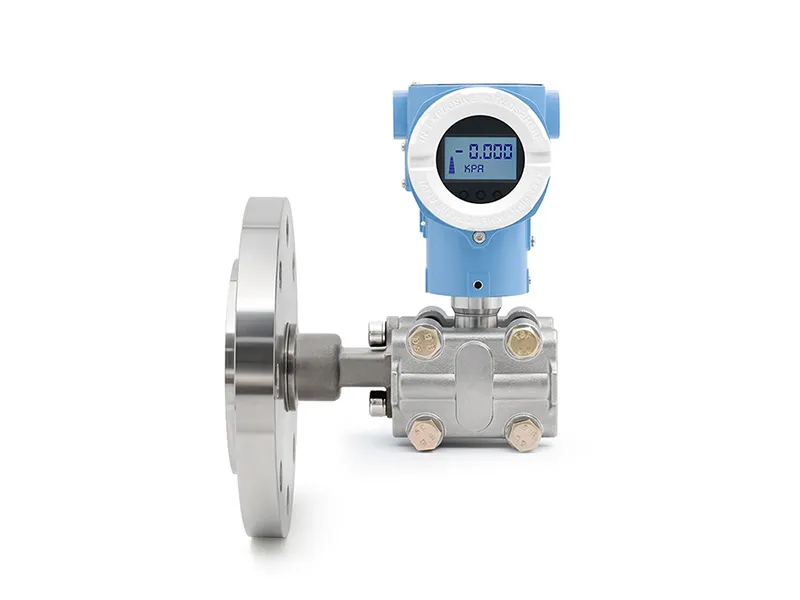

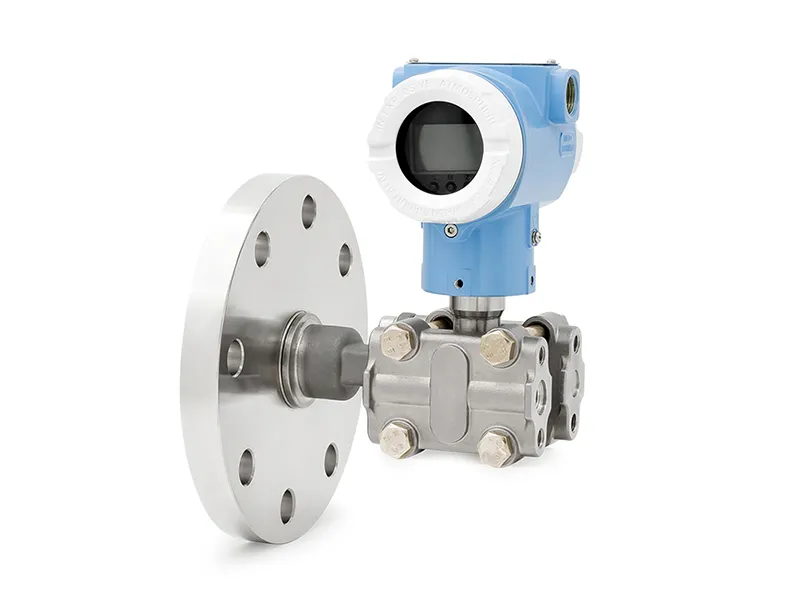

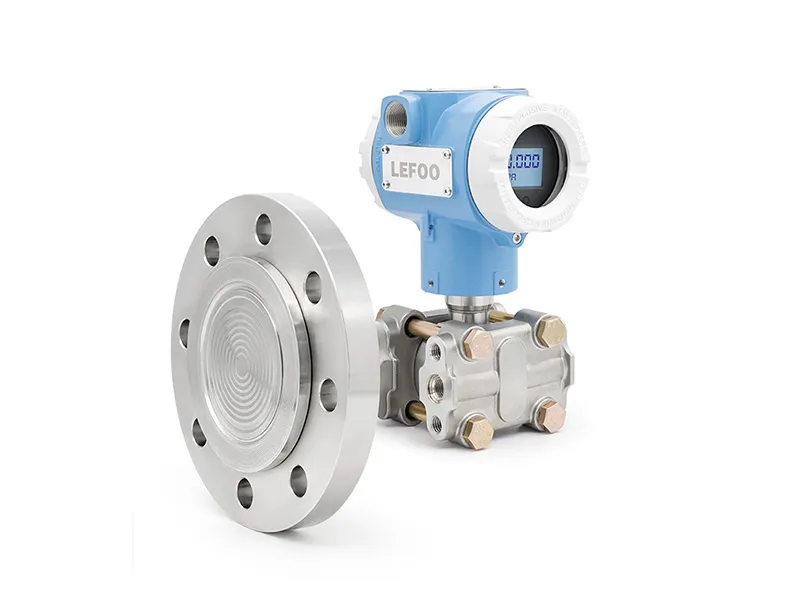

LFT720A Flange-mountedDifferential PressureI-Transmitter yakhiwe i-LFT710 Differential Pressure Transmitter kanye neflange enshelelekile yezinga loketshezi. Phakathi kweflange nenzwa, kusetshenziswa uwoyela we-silicon nezinye izinto zokugcwalisa ukudlulisa ingcindezi, ukuvimbela umediya olinganiswayo ukuba awudlule emhubheni wethonya bese ethinta isilinganiso. Umthelela womediya olinganiswayo odlula emhubheni wethonya uhlanganisa: ukwakheka kwamakristalu, ukuqina, ukuhwamuka (ukubila), ukujiya (ukuhlangana), ukuhlukaniswa (ukuguqulwa okukhulu), njll. I-transmitter isetshenziselwa ukulinganisa izinga loketshezi, ukugeleza, kanye nomfutho woketshezi, igesi noma umusi, bese iguqula lokhu kube isignali ephumayo engu-4~20mA. Isimiso sokusebenza se-LFT720A Flange-mountedDifferential PressureI-Transducer ifana ne-LFT710 Differential Pressure Transmitter ngaphandle kokuthi indlela yokudlulisa ingcindezi ohlangothini lwengcindezi enhle yehluke kancane, okungukuthi ingcindezi esebenza ohlangothini lwengcindezi ephezulu iqala ukudlula ngedayaframu yeflange yezinga loketshezi kanye noketshezi olugcwalisiwe, bese idlula emzimbeni we-transmitter, ekugcineni ifinyelele ohlangothini lwengcindezi ephezulu lwenzwa yokulinganisa.
Isici
* Inzwa yengcindezi enembayo kakhulu esebenzisa i-MEMS monocrystalline silicon;
* Isikhathi sokuphendula esisheshayo, ukuzinza okuphezulu, ukunemba kokulinganisa okungu-0.075% F.S;
* Inikeza indlela ejwayelekile yokuxhumana kwe-HART bus, ukuzihlola okuphelele kanye nomsebenzi wokuxhumana okukude;
* Isibonisi se-LCD esikhanya kakhulu esine-backlight, isikrini sendawo esibonisa okuphambanayo;
* Umsebenzi wokuhlenga endaweni, indawo yokuhlenga endaweni, umsebenzi wokusetha nokulungisa iphuzu eligcwele;
* Umsebenzi olula wokulinganisa i-current loop endaweni;
* Izinketho ezihlukahlukene zokuxhuma izinqubo ezitholakalayo ngokwezidingo.
| Ibanga lokulinganisa | 6KPa、40KPa、250KPa、1MPa、3MPa | |
| Ukunemba | ±0.075%F.S | |
| Ukuzinza | ±0.2% womkhawulo ophezulu | |
| Izinga lokushisa lokusebenza | -20~70℃ nesibonisi | |
| UkugcinwaTemperature | -40~85℃ | |
| Izinto ezizokalinganiswa | Gas, Liquid | |
| Imateriali ye-diaphragm | 316L, Hastelloy C, tantalum, others | |
| Ukusebenza kagesi | 2-wire | |
| Isignali yokuphuma | 4~20mA | 4~20mA HART |
| Amandla okunikezela | 12~36VDC | 12~36VDC |
| Isixhumanisi sikagesi | M20*1.5 waterproof outlet wire, NPT1/2 waterproof outlet wire | |
| Izinga lokuvikela i-enclosure | IP65 | |
| I-interface yomfutho | Flange PN series,flange class series, other | |
| Uhlobo lomfutho | Gauge pressure G | |
| Izitifiketi | ExdIICT6, CE | |

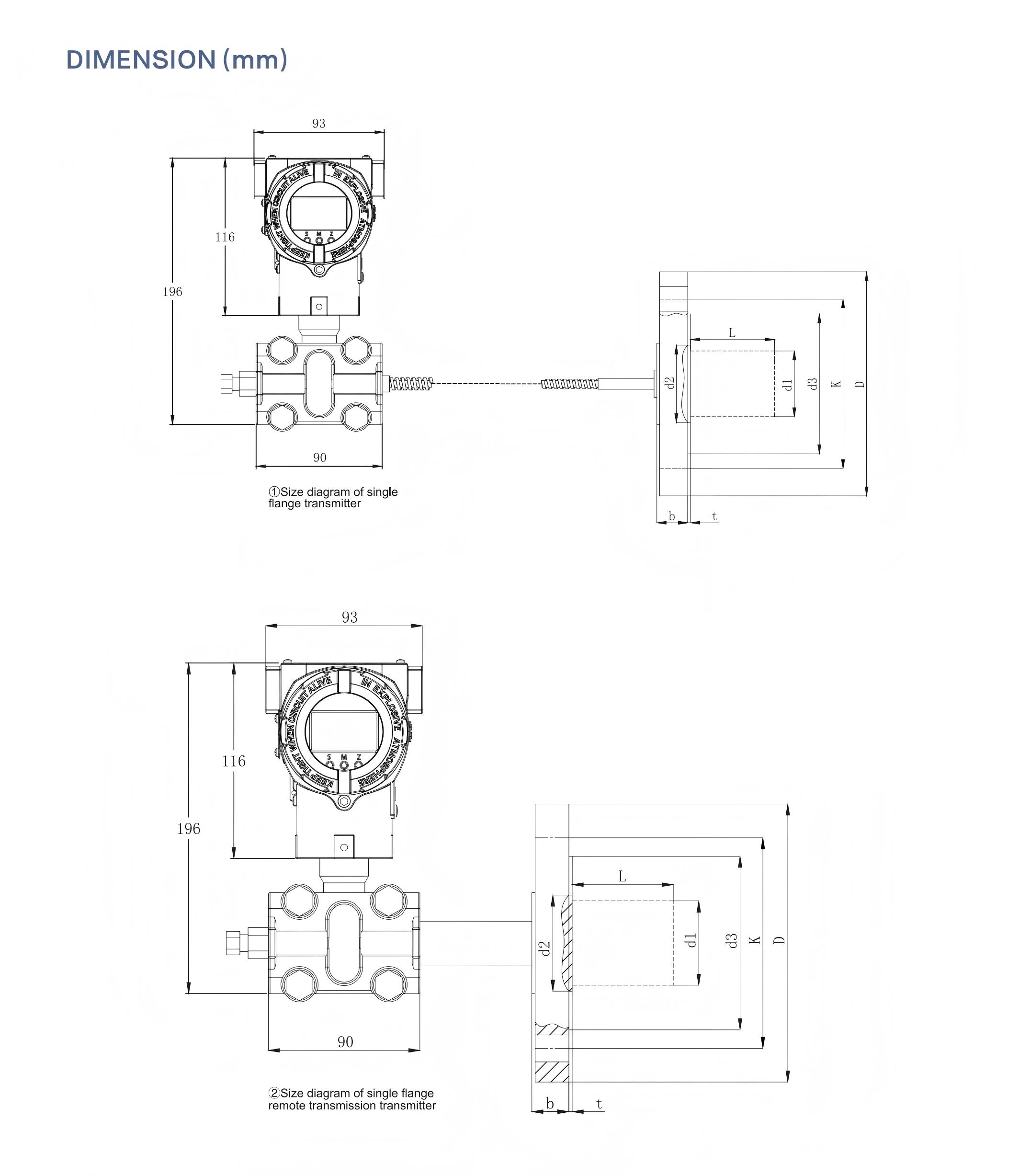

.jpg "LEFOO_LFT720A_Series_Flange-mounted_Differential_Pressure_Transmitter_02(1).jpg"){kind=spacer}

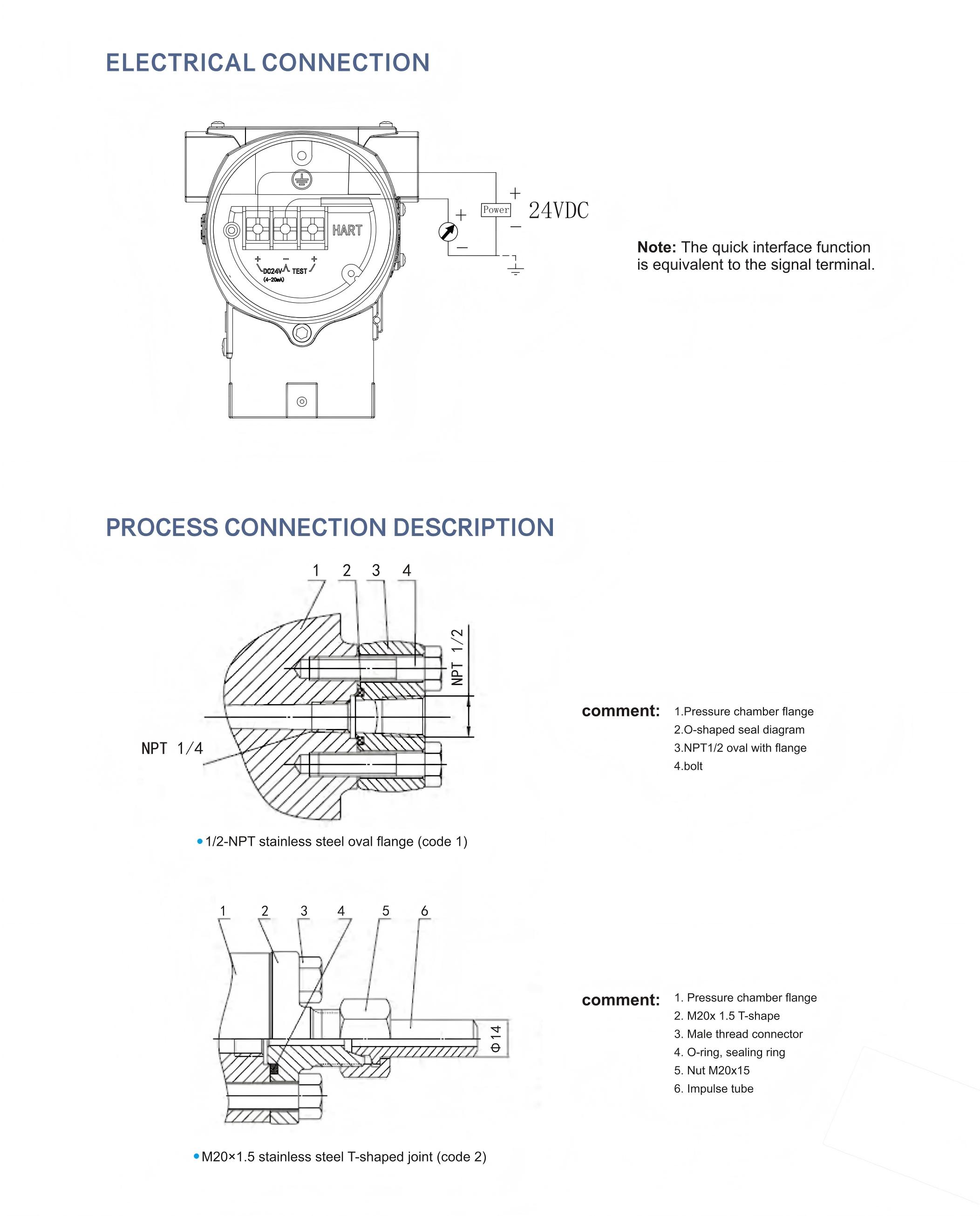

.jpg "LEFOO_LFT720A_Series_Flange-mounted_Differential_Pressure_Transmitter_03(1).jpg"){kind=spacer}
.jpg "LEFOO_LFT720A_Series_Flange-mounted_Differential_Pressure_Transmitter_04(1).jpg"){kind=spacer}

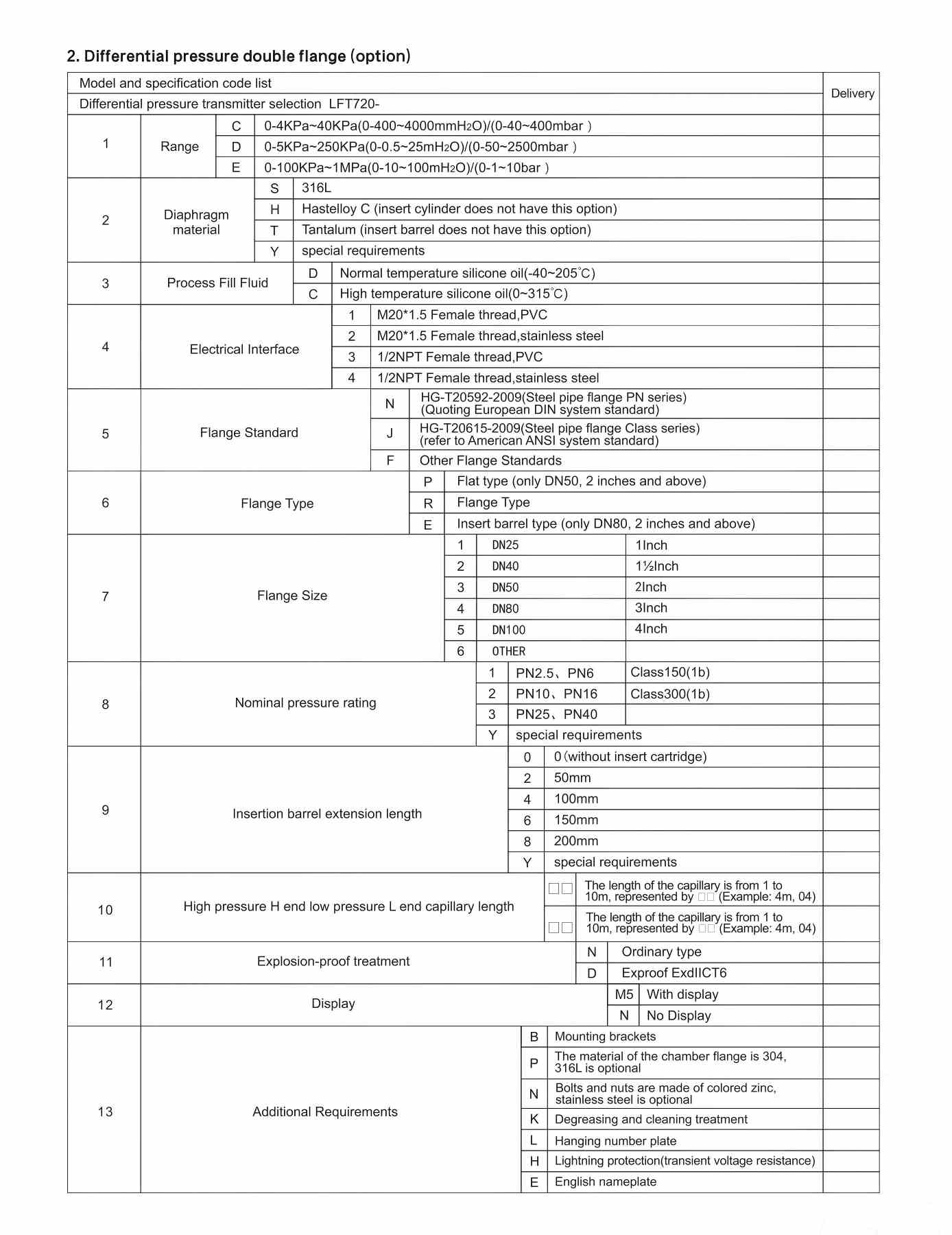

.jpg "LEFOO_LFT720A_Series_Flange-mounted_Differential_Pressure_Transmitter_05(1).jpg"){kind=spacer}
Inzwa yengcindezi ephezulu ngobuchwepheshe i-MEMS eyenziwe nge-silicon enye;
Isikhathi sokuphendula esisheshayo, ukuzinza okuphezulu, ukunemba kokulinganisa okungu-0.075%F.S;
Inikeza indlela yokuxhumana nge-HART bus ejwayelekile, ukuzihlola okuphelele kanye nomsebenzi wokuxhumana ukude;
Isibonisi se-LCD esikhanyayo esinokukhanya emuva, isikrini sendawo esiphendukayo;
Umsebenzi wokubuyisela ekuqaleni endaweni, indawo yokuqala endaweni, ukusetha nokulungisa iphoyinti eligcwele;
Umsebenzi olula wokulinganisa umjikelezo wamanje endaweni;
Izinketho ezahlukene zokuxhuma inqubo ziyatholakala ngokuya ngezidingo.
Idizayinelwe amanzi negesi enobungozi obukhulu
Ukukala ukugeleza nokuqapha izinga
Umfutho ohlukile wesihlungi noma wempompo
Ukuqapha inqubo ebucayi
Izinga lethangi elivaliwe, ubuningi, impilo yesihlungi
