Umthumeli wejubane lomoya eliphansi LFS11

Lefoo Umthumeli wejubane lomoya eliphansi LFS11

I-LFS11 i-Low Air Velocity Transmitter yakhelwe ukulinganisa ngokunembile isivinini somoya esiphansi kakhulu, futhi isenemba kakhulu ezimeni lapho isivinini somoya singaphansi kuka-0.15m/s. I-LFS11 isebenzisa inzwa yefilimu eshisayo esezingeni eliphezulu ekhiqizwe ngokususelwa kubuchwepheshe be-MEMS, enezici zokukala okunembile, ukuzinza okuhle nokuzivumelanisa nemvelo okuqinile, ekahle ukuqapha ukugeleza okuvumelanayo kanye nezinhlelo zokungenisa umoya ezikhethekile, isetshenziswa kakhulu ezindaweni ezibalulekile njengezikhungo zezempilo, amalabhorethri, kanye nezimboni zomuthi.


Izici


* Sebenzisa inzwa ye-MEMS enembayo kakhulu engeniswe kwelinye izwe, ukuzinza isikhathi eside namandla okumelana nokuphazamiseka.

* Ugesi wokuphakela nokukhipha unomsebenzi wokugcwala ngokweqile nokuxhuma okuphambene.

* Ukukhipha okuhlukanisiwe Kukhethwa.

* Amandla aqinile okumelana nokungcola, kulula ukuyifaka nokuyigcina.




Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Isisebenziso

Ukucaciswa kwe-Low Air Speed Transmitter LFS111

Ukulinganisa kwezobuchwephesha

Umsebenzi Wokusebenza12-30VDC /24VAC (± 20%)
Ububanzi①0-1m / s, 0-1.5m / s, 0-2m / s
Ukuqondisa± (0.04m / s 3% ye-mv) (20℃, 45% RH ne-1013 hPa)
Isixazululo0.01m/s

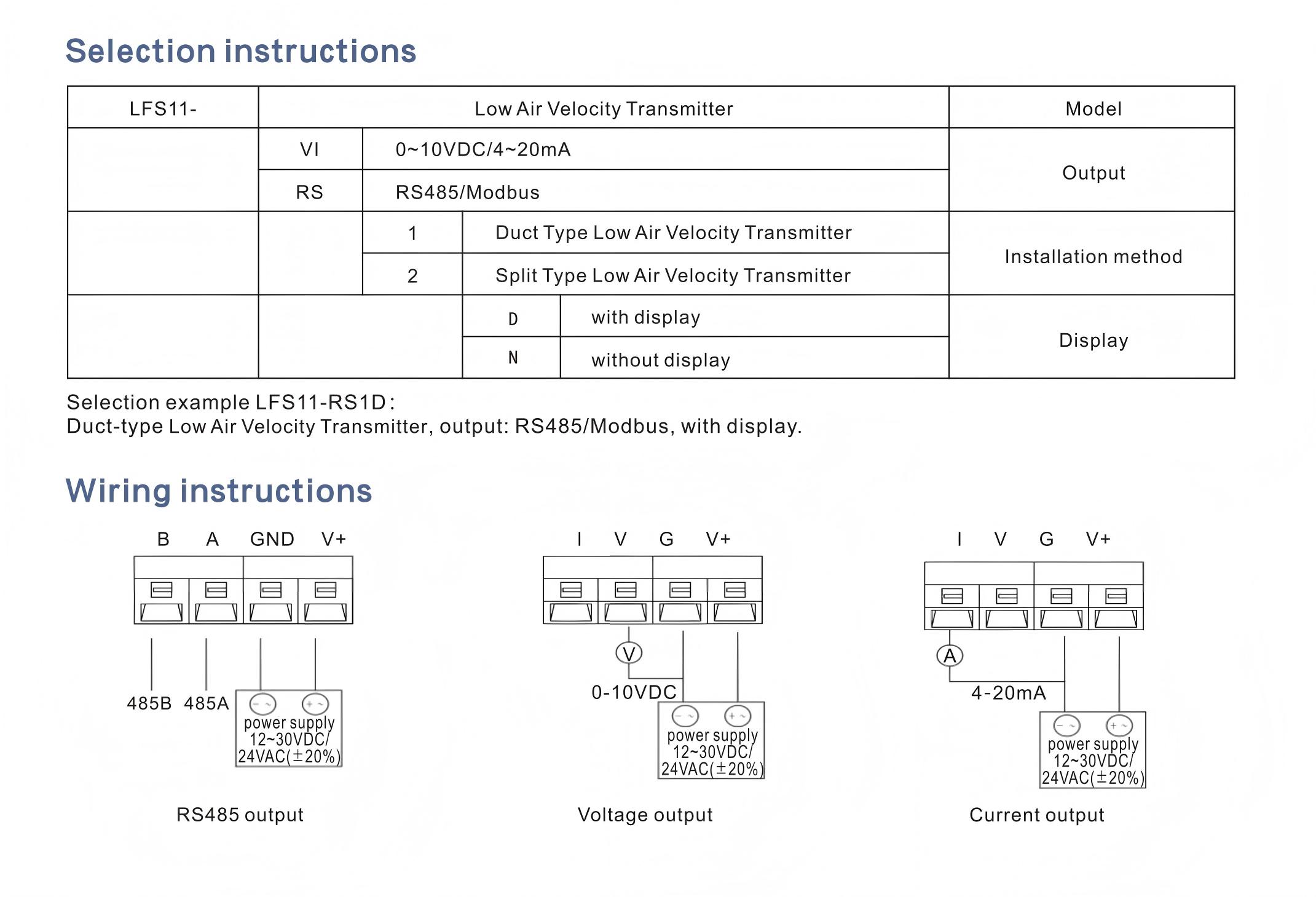

Inkomba yokukhishwa:I-RS485 / Modbus, 0 ~ 10 VDC / 4 ~ 20mA (i-Voltage nokukhishwa kwamanje kabili) ngokuzikhethela
Isifako esikhishwayo≤250 Ω (okukhishwa kwamanje), ≥ 5 kΩ (okukhishwa kwe-Voltage)
Ukushisa okusebenzayo-10 ~ 60℃
Izinga lokushisa lokugcina-20 ~ 80℃

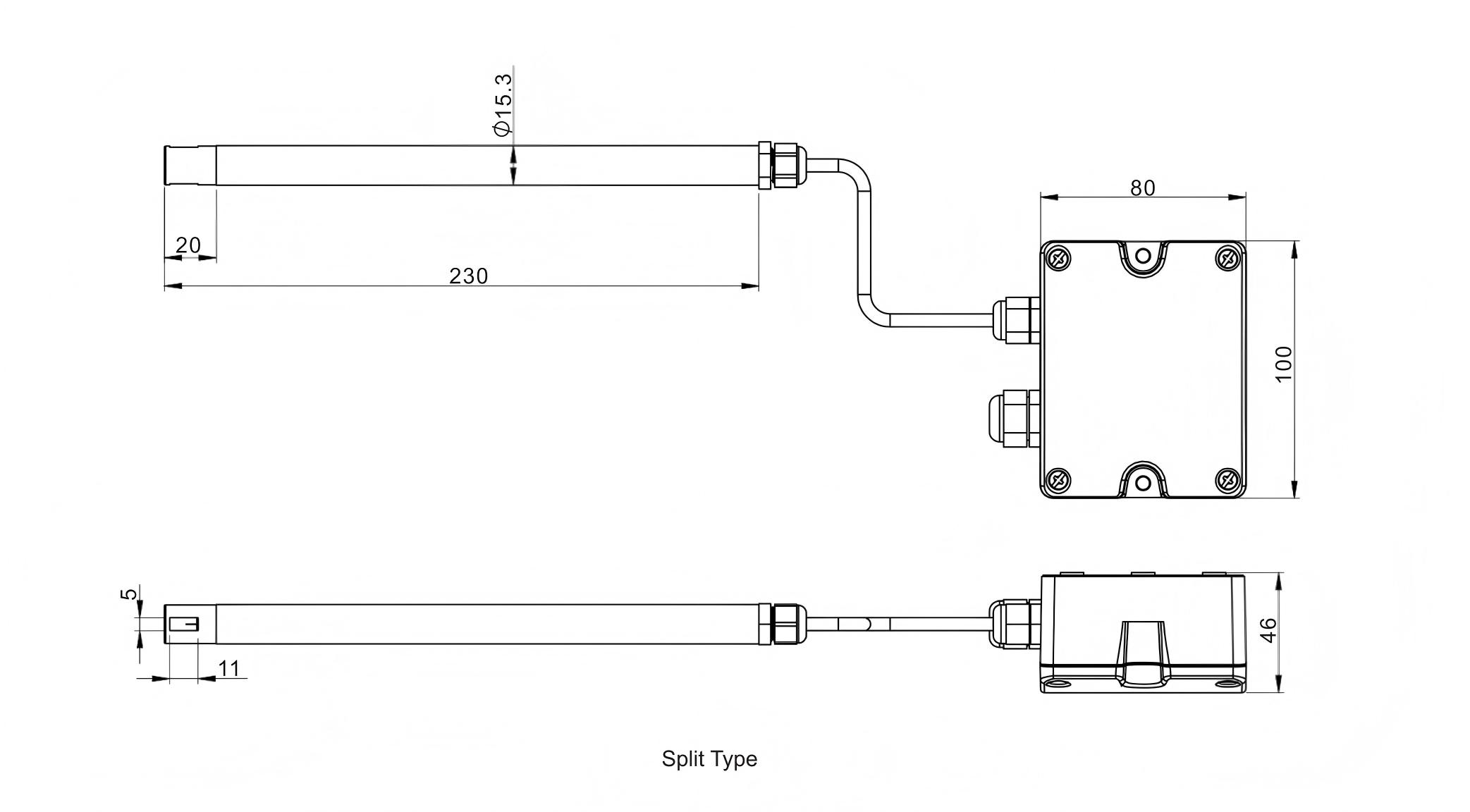

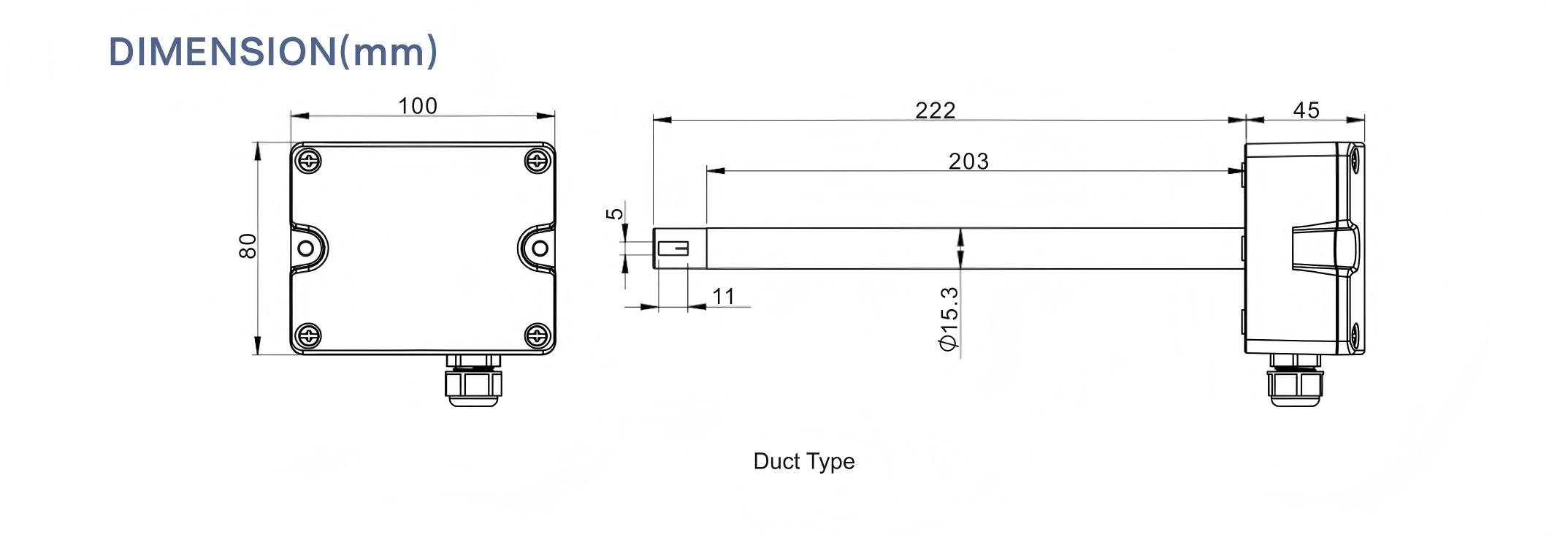

Ubude be-obe210mm (okukhethwa)
Bonisa BonaIsiboniso se-LCD esikhethwa nge-unithaUkubonisa kanye ne-Isikhundle
Isigaba SokuvikelaI-Shell IP65, Probe IP2
Izinto ezibonakalayoI-Shell PC, i-Probe PA6
IziqinisekisoI-RoHS, izindinganiso zokuphepha kukagesi ze-EU CE
① Kungakhethwa yi-jumper.


Izici ze-Low Air Speed Transmitter LFS1

  • Thola inzwa ye-MEMS engeniswe ephezulu, ukuzinza kwesikhathi eside kanye namandla okulwa nokuphazamisa.

  • Ukuphakelwa kwamandla nokukhishwa kunomsebenzi wokuxhumana ngokweqile nokubuyiselwa emuva.

  • Ukukhishwa okukhethekile.

  • Ikhono elinamandla lokulwa nokungcola, kulula ukuyifaka nokugcina.


Izicelo ze-Low Air Speed Transmitter LFS111

Okufanelekile kokuqapha ukugeleza kwe-laminar kanye nezinhlelo ezikhethekile zokungenisa umoya, ezisetshenziswa ikakhulukazi ezindaweni ezibalulekile njenge:

  • Izikhungo zezokwelapha

  • Ama-laboratorith

  • Imboni yemithi yezokwelapha
