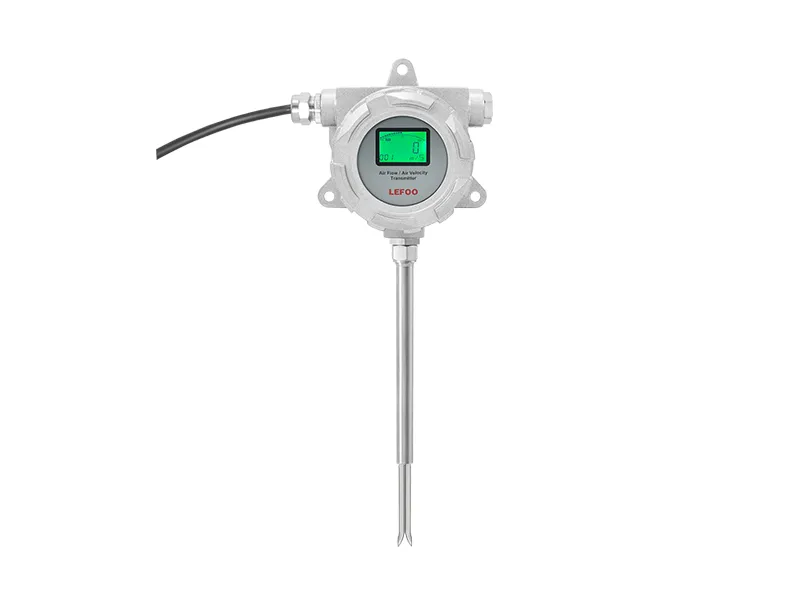

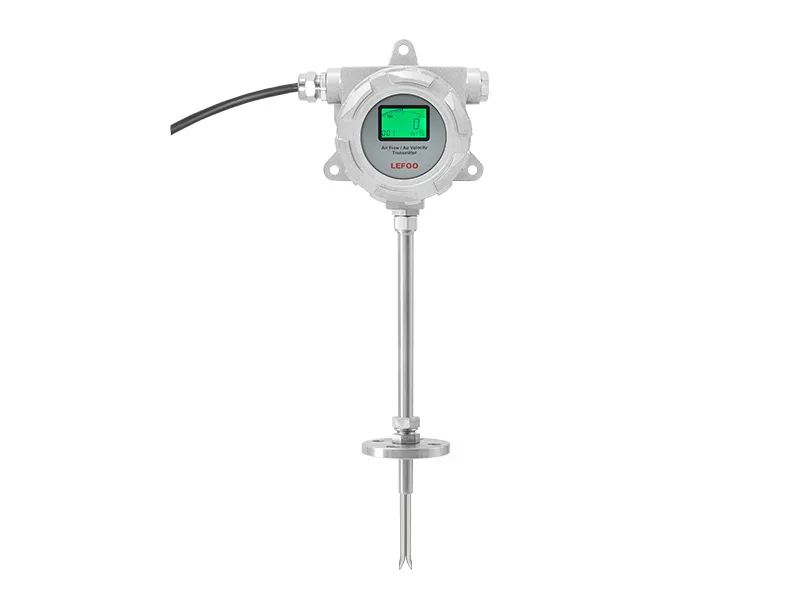

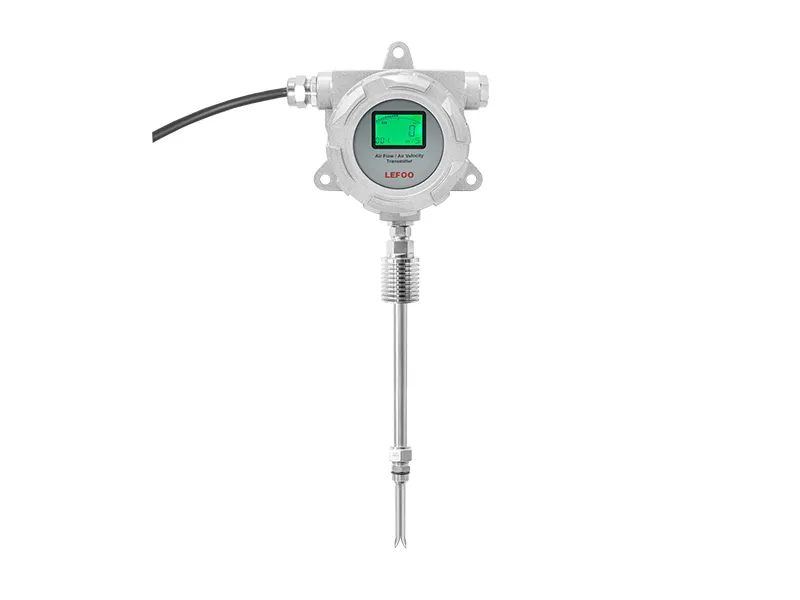

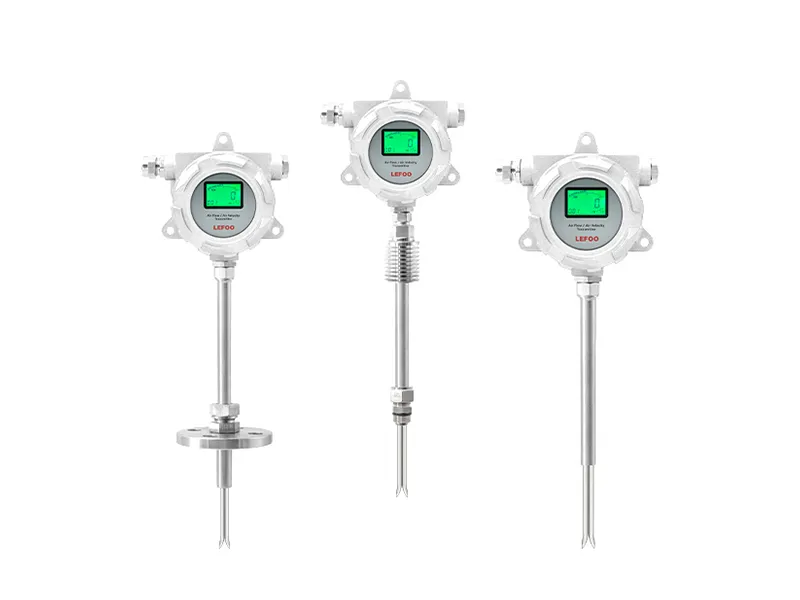

I-LFS73 Isidlulisi Esingangeni Ukuqhuma futhi Esihlanganisiwe Sesivinini Somoya / Umthamo Womoya, siwuhlobo lwedlulisi elifanele indawo enezinga eliphezulu lokushisa nokuqhuma yokulinganisa ukugeleza kwegesi, singaguqula isilinganiso sokugeleza / izinga lokugeleza kwegesi kube amasiginali kagesi, futhi sikudlulisele ohlelweni lokulawula. Ububanzi bokulinganisa bungalungiswa ngenkinobho esendaweni. Kusetshenziswa indlu yokuvikela i-IP65, efanele uhlelo lokuphatha amandla, ukulawulwa kwe-VAV nefeni, ukulawulwa kokungcoliswa kwemvelo, ukulawulwa kwesembozo sentuthu, ukulawulwa kokungenisa umoya kwehovini nobhayela kanye nezinye izindawo.
Izici
* Inomongo we-MEMS wengcindezi encane enembayo ephezulu;
* Ububanzi obubanzi bamazinga okushisa okusebenza nokunemba okuphezulu;
* Isikrini sesibonisi sedijithali se-LCD;
* Ukuvikelwa okuphelele kokweqisa kwamandla kanye nokuvikela okuphambene, ukwethembeka okuphezulu kwesikhathi eside;
* Ububanzi bokulinganisa obulungisekayo;
* Ukuqina okuqinile nempilo ende yokusebenza;
* Indlu yokuvikela i-IP65.
| I-Transmitter ye-Air Velocity ne-Air Volume ehlanganisiwe engaqhunyiswa futhi esebenza ngezinga lokushisa eliphezulu LFS73 | |
| I-Medium yokulinganisa | Umoya noma igesi engathathi hlangothi |
| I-Range |
Isivinini somoya : 0~30m/s (i-range ingashintshwa phakathi kuka 5 ~ 30m/s) 0~100m/s (i-range ingashintshwa phakathi kuka 35 ~100m/s) I-Air volume : i-air volume e-customized (Max.99999m3/h) |
| Ingcindezi ye-Overload | 10KPa(0-30m/s); 80KPa(0~100m/s) |
| Ukunemba① | ± 3.0%FS (Isivinini somoya > 3m/s) |
| Izinga lokushisa lokusebenza | I-Main Unit : -20℃~70℃; i-probe : -40℃~450℃ |
| Izinga lokushisa lomdibo | -10℃~60℃ |
| Izinga lokushisa lokugcina | I-Main Unit : -40℃~80℃ |
| Isikhathi sokuphendula | 0.5s / 1.0s (okujwayelekile) / 2s / 4s |
| Ukuvikela ekungeneni | IP65 |
| Isixhumi esisebenza ngogesi | Intambo enama-core ayisithupha, ububanzi bentambo buyi-8mm |
| Isiginali yokuphumayo | 4~20mA & 0~10VDC & RS485 |
| Ukunikezwa kwamandla➁ | 12~30VDC / 24VAC±20% |
| Ukusetshenziswa kwamandla | ≤1.5W |
| Imateriali yeqokobhe | I-cast aluminium |
| Ezokuxhumana | I-RS-485 standard Interface, i-Modbus RTU protocol |
| Iprojekthi yokuqinisekisa | ROHS, CE |
| Izinga elingaqhunyiswa | Ex db lIC T6 Gb |
| Isibonisi | Isibonisi sedijithali esenziwe ngeLCD esinokukhanyisa ngemuva |
① Izimo zemvelo: izinga lokushisa: 20℃,umidity: 45% RH, ingcindezi yomoya: 1035 hPa.
➁Lapho umkhiqizo usebenzisa amandla kagesi we-AC, kunconywa ukusebenzisa amandla kagesi e-AC ahlukanisiwe.
.jpg "LEFOO_LFS73_Explosion-Proof&High-Temperature_Integrated_Air_Velocity_Air_Volume_Transmitter_02(2).jpg"){kind=spacer}

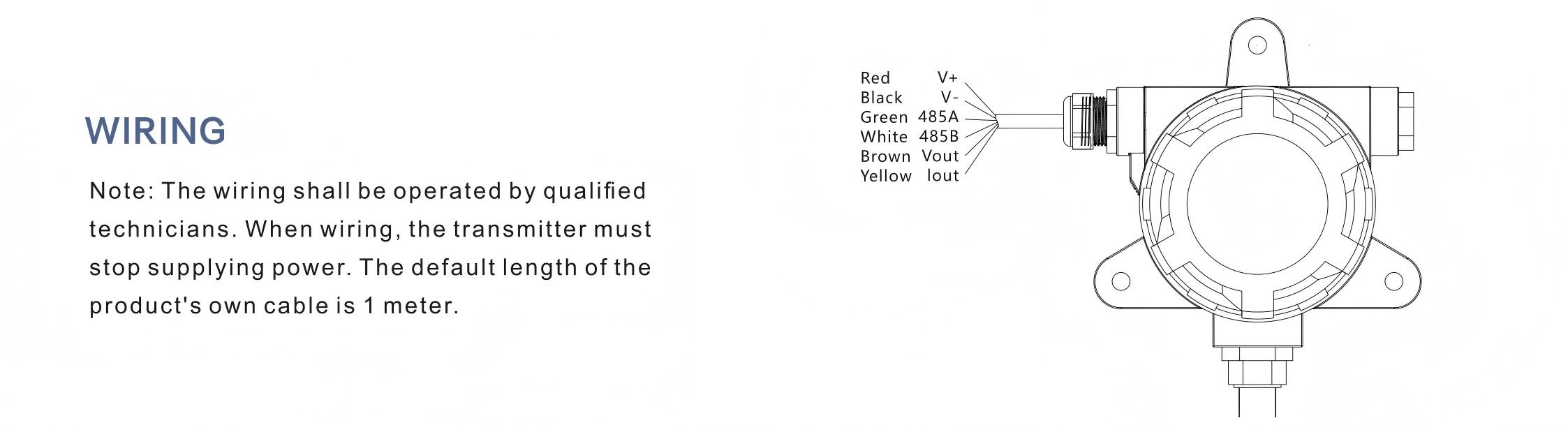

| Umsebenzi Wentambo | Umbala | Imiyalo yentambo | Amanothi |
| V+ | Red | Itemu le-positive | |
| V- | Umnyama | Itemu le-negative | |
| 485A | Oluhlaza | I-485 Communication interface |
Okokukhipha okuhlukile, Gcina izintambo ezidingekayo kuphela. |
| 485B | Mhlophe | ||
| Vout | Nsundu |
I-port yokuphuma kwevoltheji engu-0-10VDC, xhuma ku-Power+ ye- multimeter, kanti umkhawulo ongakwesokunxele we- multimeter uxhume ku-V- |
|
| Iout | Ophuzi |
I-port yokuphuma kwe-current engu-4-20mA, xhuma ku-Power+ yemultimeter kanti umkhawulo ongakwesokunxele wemultimeter uxhume ku-V- |

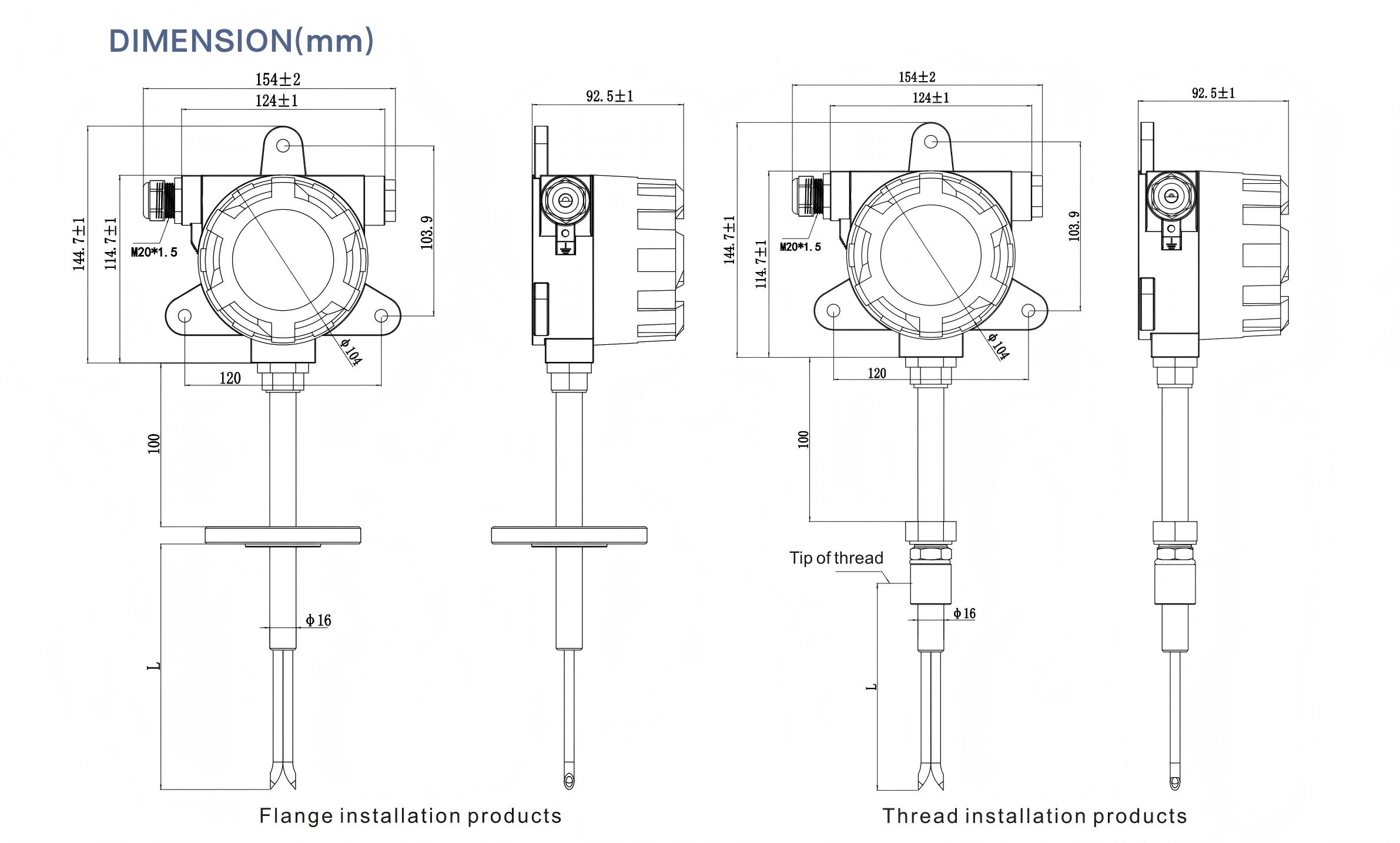

.jpg "LEFOO_LFS73_Explosion-Proof&High-Temperature_Integrated_Air_Velocity_Air_Volume_Transmitter_02(1).jpg"){kind=spacer}
.jpg "LEFOO_LFS73_Explosion-Proof&High-Temperature_Integrated_Air_Velocity_Air_Volume_Transmitter_03(1).jpg"){kind=spacer}

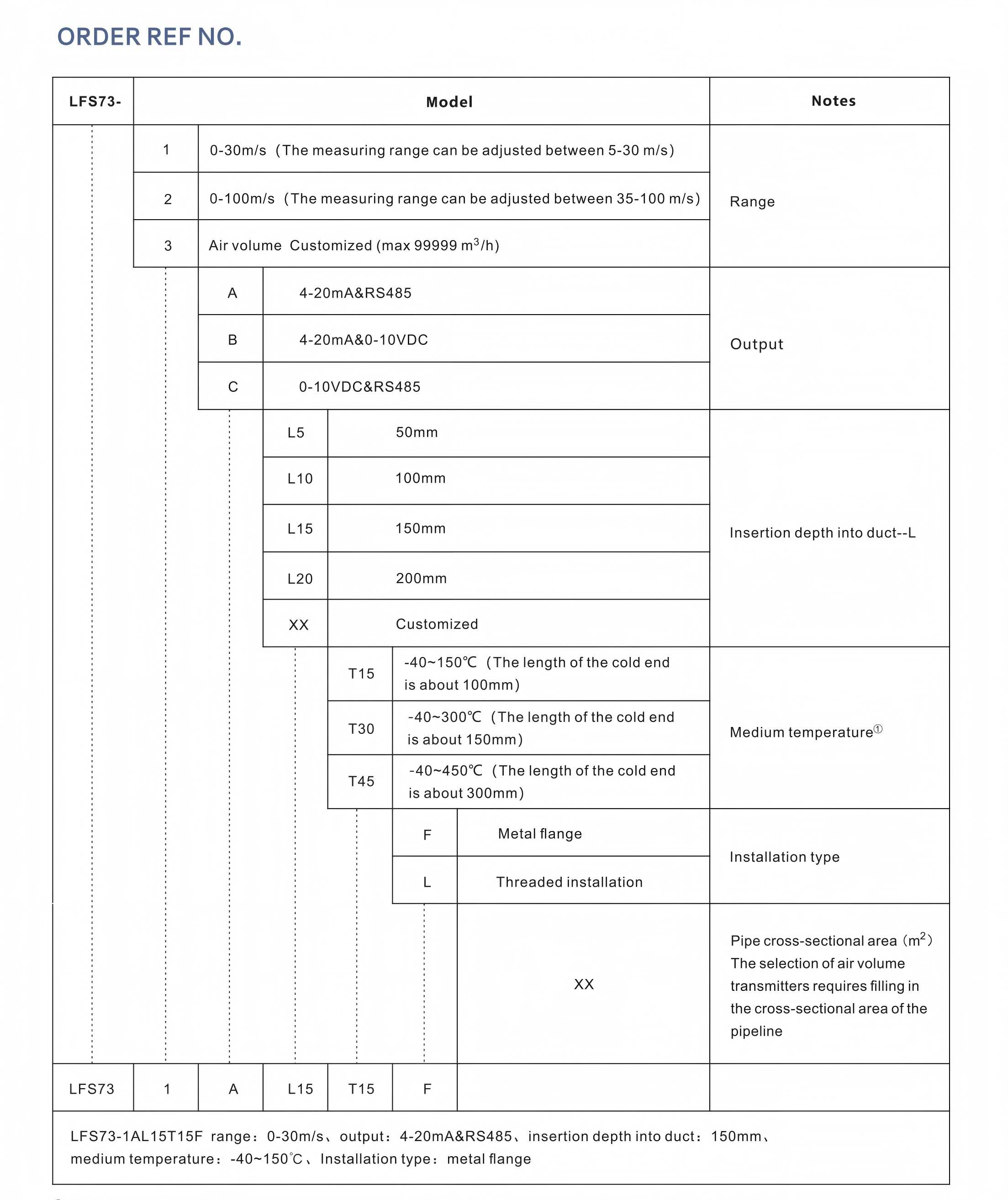

.jpg "LEFOO_LFS73_Explosion-Proof&High-Temperature_Integrated_Air_Velocity_Air_Volume_Transmitter_04(1).jpg"){kind=spacer}
① Emikhiqizweni ye-T30/T45, i-probe ifaka i-heat sink ngokujwayelekile, nobude be-heat sink bucishe bube yi-10cm., Ubude bomkhawulo opholileyo bubhekisa ebangeni elisuka kumphathi womkhiqizo liye kupayipu lokufaka.
Ngenhliziyo ye-MEMS enembile kakhulu yokucindezela okuncane;
ububanzi obubanzi bezinga lokushisa lokusebenza nokunemba okuphezulu;
Isikrini se-LCD sedijithali;
Ukuvikelwa okuphelele kwe-overvoltage nokuhlehlisa, ukwethembeka okuphezulu kwesikhathi eside;
Ububanzi bokulinganisa obulungisekayo;
Ukuzinza okuqinile nokuphila isikhathi eside;
Ibhokisi lokuvikela le-IP65.
The LFS73 Explosion-proof & High-temperature Integrated Air Velocity/Air Volume Transmitteriklanyelwe ukusetshenziswa ezindaweni lapho kukhona amazinga okushisa aphezulu namagesi aqhumayo. Izindawo zayo eziyinhloko zokusebenza zihlanganisa:
Izinhlelo Zokulawulwa Kwamandla: Isetshenziselwa ukuqapha nokulawula ukugeleza komoya ukuze kuthuthukiswe ukusetshenziswa kwamandla.
VAV (Ubuningi Bomoya Oguquguqukayo) kanye Nokulawulwa Kwefeni: Idivayisi isetshenziselwa ukulawula ukugeleza komoya ezinhlelweni ze-HVAC, iqinisekisa ukusebenza kahle ekuphatheni umoya nasekuvunyelweni komoya.
Ukulawulwa Kokungcola Kwemvelo: Isiza ekulinganiseni nasekulawuleni izinga lomoya ezimbonini lapho ukulawulwa kokungcola kubaluleke kakhulu, iqinisekisa ukuhambisana nezindinganiso zemvelo.
Ukulawulwa Kwentuthu Nomlilo: Isetshenziswa ezinhlelweni zokudonsa intuthu, i-LFS73 isiza ukulawula ukugeleza komoya ezinhlelweni zokuvuyela ukuze kube nokuphepha uma kwenzeka umlilo.
Ukuvuyela Kwama-oveni Namabhayela: I-transmitter ifanelekele ukuqinisekisa ukugeleza komoya okufanele ezindaweni ezinamazinga okushisa aphezulu njengama-oveni ezimboni namabhayela, ivimbela ukushisa ngokweqile noma ukuvutha okungaphumeleli kahle.
Lezi zimpawu ziyenza ibe ithuluzi eliguquguqukayo nelibalulekile ezinhlelweni zezimboni eziningi ezinobungozi obukhulu, ezizwelayo emazingeni okushisa.
