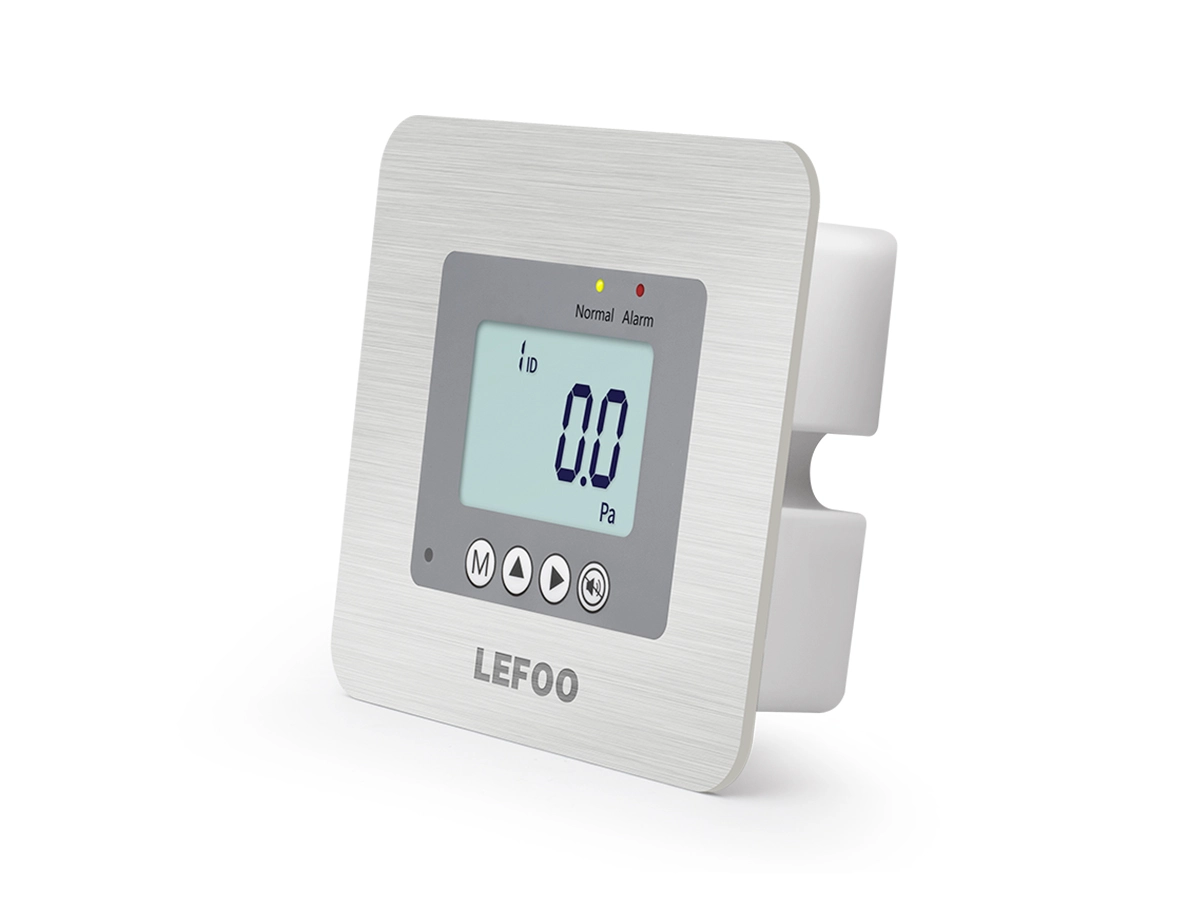

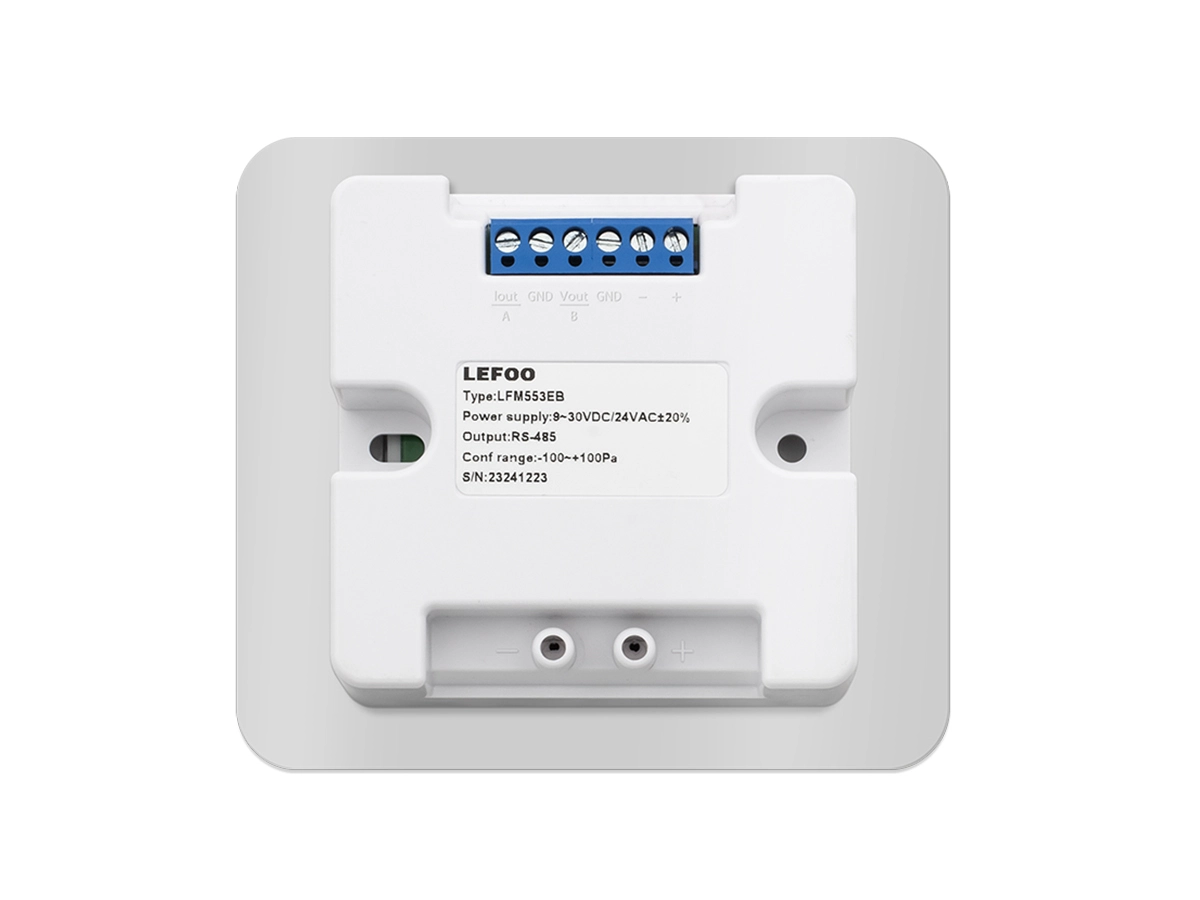

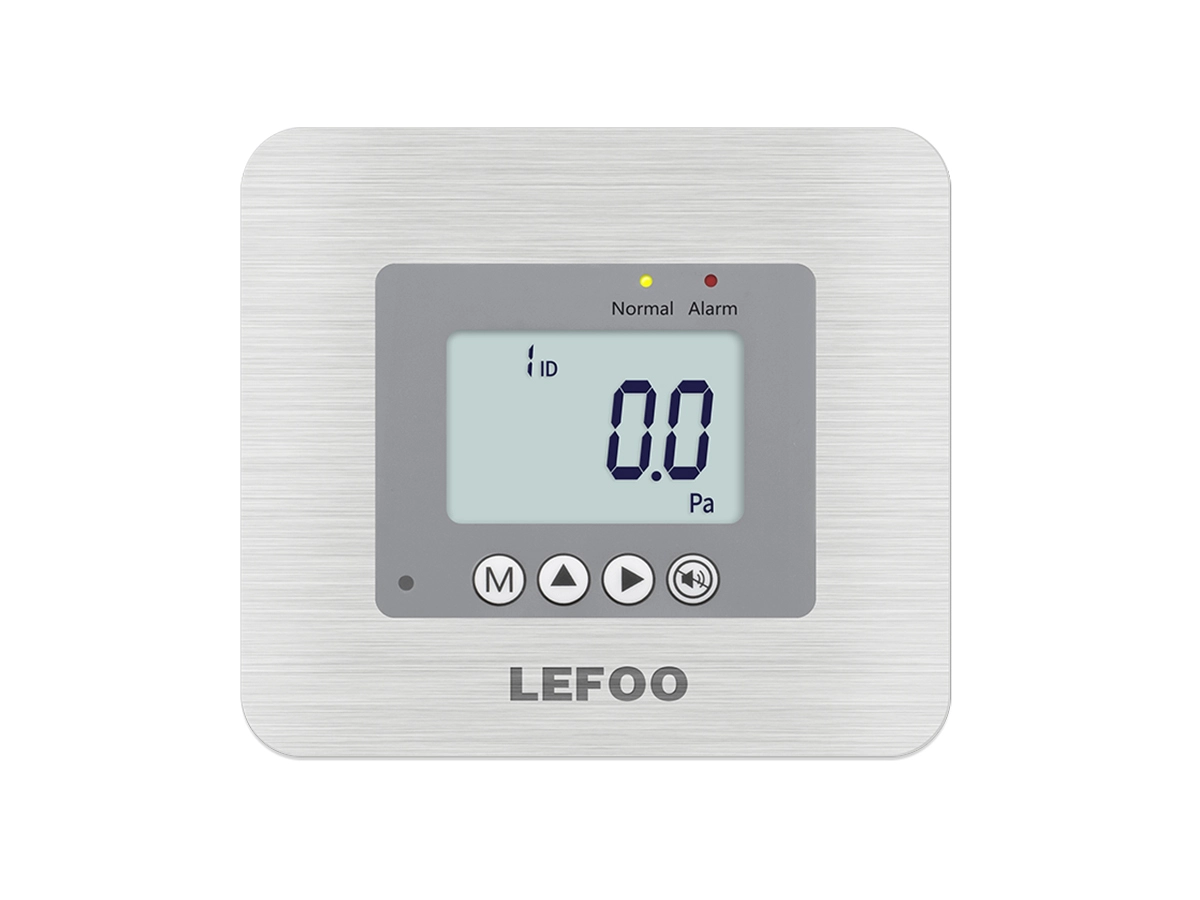

I-Differential Pressure Transmitter Efakwe Ngaphakathi LFM55

Lefoo I-Differential Pressure Transmitter Efakwe Ngaphakathi LFM55

I-LFM55 embedded differential pressure transmitter isetshenziswa kabanzi ekutholeni umehluko wengcindezi yomoya noma igesi engathathi hlangothi. Abasebenzisi bangakwazi ukwenza ngokwezifiso ububanzi, basethe ikheli lokuxhumana neminye imisebenzi ngokuya ngendawo; inomsebenzi we-alamu yomsindo nokukhanya, futhi ingasethwa iphuzu lokucindezela le-alamu, isikhathi sokubambezeleka kwe-alamu, nokuvula/ukuvala umsebenzi we-alamu endaweni. I-LFM55 differential pressure transmitter isebenzisa i-micro-pressure core engeniswe evela phesheya, ene-temperature compensation eyakhiwe ngaphakathi, futhi inezici zokuphendula ngokushesha ingcindezi, ukukhipha okuzinzile isikhathi eside, nokusebenza kahle kwezinga lokushisa. Iphaneli lenziwe nge-316L stainless steel material, inobuso obushelelezi obungenalo uthuli nokumelana nokugqwala okuqinile, okuhlangabezana namazinga egumbi elihlanzekile. Ingasetshenziswa kabanzi ezindlini ezihlanzekile, emakamelweni okuhlinza, nasemakamelweni okuhlola angenalo uthuli, futhi ilungele nokufudumeza, ukupholisa, nesimo sezulu (HVAC), izakhiwo ezihlakaniphile, nezinye izinhlelo zokusebenza.


Izici

* Indlela yokufaka efakwe ngaphakathi, ingalungela amabhokisi angu-86;

* Ine-alamu yomsindo nokukhanya, ububanzi, i-alamu, njll. kungasethwa endaweni;

* I-LCD enkulu ebonisa izinombolo, ukusebenza okulula;

* Iphaneli le-316L stainless steel elingenalo uthuli nokumelana nokugqwala;

* Sebenzisa i-micro-pressure core engeniswe evela phesheya, ukuphendula ingcindezi okusheshayo.


Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Izisebenziso

Ukucaciswa kwe-Efferential Premitter LFM55

Ukulinganisa kwezobuchwephesha

Ukulinganisa UphakathiUmoya owomile negesi engathathi hlangothi
Uhla lwengcindezi± 100Pa, ububanzi benkamba
Bonisa BonaIsiboniso se-LCD esibuyela emuva, ibonisa indawo 45X30mm
Isixazululo0.1Pa
Ukucindezeleka7Kpa
Ukuqondisa± 1Pa
Ukushisa Okusebenzayo-20 ° C ~ 70 ° C
Izinga lokushisa-10℃ ~ 60℃
Izinga lokushisa-40℃ ~ 80℃
Izinga lokuvikelaIP30

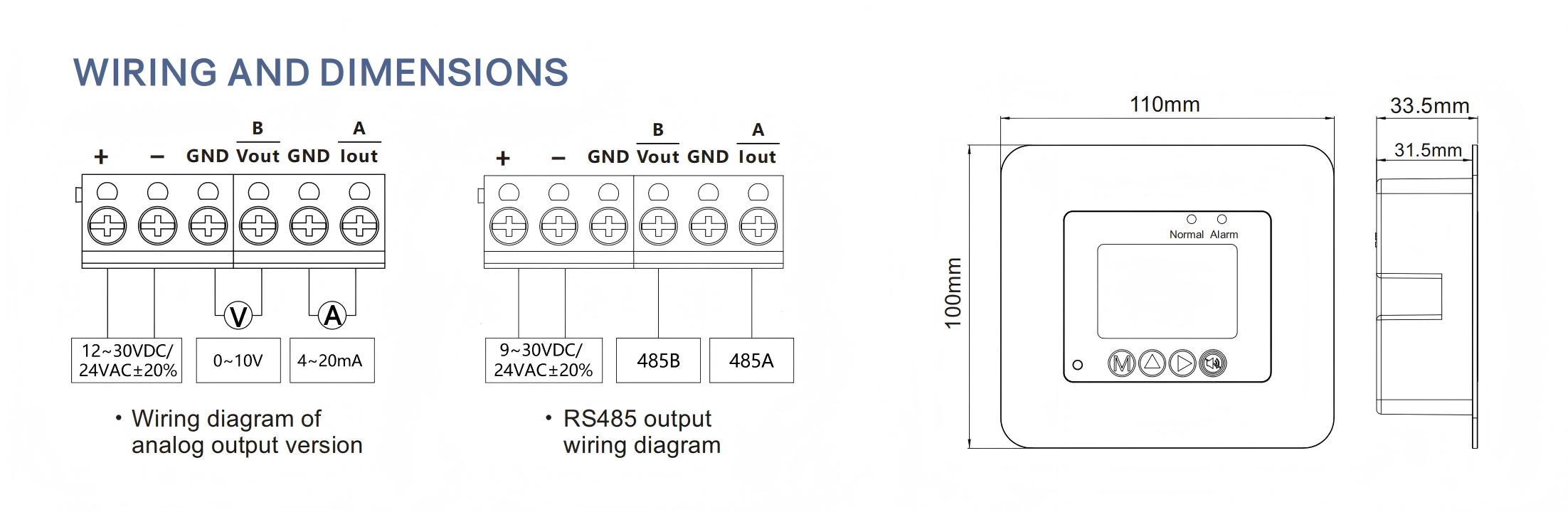

Ukuxhumana kukagesiIzintambo ezineIzintambo ezine
Isibonakaliso esikhitshayoRS4854 ~ 20mA / 0 ~ 10 VDC yamanje / voltage okukhishwa ngasikhathi sinye
Ukunikezwa Kwamandlanje®9 ~ 30 VDC / 24VAC 20%12 ~ 30 VDC / 24VAC 20%
Isixhumanisi sokucindezelaΦ 6.5 mm, ngokushesha ngqo ngokuqondile
UkuxhumanaI-RS485 interface emakwe, i-ModbusRTU protocol.
IzindluIpulasitiki engenamlilo UL94 V0 & 316L iphaneli yensimbi engenagqi
IziqinisekisoIsitifiketi se-ROHS, isitifiketi se-EU CE
Isisindo (ilinganiselwa)225g



Izici zokuhanjiswa Okuhlukile Kwezincindezi LFM55

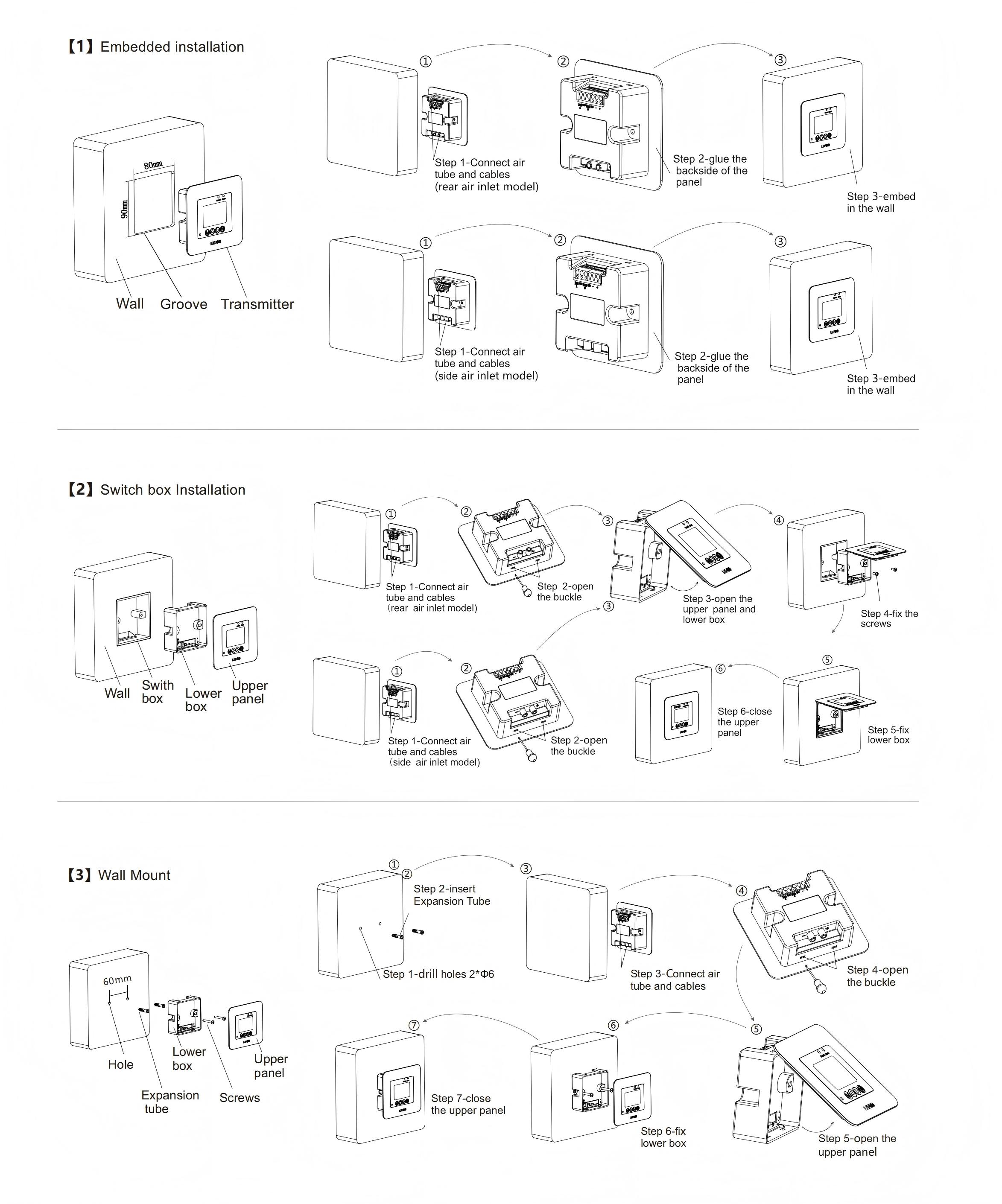

  • Indlela yokufaka efakiwe, ingashintshwa kumabhokisi angama-86

  • Nge-alamu yomsindo nokukhanya, uhla, i-alamu, njll. kungasethwa kusaya

  • Isiboniso sedijithali esayizi enkulu ye-LCD, ukusebenza okulla

  • Iphaneli yensimbi engagqwali engama-316 L ngaphandle kokuqongelela uthuli nokumelana nokugqwalaka

  • Thola ingqikithi ye-micro-cindezi engenisiwe, impendulo yengcindezi ebucayo


Izicelo zokudlulisa Ukucindezelwa Okuhlukile LFM55

  • Amakamelo ahlanzwa

  • Amagumbi okusebenzayo

  • Amagumbi okuhlolwa ngaphandle kothuli

  • Ukushisa, umoya nomoya (HVAC)

  • Izakhiwo ezihlakanipha
