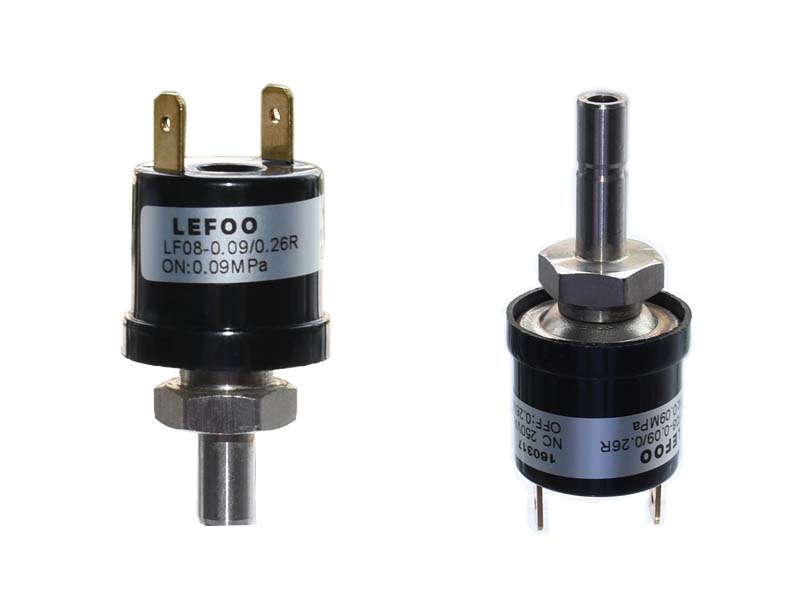

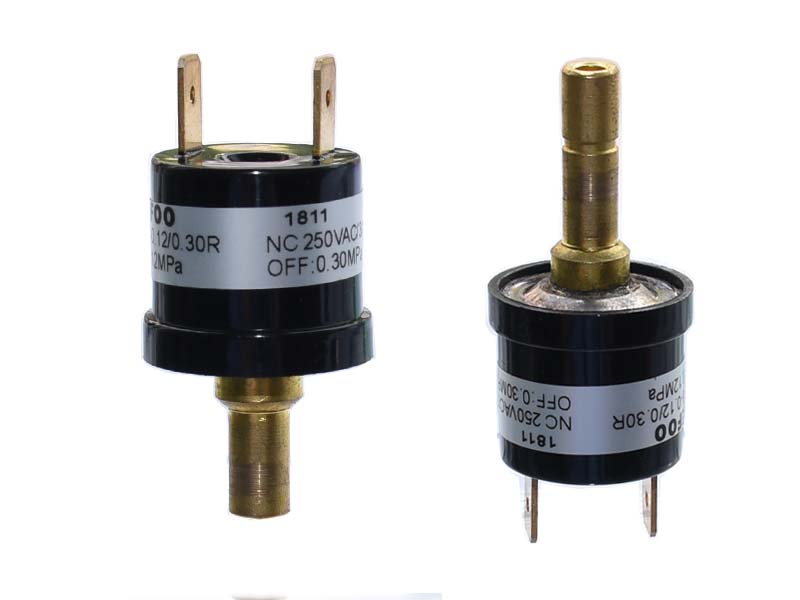

Iswishi yomfutho LF08

Lefoo Iswishi yomfutho LF08

Izishintshi ze-LF08 zingamaphoyinti angashintshi, izishintshi zomfutho ezilungiswe efemini. Ziyakwazi ukusetha kabusha ngokuzenzakalelayo, futhi zingaba izintambo ezivulekile ngokujwayelekile noma ezivaliwe ngokujwayelekile. Zonke izingxenye ezimanzi zensimbi zenza isishintshi se-LF08 sihambisane nenqwaba yamakhemikhali angamanzi noma igesi. Inikezwa izinhlobo eziningi zokuphetha ugesi kusukela kumatheminali ezindaweni ezahlukene nosayizi nezitayela ezihlukene zokucindezela kuya ezintambweni ezinohlu lwezixhumi ezijwayelekile embonini. Amakhono okwenza imishini endlini avumela uLefoo umkhiqizi weswishi yomfutho ukuthi anikeze izinhlobonhlobo zezinto zokufaka umfutho kusukela ezinhlobonhlobo zentambo nosayizi kuya kumayunithi ane-deflector yangaphakathi namapayipi ethusi emisebenzi yokusaha. Ukuze uthole ukukhethwa okwengeziwe kwe iswishi yomfutho eyimishini, chofoza lapha.

Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Isisebenziso

Ukucaciswa kokushintshwa kwengcindezi LF8

ImodeliLF08
ImidiyaUmoya, Amanzi, izingcingo zezimoto, amafutha wokudlulisa, i-Hydrocarbon Media, i-Refrigeration fluid.
Uhlu Lwengcindezi / Ukubekezelela / UbufakaziIngcindezi yesenzoUkubekezelelanaIngcindezi Yobufakazi
0.2 ~ 6bar (ingcindezi ephansi)I-0.5 bar15bar
6~ 10bar.0.7 bar35
11 ~ 20bar.I-1bar45bars
21 ~ 30I-1.5
31 ~ 45I-1.5
Ingcindezi Yokuqosha5000ps
Ukusebenza Kwezinga lokushisaIzinga lokushisa lezemvelo: ingcindezi ephansi:-30 ~ 65C, Ingcindezi Ephakeme:-35 ~ 120C; Izinga lokushisa eliphakathi:-50 ~ 120 C
Ukushintsha Inhlobo:I-SPST (NC OR NO); I-SPDT
Isilinganiso sikagesi120Vac 6FLA, 40. 2LRA; 240Vac 4FLA, 26LRA; 120/240Vac 375VA; 36Vdc 3A
Ukukhuthaza1000000
UkuxhumanaSicela ubone ithebula lokukhetha (ilungile)
Ukuxhumana kukagesi6.35* 0.8; 4.8 * 0.8; Ukuxhuma kwentambo (kungahle kwenziwe ngokwezifiso ubude ne-plug kagesi)

Ukuguqulwa: 1bar = 14.5psi 1MPa = 10bar.


Indlela Yokukhetha


UbubanziIsifunda sasoIzinto EziyisisekeloUkuxhumanaUkuxhumana kukagesi
Umnyango wengcindezi ephezulu 175 PSI

Ukubuyiselwa kwengcindezi ephansi kwe-145 PSI

Iba lengcindezi elikhethekayo 0.2~45		ASPST-NC

I-SPST-NO

SPDT		I-Brass

Insimbi efakiwe		1/8 NPT6.35x08

4.8x80

I-18AWG Wire Harness
1/4 NPT
R1/8
R1/4
G1/8
G1/4
1/4 Ithuba
7/16 UNF Intambo yangaphandle
7/16 Intambo yangaphakathi ye-UNF
7/16 I-UNF yangaphakathi ye-valve i-valve
11 ~ 20 BarI-SPST-NOI-Brass1/4 Ithuba4.8x80

Isibonelo LF08 / 11 ~ 20 Bar / SPST-NO / Brass/ 1/4 Copper Tube / 4.8x80

Izici Zokushintsha Ingcindezi

Insimbi yensimbi neyesakhiwo sentwasahlobo kabusha okuzenzakalelayo.

Ihambisana nenqwaba yamakhemikhali asefomeni uketshezi noma igesi.

Ukulinganiswa okujwayelekile kwemishini ephakeme

I-Capalable ukuhola kocingo ngezinhlobo zezixhumi ezijwayelekile zemboni

Ukumiswa kwengcindezi okunembile nokuqiniswa

I-diaphragm engapheli nebhuloho likagesi

Ukusetshenziswa Kwengcindezi

Ukulawulwa kwemishini okuzenzakalelayo kombhoshongo wamanzi, i-Water Pump, ithubhu lethusi, izinhlelo zokusayisa


Isicelo esijwayelekile: Amayunithi we-air conditioning (okuhlala, ezentengiselwano nezimoto)

Ukuguda

I-CO2 Air conditioning, CO2 Refrigeration

Amaphampu Okushisa

Ukusikwa kwengcindezi ephezulu, ukucindezela okuphansi

Amabhuleki omoya (amaloli nemishini yezentengiselwano)

Ukuqapha ukucindezela kukaphethili

Izilawulo zenjini

Imishini yezolimo

Izilawuli zezimboni

Injini / imishini yasolwandle.
