Ithuluzi Lokonga Imali Lokudlulisa Izinga Lokushisa Nomswakama LFH10A

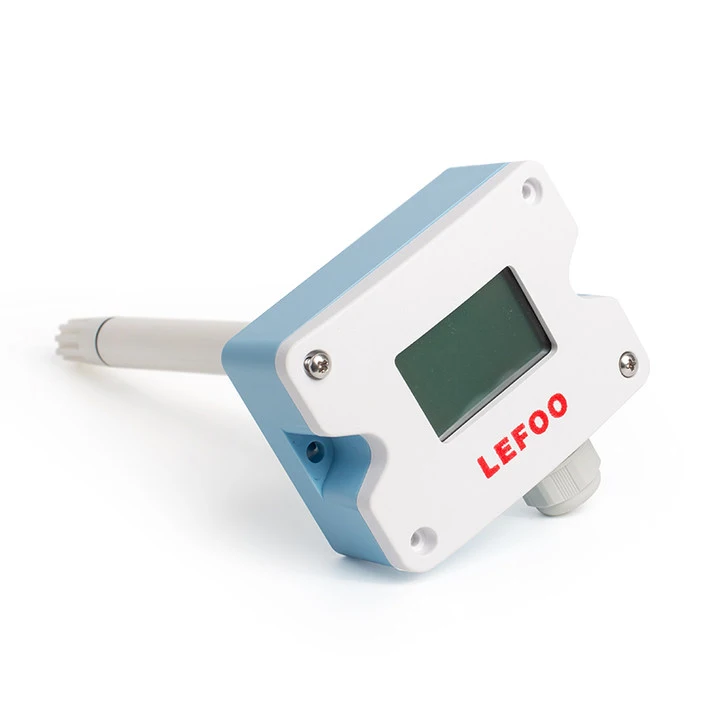

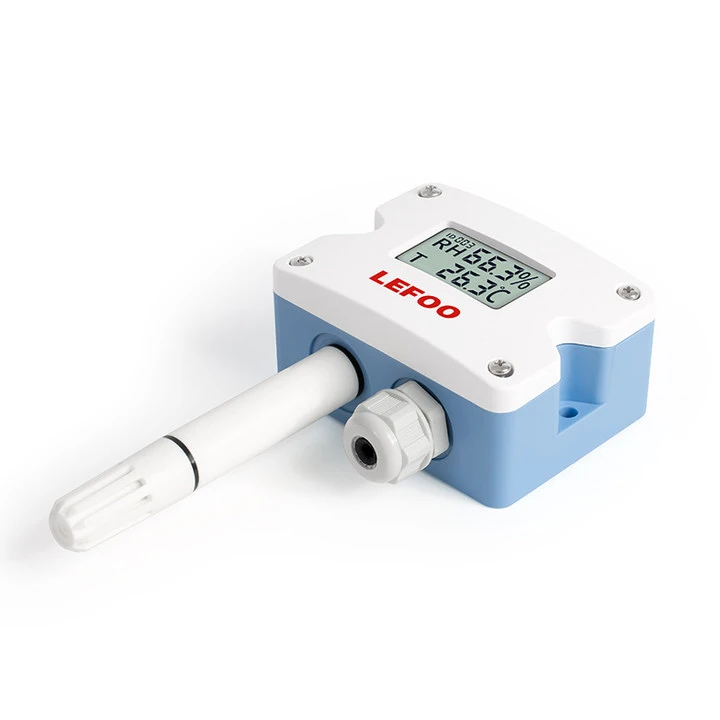

Lefoo Ithuluzi Lokonga Imali Lokudlulisa Izinga Lokushisa Nomswakama LFH10A

I-transmitter ye-LFH10A yohlu lokushisa nomswakama i-transmitter eklanyelwe izinhlelo zokusebenza zezimboni. Inezindlela ezintathu zokufakwa: ekudongeni, epayipini, nokuhlukaniswa. Izinhlobo ezintathu zokukhipha amandla, i-voltage, ne-RS485 ziyakhethwa. Ikhono lokuzivumelanisa nezimo zendawo liqinile, futhi umklamo we-terminal ulungele ukufakwa okusheshayo. Ingasetshenziswa kabanzi emakamelweni amakhompyutha, ku-HVAC, ezakhiweni, ezindaweni zokugcina izithelo nemifino, emapulazini nakwezinye izindawo lapho kudingeka khona ukulinganiswa kokushisa nomswakama.


Izici

* Sebenzisa inzwa enemba ephezulu kanye nesilawuli esikhulu, ukuzinza isikhathi eside kanye namandla okumelana nokuphazamiseka

* Umklamo ovelele, ukubonisa okuphindwe kabili kwe-LCD ngemuva kokukhanya kokushisa nomswakama, ukusebenza kalula

* Umsebenzi wokuvikela ukugcwala kwe-overvoltage nokuxhuma ngokuphambene, izinga lokuvikela IP65

* Ububanzi bokushisa bungashintshwa ngekhodi yokudaya, i-485 output ingashintsha inombolo yomshini kanye ne-baud rate ngekhodi yokudaya


Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Izisebenziso

Ukucaciswa kokushisa ne-Humidity Transmitter LFH10A

Ukulinganisa kwezobuchwephesha


Izinga lokushisa noHlala LFH10A
Ubuzwe Obuhlobene
UmqondisiUhlobo lwedijithali
Ububanzi bokilingana0% ~ 100%RH
OkukhishwayoI-RS485 / Modbus, 0 ~ 10VDC, 4 ~ 20mA yokuzikhethela
Isikhathi sokuphendula≤10s (20℃, umoya wokugeleza kancane)
Ukuqondisa± 2% @ 25℃ & 60% RH

Ukushisa
UmqondisiUkumelana nedijithali noma ukushisa
Ububanzi bokilingana0 ~ 50℃, -20 ~ 60℃
Okukhishwayo4 ~ 20mA, 0 ~ 10 VDC, RS485 / Modbus.
Ukushisa Komsebenzi-20 ~ 60℃,5%-95% RH (okungahlanganisi)
Ukumelana nokushisaBheka i-Order Ref No. neThebula lezinkomba Zokuphikiswa Okushisayo
Umthwalo wokukhishwayo≤250 Ω (Uhlobo lwamanje), ≥ 2KΩ (Uhlobo lweVoltage)
UkuqondisaIdijithali: ± 0.3℃ @ 0 ~ 60℃ / Ukumelana kwe-Thermal: ± 0.2 ~ 0.4℃ @ 25℃
Bonisa BonaIsikhombiso se-LCD ngokuzikhethela, ngokukhombisa iyunithi nokukhanya okungemuva (4 ~ 20mA ngaphandle kokukhanya emuva)
Ukunikezwa KwamandlanjeUhlobo lwe-Voltage / uhlobo lwe-RS485: 15 ~ 35VDC / 24VAC ± 20%;

Uhlobo lwamanje 19.5 ~ 35VDC (RL = 500 Ω) 9.5 ~ 35VDC (RL = 0Ω)

Izinto zeShellIzindlu ze-ABS, uphenyo lwe-PC kanye nesihlungi esiphakeme se-polymer
Ibanga LokuvikelaIP65

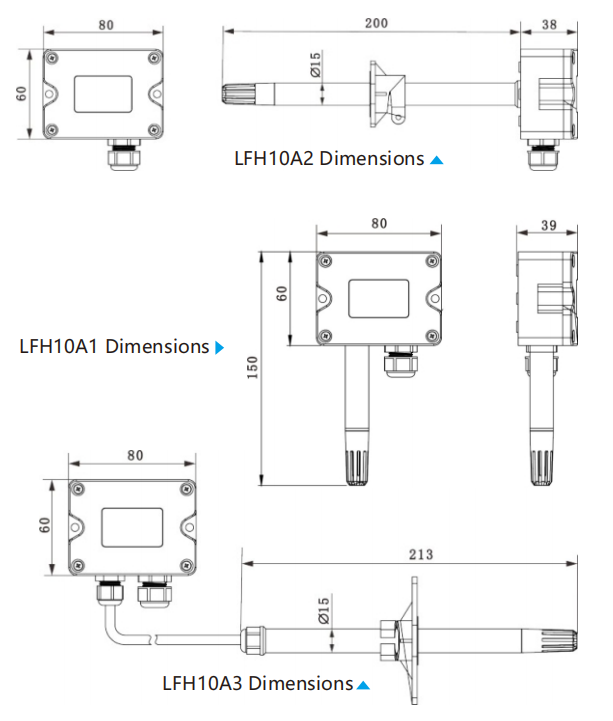

Ubungakho



Umhlahlandlela wokukhetha

Ikhodi nencazeloI-ReUphawu

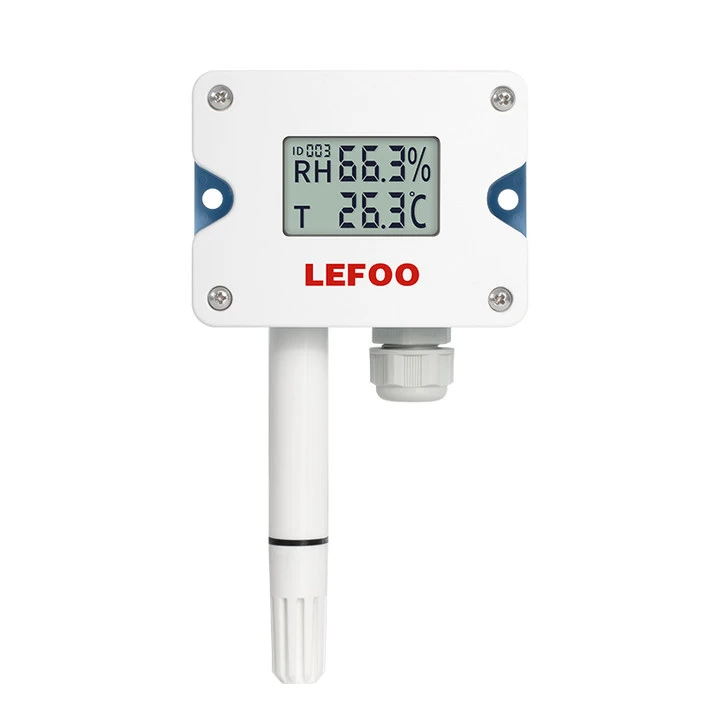

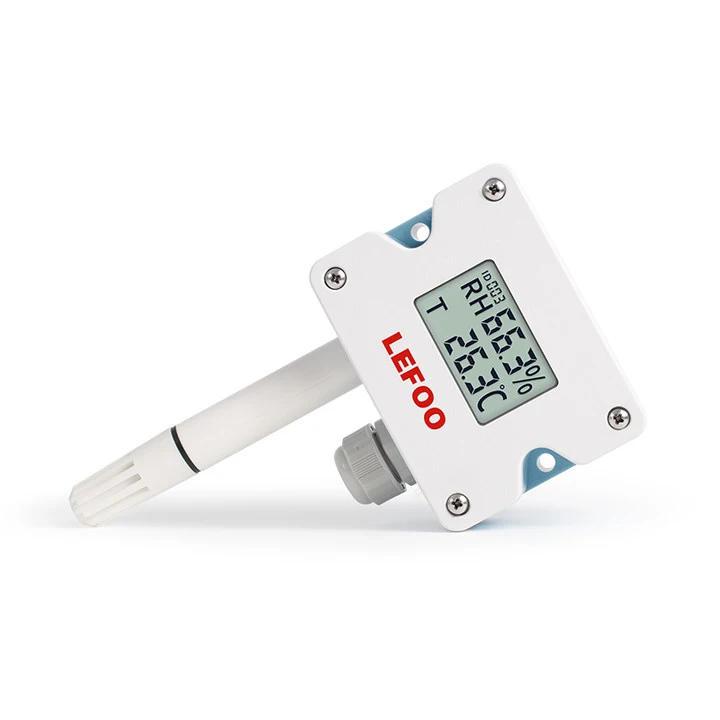

LFH10A1Ukushisa okufakwe ngodonga nokudlulisa komswakamaImodeli

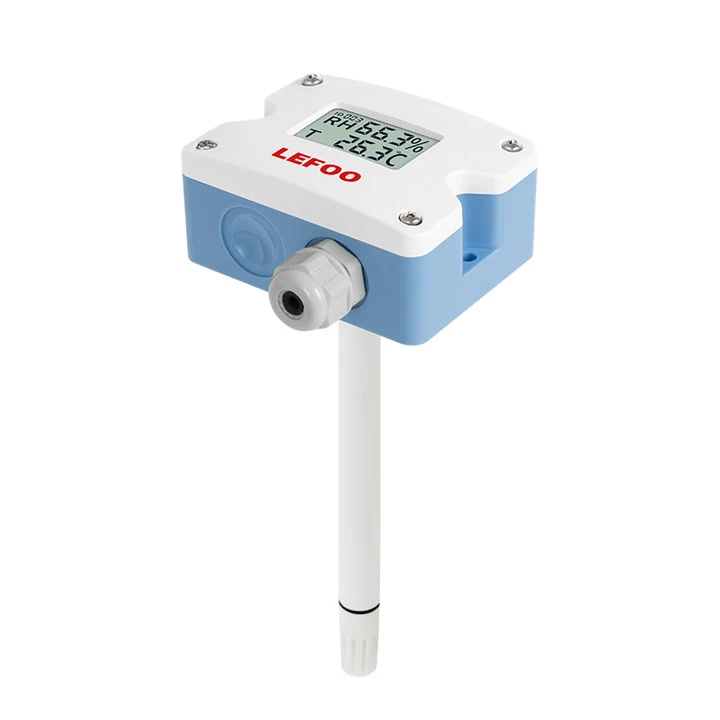

LFH10A2Ukushisa kohlobo lwe-Duct nokudlulisa komswama

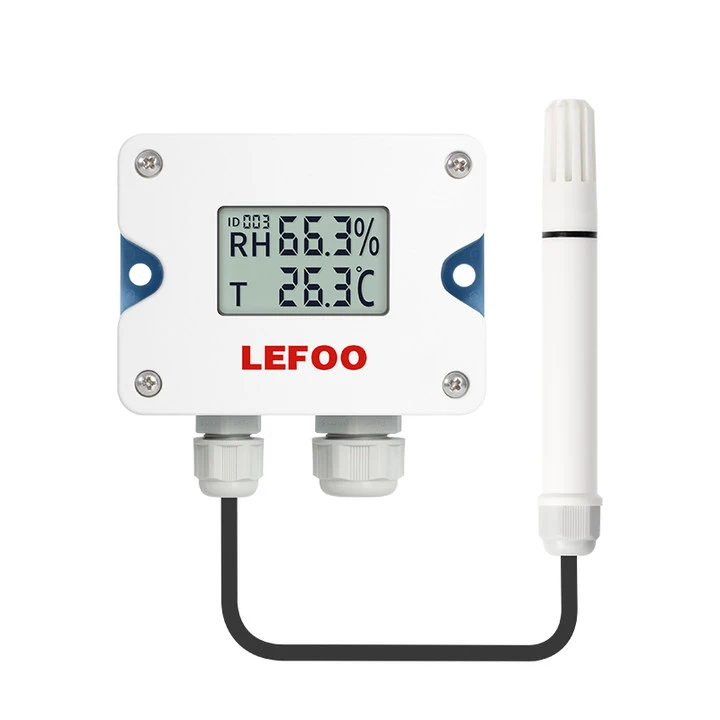

LFH10A3Hlukanisa uhlobo lokushisa nokudlulisa komswamo

3± 3% RH (0.3℃)Ukuqondisa

V100 ~ 10 VDC (Izintambo ezintathu)Ukukhishwa kwe-Humidity
A44 ~ 20 mA (Izintambo ezimbili)
RSRS485 / Modbus

V100 ~ 10 VDC (Izintambo ezintathu)Ukukhishwa kokushisa
A44 ~ 20 mA (Izintambo ezimbili)
RSRS485 / Modbus

0

PT1000, ± 0.2℃ @ 0℃
1PT100, ± 0.2℃ @ 0℃
2I-NTC20K, ± 0.4℃ @ 25℃
6I-NTC10K, ± 0.4℃ @ 25℃

0Akukho luthoUbubanzi bokushisa
10 ~ 50 ℃
2-20 ~ 60℃
8Abanye (isisebenzisi sichaziwe)

0Ngaphandle kwesiboniso
Bonisa Bona
1Ngesiboniso

LFH10A13A4A411
Isibonelo sokukhetha



Izici zezinga lokushisa ne-Humidity Transmitter LFH10A

■ Yamukela inzwa yokuqina okuphezulu nokulawula okuyinhloko, ukuzinza kwesikhathi eside kanye nekhono lokulwa nokuphazamisa

■ Umklamo ovelele, i - LCD yokukhanya emuva okuphindwe kabili kokushisa nomswakama, ukusebenza kalula

■ Umsebenzi wokuvikela ukuxhumana okungaphezulu nomsebenzi wokuvikela emuva, izinga lokuvikela i-IP65

■ Ububanzi bezokushisa bungashintshwa ngokudayela ikhodi, okukhishwa okungu-485 kungashintsha inombolo yomshini kanye nezinga le-baud ngokudaya ikhodi

Ukusetshenziswa Kwezinga lokushisa ne-Humidity Transmitter LFH10A

Uchungechunge lwe-LEFOO Temperature and Humidity transmitter LFH10A lusetshenziswa ku-PLC, i-dehumidifier, i-air conditioner ephezulu ejwayelekile, Ukusekela amaphrojekthi wengqalasizinda, i-Metallurgical Automation, imishini yokudweba
