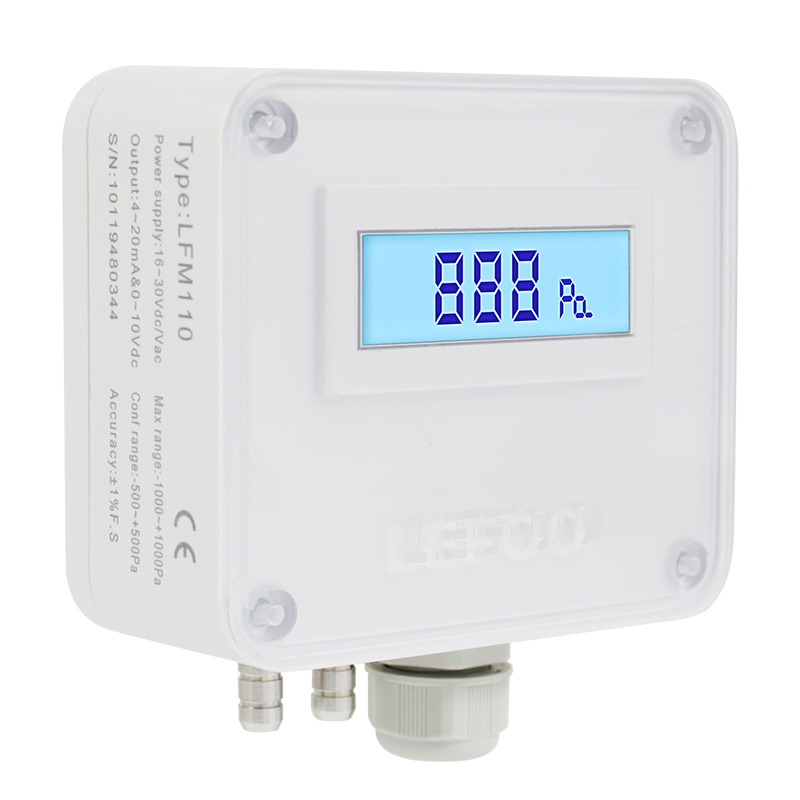

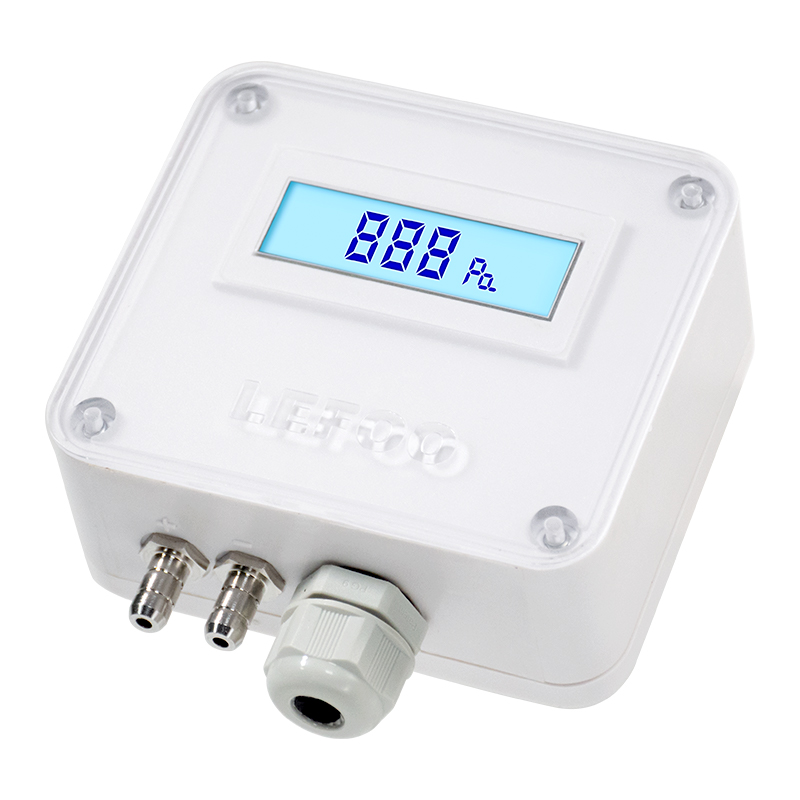

Lefoo Isidluli Somfutho Wokuhlukanisa LFM11

Name: Isidluli Somfutho Wokuhlukanisa LFM11
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

I-LEFOO LFM11 micro differential pressure transmitter isebenzisa i-sensor ye-MEMS enemba ephezulu, ukutholwa kwengcindezi yedijithali kanye nesinxephezelo sezinga lokushisa; inokuphendula okuzwela ingcindezi, ukukhishwa okuzinzile isikhathi eside, ukusebenza okuhle kakhulu kwezinga lokushisa nezinye izici. Ingathola ingcindezi enomthelela omuhle, ingcindezi enomthelela omubi noma umehluko wengcindezi, isetshenziswa kabanzi ekuhloleni umoya noma igesi engathathi hlangothi, ingcindezi yangaphakathi ingahlela amayunithi ahlukahlukene, ububanzi bungashintshwa endaweni. Ingasetshenziselwa ukutholwa komehluko wengcindezi ezinhlelweni ezinjengama-fan, ama-blower, izihlungi, ukungenisa umoya eziko, amakamelo ahlanzekile, amabutho okuhlola i-nuclear kanye nokungenisa umoya ezakhiweni.

Izici

* Ububanzi bungahlelwa endaweni nge-dip switch eyakhelwe ngaphakathi

* Isikhathi sokusabela (0.5s-4s) singashintshwa nge-dip switch eyakhelwe ngaphakathi

* Umkhiqizo ungalungiswa ngokufaka i-back plate yokufaka, futhi ungahlukaniswa ngokuvumelana nezimo

* I-ABS housing evimbela umlilo enokumelana nokushaya okuhle nokumelana nokushisa

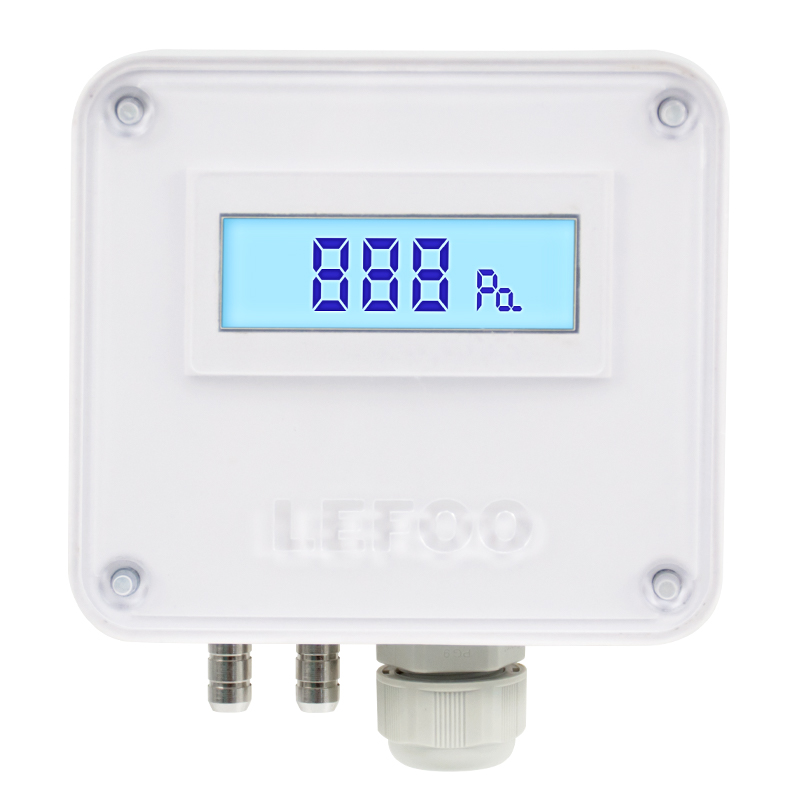

* Isibonisi sedijithali se-LCD esiqondakalayo

Thola Isicaphuno Layisha phansi i-PDF

Umdluliseli

Impompu

Ukucaciswa
Izici:
Izisebenziso

Ukucaciswa kokudluliselwa Kwengcindezi Ehlukile LFM11

I-transducer yokucindezela ehluke
Qaphela: Isembozo sepulasitiki esisobala sivimbela uthuli ku-LCD
Jikelele	Inani lenani
Uhla lwengcindezi	0 ~ ± 100Pa, 0 ~ ± 1,000Pa, 0 ~ ± 10,000Pa
Ukulayisha ngokweqile	5KPa (LFM116), 10KPa (LFM110), 80KPa (LFM112)
Ukuqondisa	± 1% F.S
Izinga lokushisa lokugcina	-20℃ ~ 70℃
Isikhathi sokuphendula	0.5s / 1s / 2s / 4s
Ibanga lokuvikela	IP4
Ukuxhumana kwengcindezi	Ukuxhumana kwensimbi, Ø 6.2 mm.
Ukuxhumana kukagesi	Izintambo ezimbili	Izintambo ezintathu	Izintambo ezine	Intambo emihlanu	Izintambo eziyisithupha
	4 ~ 20mA	0 ~ 5V 0 ~ 10V	RS485	0 ~ 10 VDC RS485	4 ~ 20mA 0 ~ 5 / 10 VDC
Ukunikezwa kwamandlane	12 ~ 30 VDC	16 ~ 30 VDC	12 ~ 30 VDC	16 ~ 30 VDC	16 ~ 30 VDC
Ukusetshenziswa kwamandlane	≤1.5W
Ukuxhumana	Isixhumi esijwayelekile se-RS-485, i-Modbus RTU
Isiqinisekiso	Isitifiketi se-ROHS, CE
I-electromagnetic Ukuvumelana	Imisebe ye-electromagnetic: i-EN50081-1 /-2; Ubuzwe be-Electromagnetic: i-EN500822
Ukuvikelwa kombani	Ukuqhutshwa komoya ukumelana namandla angama-8000V, igobolondo nokuqhutshwa kwekhebula ukumelana namandla kava 4000V (ingakwenziwa ngokwezifiso ngokwezidingo)
Bonisa isimo	Isiboniso sedijithali se-LCD
Isisindo	166g

Ukhetho lwemodeli
Xhumana neqembu lokuthengisa le-LEFOO ukuze uthole imininingwane eminingi

Ikhodi nencazelo						Amagqaba
LFM11						Imodeli
	6	-100 ~ 100pa				Uhla lwengcindezi
	4	-1000 ~ 1000Pa
	0	-10000 ~ 10000Pa
		O	Ngesiboni			Bonisa isimo
		NI	Ngaphandle kwesiboniso
			A	4 ~ 20mA & 0 ~ 10 VDC (ukukhishwa kweSimultaneous)		Okokukhishwayo
			B	4 ~ 20 mA (Izintambo ezimbili)
			UC	0 ~ 10 VDC (Izintambo ezintathu)
			D	0 ~ 5 VDC (Izintambo ezintathu)
			I-E	Ukuxhumana kwe-RS-485
				UC	± 1-0% F.S K (± 0.5% F.S> 1000pa)	Ukuqondisa
LFM11	4	O	B	UC		Isibonelo sokukhetha

Izici ze-Differential Pressure Transmitter LFM11

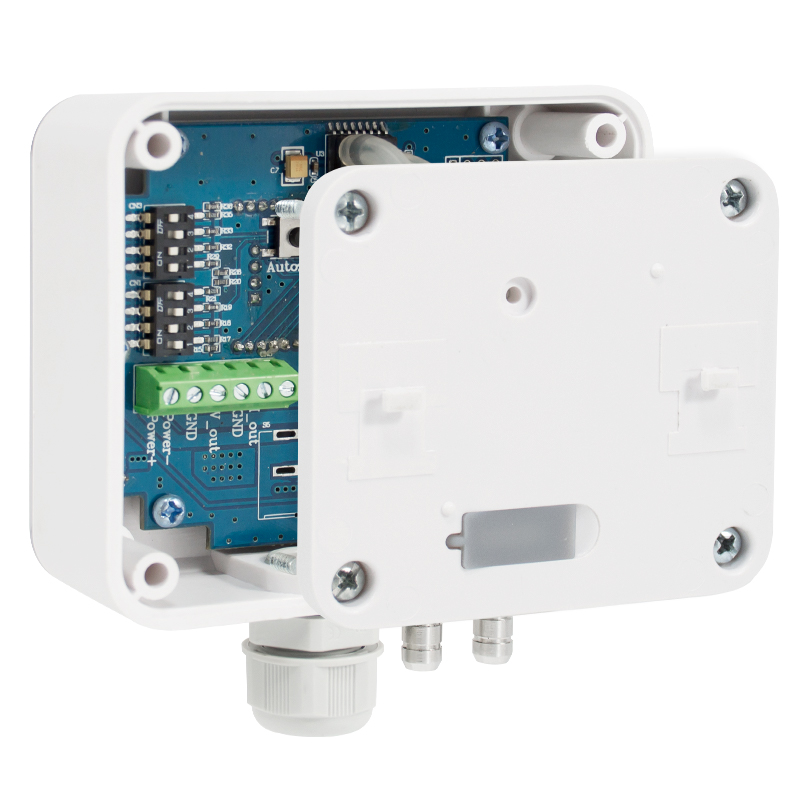

Inani lokusebenza lokucindezela lingasethwa esizeni ngokushintshwa kwe-DIP eyakhelwe ngaphakathi kwemikhiqizo yochungechunge lwe-LFM11.
Isikhathi sokuphendula singalungiswa esizeni ngaso
Ukushintshwa kwe-DIP okwakhelwe ngaphakathi komkhiqizo (0.5S ~ 4S)

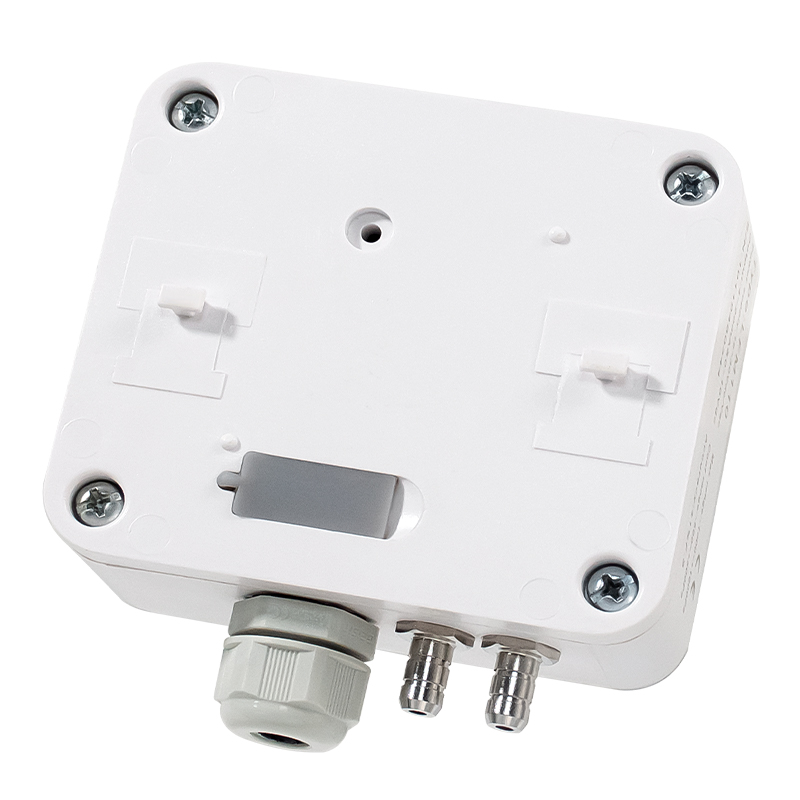

Indlela yokujikeleza ilungiselwe ku-backplate yokufaka (Kungafakwa isinyathelo ngesinyathelo)...
Thola igobolondo lokubumba umjovo we-ABS, ngokumelana nomthelela omuhle, izakhiwo zokumelana nokushisa.

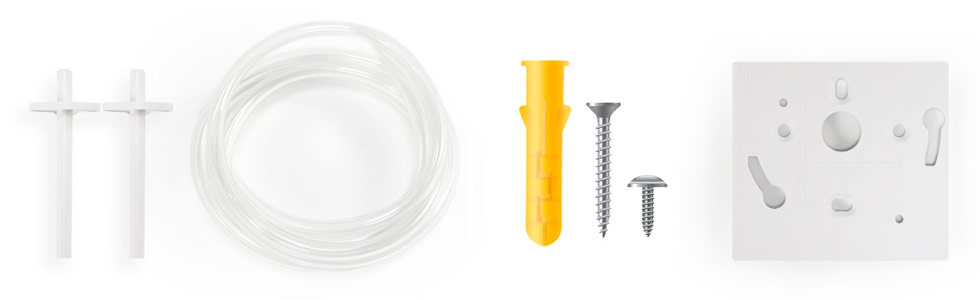

Izingxenye Ezikhethekile Zokucindezela Okuhlukile I-LEM 11
Isixhumanisi
I-Tubu
Inhlanganisela ye-screw
IMount Board

Izicelo zokudlulisa Ukucindezela Okuhlukile LFM11

I-transducer yengcindezi ephansi iyidivayisi yokuqapha umoya noma igesi engathathi hlangothi.

Uhlelo lokucubungula umoya

Ukuhlungwa komoya

Ubuchwepheshe bezokuzenzekelayo

I-Blower

Ukwakha ukuhlanganiswa kokuzenzakalela

Ukususwa kothuli ku-lithium

Imishini yokuphrinta ye-3D

Ubuchwepheshe bezemvelo

Uhlelo lomoya omusha

Isimo somoya omusha

Ihhavini legesi

Amaphrojekthi we-HVAC

Isimo somoya sezimboni

Ukuzalanisa imfuyo

Izinhlelo zokuphathwa kwamandla okuhlakanipha

Ukusakazwa kwezokwelapha

I-PLC

Imishini yokudweba

Ukuhlolwa kwepayipi lomugqa wokukhiqiza

Uhlelo lokuhlanzwa kwesikhalazi

Ukwelashwa kwegesi engcolisi

Uhlelo lokuhlanzwa komlilo lwe-catalitic

Uphenyo Lomkhiqizo

Izingxenye Ezikhethekile Zokucindezela Okuhlukile I-LEM 11
Isixhumanisi	I-Tubu	Inhlanganisela ye-screw	IMount Board
