Igeji yokucindezela yedijithali enikwe amandla ngebhethri LFT6100

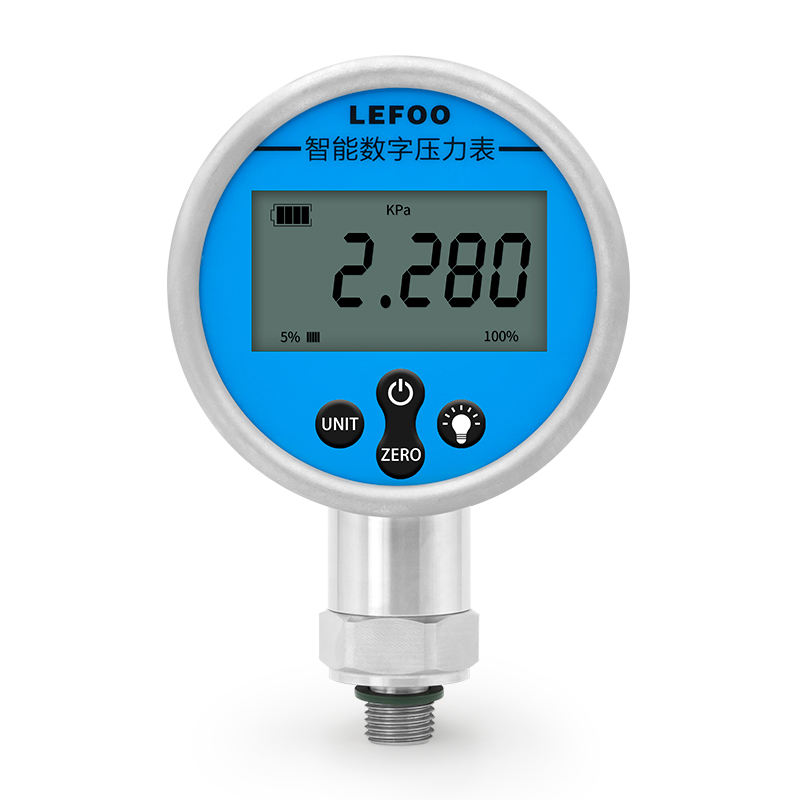

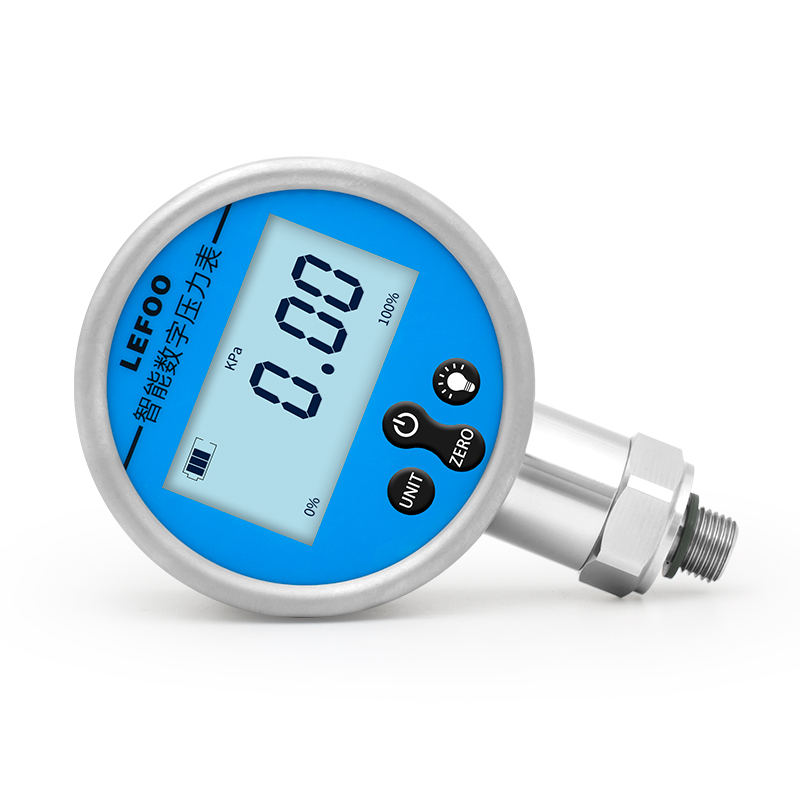

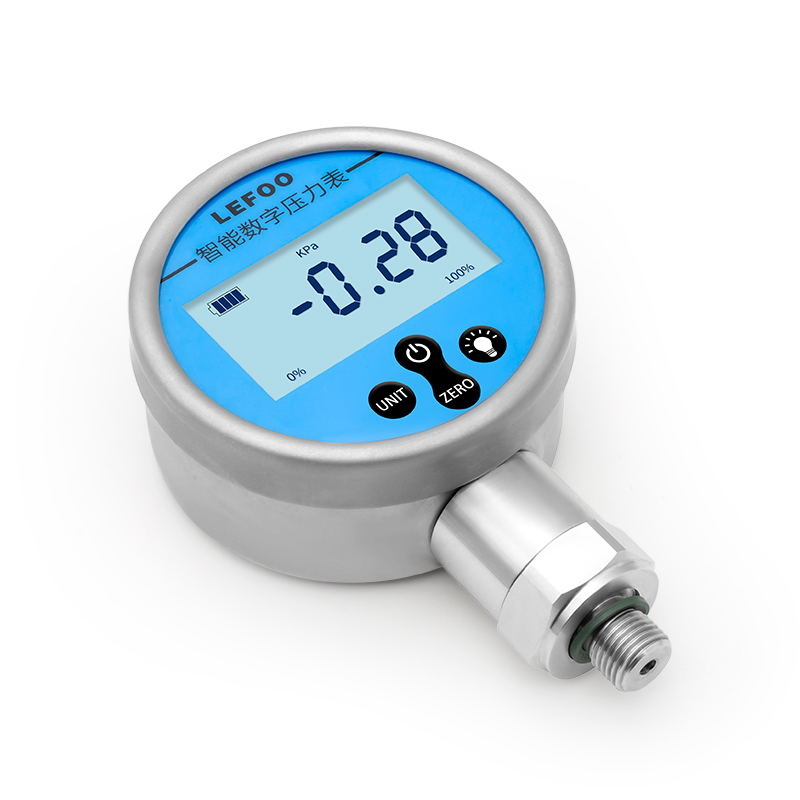

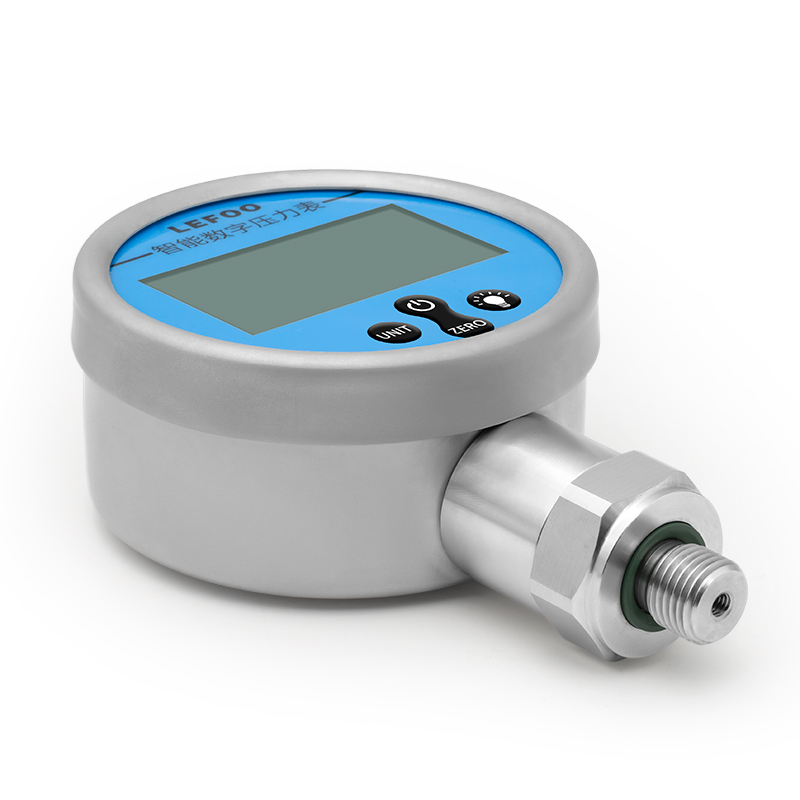

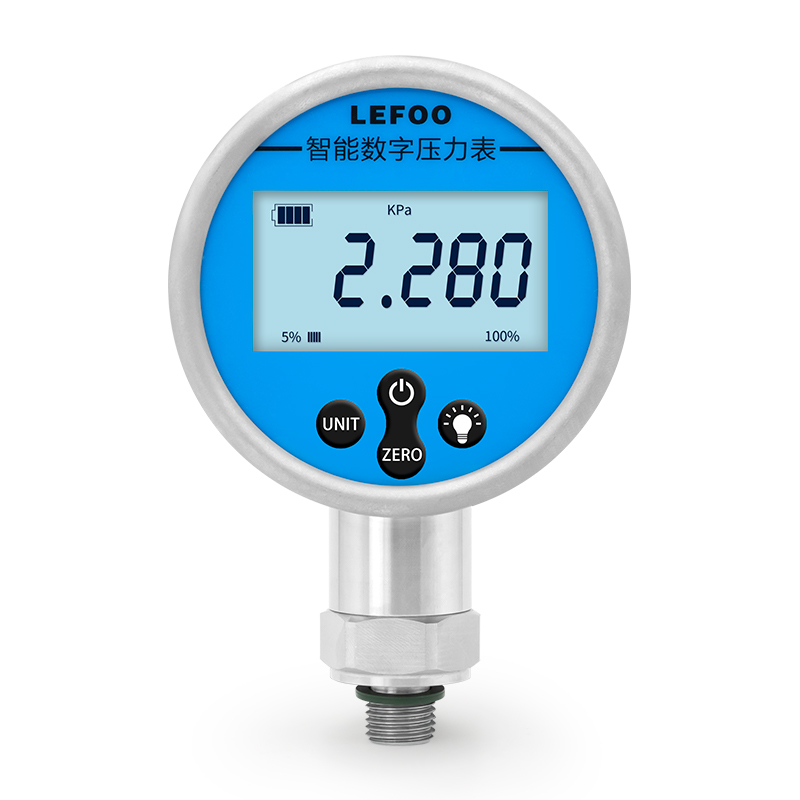

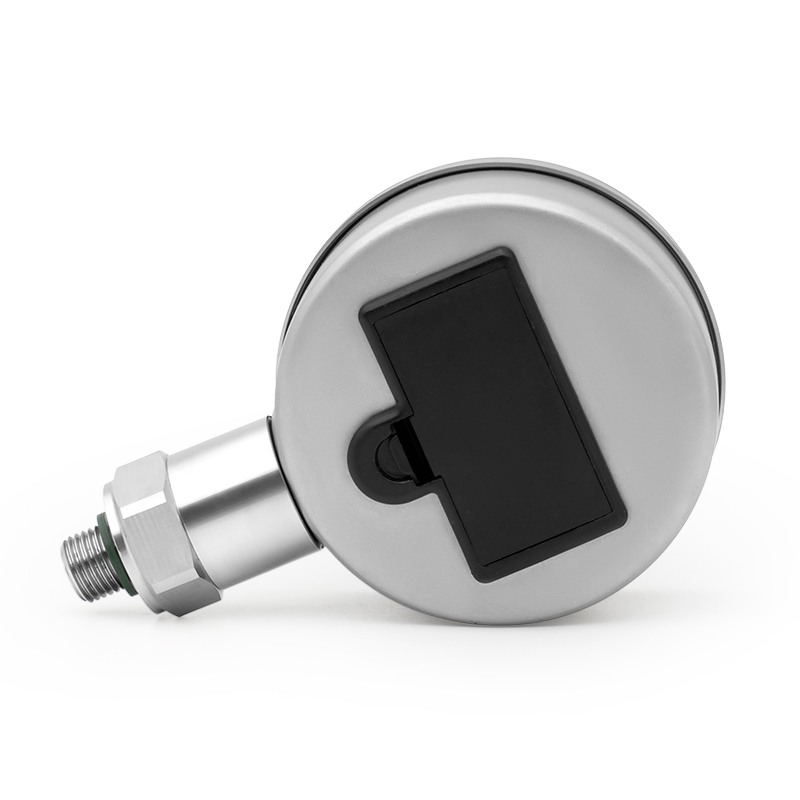

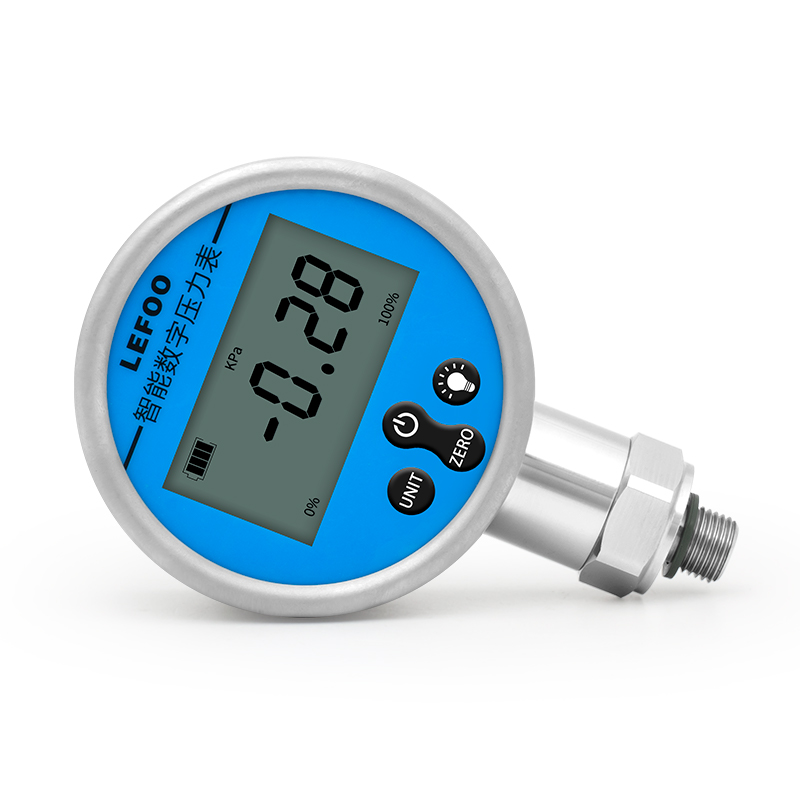

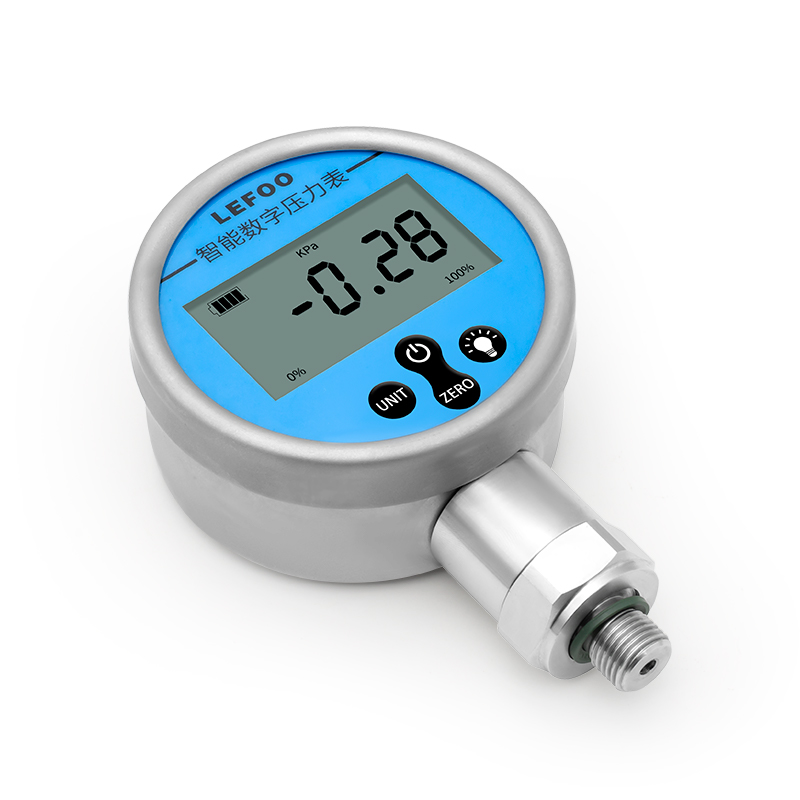

Lefoo Igeji yokucindezela yedijithali enikwe amandla ngebhethri LFT6100

Igeji yokucindezela yedijithali ye-LEFOO LFT6100 enikwa amandla yibhethri isebenzisa i-diffusion silicon core egcwele uwoyela enomsebenzi ophakeme, futhi ingxenye yesekethe isebenzisa i-chip ekhethekile yokucubungula i-AD enamabhithi angama-24 kanye ne-MCU yezinga lezimboni, enokulinganisa okuphezulu nokuzinza okuhle. Yenzelwe ukusebenza ngamandla aphansi, umsebenzi wamanje ungaphansi kuka-2mA, futhi umsebenzi wokuvala ungaphansi kuka-5μA. Lo mkhiqizo usebenzisa igobolondo lamantshontsho elimhlophe eliyi-304 elisezingeni eliphezulu nezihlangano. Inokumelana nokuthuthumela okuhle futhi ingakala igesi, amanzi, uwoyela nezinye izinto ezingacingi amantshontsho. Ifanele ukusetshenziswa kokukala ukucindezela okufana nokukala ukucindezela okuphathwayo, ukuhambisana kwemishini, kanye nemishini yokulinganisa.


Izakhiwo:

* Umklamo wokusebenza ngamandla aphansi, umsebenzi wamanje ungaphansi kuka-2mA, umsebenzi wokuvala ungaphansi kuka-5μA

* Igobolondo lamantshontsho elimhlophe eliyi-304 nezihlangano, elimelana nokuthuthumela futhi lihlala isikhathi eside

* Izinhlobonhlobo zamayunithi okukala, ukushintshela ngenkinya eyodwa

* Ukusetha kabusha ngenkinya eyodwa, kulula ukusebenzisa

* Amandla ebhethri ehlukanisiwe, umbhalo webha yephesenti yenani lokucindezela

* I-LCD yesikrini esikhulu ene-backlight ukwenzela ukuboniswa okucacile

Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Izisebenziso

Ukucaciswa kweBattery Powered Digital Pressure Gauge LFT6100

Ukulinganisa kwezobuchwephesha

I-LIFOO Battery enamandla i-Digital Pressure Gauge LFT6100
Ubanga lokulingana-100 kPa ... 0 ~ 100 kPa ... 60MPa
Ukulayisha ngokweqileIzikhathi eziphindwe izikhathi eziyi-1.5
Ukuqondisa± 0.25% F.S.
Ukuzima<0.25%F.S./nyanga
Ukushisa okusebenzayo-20℃~ 60℃
Izinga lokushisa-20℃~ 60℃
OkuphakathiAmagesi noma uketshezi oluhambisana ne-304 noma 316L insimbi engagqwali, iViton noma iBuna-N
Ukunikezwa KwamandlanjeIbhethri le-AAA*2
OkwamanjeUkusebenza kwamanje <2mA, ukuvala kwamanje <5μA
Ukuxhumana kwengcindeziM20 * 1.5
Ifomu IngcindeziIngcindezi ye-Gage G / ingcindezi A
IsiqinisekisoI-EU CE

Umhlahlandlela wokukhetha

Ikhodi nencazeloAmagqaba
LFT6100

Imodeli

Ububanzi-100 kPa ... 0 ~ 100 kPa ... 60MPaUbubanzi

KK = kPaIyunithi
BB = Ibhar
P.P = ps
MM = MPa

0.250.25 =± 0.25% F.S.OkunembeAcy
0,50.5 =± 0.5% F.S.

GG = G1/4Ukuxhumana kwengcindezi
MM = M20 * 1.5
NIN = NPT1/4
G2G2 = G1/2


LFT61000-10B0.25NI
Isibonelo Sokukhetha


Izici zeBattery Powered Digital Pressure Gauge LFT6100

  • Idizayini yokusetshenziswa kwamandla aphansi, ukusebenza kwamanje kungaphansi kuka-2mA, ukuvalwa kwamanje kungaphansi kuka-5μA

  • Igobolondo lensimbi ezingenasigqwali namalunga angama-304, ukulwa nokushaqisa nokuqina

  • Izinto ezahlukahlukene zokulinganisa, ukushintsha okukodwa

  • Ukusetha kabusha inkinobho eyodwa, kulula

  • Amandla webhethri wendawo yokushaya, iphesenti lenani lokucindezela lesiboniso seggrafu

  • LCD-skrini elikhulu ngesikrini esingemuva kusiboniso esicacisa


Izicelo ze-Battery Powered Digital Pressure Gauge LFT6100
