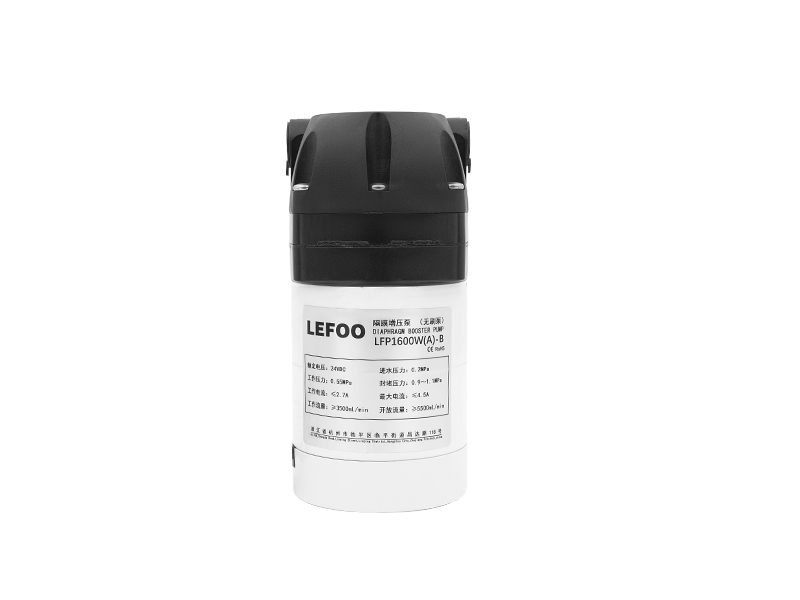

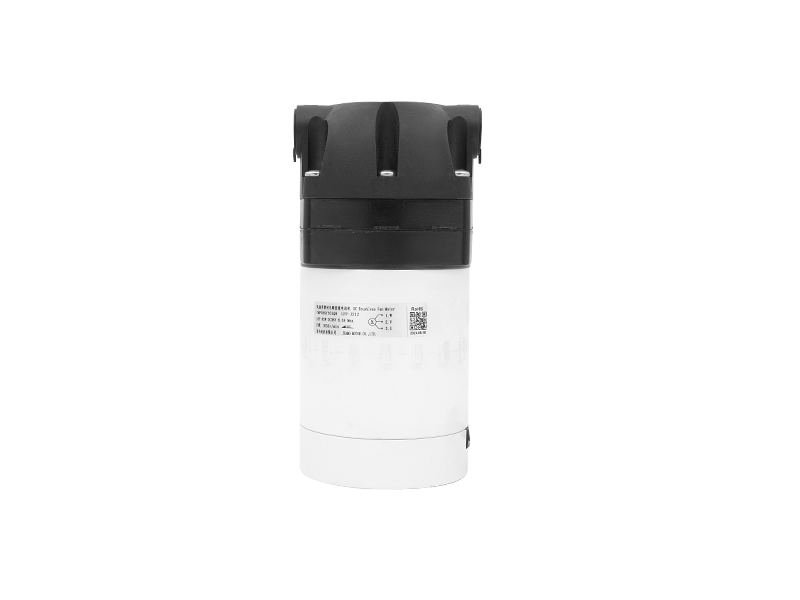

Isetshenziswa inhloko yephampu enkulu yamakamelo amane kanye ne-BMC injection-molded brushless motor, enempilo efinyelela kumahora angu-8000 futhi inesisindo esinciphile ngama-0.5kg kunomshini ofanayo we-brushless motor. Isekela i-voltage engu-24v/36v, ububanzi bokugeleza okubanzi (24V: 1600W-B~11000W-B; 36V: 2600W-B~21200W-B), ingahlelwa ngempendulo yesignali ye-FG ukuze iqaphe isimo sokusebenza ngesikhathi sangempela, futhi isekela ukulawulwa kwesivinini kwe-0-5V/PWM ukuze kuhlangatshezwane nezidingo zokulawulwa kokugeleza okunembile.
Izici
* Ukusebenza okunomsindo ophansi: ubuchwepheshe bokulawula i-FOC ye-sinusoidal, ama-harmonic amancane, umuzwa wezindlebe okhululekile;
* Ukufakwa okuguquguqukayo: isisekelo sisekela ukuzungeza okungu-360° (kulungiswa njalo ngo-15°);
* Ukuvikelwa okuningi: ukuvikelwa okugcwele okufana nokweqisa kwamandla/ukweqisa kwamandla kagesi/ukwehla kwamandla kagesi/ukulahleka kwesigaba/ukuvinjwa/ukushisa ngokweqile/ukuvikela ukuxhuma okuphambene ukuze kuqinisekiswe ukusebenza okuzinzile;
* Ukulawulwa okuhlakaniphile: kusekela ukuvikelwa kwamandla, ukuqala kabusha ngokuzenzakalelayo kanye nemisebenzi yokulawula isivinini, ukuhlangabezana nezimo zokusebenza eziyinkimbinkimbi.
* Kufaneleka izimo zokudluliswa koketshezi olunembile, ngokusebenza okuthembekile nokugcinwa kalula.
| Imodeli | I-Voltheji Elinganisiwe | Ingcindezi Yokungena Kwamanzi | Ingcindezi Yokusebenza | I-Current Yokusebenza | Izinga Lokugeleza | Ingcindezi Ye-Bypass | I-Current Ye-Bypass |
| LFP1600W-B | DC 24±1V | 0.2MPa |
0.55MPa | ≤2.5A | ≥3200ml/min | 0.9-1.1MPa |
≤4.0A |
| LFP1600W (A)-B | DC 24±1V | 0.2MPa | 0.55MPa | ≤2.7A | ≥3500ml/min | 0.9-1.1MPa | ≤4.5A |
| LFP2600W-B | DC 36±1V | 0.2MPa | 0.55MPa | ≤1.8A | ≥3200ml/min | 0.9-1.1MPa | ≤2.8A |
| LFP2600W(A)-B | DC 36±1V | 0.2MPa | 0.55MPa | ≤2.0A | ≥3500ml/min | 0.9-1.1MPa | ≤3.2A |

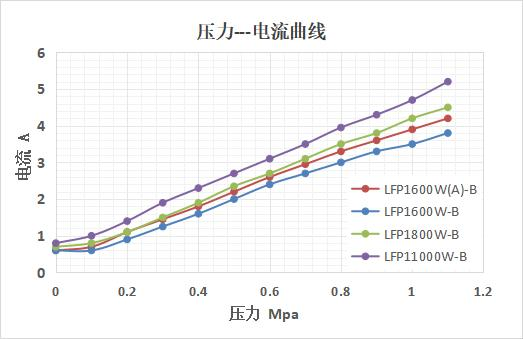

.png "24v-flow-rate_(2).png")

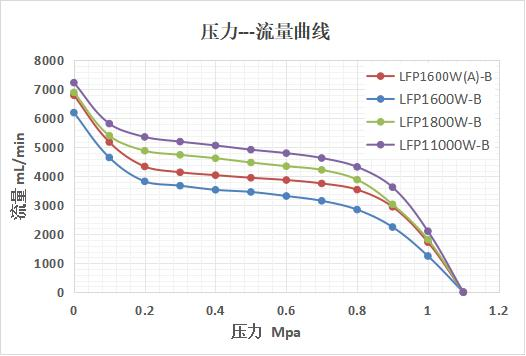

.png "24v-flow-rate_(1).png")

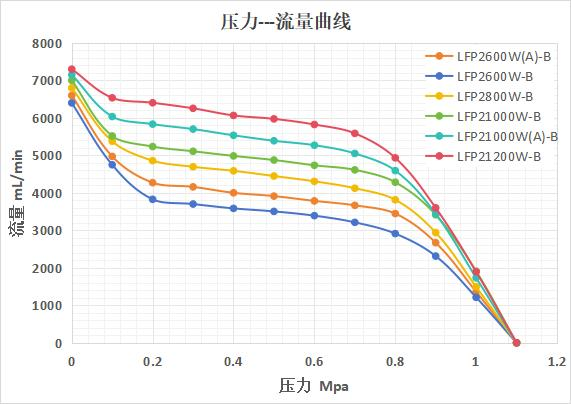

.png "36v-flow-rate_(2).png")

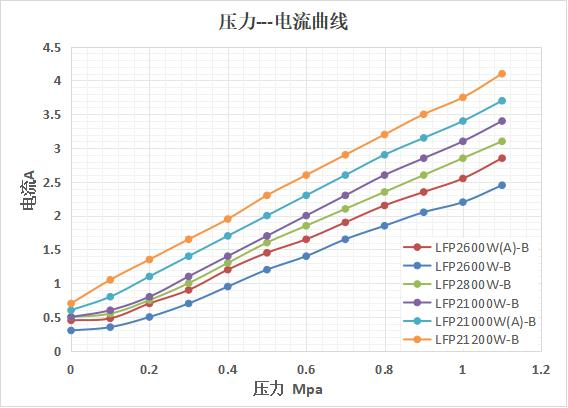

.png "36v-flow-rate_(1).png")
Ukusebenza okungenamsindo omncane: ubuchwepheshe bokulawula i-sinusoidal FOC, ama-harmonics amancane, umuzwa wezindlebe okhululekile;
Ukufakwa okuguquguqukayo: isisekelo sisekela ukuzungezisa okungu-360° (kulungiswa njalo ngo-15°);
Ukuvikelwa okuningi: ukuvikelwa okugcwele okufana ne-overcurrent/overvoltage/undervoltage/phase loss/blocking/overtemperature/anti-reverse connection ukuqinisekisa ukusebenza okuzinzile;
Ukulawula okuhlakaniphile: kusekela ukuvikelwa kwamandla, ukuqala kabusha okuzenzakalelayo nemisebenzi yokulawula isivinini, ukuzivumelanisa nezimo zomsebenzi eziyinkimbinkimbi.
Ilungele izimo zokuhambisa uketshezi ezinemba okuphezulu, ngokusebenza okuthembekile nokulondolozwa okulula.

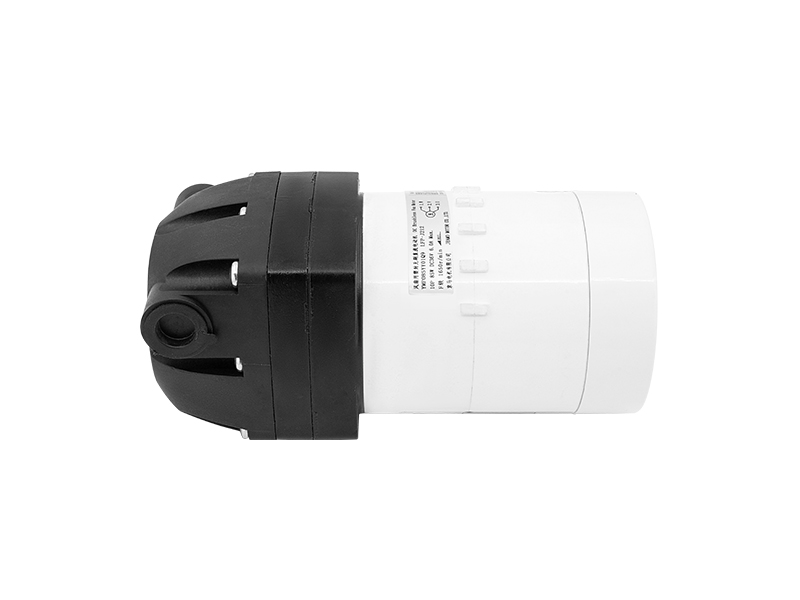

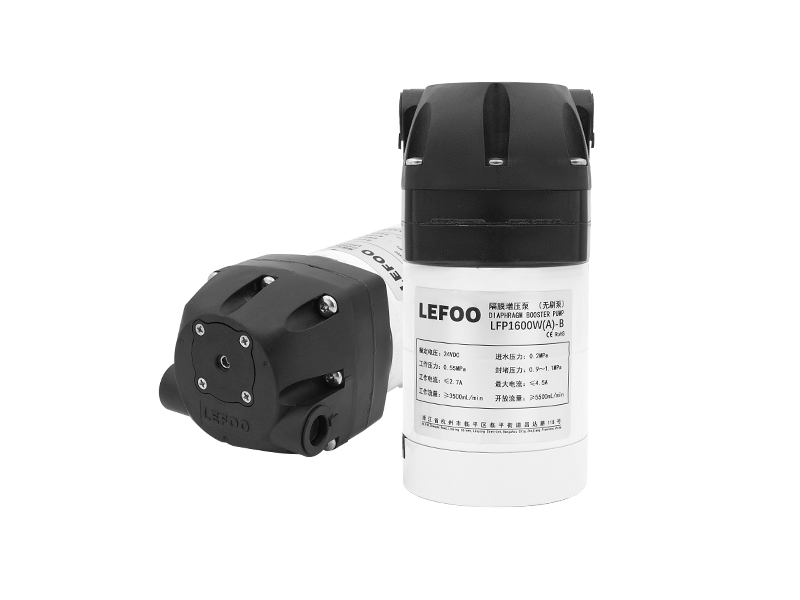

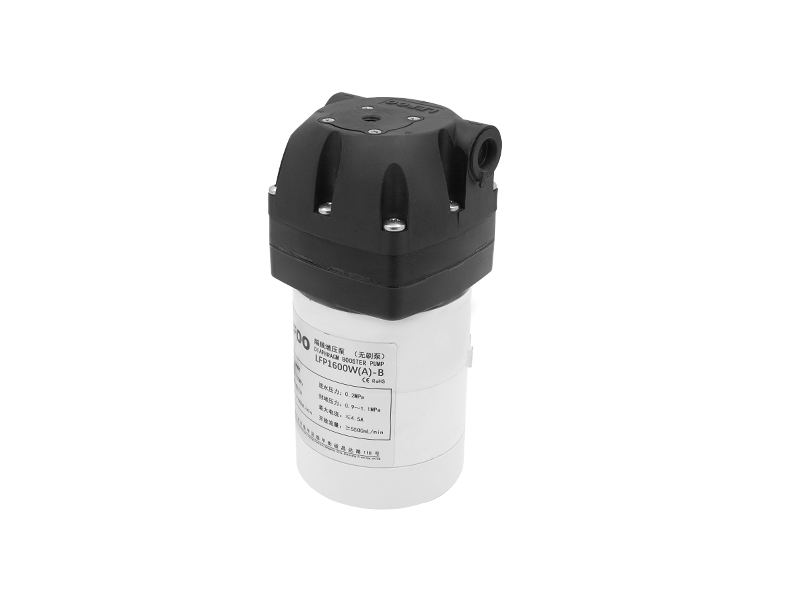

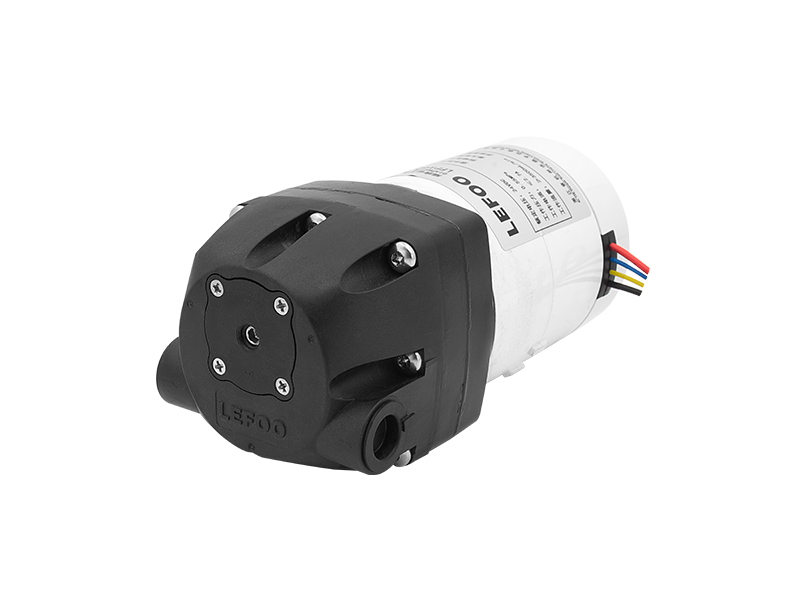

I-Commercial 600Gpd Fixed Frequency Brushless Ro Booster ishayelwa yinjini ye-DC engenamabhulashi. Injini yakhiwe yaqina ukuze ibhekane nezidingo ezinzima zezinhlelo ze-RO zentengiso. Iphampu engenamabhulashi inesikhathi sokusebenza esiguquguqukayo samahora angu-8000 futhi inikela ngamagalani angu-600 amanzi ahlanzekile ngosuku. Iphampu incane ngobukhulu okuyinto enhle kakhulu emishinini yamanzi ahlanzekile yentengiso enokugeleza okuphezulu.
