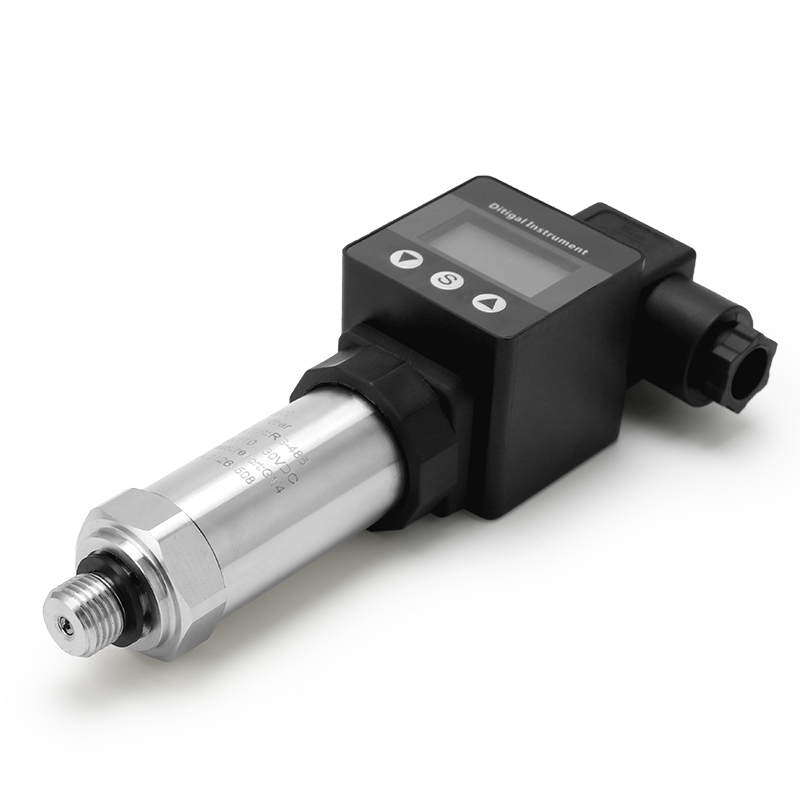

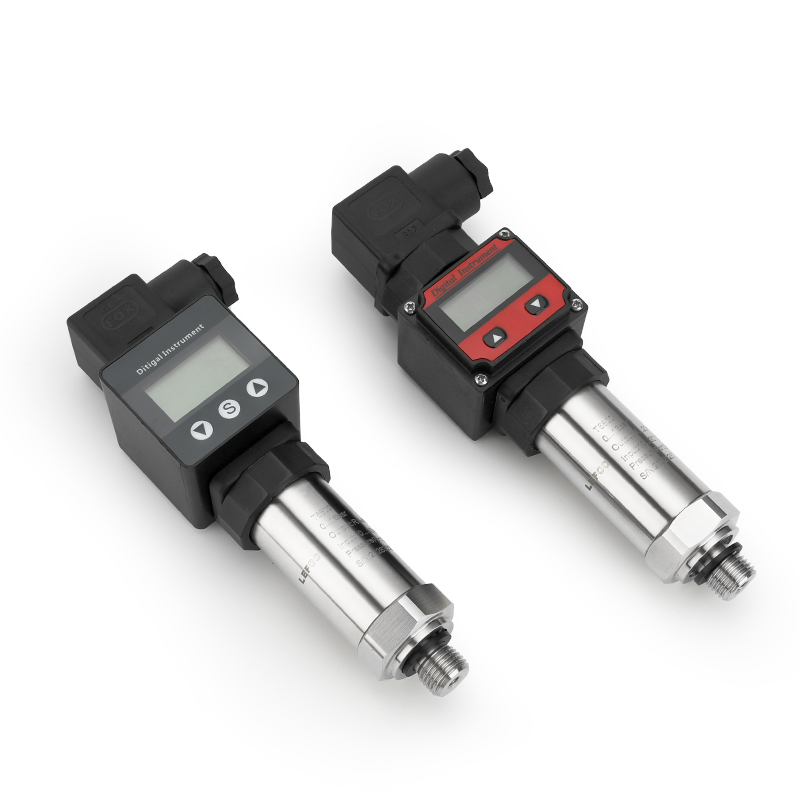

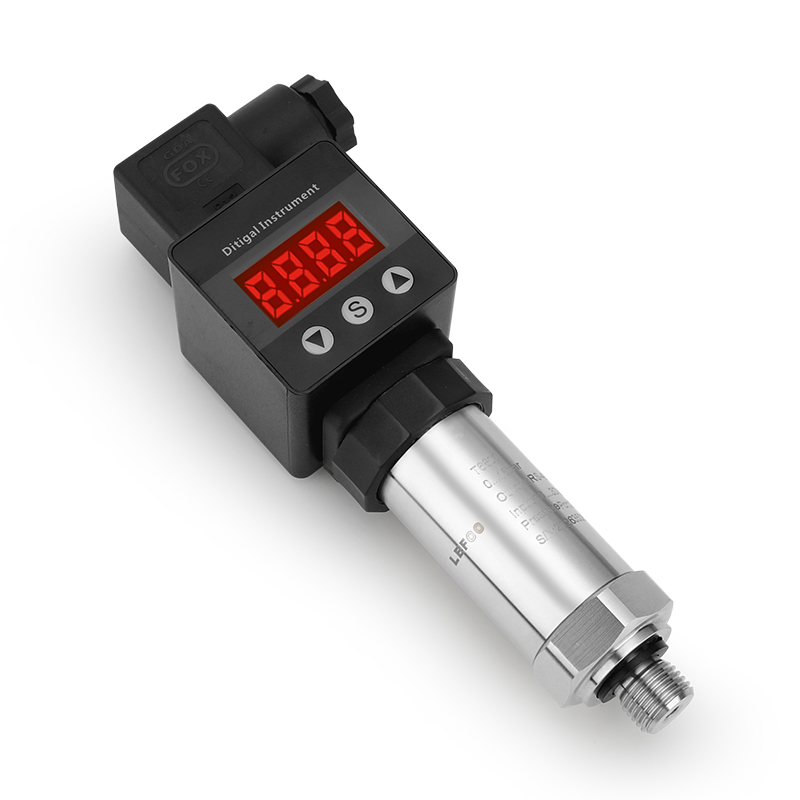

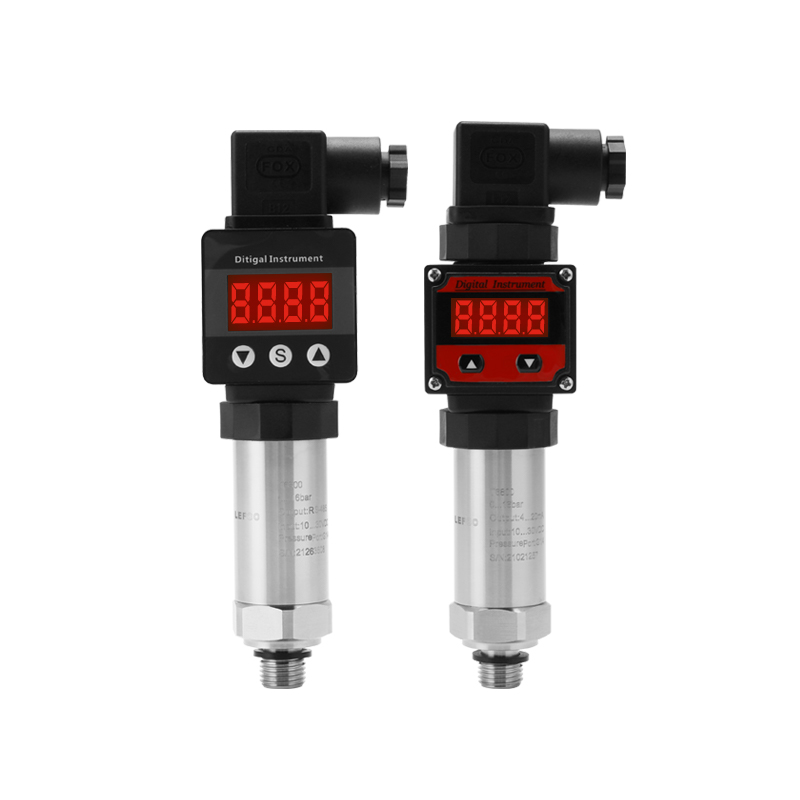

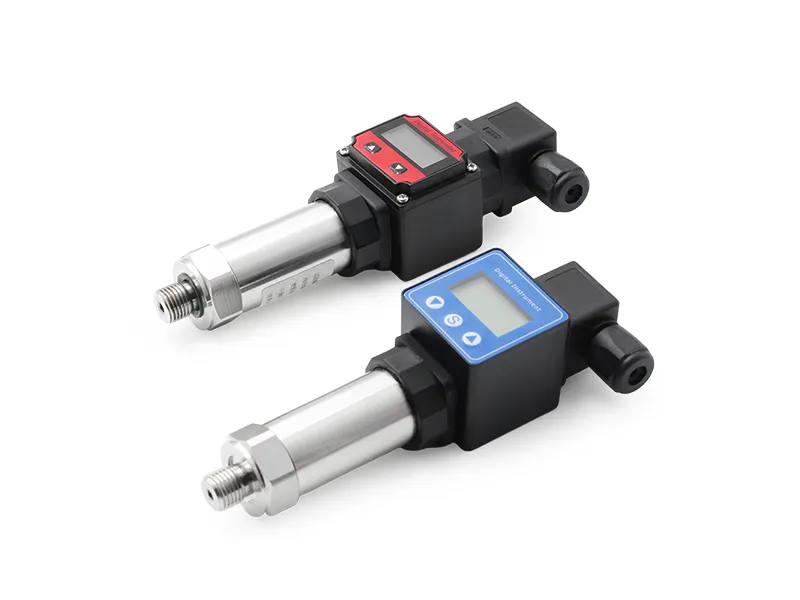

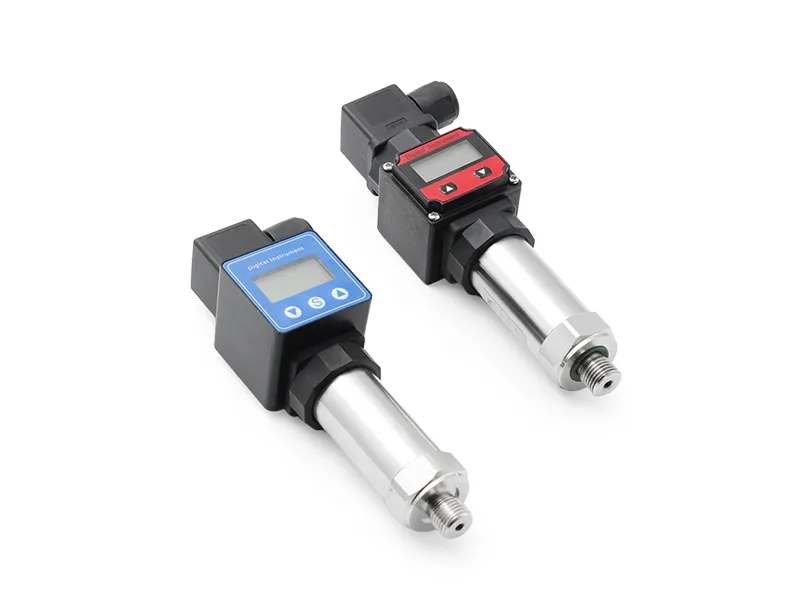

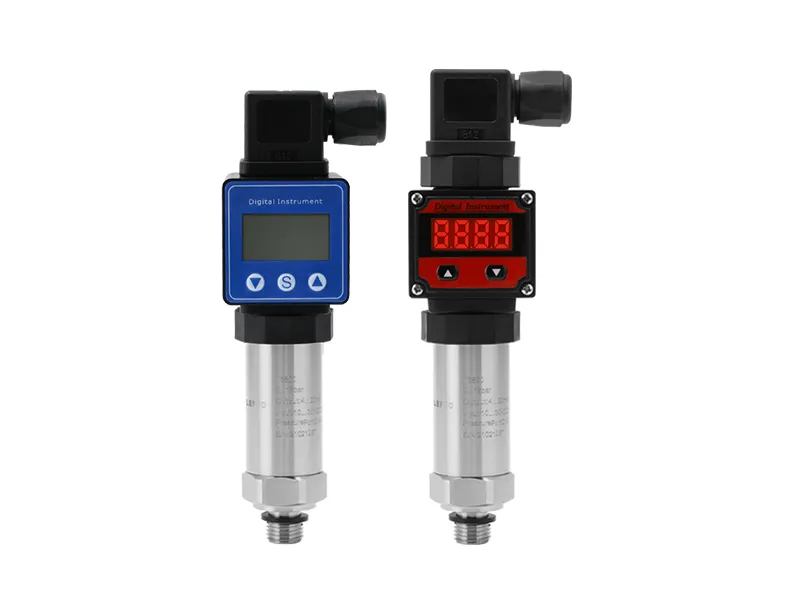

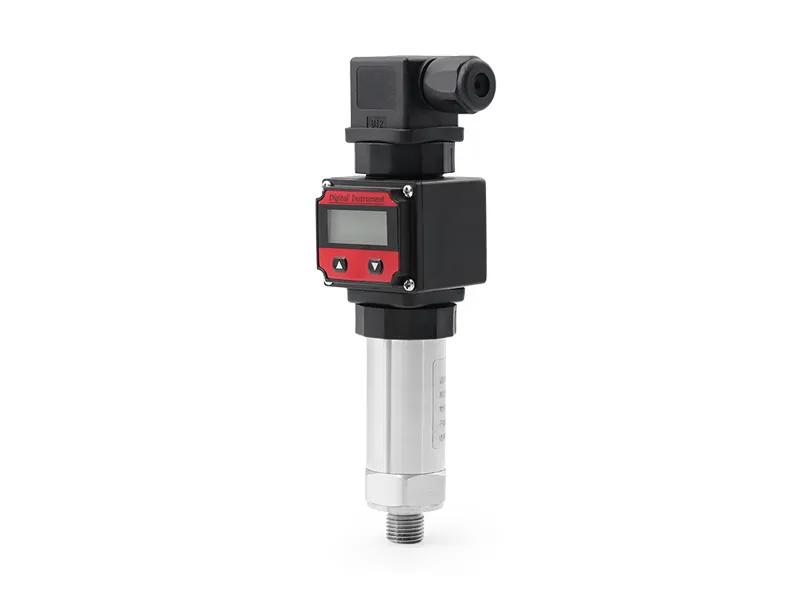

Lefoo Umthumeli Wokucindezela Onesibonisi Sedijithali LFT6800

Name: Umthumeli Wokucindezela Onesibonisi Sedijithali LFT6800
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

I-LEFOO LFT6800 digital pressure transmitter isebenzisa i-ceramic core enomsebenzi ophezulu noma i-oil-filled silicon core, futhi ihlangana nesekethe yokucubungula ethuthukile kanye nobuchwepheshe be-temperature compensation ukuguqula ushintsho lwengcindezi lube yi-linear current, voltage noma i-RS485 signal. Umkhiqizo unomzimba omncane futhi ulula ukuwufaka. Isebenzisa ikhanda ledijithali elibonisa kanye ne-stainless steel casing. Ilungele ukukala amagesi noketshezi okuhambisana nezinto zezingxenye ezithintayo, futhi ingaqapha futhi ibonise inani lamanje elilinganisiwe lengcindezi ngesikhathi sangempela.

Izici

* Ine-display yedijithali nezinkinobho zokulungisa

* Ivimbela ukudlidliza, ivimbela ukushaqeka

* Inokuvikela i-polarity ebuyiselwe emuva

* Amandla aqinile okuphatha umthwalo omkhulu nokuvikela ukuphazamiseka kwemvelo, okonga, okusebenzayo futhi okuzinzile

Thola Isicaphuno Layisha phansi i-PDF

Umdluliseli

Impompu

Ukucaciswa
Izici:
Izisebenziso

Ukucaciswa kokuhanjiswa kwengcindezi ngeDigital Display LFT6800

Ukulinganisa kwezobuchwephesha

I-LIFOO Premitter ene-Digital Display LFT6800
Ubanga lokulingana	-100 kPa…0 ~ 1kPa ... 60MPa (iSilicon Core egcwele oyela)			-100 kPa ~ 0.3MPa ... 60MPa (Ceramic Core)
Ingcindezi Yokulayisha Kakhulu	Izikhathi eziyi-1.5 zesikali esigcwele.			Izikhathi eziyi-1.5 zesikali esigcwele.
Ukuzima	<0.5%F.S./Nyaka			<0.5%F.S./Nyaka
Ukuqondisa	± 1-0% F.S.; ± 0.5% F.S.			± 1-0% F.S.
Bonisa isimo	4 digiji LCD			4 digiji LCD
Ukushisa Okusebenzayo	-20 ~ 75℃			-20 ~ 75℃
Izinga lokushisa	-30 ~ 80℃			-30 ~ 80℃
Okuphakathi	Igesi noma uketshezi oluhambisana ne-S304, 316L, injoloba ye-fluoro noma injoloba ye-nitrile			Igesi noma uketshezi oluhambisana ne-S304, 1Cr18Ni9Ti, injoloba ye-fluoro Injoloba ye-nitrile
Ukusebenza kukagesi	Izintambo ezimbili	Izintambo ezintathu	Izintambo ezine	Izintambo ezimbili	Izintambo ezintathu
Isibonakaliso esikhitshayo	4 ~ 20mA	0 ~ 10 VDC	RS485	4 ~ 20mA	0 ~ 10 VDC
Ukunikezwa kwamandlane	12 ~ 30 VDC
Ukuxhumana kukagesi	IBig Hirschmann
Ibanga Lokuvikela	IP4
Ukuxhumana kwengcindezi	G1/4, NPT1/4, R1/4, M12 1, M10 1, M20 * 1.5, G1/2

Ubungakho

Umhlahlandlela wokukhetha

Ikhodi nencazelo									Amagqaba
LFT6800	Isidlulisi sokucindezela nesibonisi sedijithali								Imodeli
	Ububanzi	-100kPa…0 ~ 1kPa ... 60MPa							Ububanzi
		A4	A4 = 4 ~ 20 mA (Izintambo ezimbili)						Ukukhiqiza
		V10	V10 = 0 ~ 10 V (Izintambo ezintathu)
		RS	I-RS = RS485 (Izintambo ezine)
			K	K = kPa					Iyunithi
			P.	P = psi
			B	B = ibhar
			M	M = MPa
				0,5	0.5 = 0.5% F.S.				Ukuqondisa
				1.0	1.0 = 1.0% F.S.
					D1	D1 = DIN43650A (Big Hirschmann)			Ukuxhumana kukagesi
						G	G = G1/4		Ukuxhumana kwengcindezi
						G2	G2 = G1/2
						NI	N = NPT1/4
						R	R = R1/4
						M10	M10 = M10 * 1
						M20	M20 = M20 * 1.5
						M12	M12 = M12 * 1
							1.0	1.0 = 1m	Ubude bentababa

LFT6800	0-60	A4	B	1.0	D1	G	1.0		Isibonelo sokukhetha

Izici zokudlulisa Ingcindezi ngeDigital Display LFT6800

Ngezinkinobho zokubonisa zedijithali nokulungisa izinkinobho
Ukulwa nokushaqeka, ukulwa nokushaqa
Ngokuvikelwa okubuyela emuva kwe-polarity
Ukulayishwa ngokweqile okunamandla kanye nekhono lokuphazamiseka kwemvelo, ezomnotho, ezisebenzayo nezizinzile
