I-LEFOO LFT2100 i-transmitter yokucindezela kwamanzi isetshenziswa kabanzi emikhakheni yokucima umlilo, ukuhlanza amanzi, amasistimu okuhambisa amanzi, ama-air compressor, amadivayisi we-pneumatic, ukusebenza ngokuzenzakalela kwezimboni, kanye nezinye izinhlelo zokuhlola ukukala ukucindezela kwendlela ye-fluid. Isakhiwo esiyingqayizivele esingangeni manzi futhi esiphefumulayo sivimbela ukungahambisani kwengcindezi yomoya ngaphakathi nangaphandle okungaholela ekuphambukeni kobuchwepheshe. I-diaphragm yohlaka lwe-ceramic enomthamo ophezulu wokulayisha enokumelana nokugqwala nokugqoka okuhle kakhulu. Ubuchwepheshe be-ASIC, ubuchwepheshe be-MEMS, ubuchwepheshe besinxephezelo sedijithali, ukunemba okuphezulu, ukukhukhuleka kwamazinga okushisa okuphansi. Umkhiqizo futhi unezici zobukhulu obuncane, izinga eliphezulu lokuvikela, kanye nekhono eliqinile lokumelana nokuphazanyiswa, futhi ungasetshenziswa ezimeni ezihlukahlukene eziyinkimbinkimbi.
Izici
* Isakhiwo esiyingqayizivele esingangeni manzi futhi esiphefumulayo.
* Ukumelana nokugqwala nokugqoka okuhle kakhulu.
* Kusetshenziswa i-diaphragm yohlaka lwe-ceramic enomthamo ophezulu wokulayisha.
* Inhlanganisela yoxhaxa olunemicu nokuxhumana ngogesi okuhlukahlukene.
* Ubukhulu obuncane, ingasetshenziswa ezimeni ezihlukahlukene eziyinkimbinkimbi.

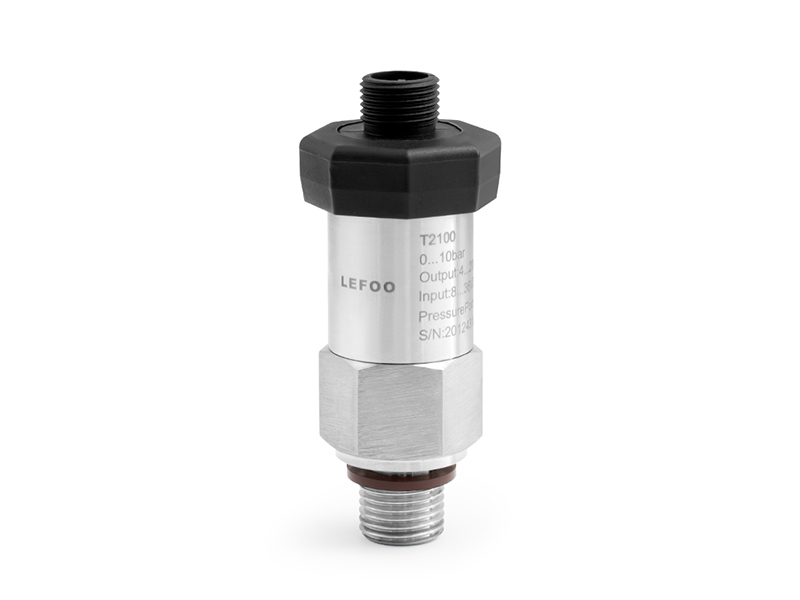

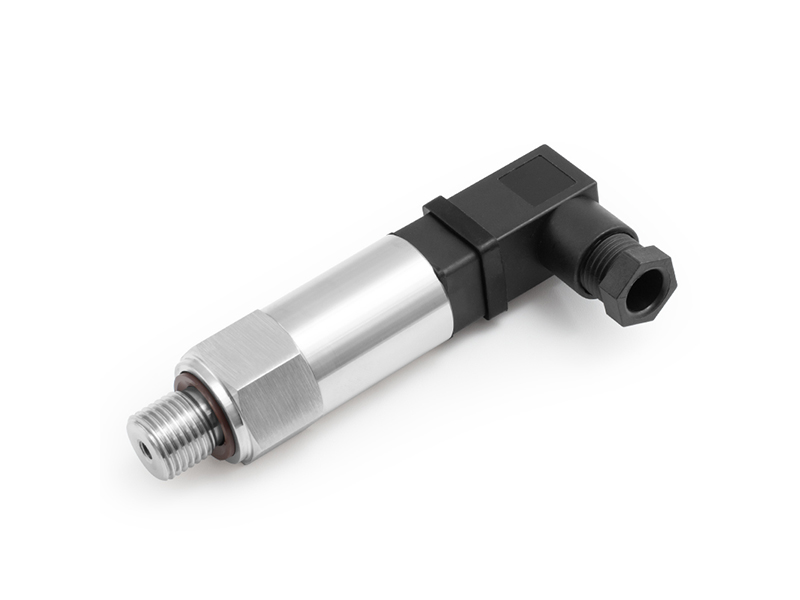

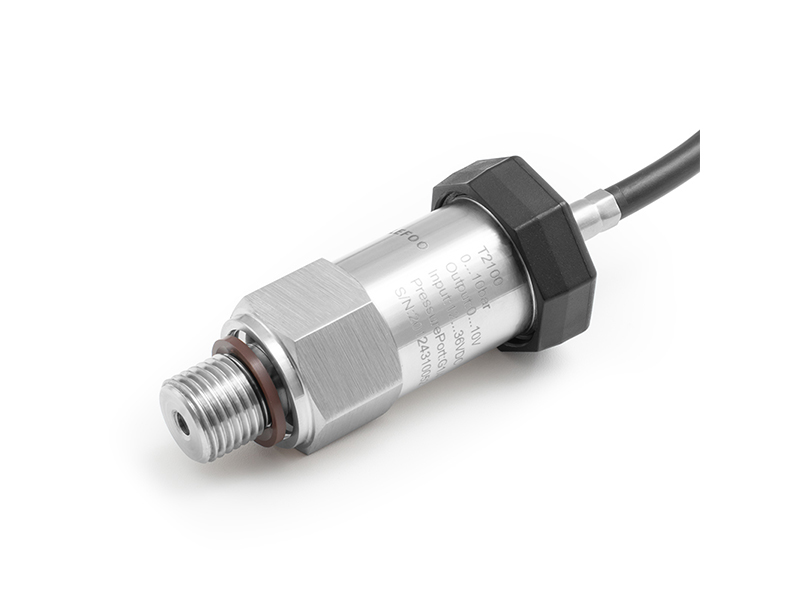

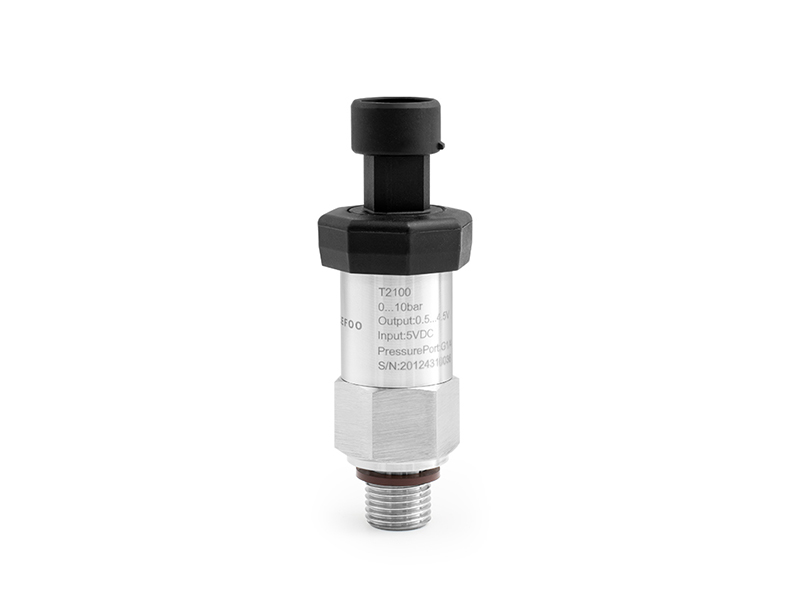

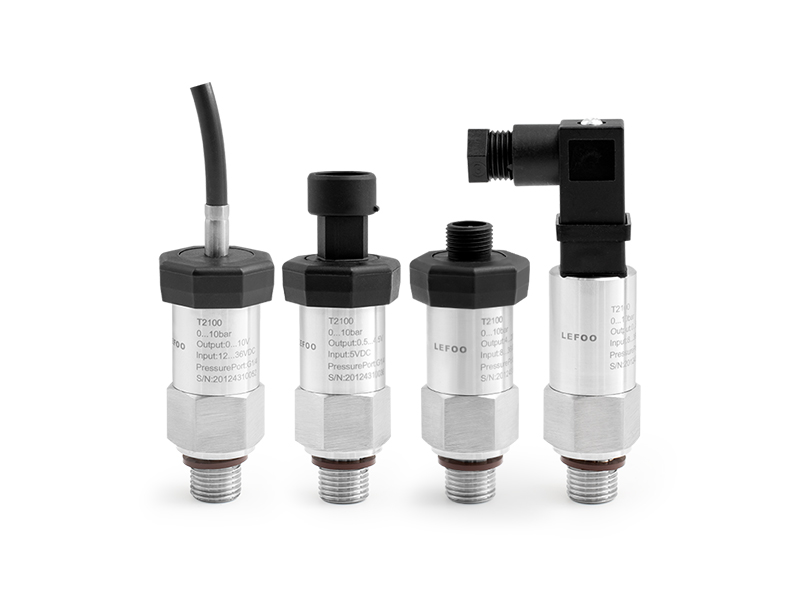

| LEFOO Water-proof Ceramic Pressure Transmitter LFT2100 | ||||
| Ibanga Lokulinganisa | -0.1MPa~0...3MPa,0~0.1MPa...6MPa | |||
| Umfutho Wokugcwala | Izikhathi ezingu-1.5 zomfutho olinganisiwe | |||
| Umfutho Wokugqashuka | Izikhathi ezingu-2 zomfutho olinganisiwe | |||
| Ukunemba➀ | 0.5%F.S(ibanga>0.3MPa)、1.0%F.S | |||
| Ukuzinza | <0.5％F.S./Ngonyaka | |||
| Izinga Lokushisa Lokusebenza | -20~85℃ | |||
| Izinga Lokushisa Lokugcina | -40~100℃ | |||
| Ukuhambisana Nesisetshenziswayo | Igesi noma uketshezi oluhambisana ne-Alumina ceramics, insimbi engagqwali engu-304, fluororubbers noma i-nitrile butadiene rubber |
|||
| Izici Zikagesi | I-wire emibili | I-wire ezintathu | ||
| Isignali Yokukhipha | 4~20mA | 0.5~4.5V | 0~5V | 0~10V |
| Ukuphakelwa Kagesi | 10-36VDC | 4.75-5.25VDC | 10-30VDC | 12-36VDC |
| Ukuxhumeka Kagesi | Packard、DIN43650C(Small Hirschmann), ukuphuma okuqondile, isixhumi se-4 core M12 Aviation |
|||
| Ukuvikela Isembozo | IP65 | |||
| Ukuxhumeka Komfutho | G1/4、NPT1/4、R1/4、BPS1/4、G1/2、7/16-20UNF、M20*1.5、M10*1、M14*1.5 njll. | |||
| Indlela Yokufaka Umfutho | Umfutho we-gauge G | |||
| Isitifiketi | RoHS, CE |
|||
Isaziso➀: Kulinganiswa ku-25 °C, kuhlanganisa ukunemba okuhlanganisiwe komugqa, ukuphindaphindeka nokubambezeleka.

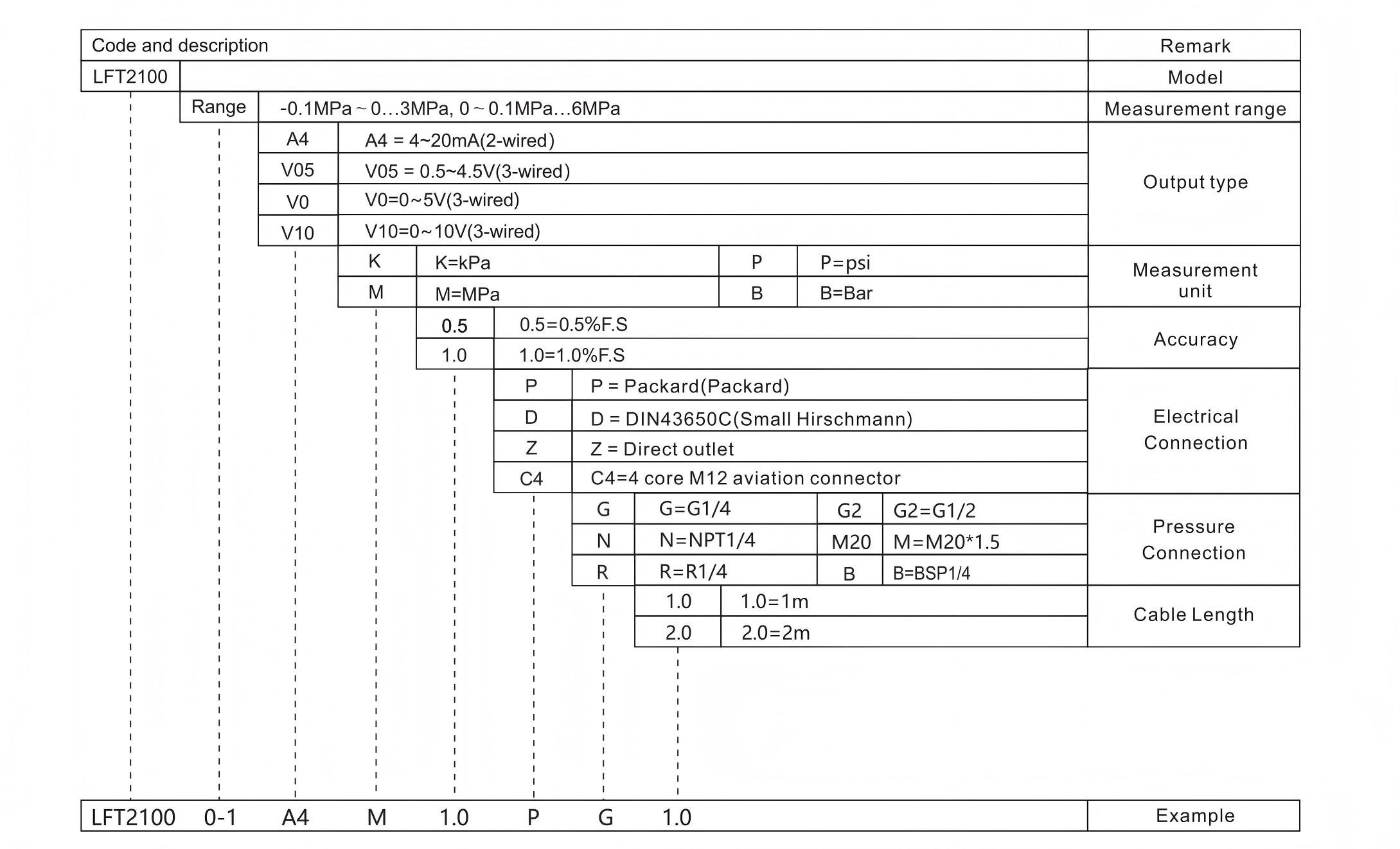

Isibonelo: LFT2100 0-1 A4 M 1.0 P G 1.0(LFT2100 pressure transmitter, range 0-1MPa, output 4-20mA, accuracy 1.0%, packard connection, pressure port G1/4, outlet length 1m)
Isakhiwo esikhethekile esingangeni amanzi futhi esiphefumulayo.
Ukumelana nokugqwala nokugqekelela okuhle kakhulu.
Sebenzisa idayafuramu ye-ceramic enomthwalo omkhulu wokugcwala.
Inezinhlobonhlobo zokuxhunywa ngocingo kanye nokuxhunywa kukagesi.
Usayizi omncane, ungasetshenziswa ezindaweni eziyinkimbinkimbi ezahlukene.
I-LEFOO pressure transducer T2100Ifana nezinto ezihlukahlukene zokuqoqa idatha ezifana ne-Frequency Converter, Signal Isolator, idivayisi yokulawula ingcindezi, kanye ne-PLCezimeni ezisetshenziswayo njengoba ngezansi.
Amathuluzi okuhlaziya
Ukuqapha ingcindezi yezimoto
Ukuqapha isiqandisi somoya
Imboni yeziphuzo
I-Chemical chemistry
I-Confluence Exhaust
I-Car Charging Pile Coolant
Ibhodi elicindezelwe, ibhodi lokuvikela ukushisa elingaphansi kwesitezi
I-alamu yegesi
Isitofu segesi nomshini wokuthengisa
Amasistimu e-HVAC
Imishini ye-hydraulic
Isiteshi esiyisisekelo se-hydraulic
Ukulawulwa kwebrake yerobhothi ye-hydraulic
Ukushisa, ukukhiqizwa kwamandla, imishini yokusiza
Ibhavu le-luxury
Ukukhiqizwa kwamabhethri e-lithium
Izikhungo zasolwandle
Imboni yezimayini
I-alamu yegesi yezokwelapha
Imishini ye-ozone
Imishini yokuhlola uwoyela
Ukuhlolwa kwephrojekthi yamandla
Amasistimu e-PLC afana namaphrojekthi ezokwelapha, i-HVAC, ilabhorethri
Imishini yokuqandisa
Ipompo ye-vacuum
Imboni yemithi
Ipulp nephepha
Idivayisi yokupholisa amanzi ahlanzekile
