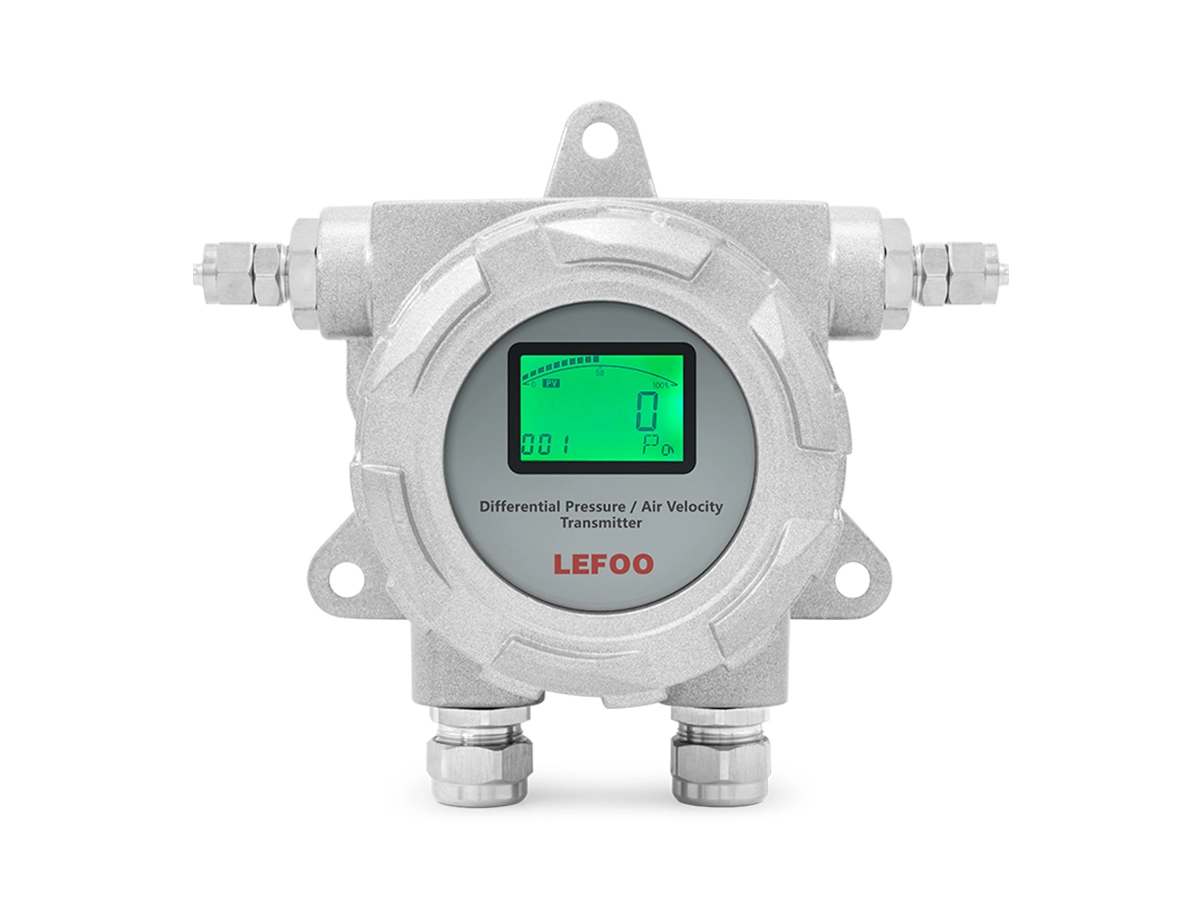

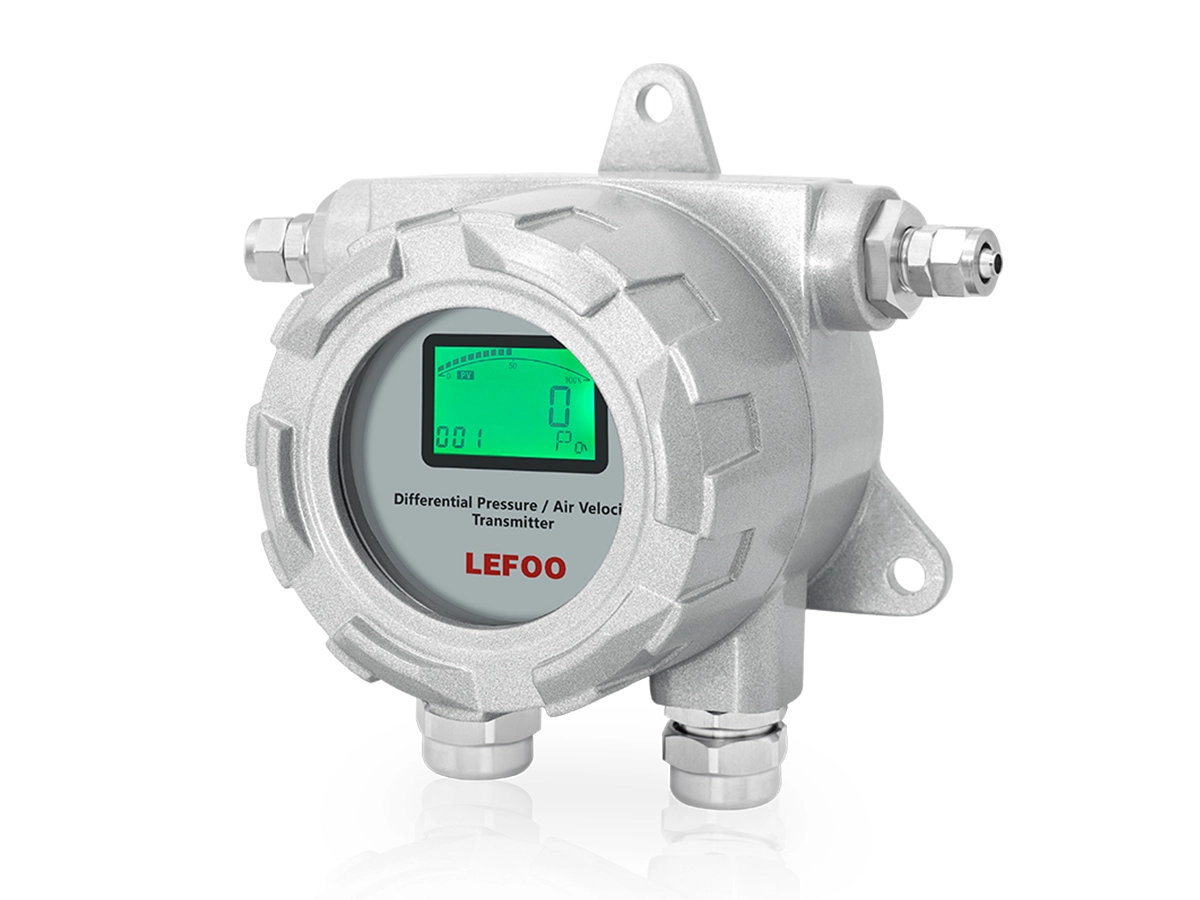

Umthumeli Wokucindezela Ohlukanisayo Ongaqhumi LFM76

Lefoo Umthumeli Wokucindezela Ohlukanisayo Ongaqhumi LFM76

I-LFM76 yokwahlukanisa ingcindezi yokuvikela ukuqhuma iyidivayisi enembayo ephezulu nokuqina eklanyelwe indawo enobungozi bokuqhuma. Ifakwe ububanzi bezindimbane eziningi ezingakhethwa, ngokulungiseka kalula endaweni ngokusebenzisa izinkinobho. Sebenzisa indlu ye-IP65, lokhuisidlulisi sokwahlukanisa ingcindezikufanelekele izinhlelo zokuphatha amandla, i-HVAC, i-VAV nokulawula ifeni, ukulawula ukungcoliswa kwemvelo, ukulawula ingcindezi ne-hood yentuthu yepayipi elimile nekamelo elihlanzekile, ukucindezela kwe-oven, nokulawula ukungenisa umoya kwe-boiler.


Izici

* Sebenzisa i-MEMS micro pressure core, enembayo ephezulu kanye nobubanzi obubanzi bokusebenza kwezinga lokushisa;

* Isibonisi sedijithali se-LCD esinokufundeka okucacile;

* Inkinobho ye-Zero iyatholakala, ububanzi bengcindezi buyalungiseka;

* Ukuzinza okuqinile, impilo ende yokusebenza;

* Indlu enezinga lokuvikela le-IP65




Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Izisebenziso

Ukucaciswa kokuqhuma okuhlukile kokuhanjiswa kwengcindezi i-LFM6

Ukulinganisa UphakathiUmoya noma igesi engathathi hlangothi
Uhla lwengcindezi± 100Pa ~±10000Pa (ukuhleleka)
Ngaphezulu kwe-Voltage10KPa; 80KPa (LFM76-3)
Ukuqondisa± 1.0% FS
Ukushisa Okusebenzayo-20℃-80 ° C
Izinga lokushisa-10℃ ~ 60℃
Izinga lokushisa-40℃ ~ 85℃
Isikhathi sokuphendula0.5s (okuzenzekelayo) / 1.0s / 2s / 4s
Isiqu SokuvikelaIP65
Ukuxhumana KwengcindeziInsimbi engagcwalisi 1/2 "ukuxhumana okusheshayo
Isibonakaliso esikhitshayo4-20mA / 0-10VDC / RS485
Ukunikezwa kwamandla①12-30VDC / 24VAC±20%
Ukuhlakazeka kwamandlane≤1.5W
Izinto zeShellI-Cast Aluminium
UkuxhumanaIsixhumi esijwayelekile se-RS-485, i-Modbus RTU
IsiqinisekisoROHS, CE
Isitifiketi Sokuqhuma-UbufakaziEXd lIC T6 Gb
Bonisa BonaIsiboniso sedijithali se-LCD
Isisindo (Ukulinganiselwa)1362g

① Qaphela: (Lapho umkhiqizo unikezwa amandla e-AC, kunconywa ukuthi usebenzise amandla kagesi we-AC ahlukanisiwe.)

Izici zokuphumusha Okuhlukile Ukuhanjiswa Kwezingcindezi LFM6

Sebenzisa umnyombo wengcindezi ye-MEMS micro, ngokunemba okuphezulu nobubanzi bezinga lokushisa elisebenzayo;

Isibonisi sedijithali se-LCD ngokufundwa okucacile;

Inkinobho ye-zero etholakala, ibanga lokucindezela elungiswayo,

Ukuzinza okuqinile, impilo yenkonzo ende;

Izindlu zokuvikela ze-IP65.

Izicelo zokuphumusha Okuhlukile Ukudlulisa I-LFM6

Izinhlelo zokuphathwa kwamandlanje

I-HVAC, VAV kanye nokulawulwa kwabafani

Ukulawulwa kokungcola kwemvelo

Ukulawulwa kwengcindezi kanye nentuthu yokulawulwa kwepayipi elimile negumbi elihlanzekile

Ingcindezi ye-oven

Ukulawula umoya we-boiler
