Umthumeli wokushisa nokufuma onombukiso LFH10

Lefoo Umthumeli wokushisa nokufuma onombukiso LFH10

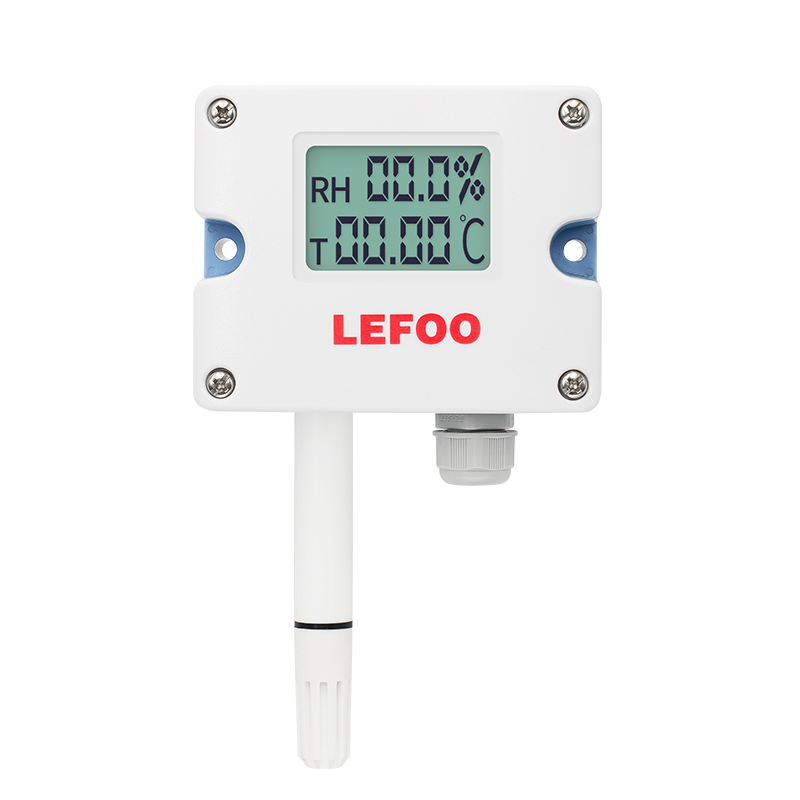

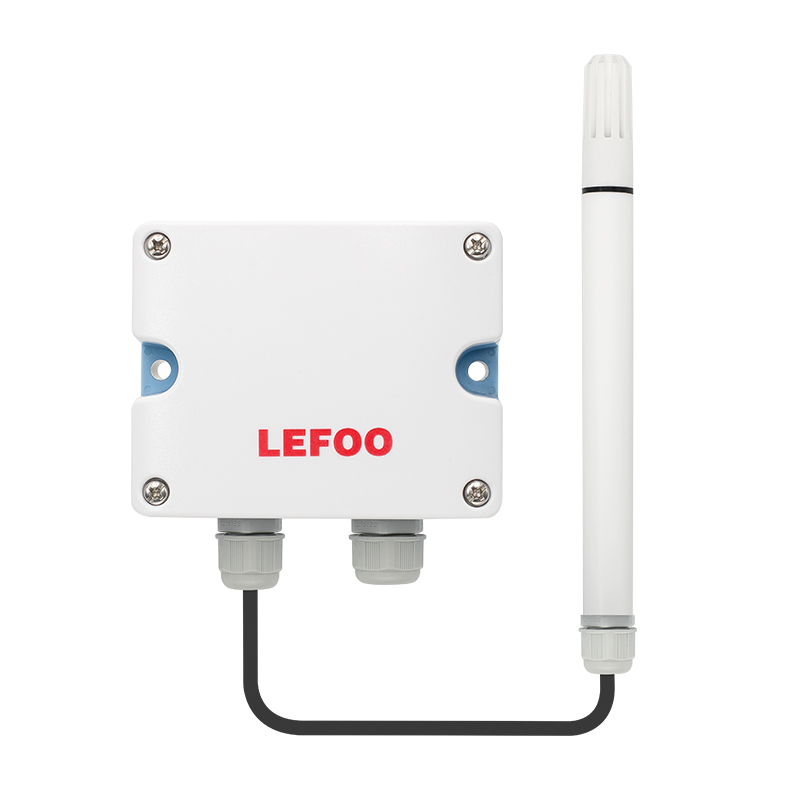

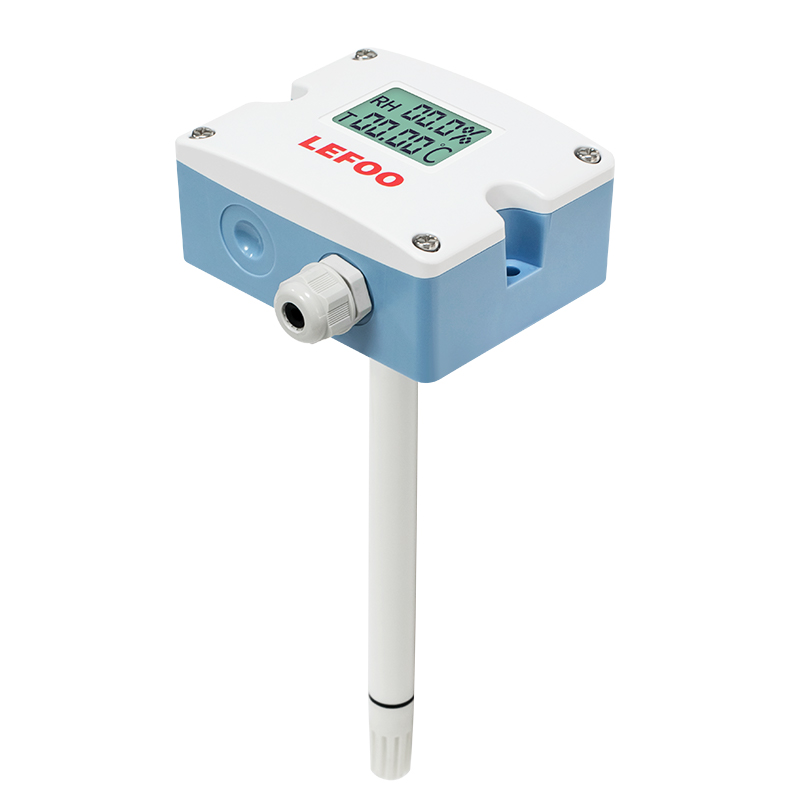

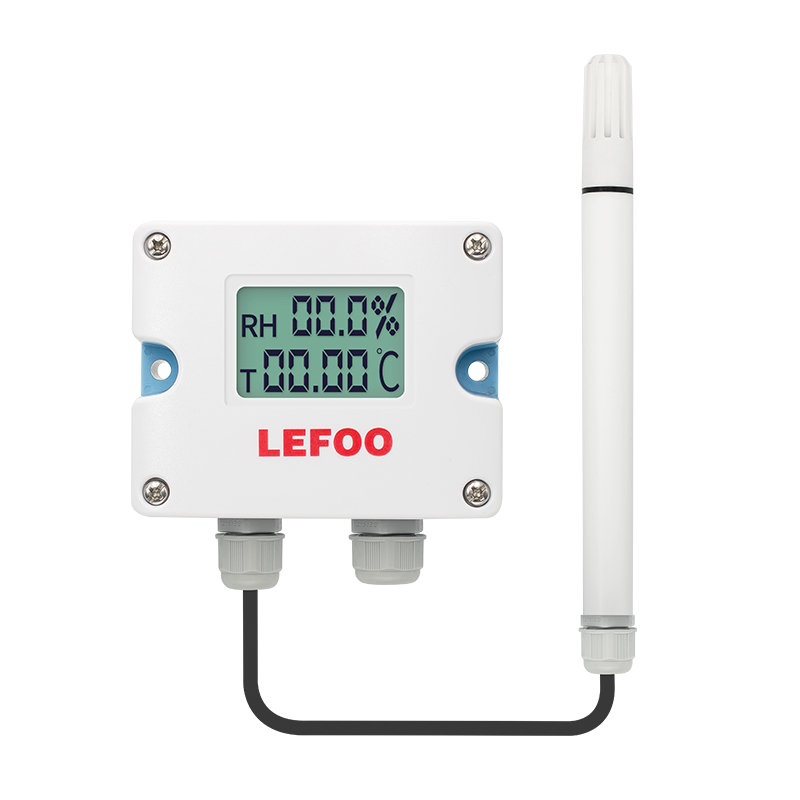

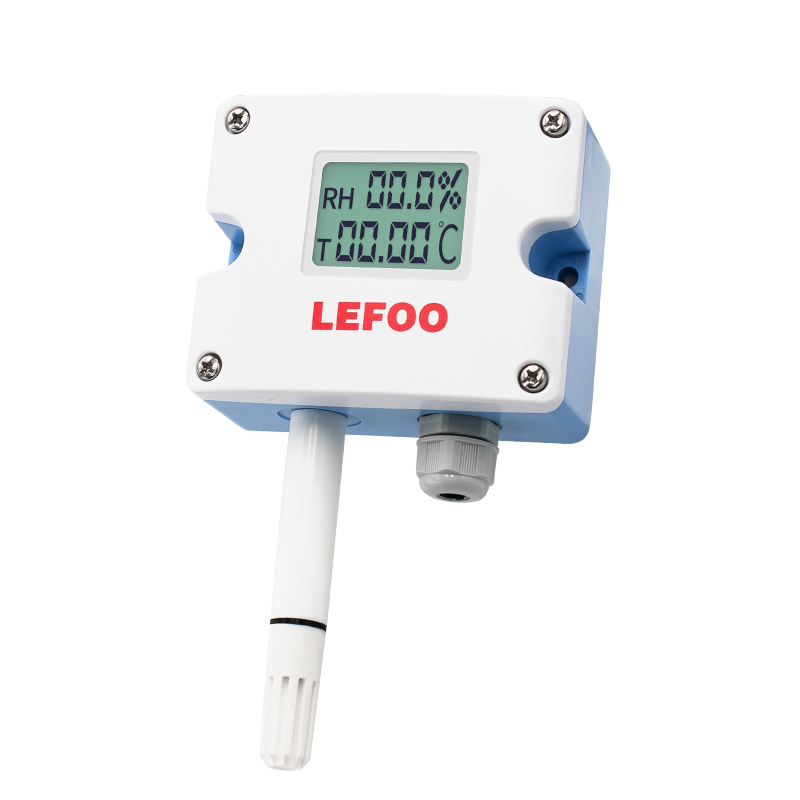

I-sensor yezinga lokushisa kanye nomswakama enombukiso inezindlela ezintathu zokufaka: uhlobo olufakwa odongeni, uhlobo lwamapayipi, kanye nohlobo oluhlukanisiwe. Izindlela zokukhipha umthombo wamanje, i-voltage kanye ne-RS485 ziyakhethwa. I-adaptability eqinile, idizayini ye-spring screw/terminal ifanele ukufakwa okusheshayo. Ithuluzi elifanele ukukala umswakama ohlobene kanye nezinga lokushisa lomoya wesistimu ye-HVAC, inkampani yebhizinisi kanye nendawo yokusebenza yezimboni, indawo yokugcina izimpahla. Le intengo ye-sensor yezinga lokushisa kanye nomswakama iphansi kakhulu futhi imelana nokuphazamiseka, okuhlangabezana ne-sensor yezinga lokushisa kanye nomswakama yokusetshenziswa kwezimboni,

LEFOO unguchwepheshe wokukhiqiza, umhlinzeki othembekile wama-sensor wezinga lokushisa kanye nomswakama ongakunikeza isevisi engcono kakhulu kanye nenani elihle kakhulu.


Izici


* Okuphumayo okubili: Izinga lokushisa kanye nomswakama

* Kuqinisekisiwe nge-CE kanye ne-RoHS

* Kufaneleka kakhulu ezimbonini zokufuya kanye nokuzalanisa


Thola Isicaphuno Layisha phansi i-PDF
Contact Us

Umdluliseli

Impompu
  • Ukucaciswa
  • Izici:
  • Izisebenziso

Ukucaciswa kwezinga lokushisa ne-Humidity Transmitter nge-Splay LFH10

Isidluliseli sokushisa nokushisa Nokubuka Nesiboni
Ubuzwe Obuhlobene
Ukushisa
IsiqaloIdijithaliIsiqaloUkumelana nedijithali noma okushisayo, bheka Ithebula lokukhetha iModeli
Ububanzi besilinganiso0% ~ 100%RHUbubanzi besilinganiso0 ~ 50℃, -20 ~ 60℃
OkukhishwayoRS485 / Modbus, 0 ~ 10 VDC, 4 ~ 20mAOkukhishwayo4 ~ 20mA, 0 ~ 10 VDC, RS485 / Modbus.
Isikhathi sokuphendula≤10s (25℃, umoya wokugeleza kancane)Ukushisa Komsebenzi-20 ~ 60℃,5%-95% RH (okungahlanganisi)
Ukuqondisa± 2% @ 25℃ & 60% RHUkuqondisaIsici sokuzwa kwedijithali: ± 0.5 ℃ @ 25℃
ImodeliUhlobo LFH101 UdongaUhlobo lwe-VoltageUhlobo lwe-RS 485Uhlobo lwamanje
LEFOO Temperature and Humidity Sensor with Display

15 ~ 35V dc


24V ac ± 20%

15 ~ 35V dc


24V ac ± 20%

18.5 ~ 35VDC (RL = 500 Ω)

8.5 ~ 35VDC

(RL = 0Ω)

Izinga lokuvikela

IP65
ImodeliUhlobo lwe-LFH102 DuctUmthwalo wokukhishwayo≤500 Ω (Uhlobo lwamanje), ≥ 2KΩ (Uhlobo lweVoltage)
LEFOO Temperature and Humidity Sensor with DisplayBonisa BonaIsikhombiso se-LCD ngokuzikhethela, ngokukhombisa iyunithi nokukhanya okungemuva (4 ~ 20mA ngaphandle kokukhanya emuva)
ImodeliUhlobo LFH103 UhlukanisoIzinto EzihlangeneIcala le-PC, uphenyo lwe-PC, isihlungi se-Polymer (i-probe engenantambo kanye nesihlungi esingenasigqi sokuzikhethela)
LEFOO Temperature and Humidity Sensor with DisplayUkumelana nokushisaInombolo e-real 0,1,2,3,4,5,6 kuthebula lokukhetha imodeli


Ithebula lokukhethwa kwemodeli
Qaphela: Ukunemba kochungechunge lwe-PT lokumelana nokushisa ngu- ± 0. 2℃ @ 25℃, Ukusebenza kochungechunge lwe-NTC ne-Ni ngu- ± 0.4℃ @ 25 ℃
Ikhodi nencazeloAmagqaba
LFH101 -Ukushisa okufakwe ngodonga nokudlulisa komswakamaImodeli
LFH102Ukushisa kohlobo lwe-Duct nokudlulisa komswama
LFH103 -Hlukanisa uhlobo lokushisa nokudlulisa komswamo

2± 2% RH (0.3℃)Ibanga lokuqondisa
3± 3% RH (0.3℃)
V100 ~ 10 VDC (Izintambo ezintathu)Ukukhishwa kwe-Humidity
A44 ~ 20 mA (Izintambo ezimbili)
RSRS485 / Modbus

V100 ~ 10 VDC (Izintambo ezintathu)2I-NTC20KUkukhishwa kokushisa
A44 ~ 20 mA (Izintambo ezimbili)3Ni 10
RSRS485 / Modbus4I-NTC10K-II
0PT10005NTC10K-III
1PT1006I-NTC10K-A

0HOUbubanzi bokushisa
10~ 500
2Ku - 20 ~ 60
8Abanye (isisebenzisi sichaziwe)

0IsibonisoBonisa isimo
1Isiboniso se-LCD
LFH101 -2A4311Isibonelo sokukhetha



Izici zezinga lokushisa ne-Humidity Transmitter nge-Display LFH10

■ Isici sokuzwa okungenisiwe, ukunemba okuphezulu, impendulo esheshayo;

■ Izinhlobonhlobo zezindlela zokufaka nesiginali yokukhipha, i-LCD ibonisa ngokuzikhethela;

■ Ukufakwa okusha okusheshayo kwezimboni, ukufakwa okusheshayo okungenzeka.


Ukusetshenziswa Kwezinga lokushisa ne-Humidity Transmitter nge-Splay LFH10

Uchungechunge lwe-LEFOO Temperature ne-Humidity sensor LFH10 lusetshenziswa ku-PLC, i-dehumidifier, i-air conditioner ephezulu ejwayelekile, Ukusekela amaphrojekthi wengqalasizinda, i-Metallurgical Automation, imishini yokudweba
