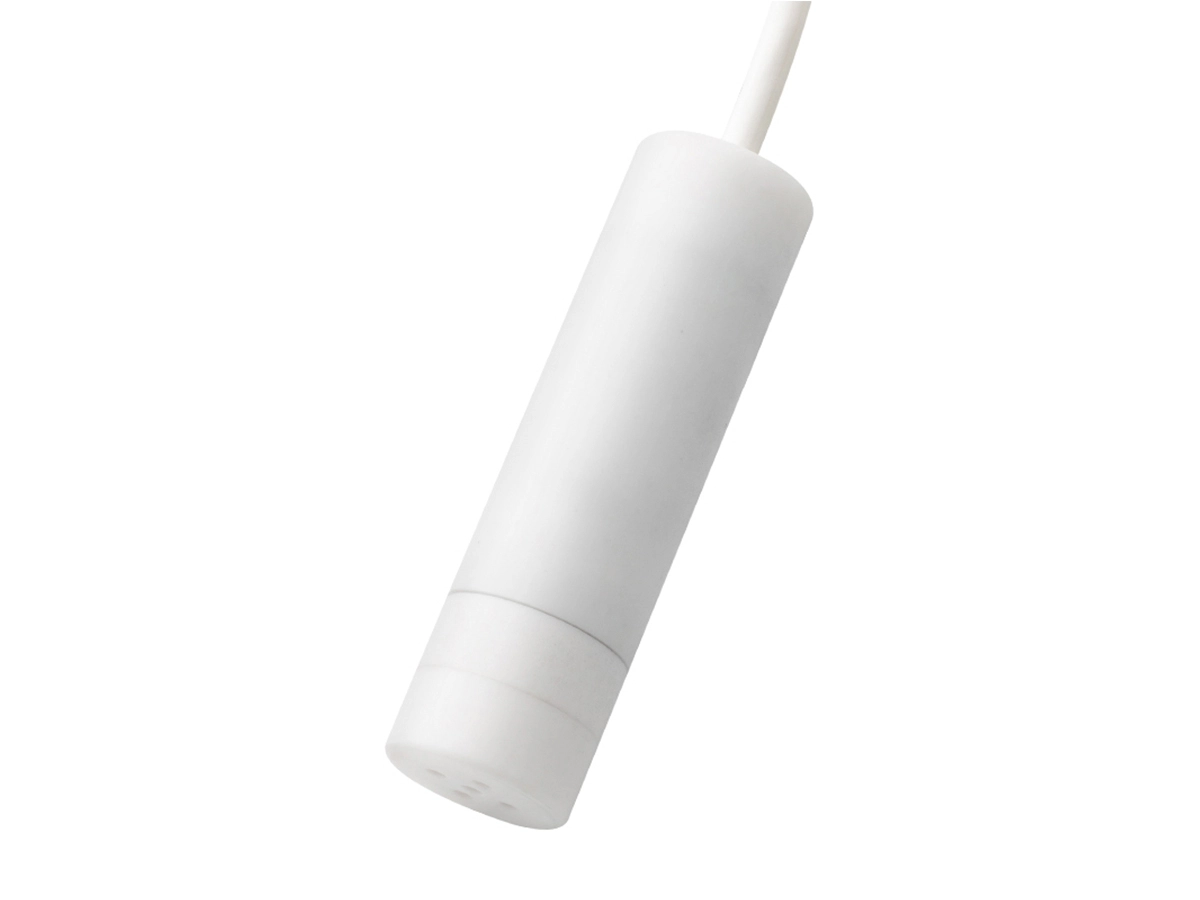

I-LFT3080 i-anti-corrosion fluid transmitter isebenzisa umgogodla we-anti-corrosion ceramic flat diaphragm pressure njenge into yokulinganisa, igobolondo lenziwe ngezinto zepulasitiki ezimelene nokugqwala, futhi ikhebula lokuqondisa lomoya lenziwe ngocingo olukhethekile lwezinga eli-anti-corrosion lwenziwe ngezinto ze-PTFE. Lesi sidlulisi sezinga eliphikisana ne-corrosion esisetshenziselwa ikakhulu ukulinganisa izinga likaketshezi kwemidiya ebolayo efana nama-acid nama-alkali. Umkhiqizo uvaliwe ngokuthembekile emalunga esixhumanisi ngasinye esifana negobolondo nocingo, ukuqinisekisa ukuthi umkhiqizo unokusebenza okuhle kokuvala. Isetshenziswa kabanzi emikhakheni eminingi efana nemboni yamakhemikhali, ukuvikelwa kwemvelo, ezokwelapha kanye nokulawulwa kwenqubo yezimboni.
*Ukwamukela ukuqiniseka okuphezulu nokulayisha okuphezulu kwe-ceramic diaphragm core
*Ukumelana okuhle

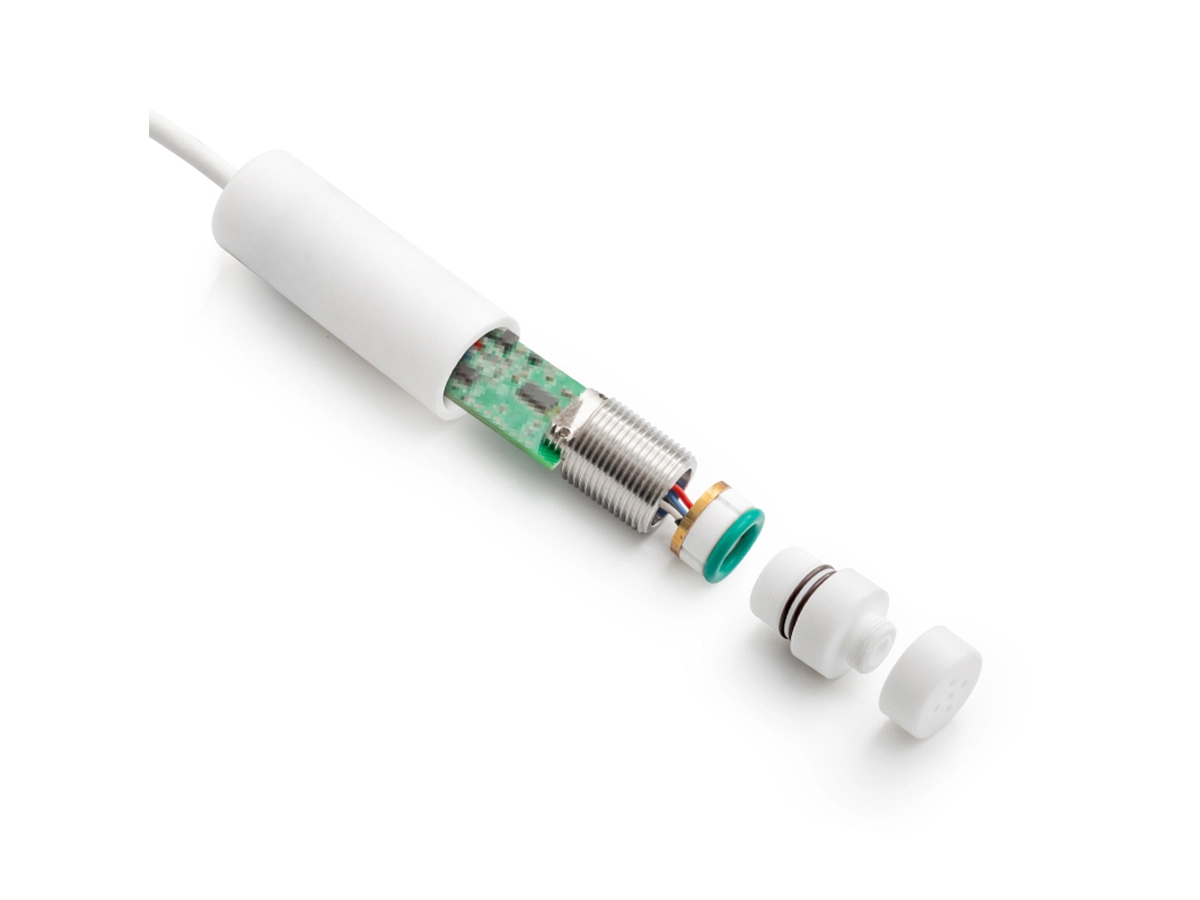

*Ikopi elingaphansi lokuvimba elingaphansi, ukuvimbela ukulimala ngengozi ku-diaphragm, kwenza kube lula ukuhlanzwa okujwayelekile
*IShell yamukela ukwakheka kwesakhiwo sokuvikela okuningi nokuvala uphawu
| Ububanzi bokilingana | 0~ 1…200 mH₂O | ||
| Ingcindezi Yokulayisha Kakhulu | 1.5 ukuphindaphinda ingcindezi elilinganisiwe | ||
| Ukunemba ① | ± 0.5% F.S 、 ± 1 F.S ③ | ||
| Ukuzima | <0.5%F.S/nyanga | ||
| Ukushisa Okusebenzayo | -10 ~ 70℃ | ||
| Izinga lokushisa | -10 ~ 70℃ | ||
| Iphakathi elilinganisiwe | I-Liquid ihambisana ne-1Cr18Ni9Ti, I-polytetrafluoroethylene (PTFE), injoloba ye-fluorine (FKM), injoloba ephelele yegesi (FFKM) | ||
| Izakhiwo zikagesi | 2 intambo | 3 intambo | 4Insimbe |
| Isibonakaliso esikhitshayo | 4 ~ 20mA | 0 ~ 10V | RS485 |
| Ukunikezwa kwamandlanje | 10 ~ 36 VDC | 15 ~ 36 VDC | 10 ~ 36 VDC |
| Ukuxhumana kukagesi | Ukukhishwa ngqo | ||
| Ukucindezela | Uhlobo lokufakwa kwe-submersible / M20* 1.5 | ||
| Izinga Lokuvikelwa Kwezindlu | IP8 | ||
| Ifomu Ingcindezi | Ingcindezi yegage G | ||
①: Kulinganiswe ku-25℃, kufaka phakathi ukunemba okuphelele kokulingana, ukuphindaphindeka kanye ne-hysteresis;
②: Lapho ibanga likhulu kune-2MH₂O, Ukunemba kungu±0.5% F.S;
③: Lapho ibanga lingaphansi noma lilingana no-2 mH20, ukunemba kuyo±1%F.S

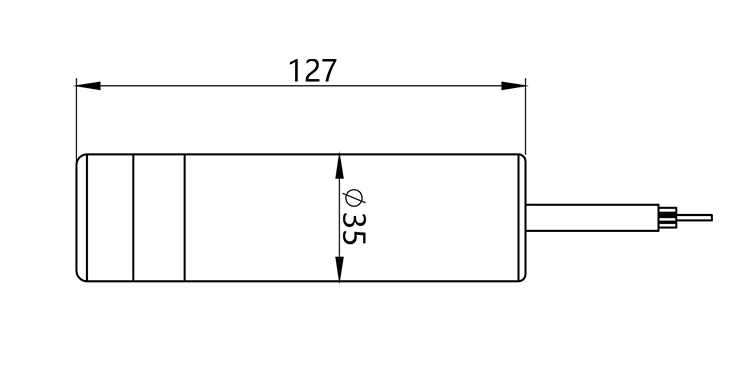

Usayizi Ishadi (iyunithi: mm)
Ukwamukela ukuqiniseka okuphezulu nokulayisha okuphezulu kwe-ceramic diaphragm core
Ukumelana okuhle
Ikopi elingaphansi lokuvimba elingaphansi, ukuvimbela ukulimala ngengozi ku-diaphragm, kwenza kube lula ukuhlanzwa okujwayelekile
IShell yamukela ukwakheka kwesakhiwo sokuvikela okuningi nokuvala uphawu
Izinsimbu Ezisebenzayo:
Imboni yamakhemisi
Ukuvikelwa kwemvelo
Imithini
Ukulawulwa kwenqubo yezimboni
Uphenyo Lomkhiqizo
