I-LFH52 Temperature & Humidity Transmiter yenzelwe ngokukhethekile i-LFH52 Temperature & Humidity Transmitter ikhishwe ngokukhethekile ukuvikela emoyeni nemvula, futhi kunikeze isivikelo esingcono kakhulu kumthumeli esimweni sezulu esibi. Kunezindlela ezi-3 zokukhipha zamanje, amandla we-voltage ne-RS485 etholakalayo. Kungasetshenziswa ezindaweni zokwakha, ukuqapha isimo sezulu nakwezinye izikhathi zangaphandle.
Izici:
* Isimbozo semisebe esijwayelekile esingu-5, ukuvikelwa emisebeni yelanga nasemvula, ukuzinza okuhle.
*Inani lezingqimba zekhava lokuvikela elungiswayo, ngakho-ke ukuphakama kuyalungiswa, ukufakwa okulula.
*Ukukhishwa kunomsebenzi wokuvikelwa kokuxhuma emuva, izinga lokuvikela eliphezulu kuze kufike ku-IP65.
*Impilo yenkonzo ende kanye nekhono eliqinile lokulwa nokuphazamiseka.
| Amazinga okushisa noHumidity Transmitter Probe LFH52 | |||||||||
| Ubuzwe Obuhlobene | |||||||||
| Umqondisi | Idijithali | ||||||||
| Ububanzi | 0% ~ 100%RH | ||||||||
| Okukhishwayo | I-RS485 / Modbus, 0 ~ 10 VDC, 4 ~ 20mA yokuzikhethela | ||||||||
| Ukuqondisa | ± 3% @ 20℃ & 20 ~ 80% RH | ||||||||
| Ukushisa | |||||||||
| Umqondisi | Idijithali noma i-RTD, bheka ithebula lokukhetha | ||||||||
| Ububanzi | 0℃~ 50℃, -20℃~ 60 ° C njll | ||||||||
| Okukhishwayo | I-RS485 / Modbus, 0 ~ 10VDC | ||||||||
| Ukumelana Okushisayo | Ku-Order Ref No. neThebula lezinkomba Zokuphikiswa Okushisayo | ||||||||
| Ukuqondisa | Inzwa yedijithali: ± 0.5 ° C @ 20 ° C I-RTD: Ijwayelekile ± 0.2 ~ 0.4 ° C @ 25 ° C, bheka ithebula lokukhetha | ||||||||
| Ukunikezwa Kwamandlanje | Uhlobo lwe-Voltage / 485 Uhlobo lwe-15-35 VDC / 24VAC ±20% (ukutholakala kwamandla okuhlukanisiwe kuyadingeka ekunikezelweni kwamandla we-AC) Uhlobo lwamanje 18.5 ~ 35VDC (RL = 500Q) 8.5 ~ 35VDC (RL = 0Ω) | ||||||||
| Umthwalo wokukhishwayo | ≤500(Uhlobo lwamanje), ≥ 2KΩ(Uhlobo lwe-Voltage) | ||||||||
| Izinto zeShell | Igobolondo le-PC, induku ye-PA6, ikhava yokuvikela ye-ABS | ||||||||
| Ukushisa Komsebenzi | -20 ~ 60 ° C, 5%-95% RH (engahlanganisi) | ||||||||
| Ibanga Lokuvikela | IP65 | ||||||||
DIMENSION (mm)

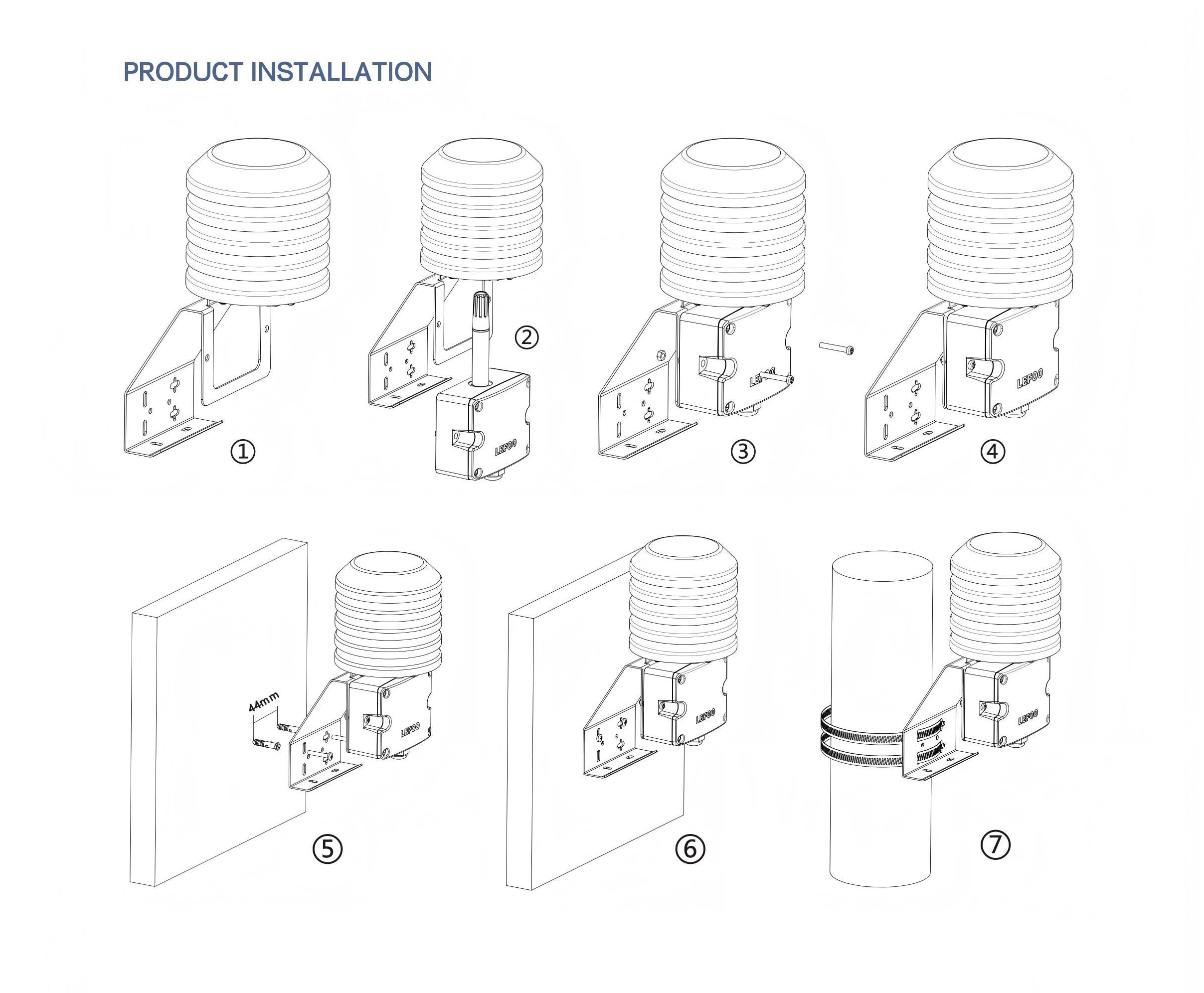

1. Beka isidlulisi kusembozo sokuvikela (njengoba kukhonjisiwe kuMdwebo 2);
2. Lungisa i-transmitter kubakaki bensimbi engagqwali ngezikulufu namantongomane (njengoba kukhonjisiwe ku-Fit 3 no-4);
3. Sebenzisa izikrufu namapayipi wokunweba epulasitiki ukulungisa isidlulisi odongeni (njengoba kukhonjisiwe kuMdwebo 5 no-6), noma uyilungise ensika ene-clamp (njengoba kukhonjisiwe kuMdwebo 7);
1. Kuphela lapho inketho yokukhipha okushisa kuyi-V10 noma i-A4, udinga ukukhetha ububanzi bezinga lokushisa elihambisanayo 1-8. Ngaphandle kwalokho, udinga ukukhetha -
2. Isibonelo i-LFH52-3A4A42 imele uhlobo lwangaphandle, ukushisa nokunemba komswakama ngu- ± 3% RH (± 0.5 ° C), umphumela womswakama ungu-4 ~ 20mA, ukukhishwa kwezinga lokushisa kungu-4 ~ 20mA, futhi ibanga lokushisa lingu -20 ~ 60 ° C.
3. Ukutholakala kwenzwa yalo mkhiqizo ekugxileni okuphezulu kwamagesi wamakhemikhali isikhathi eside kungadala ukushintshwa kokufunda.
4. Uma kudingekile ukufaka i-clamp, sicela uchaze kumazwi wokuthi ububanzi obukhulu be-clamp bungu-150 mm.
IZIHLOKO
1.Ukufaka ukufakwa ezindaweni ezithambekele ekudlulisweni kokushisa futhi kuzodala ngqo umehluko wokushisa nendawo ukuthi ulinganiswe, ngaphandle kwalokho ukulinganisa kokushisa nomswakama kuzoba okungalungile.
2. Vimbela ama-reagents amakhemikhali, uwoyela, uthuli, njll. kusuka ekuhlaseleni ngqo inzwa, futhi ungayisebenzisi isikhathi eside ekuqiniseni amazolo nasezindaweni zokushisa ezimbi kakhulu. Ungenzi ukushaqeka okubandayo noma okushisayo.
3. Isidlulisi kufanele sifakwe ngokuqondile ukuqinisekisa ukuvikelwa.
4.Lapho ungasetshenziswa isikhathi eside, sicela uyigcine endaweni eyomile.
Isembozo semisebe ejwayelekile ye-5, ukuvikelwa emisebeni yelanga nasemvula, ukuzinza okuhle.
Inani lezingqimba zekhava lokuvikela elungiswayo, ngakho-ke ukuphakama kuyalungiswa, ukufakwa okulula.
Ukukhishwa kunomsebenzi wokuvikelwa kokuxhuma emuva, izinga lokuvikela eliphezulu kuze kufike ku-IP65.
Impilo yenkonzo ende kanye nekhono eliqinile lokulwa nokuphazamiseka.
Ukushaywa kungavikela emoyeni nasemvuleni, futhi kunikeze isivikelo esingcono kakhulu kumthumeli esimweni sezulu esibi.
Kungasetshenziswa ezindaweni zokwakha, ukuqapha isimo sezulu nakwezinye izikhathi zangaphandle.
