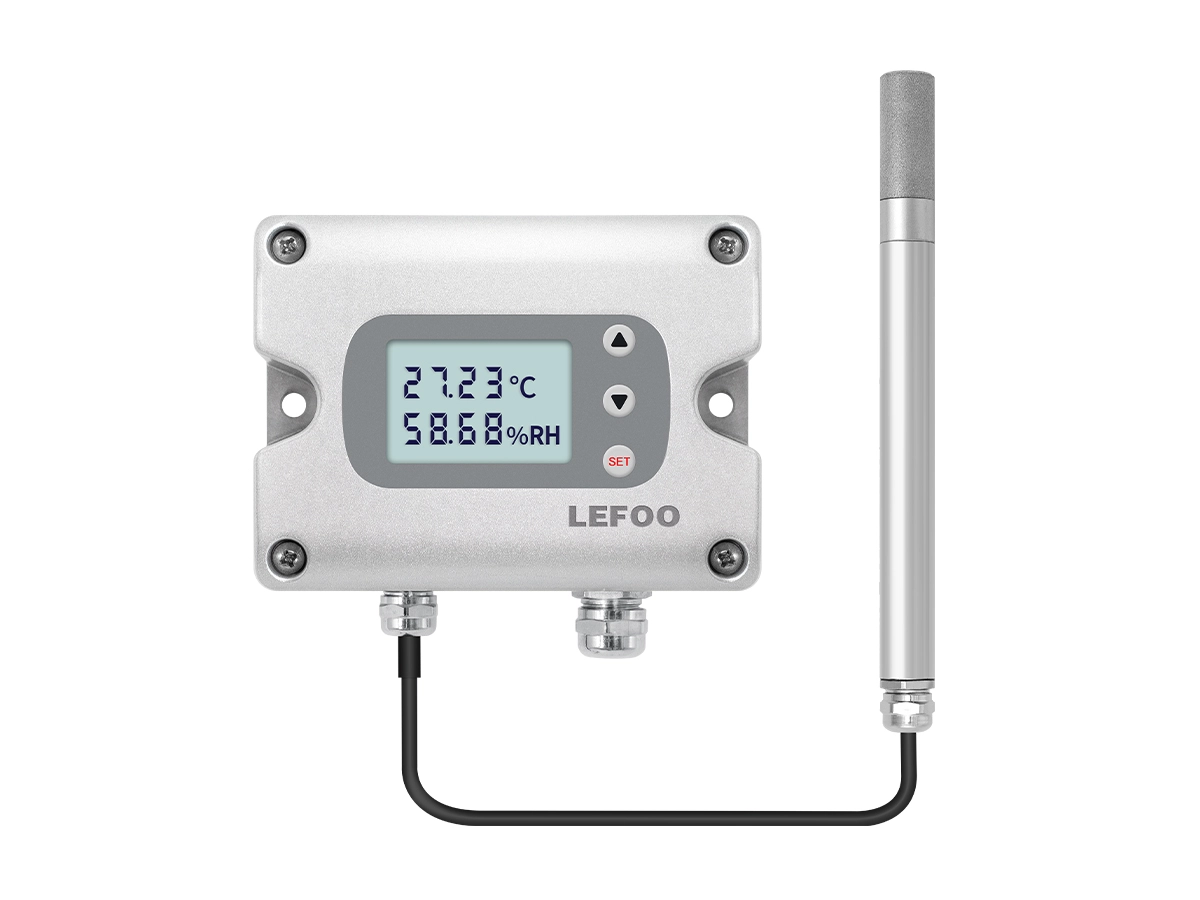

I-LFH70 Temperature & umswakama i-Transmitter ingumkhiqizo onokwethenjelwa kakhulu owenzelwe ukushisa okuqinisekile okuphezulu nokukala umswakama. ezinhlelweni eziyisisekelo zezimboni kanye nemikhakha yokulawula isimo sezulu. Uphenyo lwayo oluhlukanisiwe lungasebenza ezindaweni ezinamazinga okushisa afinyelela ku-180 ° C. I-capacitor ebucayi yokushisa okuphezulu inokuzinza okuphezulu kwesikhathi eside, ikhono eliqinile lokulwa nokungcola, kanye nekhono elihle lokuphazamiseka kukagesi. Ukuqhathanisa namanye ama-HVAC transmitters, ukwakheka kwensimbi okusha kunikeza i-LFH70 inzuzo yesakhiwo esiqinile kanye nobude besikhathi eside ezimeni zokusebenza ezinzima.
Izici:
* Igobolondo lensimbi eligcwele, eliqinile futhi elinokwethenjelwa, elifanele ukusebenza kanzima.
*Ibanga lokushisa eliphakeme:-40 ~ 180 ° C.
*Ukulinganiswa kwebanga eligcwele lezinga lokushisa ne-Humidity, ukunemba okuphezulu.
*Izinto ezizwelayo zikhuthazelela izinga lokushisa eliphakeme, ngokuphindaphindeka komswakama okuhle.
*Isimbozo esiyinhloko sinokuzinza kwesikhathi eside kanye nekhono elinamandla lokulwa nokungcola.
*Isikhombiso se-LCD, izinkinobho, i-alamu namanye amamojula okuzikhethela.
| Izinga lokushisa noHumidity Transmitter Probe LFH70 | |||||||||
| Ubuzwe Obuhlobene | |||||||||
| Isimo senhliso | I-capacitor ephezulu ye-temp & humidity | ||||||||
| Ububanzi | 0% ~ 100%RH | ||||||||
| Okukhishwayo | RS485 / Modbus, 0 ~ 10 V, 4 ~ 20mA yokuzikhethela | ||||||||
| Ukuqondisa | ≤90% RH @ 20 ° C ± 2% RH ≥ 90% RH @ 20 ° C ±2.3% RH | ||||||||
| Isikhathi sokuphendula | ≤10S | ||||||||
| Ukushisa | |||||||||
| SensIsigqi | PT1000 | ||||||||
| Izinga lokushisa Lokusebenza | -40 ~ 180 ° C | ||||||||
| Okukhishwayo | I-RS485, 0-10V, 4-20 mA | ||||||||
| Ukuqondisa | ± 0.2℃ @ 20℃, bheka ishadi lejika lokunemba | ||||||||
| Ukunikezwa Kwamandlanje | 15-35 VDC / 24VAC ± 20% | ||||||||
| Umthwalo wokukhishwayo | ≤500Ω (uhlobo lwamanje), ≥10KΩ (uhlobo lwe-Voltage) | ||||||||
Uhla lokushisa lokushisa lwezinto ze-elekthronikhi (nge-LCD | Igobolondo le-PC, induku ye-PA6, ikhava yokuvikela ye-ABS | ||||||||
| Ukubuyisela | 2 × SPDT (3A-30VDC / 250VAC) | ||||||||
Qaphela: Ubude obuzenzakalelayo bekhebula lohlobo lokuhlukanisa ngamamitha ayi-1, futhi ubude bungangezwa ngesisekelo semitha, obumelwe yinombolo ngemuva kwemodeli. Ubanga lokushisa oluzenzakalelayo lwamandla kagesi nohlobo lwamanje ngu -20 ~ 60 ° C, futhi lungasethwa kabusha ngokucindezela noma iyiphi inkinobho.

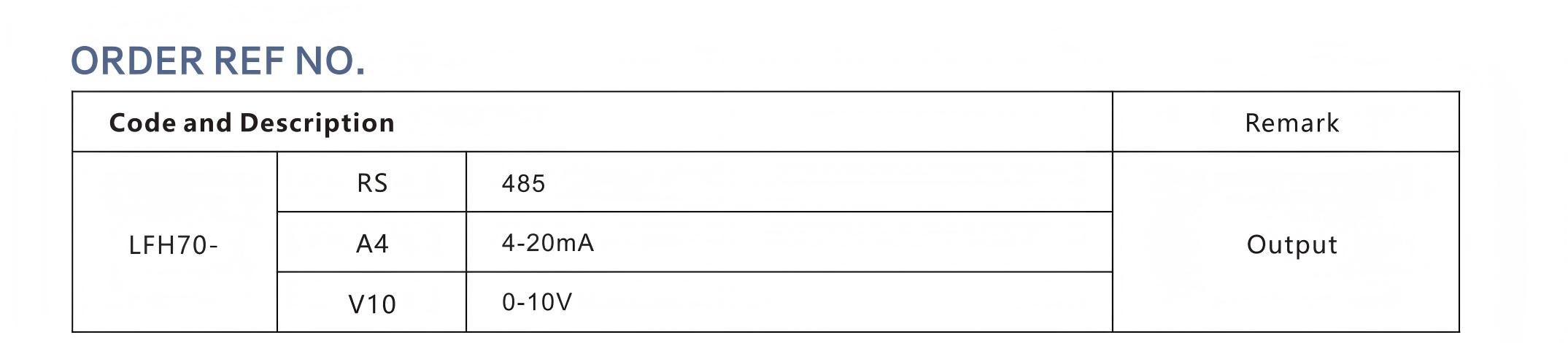

Isibonelo sokukhethwa kwemodeli i-LFH70-A4-2, kusho ukushisa kohlobo lokuhlukanisa kanye nomswakama, okukhiphayo okungu-4-20mA, ngenkinobho yangaphandle ye-LCD, ubude bocingo obumisiwe bamamitha ama-2.

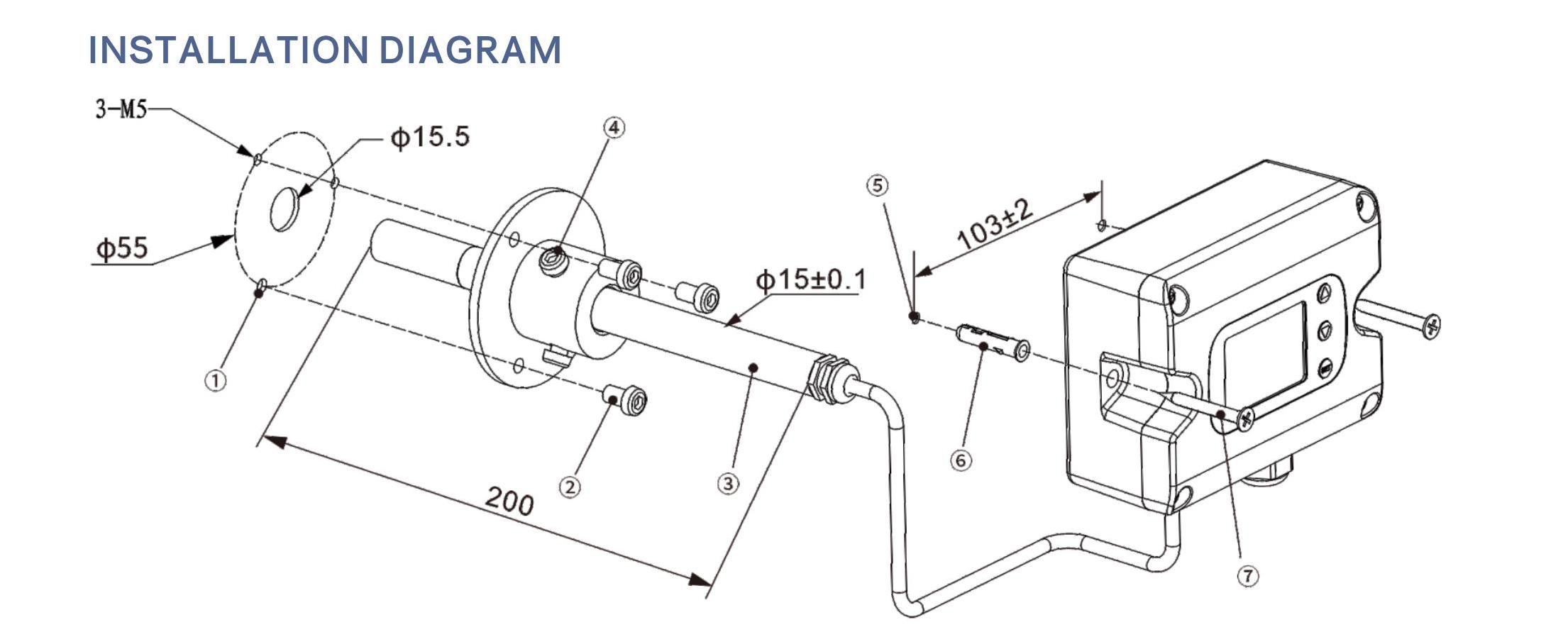

Umgodi womoya: ➀ izimbobo ezivulekile, ② faka i-flange, ivuya isikrufu, ③ faka ipayipi lomoya bese ulungisa usayizi, ➃vala isikru
Ibhokisi lokudlulisa: ➄ izimbobo ezivulekile, ➅ ku-shubhu yokunweba, ➆ faka umzimba, ukukhiyela izikrufu
Igobolondo lensimbi eligcwele, eliqinile futhi elithembekile, elungele indawo yokusebenza kanzima.
Ibanga lokushisa eliphakeme:-40 ~ 180c.
Ukulinganiswa kwebanga eligcwele lezinga lokushisa ne-Humidity, ukunemba okuphezulu.
Izinto ezizwelayo zikhuthazelela izinga lokushisa eliphakeme, ngokuphindaphindeka komswakama okuhle.
Isimbozo esiyinhloko sinokuzinza kwesikhathi eside kanye nekhono elinamandla lokulwa nokungcola.
Isikhombiso se-LCD, izinkinobho, i-alamu namanye amamojula okuzikhethela.
Kuthuthukiswe ukushisa okuqinisekile okuphezulu nokulinganisa umswakama kuzicelo eziyisisekelo zezimboni kanye nemikhakha yokulawula isimo sezulu
