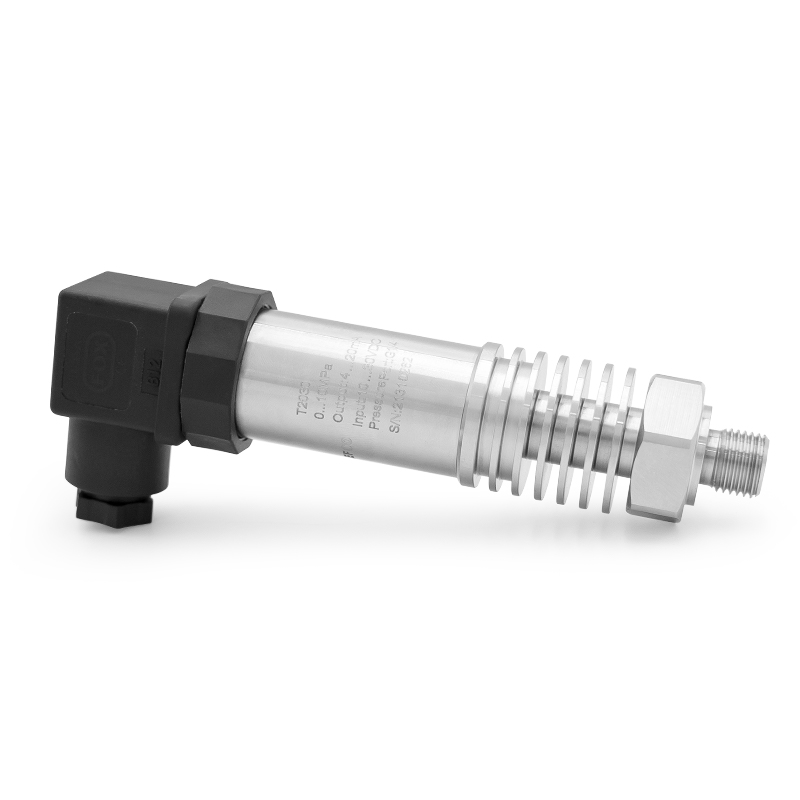

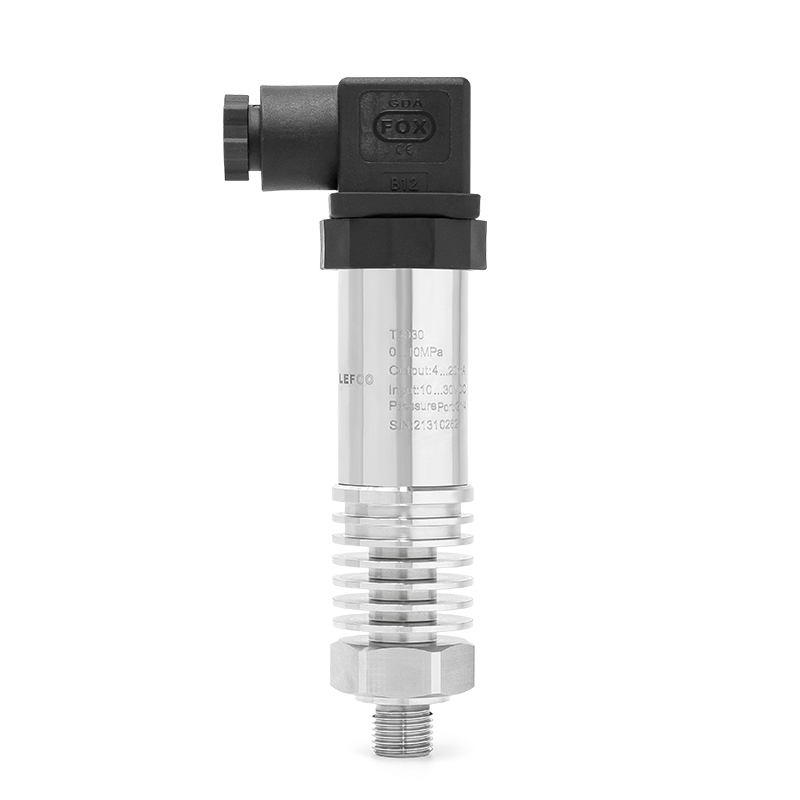

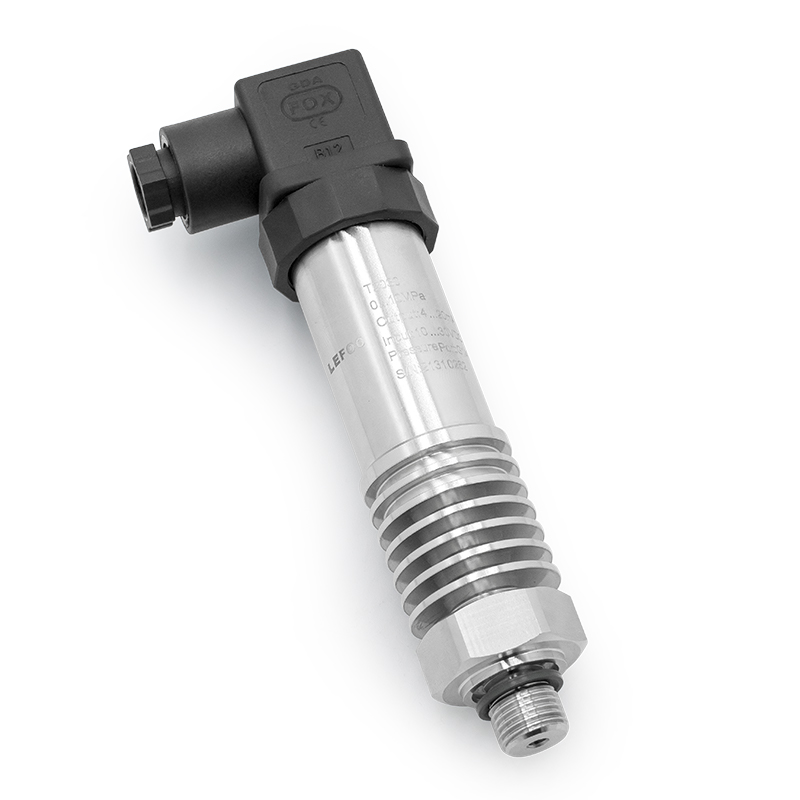

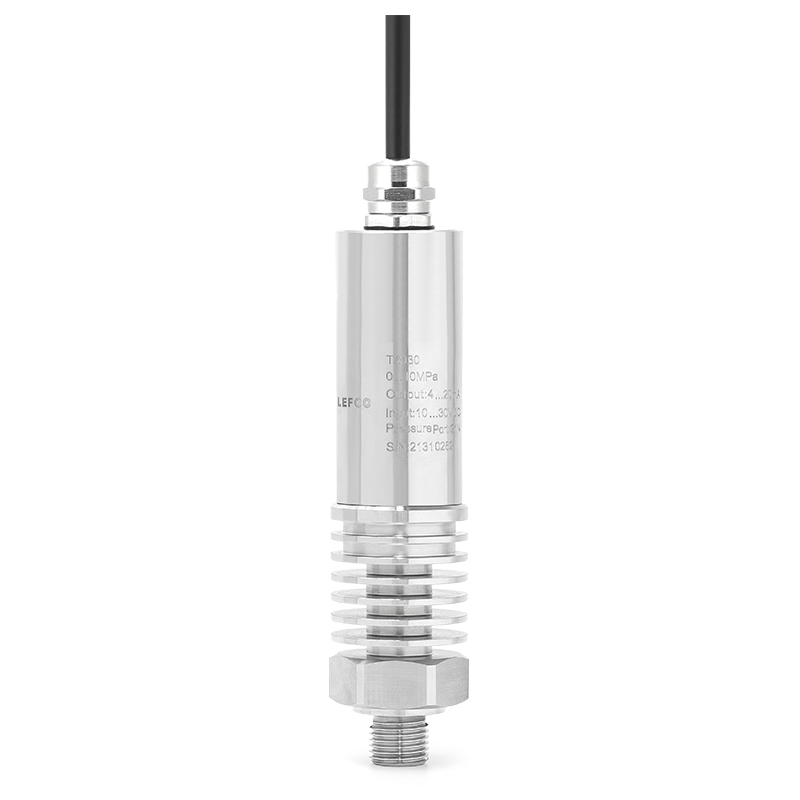

I-LEFOO LFT2030 umdlulisi ophakeme wokushisa wamukela ingqikithi yengcindezi yokusebenza ephezulu, futhi isekethe elikhethekile elihlanganisiwe liguqula isignali ye-sensor millivolt ibe yi-voltage ejwayelekile, isiginali yamanje, noma i-485, okungaxhunywa ngqo nekhadi lokuxhumana kwekhompyutha, insimbi yokulawula, insimbi ehlakaniphile, noma i-PLC, njll. ukuxhuma kalula. Ukudluliswa kwebanga elide kungasebenzisa indlela yamanje yokukhipha. LokhuLFT203Amazinga okushisa aphezuluIsidlulisi sengcindeziInezici zosayizi omncane, isisindo esilula, konke ukwakheka kwensimbi engagqwali, njll., futhi kungasebenza ezindaweni ezonakalisayo. Umkhiqizo ulula futhi ulula ukuwufaka, unokusebenza okuhle kakhulu kokulwa nokushaqisa, futhi usetshenziswa kabanzi ekulawuleni inqubo, I - HVAC, imishini yezokwelapha, neminye imikhakha.
Izici Zokudlulisa I-LFT2030
* Isinki sokushisa sihlanganiswa ngokuphelele nengqikithi, futhi sisebenza ngokuvamile ekushiseni okuphakeme
* Yamukela ubuchwepheshe be-ASIC, ubuchwepheshe bezinxephezelo zedijithali
* Ukuwohloka okuhle kakhulu nokugqoka ukumelana
* Ukulwa nokuphazamiseka okuqinile, ukuzinza okuhle kwesikhathi eside
*Ukuxhumeka okumsontshiwe ukufakwa kalula
| I-LEFOO High Presure Presser LFT20300 | |||||
| Ubanga lokulingana | -100kPa…0 ~ 10kPa…60MPa (Umgogodla we-silicon ogcwele uwoyela oyo) | -100kPa…0.3MPa 60MPa (Umgogodla we-Ceramic) | |||
Ingcindezi Yokulayisha Kakhulu | Isikhathi esingu-1.5 sesikali esigcwele. | ||||
Ukuqondisa | ± 0.5% F.S. | ± 0.5% F.S./ ± 1-0% F.S. | |||
Ukuzima | <0.5%F.S./nyanga | ||||
Ukushisa Okusebenzayo | -20 ~ 85℃ | ||||

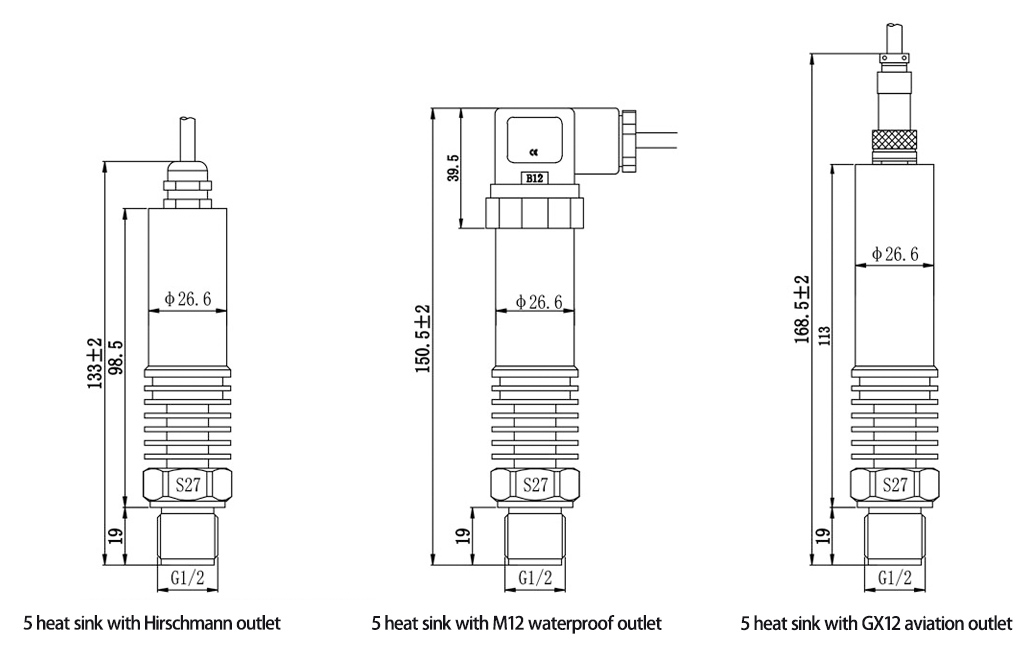

Ukushisa Okuphakathi | Ukushisa okungu-5 kucwila ngo-180 ° C, ukushisa okungu-10 kucwila 260 ° C | ||||
Iphakathi elilinganisiwe | Igesi noma uketshezi oluhambisana nensimbi engagqwali, injoloba ye-fluorine noma injoloba ye-nitrile | ||||
| Ingcindezi Yohlobo Jikelele Yezinga lokushisa OkuphakemeUmdluliseliLFT203 | |||||
Ukusebenza kukagesi | Izintambo ezimbili | Izintambo ezintathu | Izintambo ezine | ||
Isibonakaliso esikhitshayo | 4 ~ 20mA | 0.5 ~ 4.5V | 0 ~ 5V | 0 ~ 10V | RS485 |
Ukunikezwa Kwamandlanje | 10 ~ 36 VDC | 4.75 ~ 5.25VDC | 10 ~ 36 VDC | 12 ~ 36 VDC | 10 ~ 30 VDC |

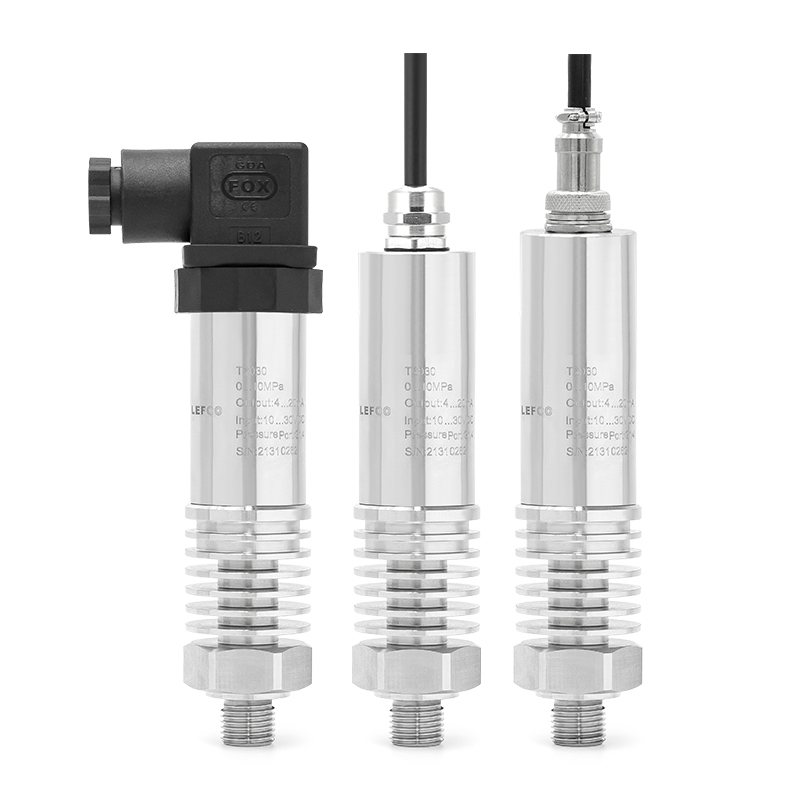

Ukuxhumana kukagesi | I-DIN43650A (isixhumi esikhulu se-Hirschmann), i-M12 yokuphumela amanzi, Isixhumi sezindiza se-M12 (ama-cores amathathu / ama-cores amane) | ||||
| Uhlobo lokuqhuma lokucindezela lokushisa okuphezulu kwe-LEFOOUmdluliseliLFT203 | |||||
| Ukusebenza kukagesi | Izintambo ezimbili | Izintambo ezintathu | Izintambo ezine | ||
| Isibonakaliso esikhitshayo | 4 ~ 20mA | 0 ~ 10V | RS485 | ||
| 10 ~ 30 VDC | 14 ~ 36 VDC | 10 ~ 36 VDC | |||
| Ukuxhumana kukagesi | Ukuphuma ngqo | ||||
Isigaba Sokuvikela | IP65 | ||||
Ukuxhumana Kwengcindezi | G1/4, NPT1/2, G1/2 | ||||
Ifomu Ingcindezi | Ingcindezi yeGuge G / Ingcindezi Ephelele A | ||||
Isiqinisekiso | Amazinga okuphepha kagesi we-EU CE | ||||
| Ikhodi nencazelo | Amagqaba | |||||||||||||
LFT203 | Ukudlulisa Ingcindezi Yokushisa Okuphakeme | Imodeli | ||||||||||||
Ububanzi | -100kPa…0 ~ 10 kPa…60MPa | Ububanzi | ||||||||||||
A4 | A4 = 4 ~ 20 mA (ezintambo ezimbili) | Okukhishwayo | ||||||||||||
V05 | V05 = 0.5 ~ 4.5 V (ezintambo ezintathu) | |||||||||||||
V0 | V0 = 0 ~ 5V (ezintambo ezintathu) | |||||||||||||
V10 | V10 = 0 ~ 10V (ezintambo ezintathu) | |||||||||||||
RS | I-RS = RS485 (izintambo ezine) | |||||||||||||
K | K = kpa | Iyunithi | ||||||||||||
| P. | P = psi | |||||||||||||
| B | B = ibhar | |||||||||||||
M | M = Mpa | |||||||||||||
0,5 | 0.5 = 0.5% F.S. | Ukuqondisa | ||||||||||||
| 1.0 | 1.0 = 1-0% F.S. | |||||||||||||
D1 | D1 = DIN43650A Big Hirschmann | Ukuxhumana kukagesi | ||||||||||||
M | M = M12 ukuphuma ngamanzi | |||||||||||||
C3 | I-C3 = GX12 isixhumi sezindiza ezintathu | |||||||||||||
| C4 | I-C4 = GX12 Isixhumi sezindiza ezine | |||||||||||||
| I-H = M12 isixhumi sezindiza ezine | ||||||||||||||
| M20 | I-M20 = M20 Ukuphuma Kwamanzi okungena | |||||||||||||
G | G = G1/4 | Ukuxhumana kwengcindezi | ||||||||||||
| G2 | G2 = G1/2 | |||||||||||||
NI | N = NPT1/4 | |||||||||||||
| A | A = Umnyombo weCeramic | Inhloko | ||||||||||||
| B | Umgogodla we-silicon ogcwele u-B-oil | |||||||||||||
| NI | Ngaphandle kokubonisa | Bonisa Bona | ||||||||||||
| D1 | Uhlobo lwesiboniso sedijithali jikelele | |||||||||||||
| D2 | Uhlobo lwesiboniso sedijithali lokuqhuma | |||||||||||||
| 1.0 | 1.0 = 1m | I-Cable Lenth | ||||||||||||
| 2.0 | 2.0 = 2m | |||||||||||||
| 3.0 | 3.0 = 3m | |||||||||||||
LFT203 | 0-60 | A4 | B | 1.0 | D1 | G | B | NI | 1.0 | Isibonelo Sokukhetha | ||||
Isinki sokushisa sihlanganiswe ngokuphelele nengqikithi, futhi sisebenza ngokuvamile ekushiseni okuphakeme
Yamukela ubuchwepheshe be-ASIC, ubuchwepheshe bezinxephezelo zedijithali
Ukuwohloka okuhle kakhulu nokugqoka ukumelana
Ukulwa nokuphazamiseka okuqinile, ukuzinza okuhle kwesikhathi eside
Ukuxhumeka okumsontshiwe ukufakwa kalula
Abadlulisi bezingcindezi eziphakeme zokushisa kusetshenziswa ezintweni zokusebenza lapho izinga lokushisa labezindaba lidlula imikhawulo yokushisa yezidlulisi ezijwayelekile zokucindezela, njenge-steam, ukucubungula ukudla nokuqapha injini. Ama-transducers okushisa aphezulu yisisombululo esivame kakhulu sokulinganisa ingcindezi ezindaweni ezishisayo, yize ukunciphisa ukushisa ngento yokupholisa kungaba ukukhetha okungcono kwezinye izinhlelo zokusebenza.
