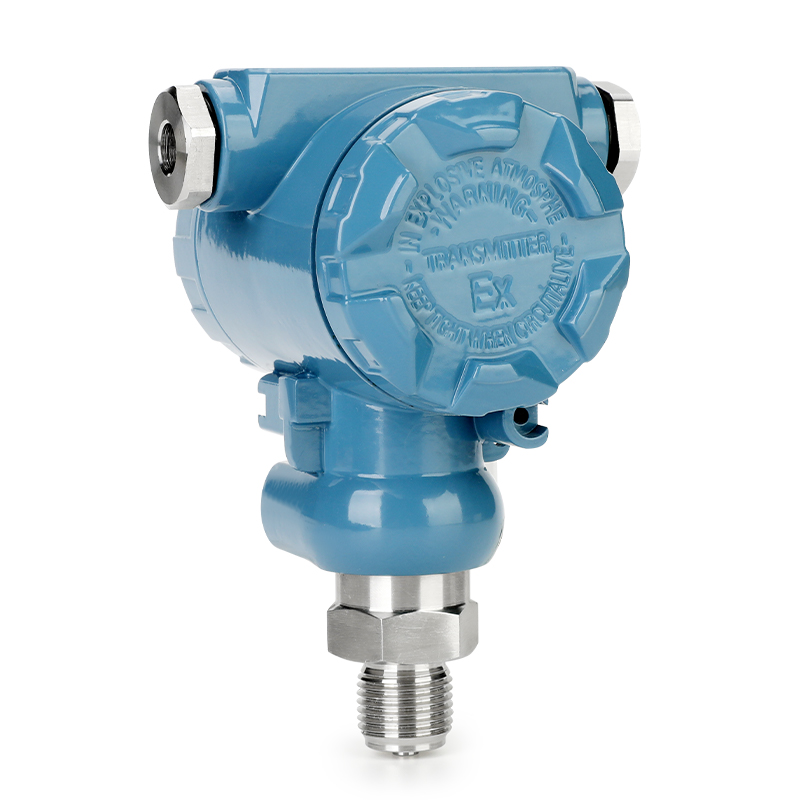

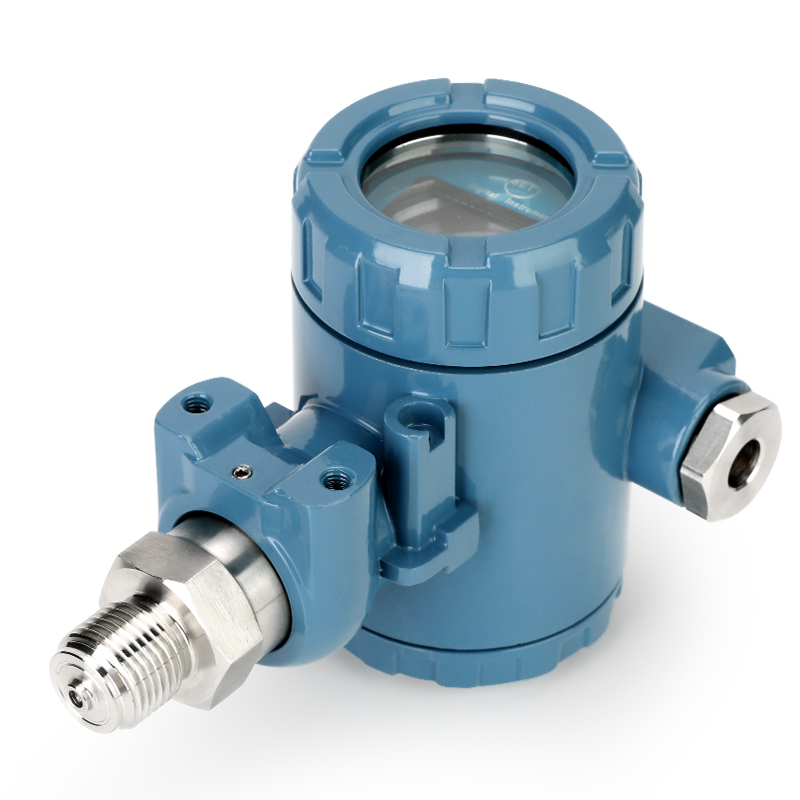

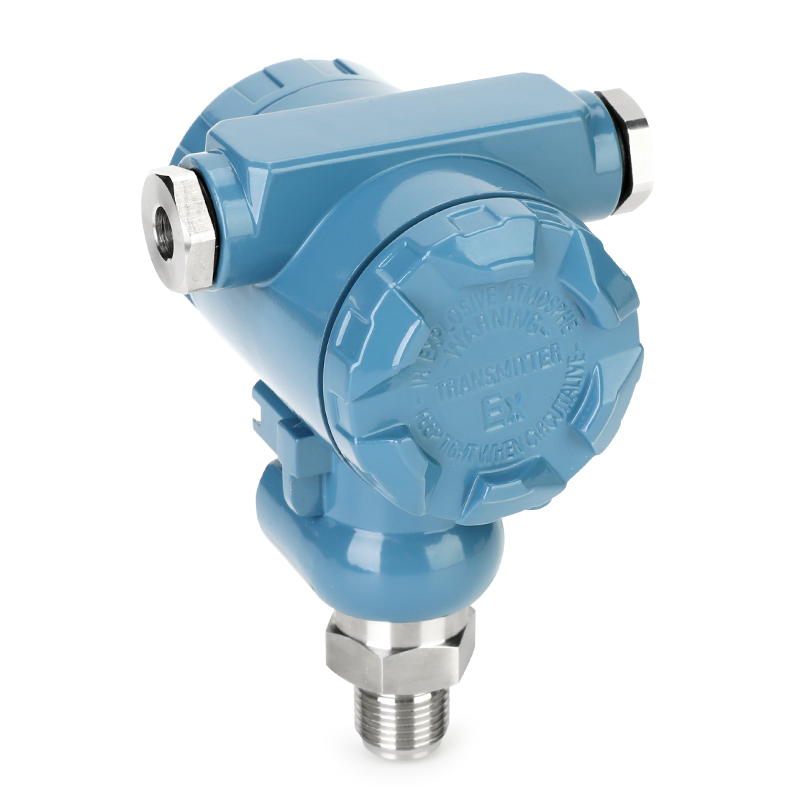

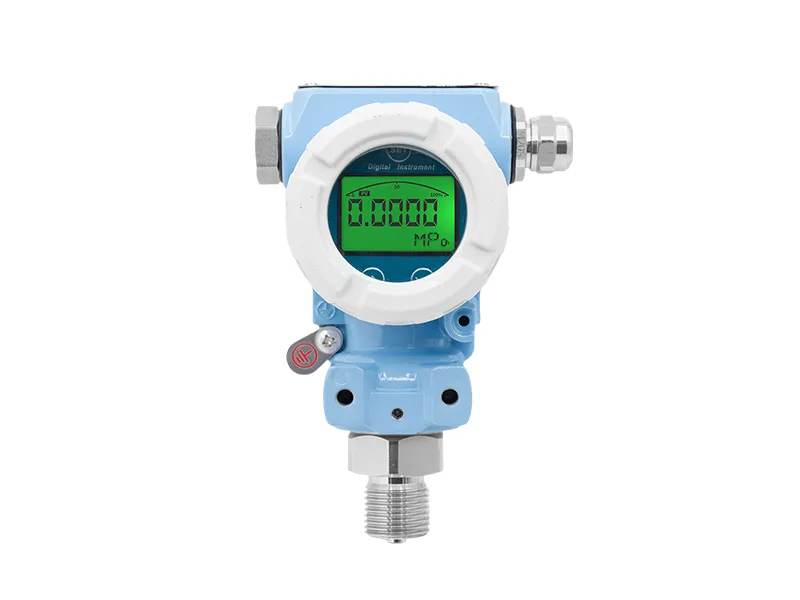

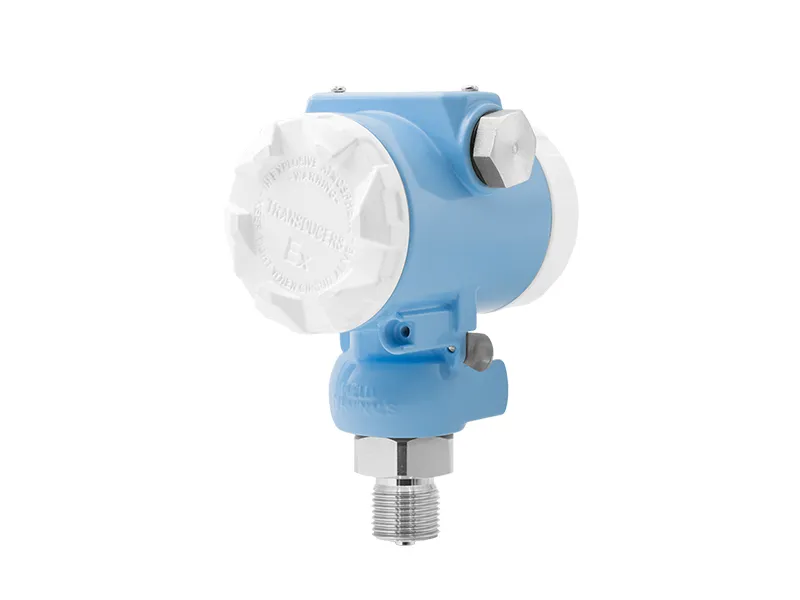

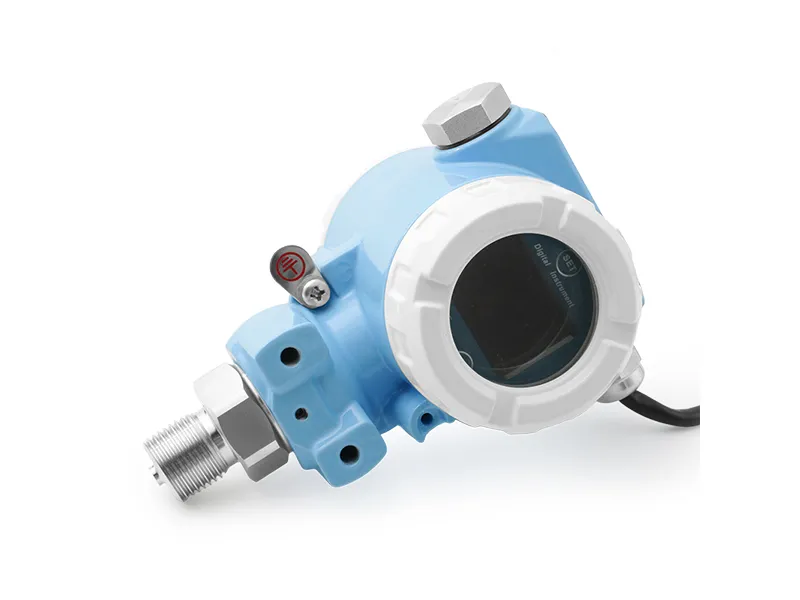

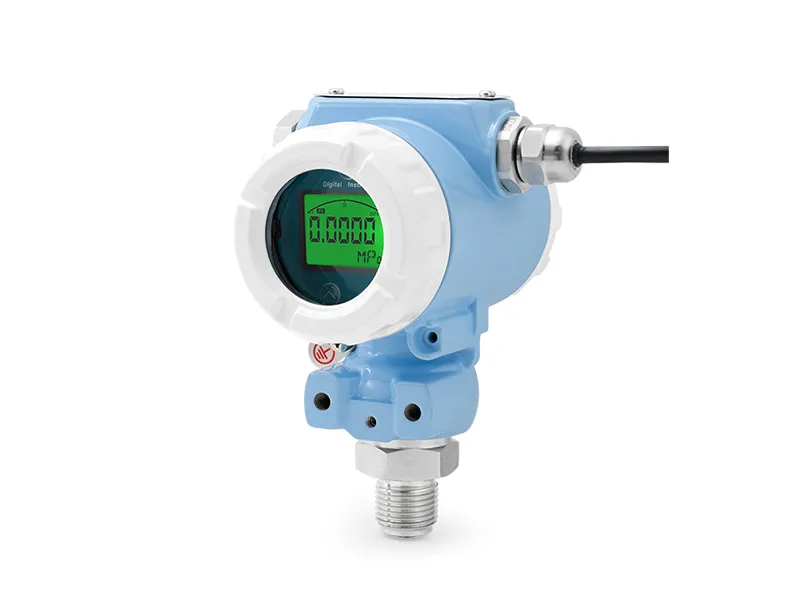

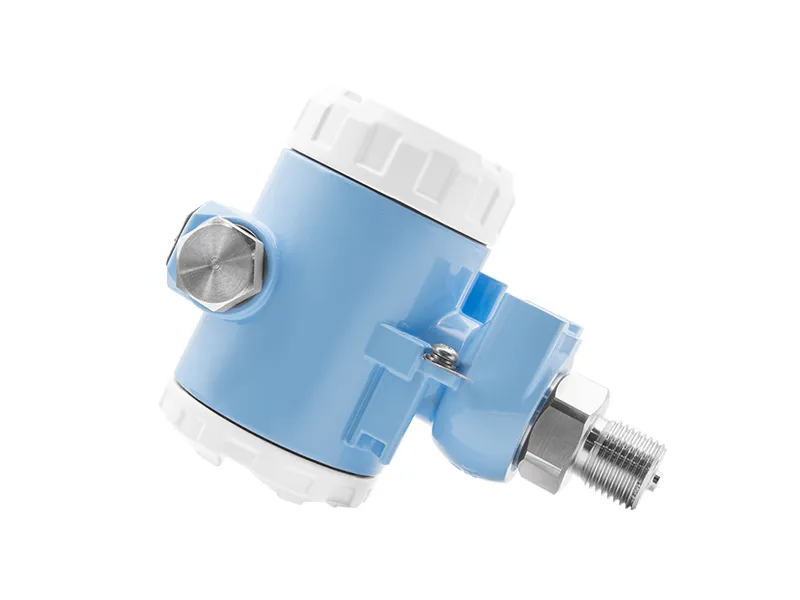

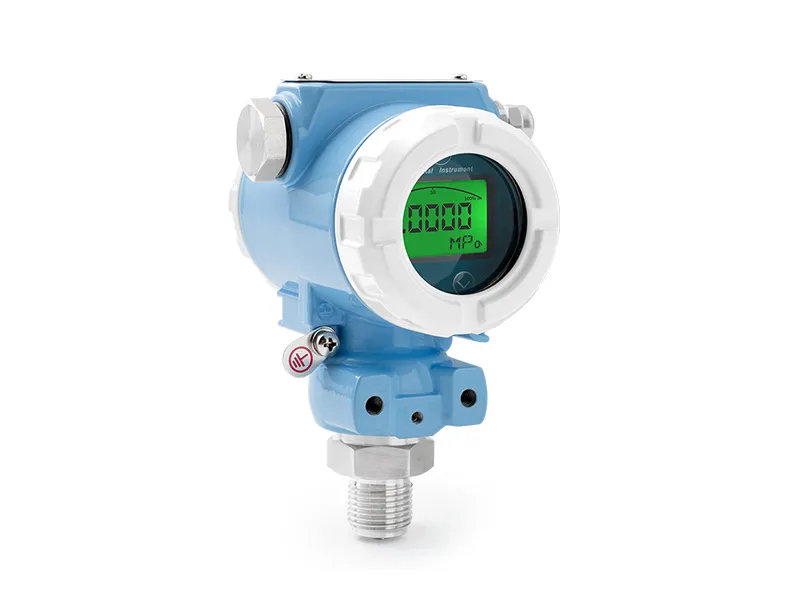

I-LEFOO LFT6200 yokufaka ingcindezi yokuqhuma ingumkhiqizo ovelele wokuqhuma onokusebenza kwezindleko eziphezulu. Kusetshenziswa kabanzi ekulinganisweni kwengcindezi yegesi kanye noketshezi, njengamanzi, uwoyela, uketshezi oluncane kanye namagesi, njll. Umdlulisi wengcindezi ukwamukela ikhanda lengcindezi yensimbi engagqwali engama-304, umnyombo wengcindezi ye-premium ukhethwa emikhiqizo edumile yamazwe omhlaba, futhi isekethe ekhethekile yokuguqula i-V / I ingalinganisa kalula iphuzu layo zero nesikali esigcwele. Lo mkhiqizo unezinzuzo zokukhukhuleka okuncane, ukusebenza okuzinzile, ikhwalithi ethembekile nokwakheka okunengqondo.
Izici:
* Ukushaqeka kwe-buffer ngokulwa nengcindezi
* Izindawo ezahlukahlukene zokucindezela nokukhishwa kwezimpawo
* I-ExdlcT6Gb ukuqinisekisa ukuqhuma
* Isibonisi esibukekayo esihlekelele
* Amachweba ahlukahlukene okucindezela
| I-LEFOO Ukuqhuma kokucindezela I-LFT6200 | ||||
| Ubanga lokulingana | -100 KPa ... 0 ~ 10 KPa ... 60MPa | |||
| Ingcindezi Yokulayisha Kakhulu | Izikhathi eziyi-1.5 zesikali esigcwele. | |||
| Ukuqondisa | ± 1.0% F.S. (-100KPa ... 0 ~ 1KPa ... 2KPa…60MPa) | |||
| ± 0.5% F.S. (-100KPa ... 0 ~ 3KPa ... 19KPa…60MPa) | ||||
| ± 0.25% F.S. (-100KPa ... 0 ~ 20KPa…60MPa) | ||||
| Ukuzima | <0.5%F.S./Nyaka | |||
| Ukushisa Okusebenzayo | -20℃ ~ 80℃ | |||
| Izinga lokushisa | -40 ~ 100℃ | |||
| Ukuvumelana Okuphakathi | Igesi noma uketshezi oluhambisana ne-316L, 1Cr18Ni9Ti, VITON neNBR. | |||
| Ukusebenza kukagesi | Izintambo ezimbili | Izintambo ezintathu | Izintambo ezine | |
| Isibonakaliso esikhitshayo | 4 ~ 20mA | 4 ~ 20mA HART | 0 ~ 10 VDC | RS485 |
| Ukunikezwa Kwamandlanje | 10 ~ 30 VDC | 14 ~ 36 VDC | 10 ~ 36 VDC | |
| Ukungena | > 100M Ω @ 500 VDC | |||
| Amandla kagesi | 500VAC @ 60 | |||
| Ukuxhumana kukagesi | Ukuphuma kokungena kwamanzi | |||
| Ibanga Lokuvikela | IP67 | |||
| Ukuxhumana Kwengcindezi | M20 * 1.5, G1/2 | |||
| Ikhodi nencazelo | Amagqaba | ||||||||||
LFT6200 | Ukudlulisa ingcindezi yokuqhuma | Imodeli | |||||||||
Ububanzi | -100 KPa ... 0 ~ 10 kPa ... 60MPa | Ububanzi | |||||||||
A4 | A4 = 4 ~ 20 mA (Izintambo ezimbili) | Indlela yokukhishwa: | |||||||||
| I-HART | I-HART = 4 ~ 20 mA HART (Izintambo ezimbili) | ||||||||||
V10 | V10 = 0 ~ 10 V (Izintambo ezintathu) | ||||||||||
RS | I-RS = RS485 (izintambo ezine) | ||||||||||
K | K = kPa | Iyunithi | |||||||||
| P = psi | |||||||||||
| B | B = ibhar | ||||||||||
M | M = MPa | ||||||||||
| 1.0 | 1.0 = 1.0% F.S. | Ukuqondisa | |||||||||
0,5 | 0.5 = 0.5% F.S. | ||||||||||
| 0.25 | 0.25 = 0.25% F.S. | ||||||||||
D | D = Iphutha ngqo | Ukuxhumana kukagesi | |||||||||
M | M = M20 * 1.5 | Ukuxhumana kwengcindezi | |||||||||
| G2 | G2 = G1/2 | ||||||||||
1.0 | 1.0 = 1m | Ubude bentababa | |||||||||
2.0 | 2.0 = 2m | ||||||||||
3.0 | 3.0 = 3m | ||||||||||
LFT6200 | 0-60 | A4 | B | 0,5 | D | M | 1.0 | Isibonelo sokukhetha | |||
Ijoyinti yokulwa nomthelela wengcindezi
Ububanzi obuhlukahlukene bokucindezela nokukhipha kwesiginali
I-ExdlcT6Gb ukuqinisekisa ukuqhuma

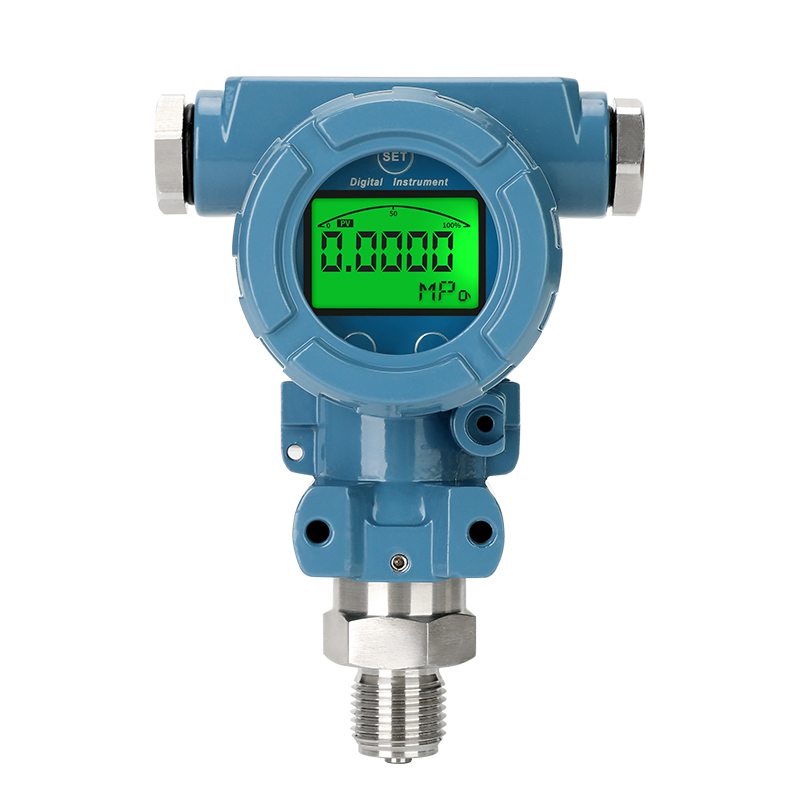

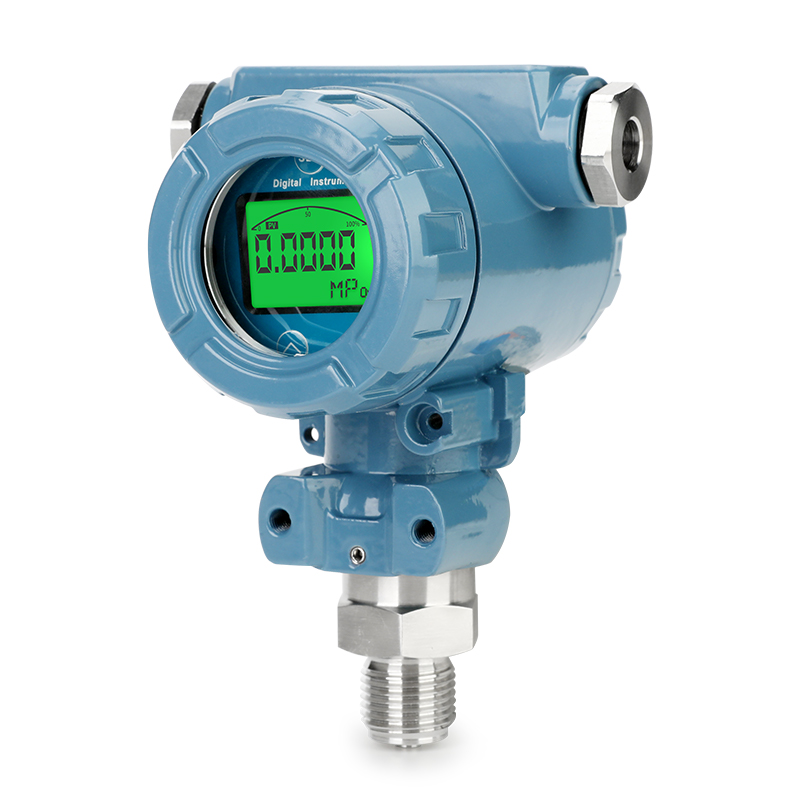

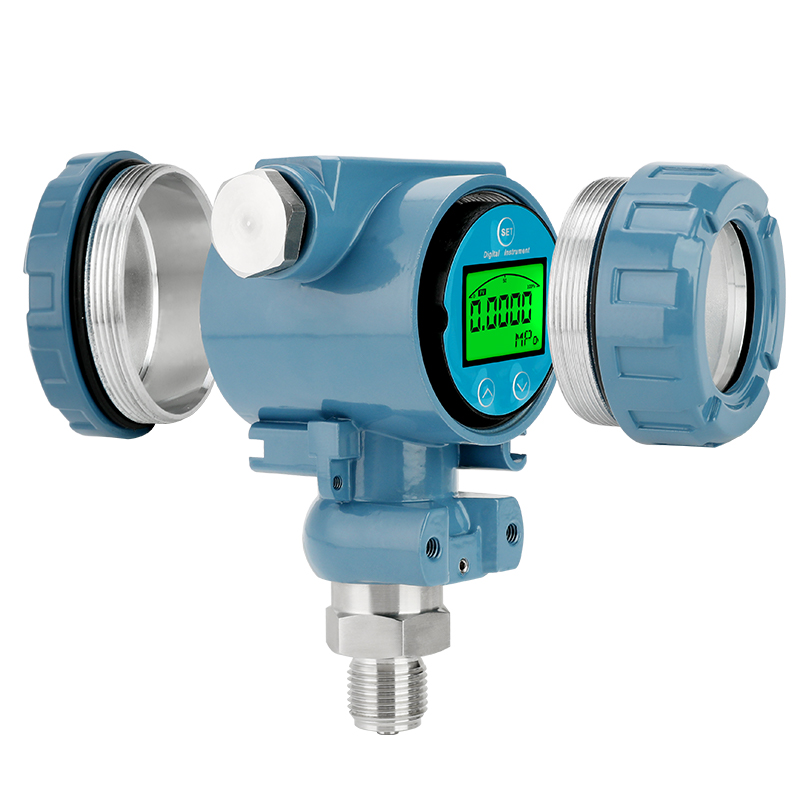

Isiboniso sedijithali esihlelekile esihlelekile
Amachweba ahlukahlukene wokucindezela
Ingalo yokuphatha amarobhot

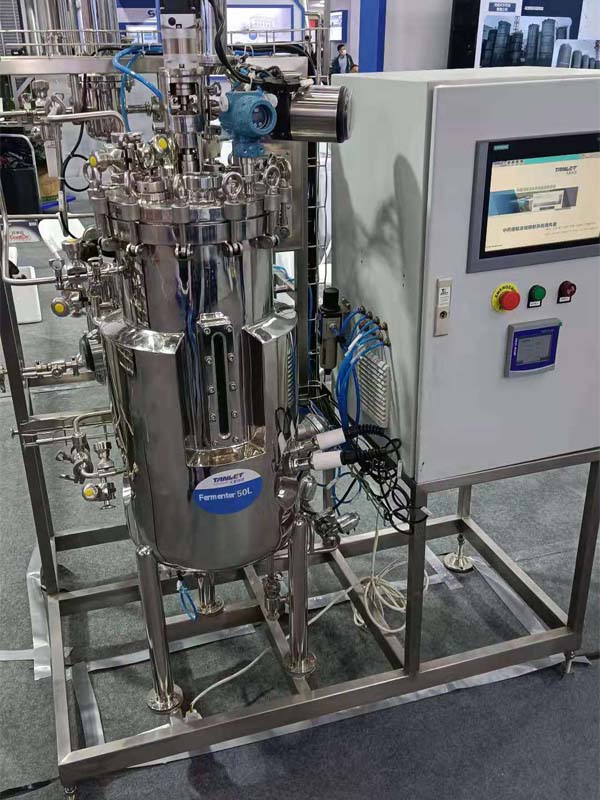

Ukutholwa kwengcindezi yezimboni nokulawula okufana nomshini wokumboza wePaint
Izindawo zokusebenza eziyingozi zokuqhuma ezifana nemboni ye-Petrochemial
