I-LEFOO LFT2020 umdlulisi wengcindezi yefilimu eyisicaba yamukela i-silicon cor egcwele uwoyela esebenza okuphezulu. e, futhi isekethe elikhethekile elihlanganisiwe liguqula isignali ye-sensor millivolt ibe yi-voltage ejwayelekile, isiginali yamanje noma i-485, okungaxhunywa ngqo nekhadi lokuxhumana kwekhompyutha, insimbi yokulawula, insimbi ehlakaniphile noma i-PLC, njll.Inzwa yengcindezi ye-FlushKulula ukuxhuma. Ukuxhumeka kwenqubo yokudlulisa ingcindezi kwamukela uphawu lwe-aseptic chuck diaphragm, oluncane ngosayizi, olukhanyayo ngesisindo, nayo yonke isakhiwo sokuvala insimbi engagqwali, esingasebenza endaweni eyonakalisayo. Umkhiqizo kulula futhi ulula ukuwufaka, unenkinga enhle kakhulu nokumelana nokushaqeka, futhi usetshenziswa kabanzi ekudleni, ubisi, Izimboni zamakhemikhali nezemithi.

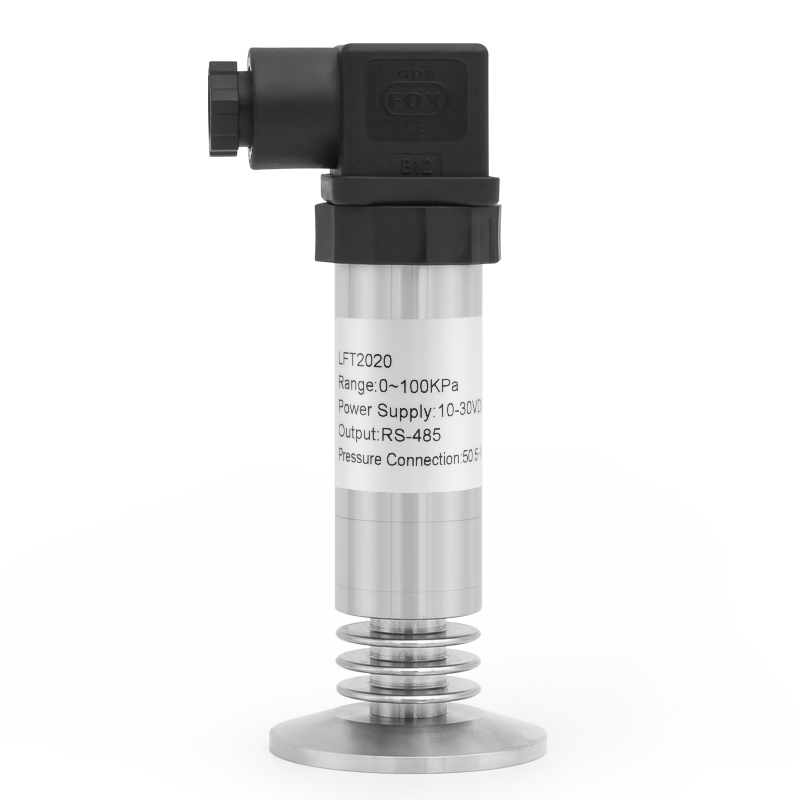

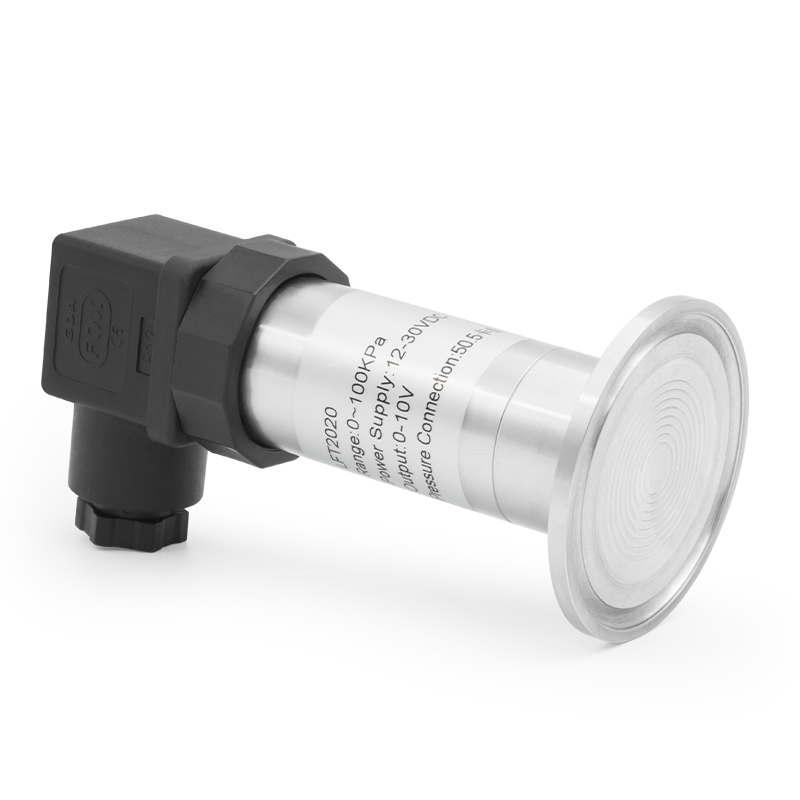

I-Lefoo Clamp Type Sanitary Flat Film Pressure Transmitter LFT2020
* Izinga lokushisa eliphakeme nezinhlobo ezivamile zokushisa ziyatholakala
* Yamukela ubuchwepheshe bezinxephezelo zedijithali ze-ASIC
* Ukuwohloka okuhle kakhulu nokugqoka ukumelana
* Ukulwa nokuphazamiseka okuqinile nokuzinza okuhle kwesikhathi eside
* Ukuxhumeka kwe-50.5mm chuck, ukufakwa okulula nokuhlanza
*Ingxenye yokuxhumana nento ehloliwe yenziwa ngezinto ezingama-316L, ezilungele izimboni zezokwelapha nezempilo.
| I-LEFOO Clamp Type Sanitary Flat Film Pressure Transmitter LFT2020 | |||||
| Ubanga lokulingana | -100 Kpa…0 ~ 10KPa…7MPa | ||||
| Ingcindezi Yokulayisha Kakhulu | Isikhathi esingu-1.5 sesikali esigcwele. | ||||
| Ukuqondisa | ± 0.5% F.S., ± 1-0% F.S. | ||||
| Ukuzima | <0.5%F.S./Nyaka | ||||
| Ukushisa Okusebenzayo | -20 ~ 85℃ | ||||
| Ukushisa Okuphakathi | -40 ~ 100℃ /-40 ~ 150℃ | ||||
| Okuphakathi | Zonke izindlela eziwohlokayo zingahambisana nensimbi engagqwali engama-316, iFloroelastomer noma i-NBR. | ||||
| I-LEFOO General Clamp Type Sanitary Flat Film Pressure Sensor LFT2020 | |||||
| Izakhiwo zikagesi | Izintambo ezimbili | Izintambo ezintathu | Izintambo ezine | ||
| Isibonakaliso esikhitshayo | 4 ~ 20mA | 0.5 ~ 4.5V | 0 ~ 10V | RS485 | |
| Ukunikezwa Kwamandlanje | 10 ~ 36 VDC | 4.75 ~ 5.25VDC | 12 ~ 36 VDC | 10 ~ 30 VDC | |
| Ukuxhumana kukagesi | I-DIN43650A (Big Hirschmann), i-M12 yokuphumela amanzi, Isixhumi sezindiza se-GX12 (ama-cores amathathu / ama-cores amane), isixhumi se-M12 esine semikhumbi | ||||
| Uhlobo LEFO lokuqhuma-uhlobo Clamp Type Sanitary Flat Film Pressure Sensor LFT2020 | |||||
| Izintambo ezimbili | Izintambo ezintathu | Izintambo ezine | |||
| Isibonakaliso esikhitshayo | 4 ~ 20mA | 0 ~ 10V | RS485 | ||
| Ukunikezwa Kwamandlanje | 10 ~ 30 VDC | 14 ~ 36 VDC | 10 ~ 36 VDC | ||
| Ukuxhumana kukagesi | Ukuphuma ngqo | ||||
| Isigaba Sokuvikela | IP65 | ||||
| Ukuxhumana Kwengcindezi | I-50.5 mm clamp | ||||
| Ifomu Ingcindezi | Ingcindezi yeGuge G / Ingcindezi Ephelele A | ||||
| Isiqinisekiso | Amazinga okuphepha kagesi we-EU CE | ||||
| Ikhodi Nencazelo | Amagqaba | |||||||||||
| LFT2020 | Uhlobo lwe-Clamp lwe-Sanitary Flat Film Pressure Sensor. | Imodeli | ||||||||||
| Ububanzi | -100 Kpa…0 ~ 10KPa…7MPa | Ububanzi | ||||||||||
| A4 | A4 = 4 ~ 20 mA (Izintambo ezimbili) | Indlela yokukhishwa: | ||||||||||
| V05 | V05 = 0.5 ~ 4.5 V (Izintambo ezintathu) | |||||||||||
| V0 | V0 = 0 ~ 5V (Izintambo ezintathu) | |||||||||||
| V10 | V10 = 0 ~ 10 V (Izintambo ezintathu) | |||||||||||
| RS | I-RS485 = RS485 (i-wired ezine) | |||||||||||
| K | K = kpa | Iyunithi | ||||||||||
| P. | P = psi | |||||||||||
| B | B = ibhar | |||||||||||
| M | M = Mpa | |||||||||||
| 0,5 | 0.5 = ± 0.5% F.S. | Ukuqondisa | ||||||||||
| 1.0 | 1.0 = ± 1.0% F.S | |||||||||||
| D1 | D1 = DIN43650A Big Hirschmann | Ukuxhumana kukagesi | ||||||||||
| M | M = M12 i-Waterproofs | |||||||||||
| C3 | I-C3 = GX12 isixhumi sezindiza ezintathu | |||||||||||
| C4 | C1 = GX12 isixhumi sezindiza ezine | |||||||||||
| H | H = M12 isixhumi sezindiza ezine | |||||||||||
| K2 | I-K2 = 50.5mm clamp | Ukuxhumana kwengcindezi | ||||||||||
| NI | Ngaphandle kokubonisa | Bonisa Bona | ||||||||||
| D1 | Uhlobo lwesiboniso sedijithali jikelele | |||||||||||
| D2 | Uhlobo lwesiboniso sedijithali lokuqhuma | |||||||||||
| 1.0 | 1.0 = 1m | I-Cable Lenth | ||||||||||
| 2.0 | 2.0 = 2m | |||||||||||
| LFT2020 | 0-10 | A4 | B | 1.0 | D1 | K2 | NI | 1.0 | Isibonelo Sokukhetha | |||
Izinga lokushisa eliphakeme kanye namamodeli okushisa ajwayelekile ayatholakala
Yamukela ubuchwepheshe bezinxephezelo zedijithali ze-ASIC
Ukuwohloka okuhle kakhulu nokugqoka ukumelana
Ukulwa nokuphazamiseka okuqinile nokuzinza okuhle kwesikhathi eside
Ukuxhumeka kwe-50.5mm chuck, ukufakwa okulula nokuhlanza
Ingxenye yokuxhumana nento ehloliwe yenziwa ngezinto ezingama-316L, ezilungele izimboni zezokwelapha nezempilo.
Ukusebenza ne - LEFOO
Okuhlukile kolunye uhlobo lomoIngcindezi ye-diaphragm transducer, I- Pressure Transmitter Sensor LFT2020 isetshenziswa ngokuphelele nemishini elandelayo. I-LEFOO ingumhlinzeki kaNdunankulu we-diaphragms ngcindezi yensimbi emhlabeni jikelele. Siyajabula ukuhlinzeka nge-diaphragm ingcindezi yekhwalithi ephezulu ye-transducer ye:
Ukuqapha ukucindezelwa koketshezi kanye noketshezi;
I-Glue dispenser;
Izimboni zokudla;
Izimboni zekhefu;
Izimboni ze-pulp nephepha;
Ukucubungula amanzi angcolile;
Izimboni ze-petrochemical.
Ukukhiqizwa nokukhiqiza
Izinga lokucindezela nokuguquguquka kubhaliswe ngokuguquguquka kwe-diaphragm kanye nomgogodla wokuzwa kwe-silicon. Ukufuduswa kwe-diaphragm nomnyombo kuguqulwa ngokulinganayo kube ngugesi. Leso siginali kagesi siyahlaziywa ukuthola izilinganiso ezinembile zengcindezi.
Ama-diaphragms ama-transducers wengcindezi angakhiwa ngezinto zensimbi noma ezingezona zensimbi. Ama-diaphragms angewona wensimbi anesikhathi eside kepha athambeka ukungabi nama-diaphragms wensimbi. Lokhu kubenza bangafuneki kancane ezinhlelweni zokusebenza ezidinga izilinganiso eziqondile ngevolumu yokugeleza ephansi.
Ama-diaphragms wensimbi angamapuleti ayisiyingi akhiwe ngensimbi encane, eguquguqukayo ekhombisa ukukhubazeka lapho kucindezelwa. Ama-diaphragms asetshenziselwa ukubeka uphawu nokudluliswa kwengcindezi. Izimpawu ze-diaphragm zivimbela uketshezi ekuvuzeni kwezinye izingxenye zohlelo ngenkathi ngasikhathi sinye zivimbela ukungcola koketshezi uqobo. Ngaphakathi kwenzwa yengcindezi, ama-diaphragms ahlukanisa uhlelo futhi adlulise imiphumela yokushintsha kwengcindezi kumageji, lapho izinguquko ziguqulwa zibe amanje kagesi ukuze zihlaziywe.
Ama-diaphragms wensimbi angalungiswa ngokukhethekile ukuhlangabezana nezidingo zezimboni nezicelo eziningi. Kunemiklamo emibili eyinhloko ye-diaphragm: High-Sensitivity Low-Pressure (HSLP) kanye ne-Low-Sensitivity High-Pressure (LSHP)..
Ama-diaphragms we-HSLP asetshenziselwa izinhlelo zokusebenza ezidinga i-diaphragm ukuthi isebenze ngokuguquguquka okukhulu ngaphansi komshini ophansi. izimo. Zisetshenziswa kaningi kunabalingani babo be-LSHP futhi ziwusizo ikakhulukazi kuzinhlelo zokusebenza ezinengcindezi ephansi ezidinga izinga eliphakeme lokunema, njengokukhiqizwa kokudla nokukhiqizwa kwemithi.
Ama-diaphragms we-LSHP kufanele aziqine kakhulu futhi akwazi ukugcina ukwakheka nokuma kwawo kuzinhlelo zokusebenza okuphezulu. Ukuqina kwabo kwenza i-diaphragms ye-LHSP ibaluleke njengezithiyo zokuvikela emishini yengcindezi ephezulu. Zingaba wusizo kakhulu ekuguqulweni kokufuduka kwengcindezi kube amasiginali kagesi. Ama-diaphragms we-LHSP avame ukwenzelwa ukuvula ezingcindezi eziqondile, ukwenza kube wusizo ezinhlelweni ezidinga izilinganiso zengcindezi ezinembile kakhulu. Imishini yezokwelapha esekwe engcindezi nezinhlelo ezisebenza ezindaweni ezimbi kakhulu nazo ziyazuza ekusetshenzisweni kwama-diaphragms we-LHSP.
Sisebenzisa izindlela ezimbili zamathuluzi ezikhethekile kakhulu ukwenza ama-diaphragms wensimbi esezingeni eliphezulu. Indlela esetshenzisiwe incike kakhulu ebubini obuhlosiwe bengxenye nevolumu yokukhiqiza elindelwe.
Nge-prototyping, isampula, kanye nemithamo yokukhiqiza ephansi engaphansi kuka-50 000 minyaka yonke, Ithuluzi lensimbi-to-rubber lifanelekile kuma-diaphragms anobukhulu obukhulu kunamasentimitha angu-0.0015. Le nqubo ayibiza kakhulu kunezinye izindlela zokuthuluzi futhi ilungele ukukhiqizwa okusheshayo okuncane kwezinto ezinembile kakhulu.
Ithuluzi lensimbi-to-simbi lilungele imithamo yokukhiqiza edlula izingxenye ezingama-50 000 minyaka yonke, futhi ye-diaphragms enobukhulu obungaphansi kwamasentimitha angu-0.0015. Lolu hlobo lwethuluzi lungathembelwa kubo ukukhiqiza izinto ezinembile kakhulu ngaphakathi kokubekezelelana okuqinile kokuphakama kwe-burr, ukumiswa kwengxenye, nokuqina.
Ama-diaphragms wensimbi asebenza okuhlukahlukene kakhulu futhi anokusetshenziswa okubanzi kwemishini nemishini yezimboni, amadivayisi wezokwelapha, nama-transducers wengcindezi. Ukusetshenziswa okuvamile kwama-diaphragms wensimbi kufaka:
Ukuguqulwa kokuhamba kube yizimpawu zikagesi
Isithiyo sokuvikela uketshezi
Ulwelwesi oluguquguqukayo lwamaphampu oketshezi
Izithiyo ezivikelayo namaphuzu okuhluleka
Ngenxa yokuqina kwabo okuhlanganisiwe nokuguquguquka kwabo, Ama-diaphragms wensimbi angakhuthazelela ukuhamba ngebhayisikili okuphindaphindwayo ngezigidi ze-stroke futhi ayakwazi ukusebenza ngokunembile ezindaweni ezimbi lapho zisebenza khona. kungavezwa ekushintsheni okubanzi kokushisa, Izinto ezonakalisayo, nengcindezi eyedlulele.
Amakhono ethu obunjiniyela nawokukhiqiza angabikho okwesibili futhi abasebenzi bethu abaqeqeshiwe kakhulu bazibophezele ekukhiqizeni okunembile kwengcindezi ethembekile Ama-transducers avela ekwakhiweni kokuqala ngokusebenzisa i-prototyping nokukhiqizwa kokugcina. Ithuluzi lethu lokushintsha ngokushesha lisivumela ukukhiqiza imikhiqizo ehlukahlukene ngasikhathi sinye ngokushintsha ngokushesha nokunciphisa isikhathi sokuhola amas.
Sigxile ekuhlaziyweni nasekuklanyweni kwezixazululo zokuzwa ingcindezi zokuhlangabezana nezidingo ezahlukahlukene zamakhasimende ethu. Funda okwengeziwe ngathi ukuze ufunde ngokuzibophezela kwethu emakhambini amasha.
Ukuthola ulwazi olwengeziwe nge-diaphragms yethu yengcindezi yensimbi kanye namanye ama-transducers wengcindezi yekhwalithi, Xhumana namuhla noma ucele isicaphuno.
