LEFOO LFT2000AmanziIsidlulisi sokucindezela sisetshenziswa kabanzi ekulinganisweni kwengcindezi yoketshezi ezinhlelweni zokuhlola ezifana nokuvikelwa komlilo, ukwelashwa kwamanzi, Izinhlelo zokuphakela amanzi, ama-compressors omoya, amadivayisi we-pneumatic, kanye ne-automation yefektri. I-diaphragm ebucayi ye-ceramic enomthamo ophezulu wokulayishwa ngokweqile inokusebenza okuhle kakhulu okulwa nokulwa nokugqoka. Lolu hlobo lwengcindezi ye-ceramic transducerUmoyaIngcindezi transducerYamukela ubuchwepheshe be-AS1C, ubuchwepheshe be-MEMS, kanye nesinxephezelo sedijithali. Inezici zosayizi omncane nentengo ephansi futhi ingasetshenziswa ezindaweni ezahlukahlukene eziyinkimbinkimbi.
Izici:
* I-Ceramic diaphragm ebucayi enamandla amakhulu okulayisha
* Ukuwohloka okuhle kakhulu nokugqoka ukumelana
* Usebenzisa ubuchwepheshe be-ASIC, isinxephezelo sedijithali
* Ubukhulu obuncane, bungasetshenziswa ezindaweni eziyinkimbinkimba
*Ngamachweba ahlukahlukene anezintambo nokuxhuma kukagesi
| I-LEFOO Ceramic Pressure Transmitter LFT2000 | ||||
| Ubanga lokulingana | -100kPa-0.3MPa ... 6MPa, 0-0.3MPa ... 60MPa | |||
| Ukulayisha ngokweqile | Izikhathi eziyi-1.5 zesikali esigcwele (Max.80 Mpa) | |||
| Ingcindezi Yokuqosha | Izikhathi ezimbili zezikali ezigcwele (Max.90Mpa) | |||
| Ukuqondisa | ± 0.5% F.S., ± 1-0% F.S. | |||
| Ukuzima | <0.5%F.S./Nyaka | |||
| Ukushisa okusebenzayo | -20 ~ 85℃ | |||
| Izinga lokushisa | -40 ~ 100℃ | |||
| Ukuvumelana Okuphakathi | Zonke izindlela ezonakalisayo zingahambisana ne-1Cr18Ni9Ti, 304 insimbi engagqwali, Fluoroelastomer noma i-NBR. | |||
| Ukukhiqiza | Izintambo ezimbili | Izintambo ezintathu | ||
| Isibonakaliso esikhitshayo | 4 ~ 20mA | 0.5 ~ 4.5V | 0 ~ 5V | 0 ~ 10V |
| Ukunikezwa Kwamandlanje | 10-36VDC | 4.75-5.25VDC | 10-36VDC | 12-36VDC |

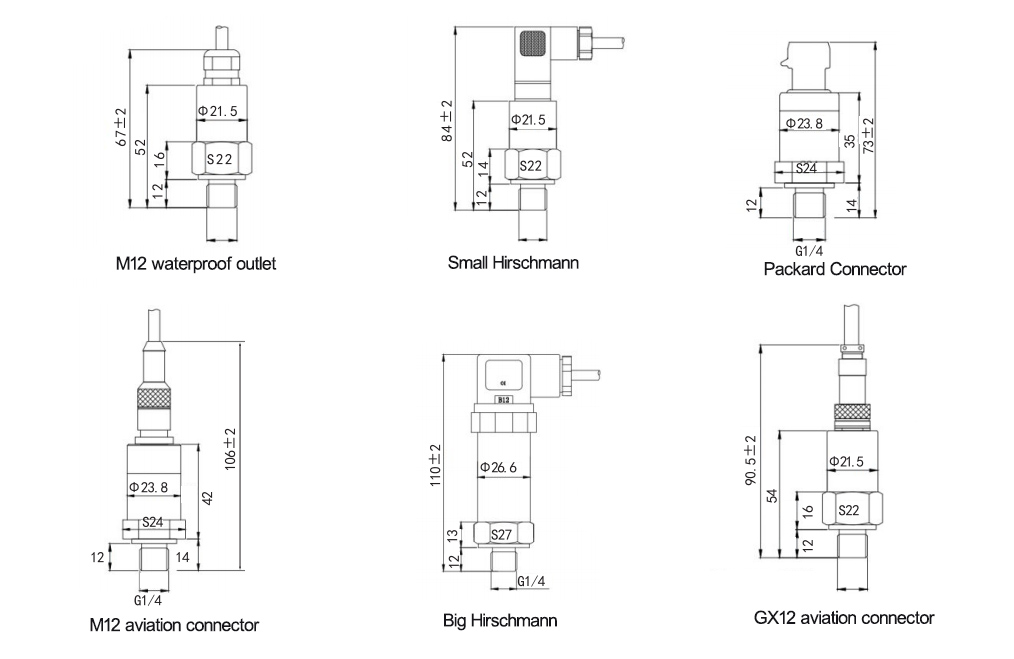

| Ukuxhumana kukagesi | Packard, DIN43650C (Small Hirschmann), DIN43650A (Big Hirschmann), I-M12 yokungena amanzi, isixhumi sezindiza se-M12, isixhumi sezindiza se-GX12 (ama-cores amathathu / ama-cores amane) | |||
| Ukuvikela | IP67 、 IIP65 、 IIP54 | |||
| Ukuxhumana kwengcindezi | I-G1 / 4 、 NNPT1 / 4 、 BPS1 / 4 、 G1 / 2 、7 / 16-20UNF 、 M20 * 1.5 、 M10 * 1 、 M14 * 1.5 njll. | |||
| Ifomu Ingcindezi | Ingcindezi yegage G | |||
| Isiqinisekiso | I-RoHS, amazinga okuphepha kagesi we-EU CE | |||
| Ikhodi nencazelo | Amazwana | ||||||||||||
LFT2000Name | Isidluliso Sokucindezela kweCeramic | Imodeli | |||||||||||
Ububanzi | -100 kPa ~ 0.3MPa ... 6MPa, 0 ~ 0.3MPa ... 60MPa | Ubanga lokulingana | |||||||||||
A4 | A4 = 4 ~ 20 mA (Izintambo ezimbili) | Ukukhiqiza | |||||||||||
V05 | V05 = 0.5 ~ 4.5 V (Izintambo ezintathu) | ||||||||||||
V0 | V0 = 0 ~ 5V (Izintambo ezintathu) | ||||||||||||
V10 | V10 = 0 ~ 10 V (Izintambo ezintathu) | ||||||||||||
K | K = kPa | Iyunithi | |||||||||||
| P. | P = psi | ||||||||||||
| B | |||||||||||||
M | M = MPa | ||||||||||||
0,5 | 0.5 = 0.5% F.S. | Ukuqondisa | |||||||||||
1.0 | 1.0 = 1.0% F.S. | ||||||||||||
P. | P = Isixhumi seParkerd | Ukuxhumana kukagesi | |||||||||||
D | D = DIN43650C uHirschmann Encane | ||||||||||||
D1 | D1 = DIN43650A Big Hirschmann | ||||||||||||
M | M = M12 i-Waterproofs | ||||||||||||
| C3 | I-C3 = GX12 isixhumi sezindiza ezintathu | ||||||||||||
| C4 | I-C4 = GX12 isixhumi sezindiza ezine | ||||||||||||
H | H = M12 isixhumi sezindiza ezine | ||||||||||||
G | G = G1/4 | Ukuxhumana kwengcindezi | |||||||||||
NI | N = NPT1/4 | ||||||||||||
| G2 | G2 = G1/2 | ||||||||||||
| M20 | M20 = M20 * 1.5 | ||||||||||||
| M14 | M14 = M14 * 1.5 | ||||||||||||
| M10 | M10 = M10 * 1 | ||||||||||||
| U. | U = 7/16-20UNF Intambo yangaphandle | ||||||||||||
R | R = R1/4 | ||||||||||||
B | B = BSP1/4 | Ubude bentababa | |||||||||||
1.0 | 1.0 = 1m | ||||||||||||
2.0 | 2.0 = 2m | ||||||||||||
3.0 | 3.0 = 3m | ||||||||||||
LFT2000Name | 0-60MPa | A4 | B | 1.0 | P. | G | 1.0 | Isibonelo sokukhetha | |||||
I-Ceramic diaphragm ebucayi enomthamo wokulayishwa ngokweqile
Ukuwohloka okuhle kakhulu nokugqoka ukumelana
Usebenzisa ubuchwepheshe be-ASIC, isinxephezelo sedijithali
Usayizi omncane, ungasetshenziswa ezindaweni ezahlukahlukene eziyinkimbini
Ngamachweba ahlukahlukene anezintambo nokuxhuma kukagesi
| Ishadi sokuxhumeka ngocingo |
 |
I-LIFOO ingcindezi e-transducer T2000Qhathanisa imishini ehlukahlukene yokuqoqwa kwedatha efana ne-Frequency Converter, Signal Isolator, idivayisi yokulawula ingcindezi, ne-PLCEzicelweni njengokungezansi.
Amathuluzi wokuhlaziya
Ukuqashwa kwengcindezi yezimoto
Ukuqapha isiqandisi somoya
Imboni yeziphuzo
Amakhemikhali amakhemikhi
Ukuqeda
Imoto yokushaja i-Pile Coolant
Ibhodi eliphuliwe, ibhodi lokufaka okushisayo lokushisa ngaphansi
I-alamu yegesi
Isitofu sikagesi nomshini wokuthengisa
Izinhlelo ze-HVAC
Imishini ye-hydraulic
Isiteshi se-Hydraulic
Ukulawulwa Kwerobhothi Le-Hydraulic
Ukushisa, ukukhiqizwa kwamandla, imishini esizayo
Ukugeza okushayo
Ukukhiqizwa kwebhethri leLithium
Izakhiwo zasolwandle
Imboni yezimayini
I-alamu yegesi yezokwelapha
Imishini ye-Ozone
Izinto Zokuhlola Uwofel
Ukuhlolwa kwephrojekthi yamandla
Izinhlelo ze-PLC ezifana namaphrojekthi wezokwelapha, i-HVAC, ilabhorer
Imishini yomkhumbi
Impompo ye-vacuum
Imboni yemitha
I-pulp nephepha
Amandla okupholisa amanzi amsulwa
Ngaphezu kwamanye amadivayisi wezimboni, izinzwa zokucindezela / izidluliseli zokucindezela / ukuhanjiswa kwengcindezi, zisetshenziswa kaningi ngokuhlangana nezinsimbi ezihambisanayo, njengezishintsheli zokucindezela, amageji wengcindezi, kanye nezilawuli zengcindezi yedijithali. Ngokwengezwa kwalawa madivayisi, izidlulisi zokucindezela zandisa ukungazinzi ngaphandle kwamaphutha akhiqizwe kusuka kuzinsimbi zamandla ezimboni ngenxushunxushu kazibuthe. Bangaphinde bahlonyiswe nokuxhumana kukagesi okuzwakala ama-alamu, kuvule amalambu esignali, noma ukulawula i-valve noma ipompo. Izibonelo ezimbili ezithile zezesekelo ezisetshenziselwa ukukhulisa ukusebenza kwama-gauge ngama-adaptha wokuhlola nama-gauge ahlukanisiwe. Ama-adaptha wephoyinti lokuhlola afanela ama-gauges futhi awavumela ukuthi ashaye amaphuzu ahlukahlukene ngaphakathi kohlelo, ukunika amandla okulinganisa okucindezela kokuhlolwa ngaphandle kokuthengwa kwama-gauge amaningi, ahlukene. Abahlukanisi be-Gauge baphendula igeji yengcindezi ibe yindlela "e-on / off" ngokunyuka phakathi kwegeji nesekethe yayo; ngaphandle kokuthi inkinobho isebenze, igeji ngeke ivezwe futhi ngeke ifunde ingcindezi yoketshezi.
Izisekeli eziningi zezidlulisi zokucindezela zinezinhloso zokuvikela. Njengezinsimbi zezimboni eziyinkimbinkimbi, izidlulisi zokucindezela zibhekene nezinsongo ezahlukahlukene ezinjengokudlidliza kwamapayipi, ukucindezelwa kwamanzi, njll. I-gauge isolator eshiwo ngenhla isebenza nomsebenzi wokuphepha ngokuvikela indlela yangaphakathi yokudlulisa ingcindezi kusuka ku-sud. den spikes yengcindezi. Ama-snubber dampers ahlinzeka ngomsebenzi ofanayo ngokunciphisa ukuguquguquka okukhulu kwengcindezi. Abavikeli abahlukahlukene bangathengwa ukuvikela ingaphandle legeji ekushaqekeni okunzima, ngenkathi izimpawu zamakhemikhali ziyatholakala ukuvikela izidlulisi zokucindezela ekugcineni noma kufakwe phansi. Ngenkathi izilinganiso zengcindezi ngokuvamile zingadingi izinga eliphakeme lokugcinwa, Ukutshala imali kumasekeli okuvikelayo kungenye yezinto ezinhle kakhulu abasebenzisi be-gauge abangakwenza ukuvikela nokunweba impilo yegeji.
Lapho ukhetha isidlulisi sengcindezi sokusebenza okuthile, kufanele kucatshangelwe izinto eziningana. Okunye kokucatshangelwa okukhulu kufaka phakathi usayizi wokudayela, usayizi wokuxhuma noma ichweba elizosetshenziswa igeji, amayunithi wokulinganisa umdlulisi wengcindezi akwaziyo (e. g. I-PSI, mmHg, PA, njll.), ukuhambisana kwezinto zegaji nezimo zokusebenza (kufaka phakathi izinga lokushisa, ukuwohloka, njll.).. Nokuthi ngabe igeji kufanele yome noma igcwaliswe ngoketshezi (le yokugcina ivame ukuba nempilo ende ngenxa yokumunca okushaqisayo).
Esinye sezici ezibaluleke kakhulu okufanele sicatshangelwe uhla lwengcindezi. Ngokuvamile ukukhulumaIng, kufanele usebenzise isidlulisi sengcindezi esikwazi ukufunda okungenani kabili inani lengcindezi yokusebenza elindelekile. Lokhu kunikeza umkhawulo onengqondo wokuphepha wokusebenzisa umdlulisi wengcindezi. Njengomthetho wesithupha, ingcindezi yokusebenza akufanele neze ihambe ngaphezu kwezine ezintathu zebanga lokufunda lokudlulisa ingcindezi. I-corollary yemithetho yesithupha ebandakanya ingcindezi ukubaluleka kokukhetha amageji wengcindezi eqondene nezicelo. Izinhlelo ze-Hydraulic, ngokwesibonelo, kufanele zisebenzise kuphela ama-hydraulic gauges aklanyelwe ukusebenza ngaphansi kwezimo ezijwayelekile ezindaweni ze-hydraulic.
Ngokunemba okukhulu kakhulu - kanye nejubane elikhulu, ukuthembeka, nokuqina - izidlulisi zokucindezela zedijithali kufanele zisetshenziswe esikhundleni samadivayisi wengcindezi (yize izindleko zazo ezishibhile). Khumbula, nokho, ukuthi ukulinganiselwa kwamadivayisi wokudlulisa kunganqotshwa ngezinhlobonhlobo zezesekelo ezitholakalayo kubadlulisi bengcindezi. (Isibonelo, ezinye izidlulisi zokushisa zinemishini yesinxephezelo yokushisa kanye nesekethe eminingi yokulinganisa ukuthuthukisa ukunemba kokufundwa kwabo.)
Njengoba izici eziningi zakha ukukhethwa kokudlulisa ingcindezi efanele, Ukutshala imali kumhlinzeki wezingcindezi ezisezingeni eliphakeme kungenye yezinqumo ezinhle kakhulu abathengi abangazenza. Kufanele ugxile ekutholeni umhlinzeki odumile onikeza uhlu olubanzi lokuzwa ingcindezi / imikhiqizo yokulawula kanye / noma izinsizakalo (e .. g. Izinsizakalo zokubuyisa kabusha.) Ukusebenza nomhlinzeki wekhwalithi kuzoqinisekisa ukuthi ukwazi ukukhulisa usizo nokusebenza kokudlulisa ingcindezi yakho isicelo sakho esithile.
