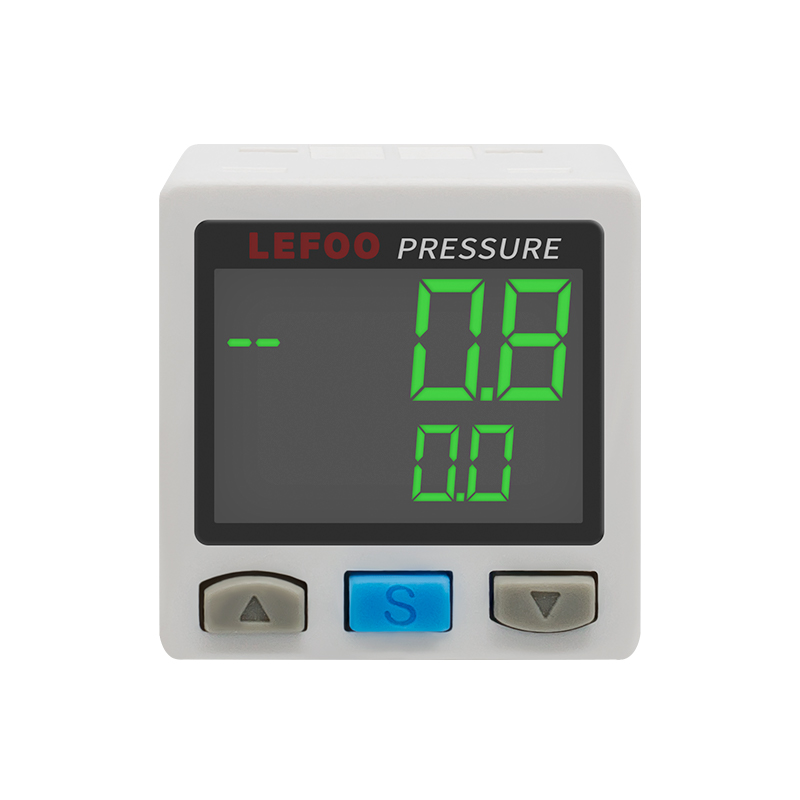

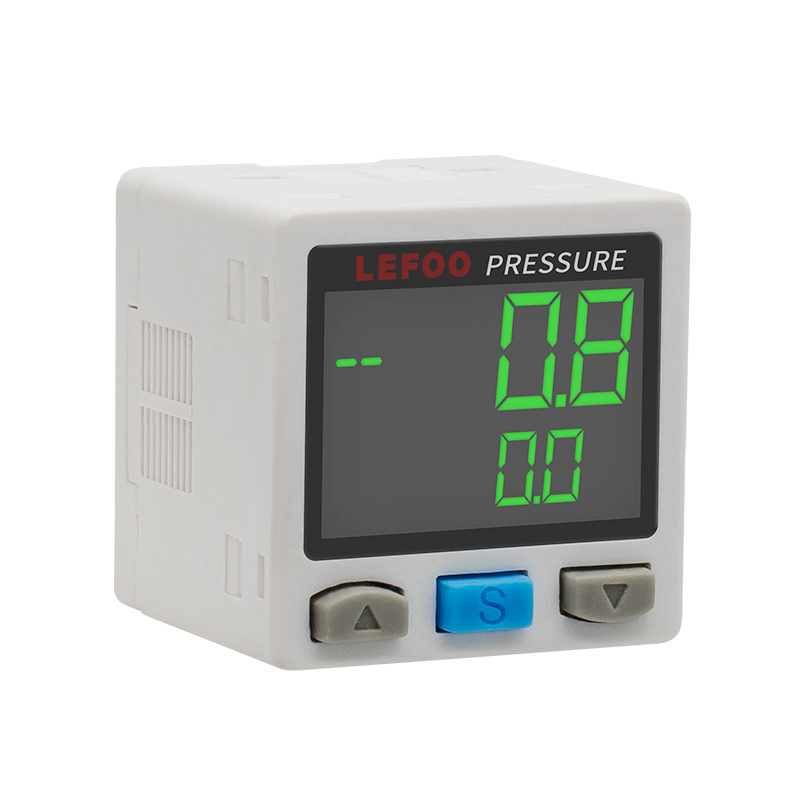

Uchungechunge lwe-LEFOO LFDS101 / LFDS102 lwamukela isidlulisi esithembekile esiphezulu ukukala ingcindezi, futhi isignali icutshungulwa yisekethe yasemuva futhi iguqulwe ibe yisiginali ejwayelekile kagesi yezimboni yokukhipha nokuboniswa.
LokhuUkushintshwa kwengcindezi yedijithaliIkwakhiweni yezindlu zepulasitiki zobunjiniyela ngokuphelele, ukungafani okuphezulu, isibonisi sedijithali se-LCD esikrinini esimbili, ukwakheka okungu-3, futhi imenyu yomsebenzisi yenza umkhiqizo ulungele ukusebenza, futhi izindlela ezahlukahlukene zokuxhuma zingahlangabezana ngokuphelele nezidingo ezahlukahlukene zokufaka. Izinto eziningi zokusethwa ngaphakathi zingasethwa ngumsebenzisi ukulungisa imingcele esebenzayo, eguquguqukayo futhi ilula.
Lolu chungechunge lokushintsha kwengcindezi lunezici zokulwa nokulwa, impilo ende, ukusebenza okulula, ukuboniswa okucacile, njll. Ingasetshenziswa ezinhlotsheni ezahlukahlukene zezimboni, njengezinhlelo zezimboni ukuqinisekisa ukwenziwa kwezingxenye ze-elekthronikhi, ukuqinisekisa ingcindezi ephelele, noma ukuthola ukuvuza komoya.
* Izimpawu ezahlukahlukene zokukhipha
* Isibonisi sedijithali se-LCD
* Izilungiselelo ezilungisa
| Uhlobo lwengcindezi | Ingcindezi ejwayelekile | |
| Uhla lwengcindezi | (-100 ~ 100 kPa) | (-100 ~ 1000 kPa) |
| Ukulayisha ngokweqile | Amahlandle | Izikhathi eziyi-1.5 |
| Imidiya | Igesi engeyona ingozi kuphela | |
| Amandla alinganisiwe | 12 ~ 24 VDC | |
| Okwamanje | <20mA (lapho kungalayishiwe) | |
| Ukukhishwa komsebenzi | <NPN Output uhlobo>: NNPN ovulekile i-transistor, kakhulu 100Ma yamanje, ukwehla kwengcindezi <1.5V | |
| Uhlobo lwe- <PNP yokukhipha uhlobo>: I-PNP evule i-transistor, i-100Ma yamanje, ukwehla kwengcindezi <1.5V | ||
| Ukukhishwa okukhisha | HO \ NC | |
| I-Hysteresises | Izinga elingu-1-8 (Amaphutha ama-3) | |
| Ukuphindaphinda | ± 0-.3% F.S | |
| Ukunemba okupheleleyo | ± 1% F.S | |
| Isikhathi sokuphendula | 2.5 \ 5 \ 10 \ 25 \ 250 \ 500 \ 1000 \ 500ms | |
| Ukukhishwa kwamandla we-analog | I-1-5V ± 2% (Indawo yohlobo lokukhipha amandla) | |
| Okokukhishwa kwamanje | 4-20mA ± 2% (Umkhawulo wohlobo lwamanje lokukhipha) | |
| I-temp. | -10-60℃ | |
| Ukusebenza. | 0-50℃ | |
| Uhlamvu lokushisa | ± 2%F.S | |
| Ukuvalela | I-CN-14A-C2 (enekhebula lesixhumi, 2m) | |
Ikhodi Nencazelo | Amanotha | ||||||
LFDS10 | Ukushintshwa Kwengcindezi yedijithali | Indlela | |||||
Uhla lwengcindezi | -100 ~ 100 Kpa /-100 ~ 1000 kPa | Ububanzi bokilinganisa | |||||
S | S: Uhlobo olujwayelekile | Indlela yokukhishwa: | |||||
A | |||||||
V | V: Uhlobo lokukhishwa kwe-Voltage | ||||||
R | R: R1 / 8 M5 Isikrifu sentambo yangaphakathi | Ukuxhumana kwengcindezi | |||||
I-E | E: G1/8 M5 Intambo yangaphakathi | ||||||
M | M: M5 Isikrufu sentambo yangaphakathi | ||||||
NI | N: NPN | Ukukhishwa komsebenzi | |||||
P. | P: PNP | ||||||
W | W: Ukucaciswa okujwayelekile | Okukhethekile | |||||
X | X: Ukucaciswa okukhethekile | ||||||
J | J: Ukucaciswa okujwayelekile | ||||||
LFDS10 | A | R | NI | W | Isibonelo sokukhethwa kwemodela | ||
Okuncane, usayizi omncane futhi okulula ukukusebenza
Susa isiboniso se-LCD
Imisebenzi ye-Multic, inkululeko yesiteshi ezimbili
Ukuzinza okuqinile nokuphila isikhathi eside
Umoya, igas, ukuqapha ingcindezi ye-vacuum, amaphrojekthi esifundeni sezimoto, imithi, izindwangu, ukupakisha, nezimboni zokunyathelisa.
