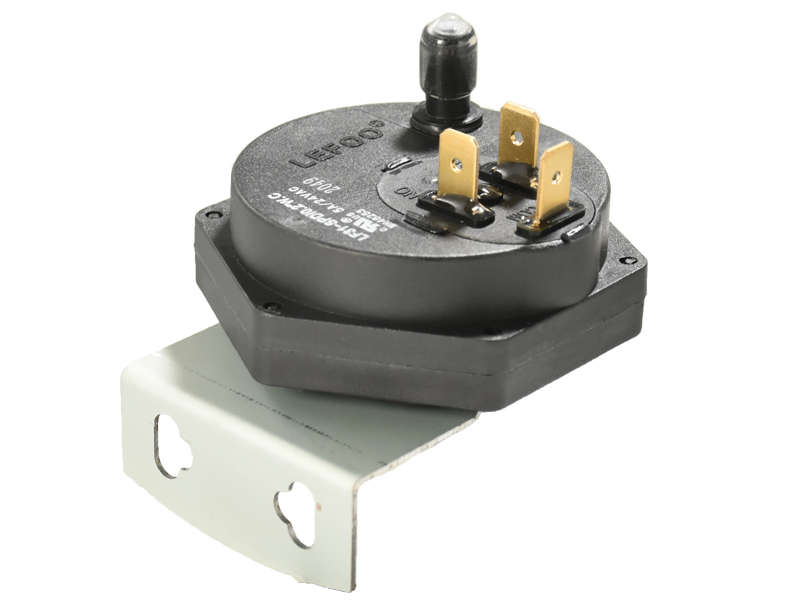

Ukushintshwa kwe-LF31 kunikeza ingcindezi, i-vacuum, namamodeli ehlukanisayo akwazi ukuzwa izindawo ezisethi eziphansi kakhulu nokushintsha kwamanje kuze kufike ku-5A okuphikisana, 2.5A inductive. Yenzelwe ukusetshenziswa embonini ye-HVAC, lapho ukufakazela komoya okuthembekile kubalulekile kokusebenza nokuphepha kwamakhasimende, i-LF31 iyintandokazi ngabakhiqizi abahamba phambili bezithando zomoya ezifudumele ezishisayo nezifudumele zamanzi.
Encane futhi ilula kunanoma iyiphi enyeIsishintsho sokuhlukanisa, I-LF31 yakhelwe ibanga lokushisa elifanayo nempilo yokusebenza njengezishintsheli ezijwayelekile ezenziwe ngensimbi enesitambu. I-LF31 ifaka ukushintshwa okuhlukile kwe-snap, ngesenzo esihle se-snap kanye nokuzisula ukuxhumana kwesiliva kokushintsha okuthembekile. I-silicone diaphragm ebunjiwe iguqula ingcindezi ephansi kakhulu noma i-vacuum ekunyakazeni kwe-actuator disk, okusebenzisa ukuxhumana kwe-alloy alloy.
Imodeli | LF11 |
Okuphakathi | Umoya, imikhiqizo yomlilo, i-LP, noma igesi yemvelo |
Ukusebenza Kwezingcindezi | 0.15 "W.C. kuya ku-34" W.C. |
Ingcindezi Yobufakazi | 100 "W.C. (3.6 PSI) |
Ukushisa Okusebenzayo | -40 ° C kuya ku-85 ° C |
Ukuhlelwa Koxhumana | I-SPST noma i-SPDT |
Isilinganiso sikagesi | Ukumelana: Ukuqala: <50 izigidi Okwamanje: 100mA ubuncane, 5 ubukhulu be-Aresistive (Okuxhumana okuhle kwe-alloy yesiliva); I-15mA encane, i-0.5 i-Aresistive (Okuxhumana nabo ngegolide-platinum-isiliva); |
Amatheminali | 0.032 "x 0.250" alloper allos |
Ukuxhumana | Inlet 0.25 "ukuxhuma kwe-tube |
Ukuvunyelwa kwe-ejence | UL353, CE (EN1854: 2006, 13611: 2000) |
Ukuguqulwa: 1 "W.C. (intshi yamanzi) = 1 intshi / H2O = 249Pa 1mbar = 100Pa
1. Izindleko eziphansi zeyunithi ye-OEM, ukwakheka okuqinile, ukunemba kokusetha, nokuthembeka okuphezulu.
2. Ukuxhumana nesiliva okuzisula ukushintsha okuthembekile.
3. Izinhlobo zokucindezela, i-vacuum, kanye nokwehlukanisa ezikwazi ukuzwa izindawo ezisethi eziphansi kakhulu.
I-Ukulawulwa kwengcindeziIngasetshenziswa ezinhlotsheni eziningi zemishini.
Imboni ye-HVAC, lapho ukufakazela komoya okuthembekile kubalulekile kokusebenza nokuphepha kwamakhasimende, kanye nezithando zomoya ezifudumele ezishisayo nezifudumele zamanzi.
