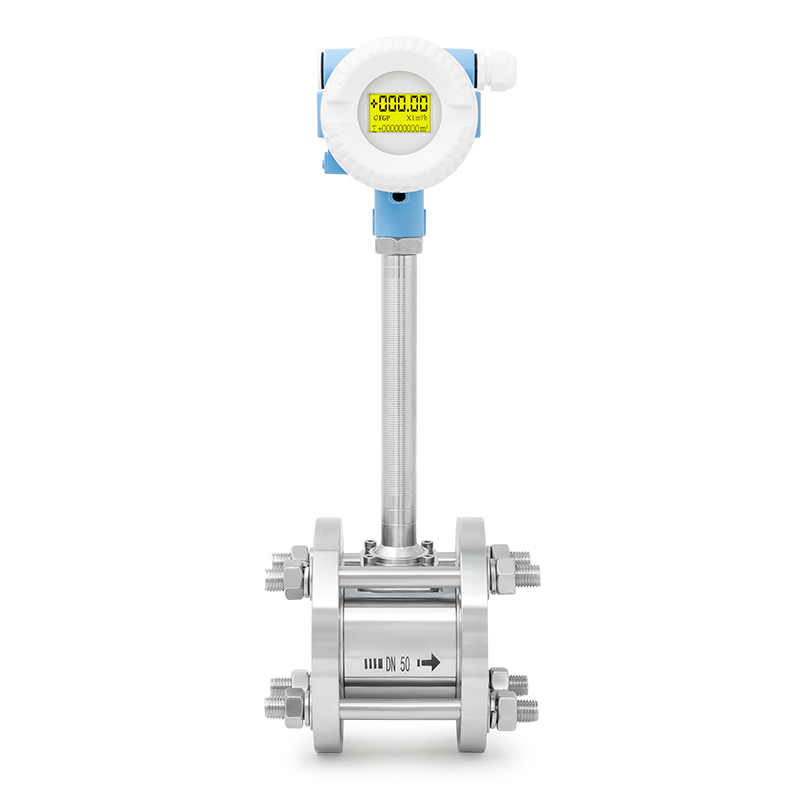

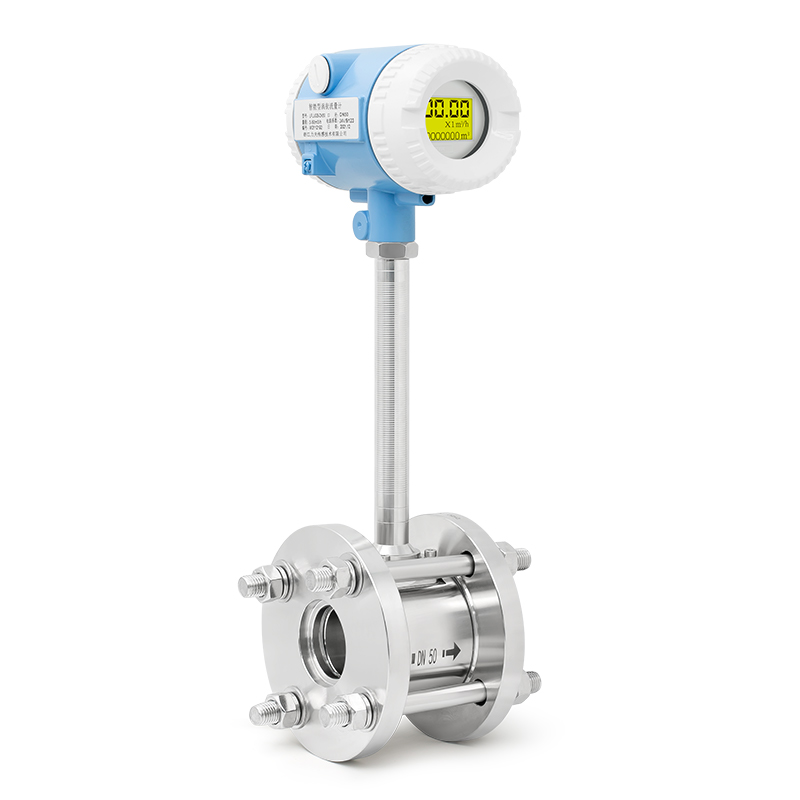

I-Vortex flowmeter iyivolumu yokugeleza elinganisa ivolumu ukugeleza kwegesi, umusi noma uketshezi, ukugeleza kwevolumu kwezimo ezijwayelekile noma ukugeleza kobuningi ngokuya ngomgomo weKarman vortex. Okusetshenziselwa kakhulu ukukala ukugeleza koketshezi oluphakathi lwepayipi lezimboni, njengegesi, uketshezi, umusi neminye imidiya. Akuthinteki ngamapharamitha afana nokuminyana koketshezi, ingcindezi, izinga lokushisa, i-viscosity, njll. lapho kulinganisa ukugeleza kwevolumu kwesimo sokusebenza. Azikho izingxenye zemishini ezihambayo, ukuthembeka okuphezulu nokunakekelwa okuphansi. Amapharamitha wezinsimbi angazinzile isikhathi eside.
Izici:
*Isakhiwo silula futhi siqinile;
*Kunezinhlobo eziningi zoketshezi olusebenzayo;
*Ukunemba okuphezulu;
*Ububanzi;
*Ukulahleka kwengcindezi encane.
| I-Latus rectum | 10-300mm |
| Ijubane eliphezulu lokugeleza | 10m/s |
| Inkomba yokukhishwa: | 4-20mA, HART, RS485 |
| Ukuxhumana kukagesi | Ukuxhumana |
| Isigaba sokunemba okupheleleyo | 1.0 |
| Ukuziphatha Ugesi i-fluid | ≥ 5μs/cm |
| Ukunikezwa kwamandlane | 220VAC, 24 VDC |
| Ukusetshenziswa kwamandlane | <20W |
| Ingcindezi yesikhashane | 4.0MPa / 2.5MPa / 1.0MPa / 0.6MPa |
| Izinga lokushisa | -25℃ ~ 60℃ |
| Izinga lokushisa elilinganisiwe eliphakathi nendawo | -40 ° C ~ 350 ° C |
| Izinto zokuxhumana ze-flange | Insimbi ye-Carbon / insimbi engaphansi (304, 316, 316 L) |
| Izinga lokuvimbela ukuqhuma | I-IallCT6 (ukuqinisekiswa kokuqhuma okuphephile) |
| Ibanga lokuvikela | IP65 |
| Isiqinisekiso | CE, ROHS |
1. Isakhiwo esilula, azikho izingxenye ezihambayo.
2. Ukunemba kokulinganisa okuphezulu nokuthembeka, asidingi ukulungiswa kwesiza.
3. Ingadlulisa amasiginali wethrafikhi emabangeni amade, futhi ingaqhutshwa ngamakhompyutha ukufeza ukuphathwa okuphakathi.
4. Ibhodi elikhulisayo lamukela ukwakheka okuyingqayizivele, okuyindawo yonke yegesi noketshezi.
I-LEFOO Industrial Co., I- Ltd inamalabhorethri ayi-6 anemishini ethuthukile futhi ephelele yokuthuthukisa nokuthuthukisa ukunemba kwemikhiqizo ekhona emabangeni ahlukahlukene kanye nokushisa okuhlukahluka izimo. Iphinde ibe nesikhungo sokukhiqiza esizenzakalelayo sothuli lokwenziwa kwezidlulisi zokucindezela. Sicela uxhumane neqembu lethu lokuthengisa ukuze uthole intengo yokudlulisa ingcindezi.
Inzwa kufanele ifakwe kwipayipi enobubanzi obufanayo nobubanzi obuvundlile, obume futhi buthambekele (ukugeleza komkhiqizo kusuka phansi kuye phezulu). Umfula ongaphezulu nasezansi komfula wenzwa kufanele ufakwe ngobude obuthile besigaba samapayipi oqondile, ubude bawo okufanele bahlangabezane nezidingo ze-15 ~ 20D esigabeni samapayipi angaphambili oqondile kanye no-5 ~ 10D wesigaba sepayipi eliqondile ngemuva.
1. Ipayipi eliseduze lapho kufakwa khona inzwa engamanzi kufanele igcwaliswe ngoketshezi okufanele kulinganiswe.
2. Inzwa kufanele igwenywe ukufakwa kupayipi ngokudlidliza okuqinile kwemishini.
3. Ububanzi bangaphakathi besigaba sepayipi oqondile kufanele buhambisane ngangokunokwenzeka nobubanzi benzwa. Uma kungenakuvumelana, kufanele kusetshenziswe ipayipi elikhulu kancane kunobubanzi benzwa, futhi iphutha kufanele ibe yi-≤3% futhi hhayi ngaphezulu kuka-5 mm.
4. Lapho isilinganiso esilinganisiwe siqukethe ukungcola okuningi, isihlungi kufanele sifakwe ngaphezu kobude obudingekayo besigaba samapayipi oqondile phezulu komfula wenzwa.
5. Inzwa kufanele igwenywe ukufakwa ezindaweni ezinokuphazamiseka okuqinile kwenkambu kagesi, isikhala esincane nokunakekelwa okungalungile.
