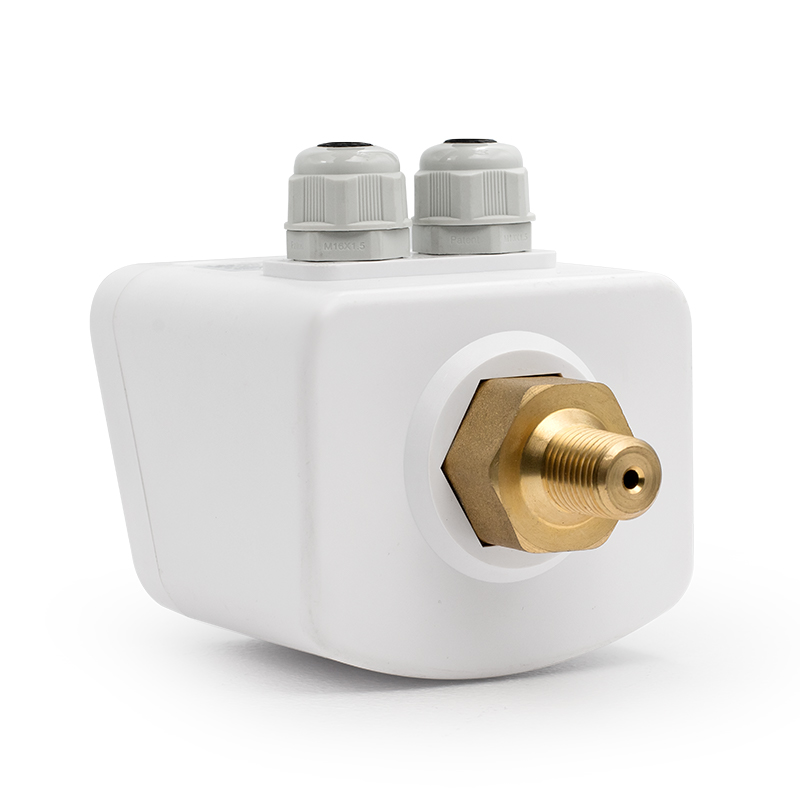

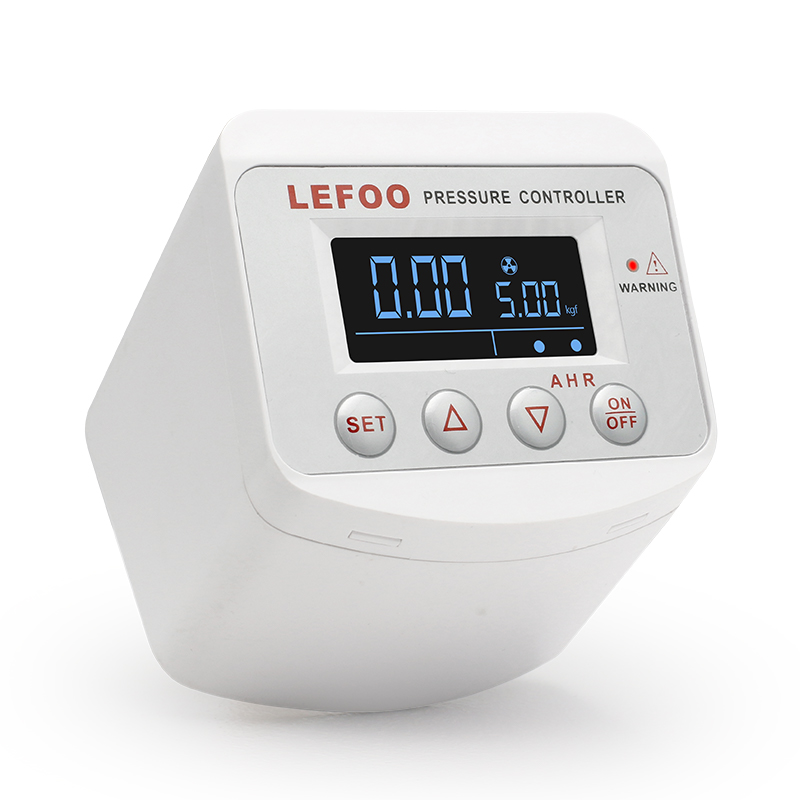

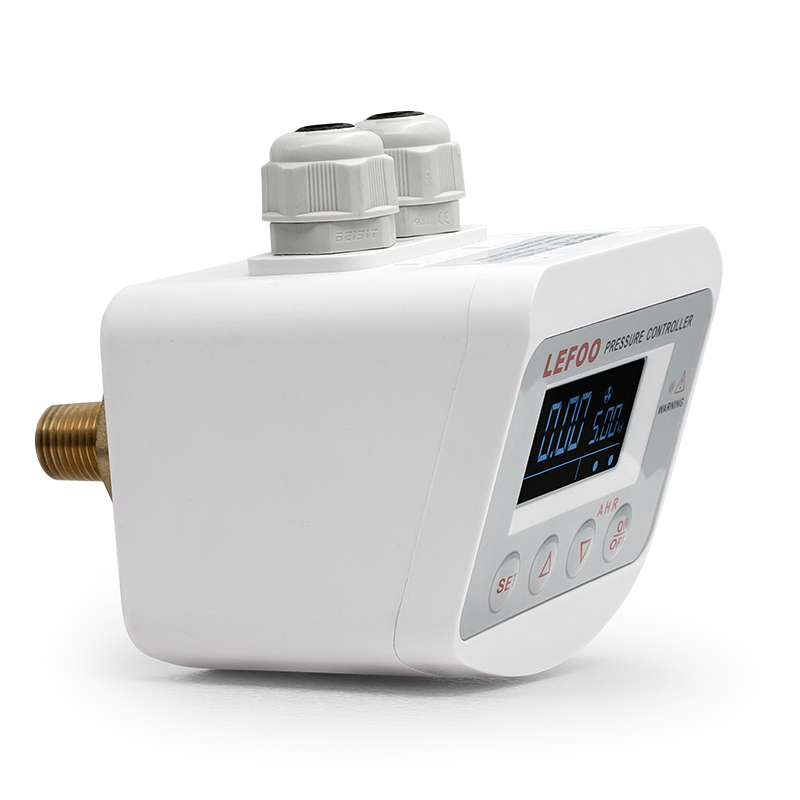

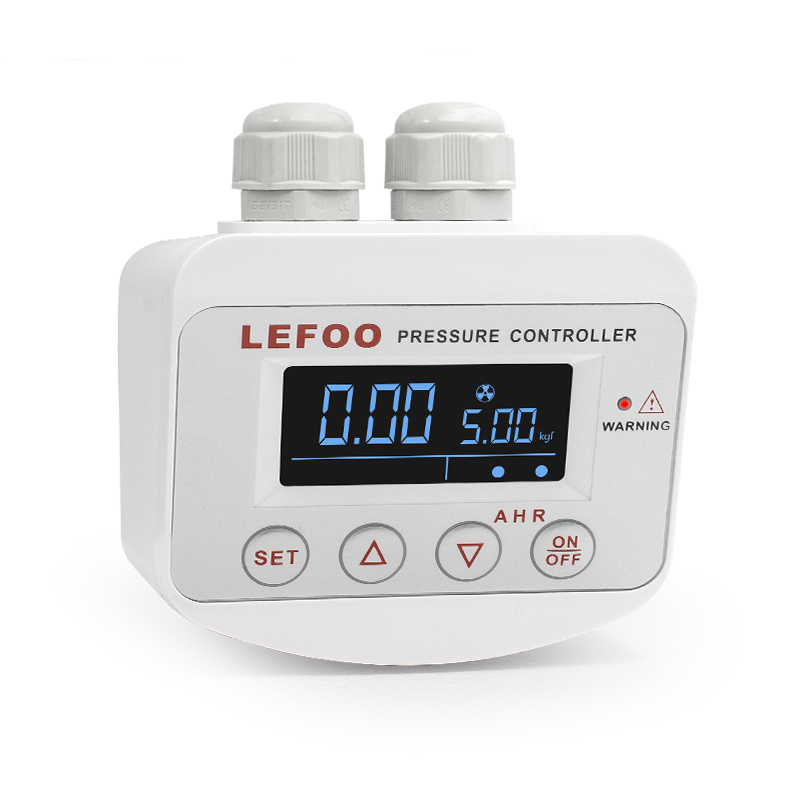

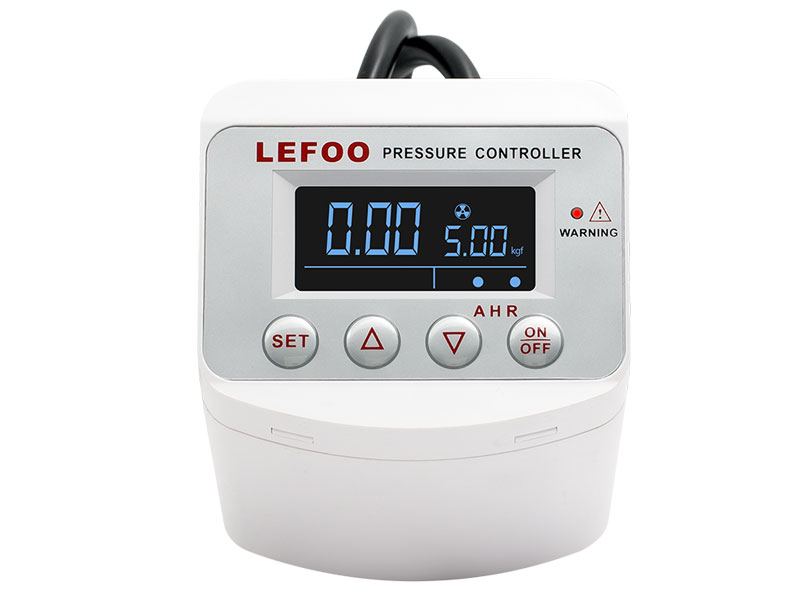

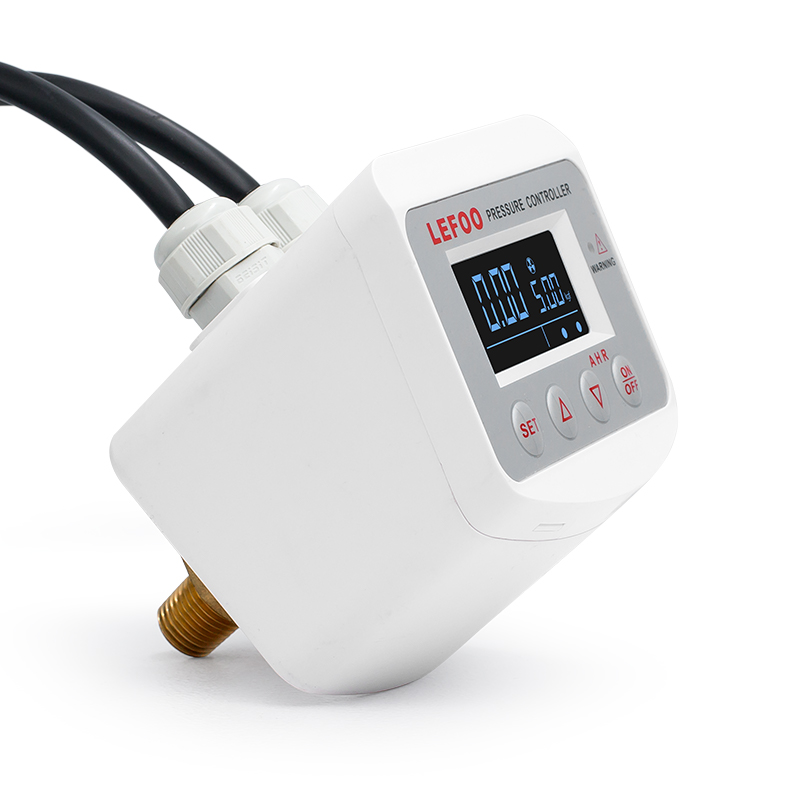

Uchungechunge lwe-LFDS63 (630 / 631/632) lwamukela i-transmitter ephezulu ethembekile yokulinganisa ingcindezi. Isignali icutshungulwa yisekethe ye-back-end futhi ikhonjiswe, futhi ukukhishwa kwe-diay kulawulwa ngokuzenzakalela ngokushintshwa kwengcindezi. Idizayinwe ngecala lepulasitiki eligcwele lobunjiniyela kanye nesibonisi sedijithali esiphakeme se-LCD, inika amandla umkhiqizo ukusetshenziswa ezinhlelweni ezahlukahlukene zezimboni. Inikeza izindlela ezahlukahlukene zokuxhuma ukuhlangabezana ngokuphelele nezidingo ezahlukahlukene zokufaka. Ukwakha ngezindlela ezahlukahlukene, abasebenzisi bangazilungisa amapharamitha asebenzayo ngokuguquguqukayo nangokulula. Lolu chungechungeUkushintshwa kwengcindezi yedijithaliUnezici zokumelana nokuzamazama komhlaba, impilo ende, ukusebenza okulula, ukuzinza okuqinile, nokuboniswa okucacile.
Isici:
* I-LCD yedijithali
* Amapharamitha okusebenza alungiswayo
| Uhlobo lwengcindezi | Uhlobo lwe-vacuum (ukucindezela okubi) | Uhlobo lwengcindezi oluphakathi | Uhlobo lwengcindezi ephakeme |
| Uhla lwengcindezi | -101 ~ 0 Kpa | 0 ~ 1.6 MPa | ~ 20 |
| IVoltage | Izikhathi eziyi-1.5 | 2 izikhathi | 2 izikhathi |
| Uketshezi olusebenzayo | Amagesi angahlangabezane | Amagesi angahlangabezane, uketshezi olungekho msindo | |
| Bonisa isimo | LCD | ||
| Amandla okusebenza okulinganisiwe | VAC 220/110 | ||
| Indlela yokukhishwa: | Ukukhishwa kwe-AC eyodwa (incwadi esebenzayo) | ||
| Ukukhipha kokushintsha okukodwa | |||
| Ukufaka umkhuntu | 220VAC, 10A max | ||
| Izinga lokushisa lokugcina | -40℃ ~ 85℃ | ||
| Ukushisa okusebenzayo | -10℃ ~ 50℃ | ||
| Izinga lokuvikela | IP 54 | ||
| Ukuxhumana kwengcindezi | Intambo yangaphandle ye-NPT1 / 4, G1/4 、 R1/4 (okuzikhethela) | ||
| Ukuqonda | ± 1-0% F.S | ||

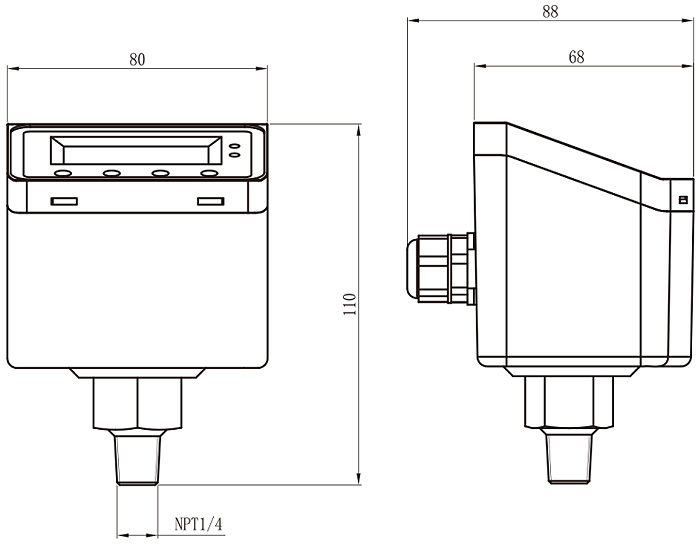

| Ubukhulu bokubonaka | 80 * 98 * 110 mm (Izixhumi) | ||
Ikhodi nencazelo | Amagqaba | |||||||
LFDS63 | Umlawuli Wengcindezi | Imodeli | ||||||
2 | 0 ~ 1.6 MPa | I- Range | ||||||
0 | -101 ~ 0 Kpa | |||||||
A | Ukukhishwa kwe-AC eyodwa (incwadi esebenzayo) | Indlela yokukhishwa: | ||||||
S | Ukukhipha kokushintsha okukodwa | |||||||
Ungenana | Ukujwayela | Imisebenzi ekhethekile | ||||||
J | Izo ngokwezifiso | |||||||
G | G = G1/4 (Ikhondo) | Ukuxhumana kwengcindezi | ||||||
NI | NTP1/4 | |||||||
R | R = R1/4 | |||||||
220V | AC220V | Ukunikezwa kwamandlane | ||||||
110V | AC110V | |||||||
LFDS63 | 0 | S | J | G | 110V | Isibonelo sokukhetha | ||
Ngaphandle komunyeUkushintshwa kwengcindezi yeLefoo, I-LFDS63 Pressure Controller inezici ezilandelayo.
Amapharamitha asebenzayo azilungisayo, eguquguqukayo futhi alula.
Isibonisi se-LCD, ngokucebile ngomsebenzi
Ukunemba okuphezulu, ukumelana nokudlidliza, impilo yenkonzo ende
Ithuluzi lokulawula elihlakaniphile elihlanganisa isilinganiso sengcindezi
Ukulawulwa okuzenzakalelayo kwe-compressor encane yomoya, i-air vacuum pump, i-Pressure booster pump.
