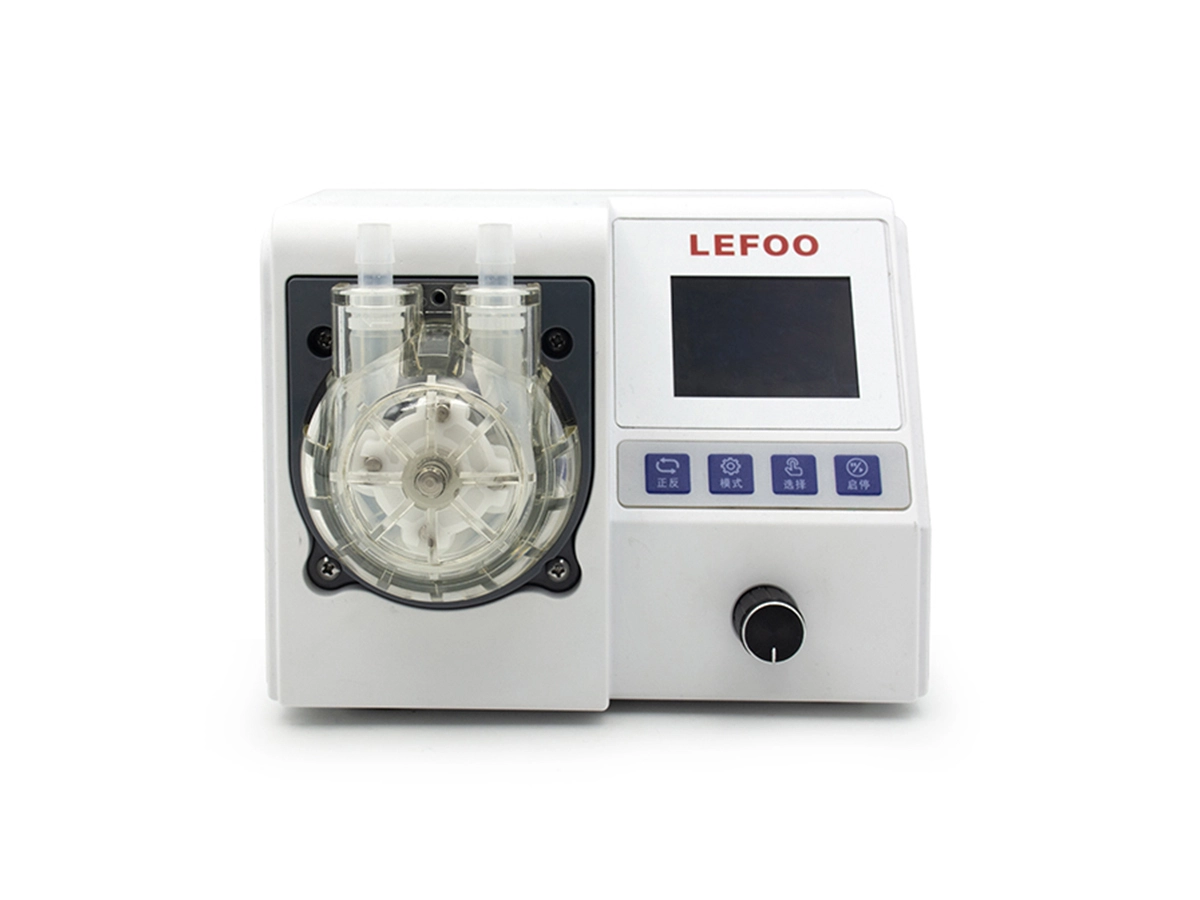

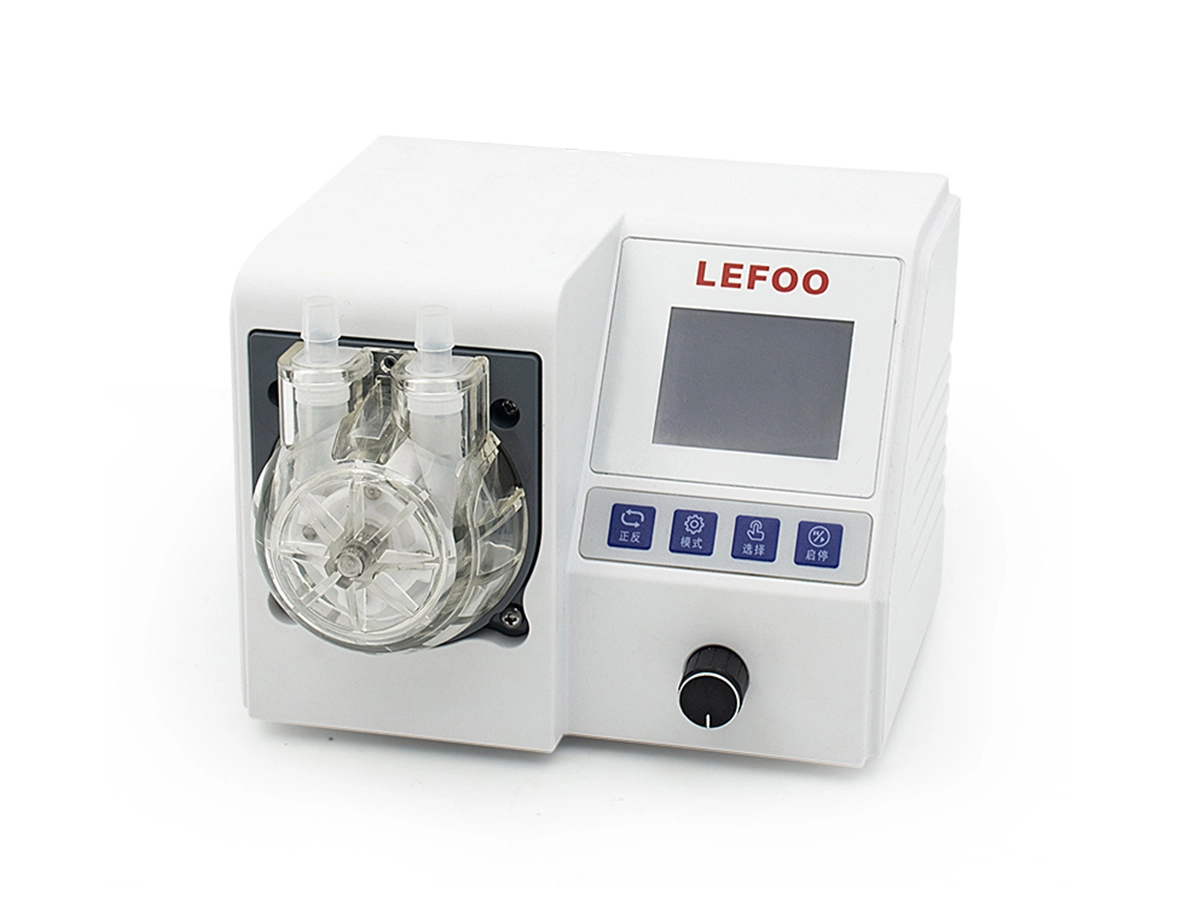

Lefoo I-Peristaltic Pump ene-Speed Control and Display LFPC302ST

Name: I-Peristaltic Pump ene-Speed Control and Display LFPC302ST
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

I-LEFOO Stepper Motor LFPC302ST Peristaltic Pump ingawula izinga lokugeleza, ihlanganisa izibalo zokugeleza, isikhathi nokulawula ubuningi, futhi kufakwe isikrini sesivinini sedijithali se-LED sokusebenza kalula. Impompo yokulawula isivinini i-peristaltic enesiboniso sedijithali yamukela izinyathelo ezisezingeni eliphakeme zokulawulwa kwejubane nokukala okuqondile. Ipompo yedijithali ye-peristaltic isekela amapayipi we-caliber amaningi futhi isetshenziswa kabanzi ekudleni nasesiphuzo, ukuvikelwa kwemvelo, Ucwaningo lwesayensi nezinye izimboni. Impompo yokulawulwa kwejubane i-peristaltic inezindlela ezizenzakalelayo, ezihleliwe, neziqhubekayo, kufaka phakathi imisebenzi yokuvimbela emuva kanye ne-drip, futhi isekela ukulawula kwangaphandle. Ukusebenza kwenkinobho kunengqondo ukufeza ukulawulwa kwezinga lokugeleza konke.

Izici:

*Umsebenzi wezibalo zokugeleza, isikhathi / isilawulo

*Ijubane lokubonisa le-LED edijithali, ukusebenza okulla

*I-stepper motor, umthethonqubo wejubane

*Ukulinganisa okunembile nokulethwa, ububanzi be-hose ahlukahlukeni

Thola Isicaphuno

Impompu

Umdluliseli

Ukucaciswa
Izici:
Izisebenziso

Ukucaciswa kwe-Peristaltic Pump nge-Speed Control ne-Splay LFPC302 / ST

Umtapo womtholalwano

1. Izisebenzi: Ukukhethwa kwemodeli ye-pump tube, ukulungiswa kwejubane lokusebenza kwepompo, ukulungiswa kokukhanya kwesikrini.

2. Ukulinganiswa: Yenza ukulinganiswa kokugeleza kwemidiya ehlukile.

3. Isivinini Sokulawula, Umqulu Olungile, Umqulu Olungile Wesikhathi, Ukusebenza Kwesikhathi.

Ukulinganisa kwezobuchwephesha

I-LEFOO Peristaltic Pump ene-Speed Control ne-Splay LFPC302 / ST
Indlela yokushaya	Injini ye-stepper
Ukushisa kokushisa kwe-ambient	0℃ ~ 50℃
Ukulinganiswa Kwe-Voltage	DC24V
Isilinganiso sokugeleza esisebenzayo	0 ~ 500 ml / min (Izinga lokugeleza liyahlukahluka ngokucushwa okuhlukile; Bheka eshadini lokukhetha ukugeleza ngemininingwane)..
Ukuqonda kokuhamba komhlaba	± 2%
Ingcindezi Yokuphuma	≤0.1 Mpa
Ukukhuphuka	≤8m (Izinga lokugeleza liyancipha njengoba ukuphakanyiswa kwe-suction kukhuphuka.)
Inhloko	≤8m (Izinga lokugeleza liyancipha njengoba ikhanda likhuphuka)
Ukusebenza kwamanje	≤I-0.5A ku-voltage engama-24V
Ukukhuphuka kwezinga lokushisa	≤35K ku-24V voltage.
Umsindo	Imfuneko yomsindo:65dB.

Izinga lokugeleza (ml / min)

Indlela yokushaya	Indlela yokulawula	Indlu Efanelekile	Isilinganiso sokuhamba kwethemba	Ukusebenza kweVoltage	Ukusetshenziswa Kwamandlanje	Ingcindezi Yokuphuma
42 I-Stepper Motors	Umshayi Ibhodi yokulawula	16#	≤180ml / min	DC24V	≤20W	≤0.15MPa
		25#	≤320ml / min
		17#	≤500 ml / min

Umsebenzi wezinkinobho:

Inkinobho "Phambili nokubuyela emuva": setha isiqondiso sepompo esisebenzayo, bonisa phambili noma ukubuyela emuva phezulu kwesikrini, ekhombisa ukusebenza phambili / ukubheka phambili kwewashi.

Inkinobho ye- "Mode": ishintsha amakhasi wesikrini (ukusetha, ukulinganiswa, ukulawulwa kwejubane, ubuningi, isikhathi esilinganiselwe, isikhathi sesikhathi)..

Khetha inkinobho: Khetha isigaba esidinga ukulungisa.

Inkinobho ethi "Qala futhi yima": lawula ipompo ukusebenza nokumisa (imisa / ukuqala kukhonjiswa ekhoneni eliphezulu kwesokudla lesikrini).

Inkinobho ye- "Knob": jikeleza i-knob ukulungisa inani lepharamitha; cindezela i-knob ukulawula ipompo ukugijima futhi imi.

Izici ze-Peristaltic Pump ene-Speed Control ne-Splay LFPC302ST

1. Ukusebenza kwezibalo zokuhamba, ukulawula isikhathi / ubuningi.

2. Ijubane lokubonisa kwedijithali le-LED, ukusebenza okulula.

3. I-stepper motor, umthethonqubo wejubane.

4. Ukumitha okunembile nokulethwa, ububanzi obuhlukahlukene bamapoyi.

Isikrini sokubonisa edijithali: isivinini / ukugeleza / isikhathi / ukusetha inani lemijikelezo / isikhombisi.

Imodi ezenzakalelayo: okuzenzakalelayo, isikhathi esizenzakalelayo, ukukhishwa kwe-engeli okuzenzakalelayo.

Umsebenzi wokususwa emuva: vimba ukulenga uketshezi, ukucotha, uqinisekise ukugeleza okunembile.

Ukusekela ukulawulwa kwangaphandle: ukuxhasa ukulawula ukushintshwa kwenyawo.

Imodi yokuqokwa: ukukhishwa kwe-engeli yobuningi.

Imodi eqhubekayo: qaphela ukusebenza okuqhubekayo kwepompo, isikhathi sokusebenza, isilinganiso sokugeleza, ukuqondiswa kokugeleza, isivinini sezimoto, Isibonisi sesikrini sokujikeleza isikhathi sangempela.
