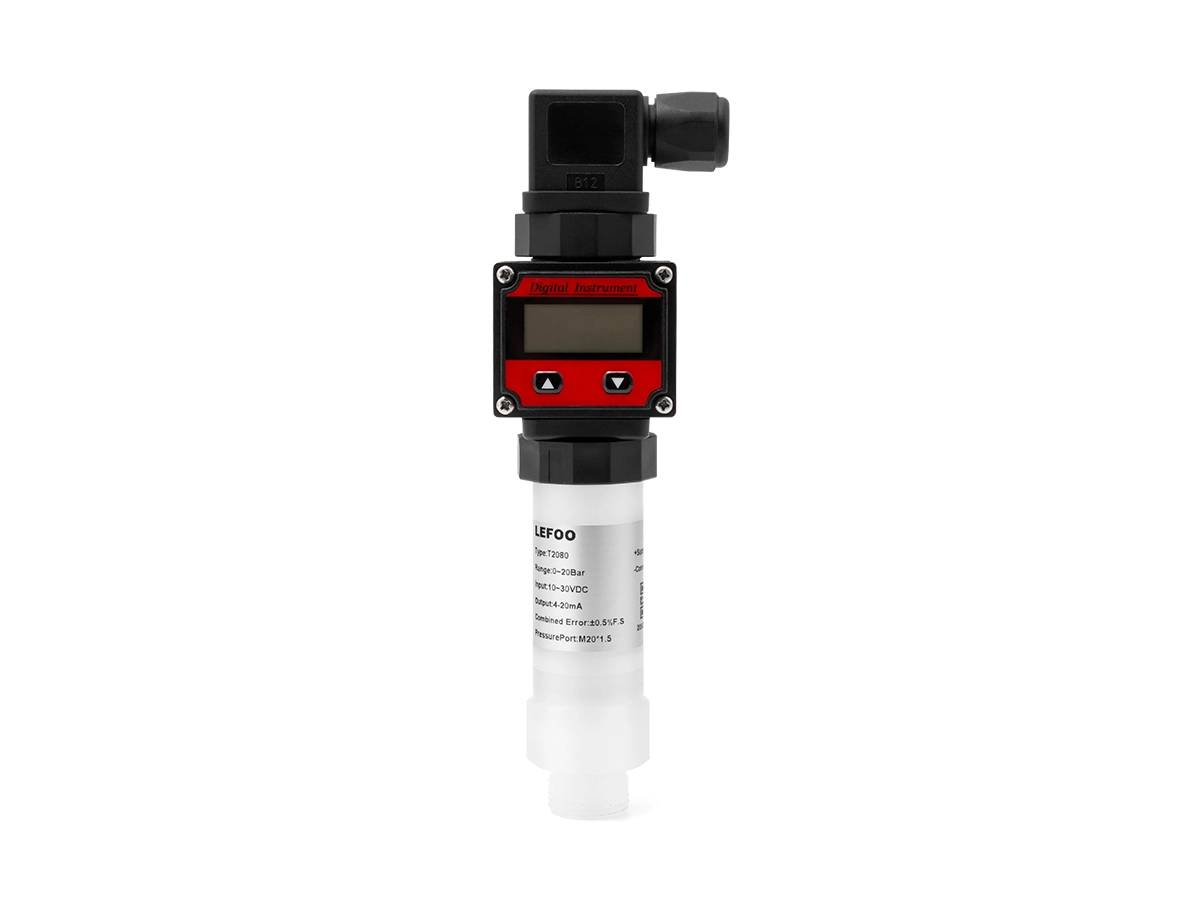

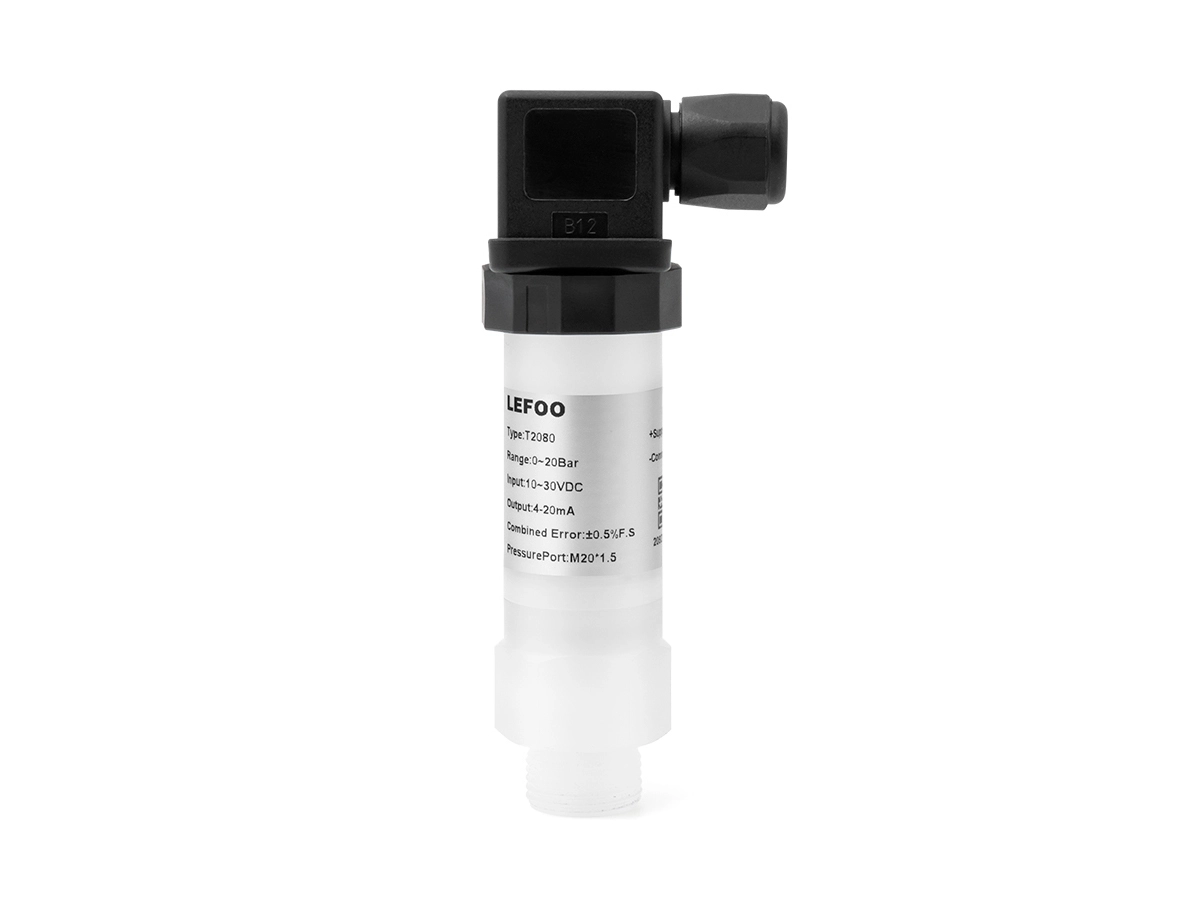

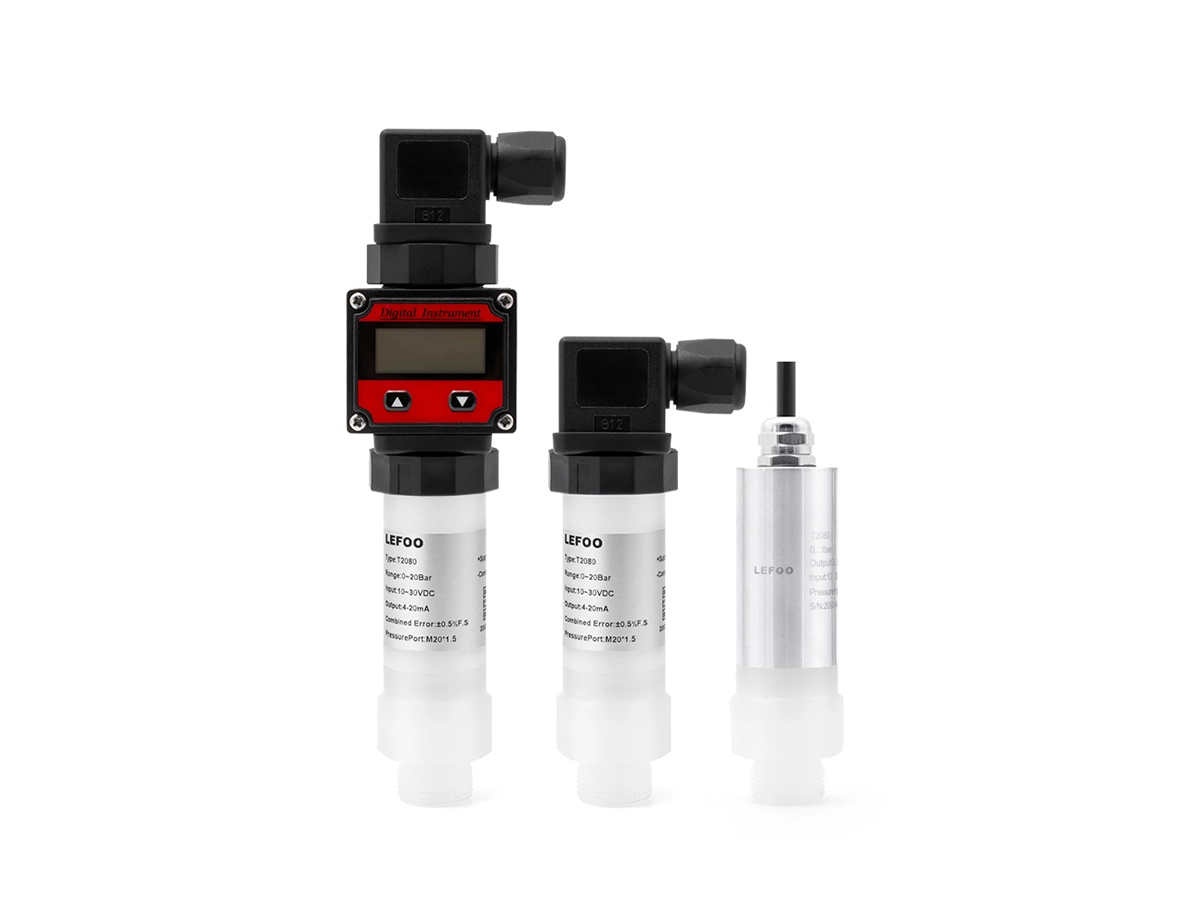

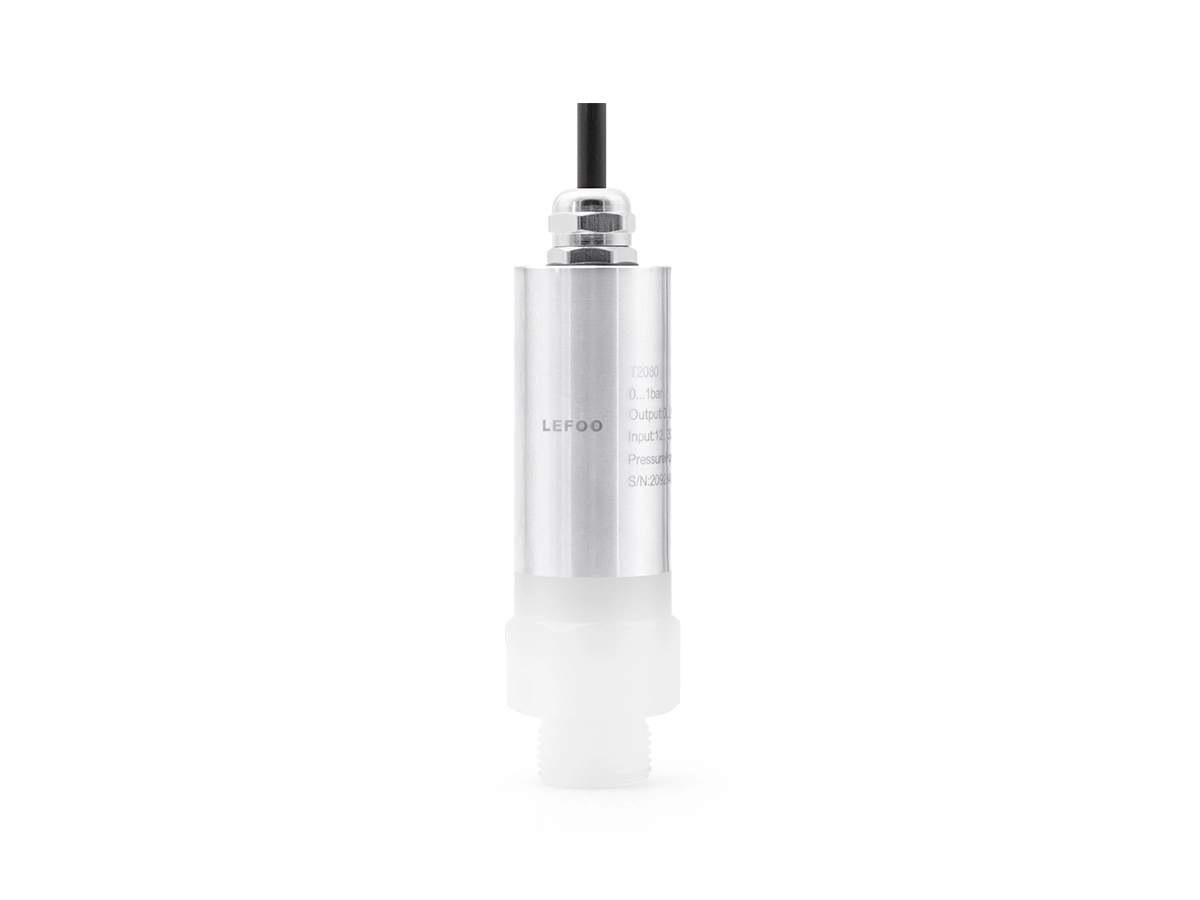

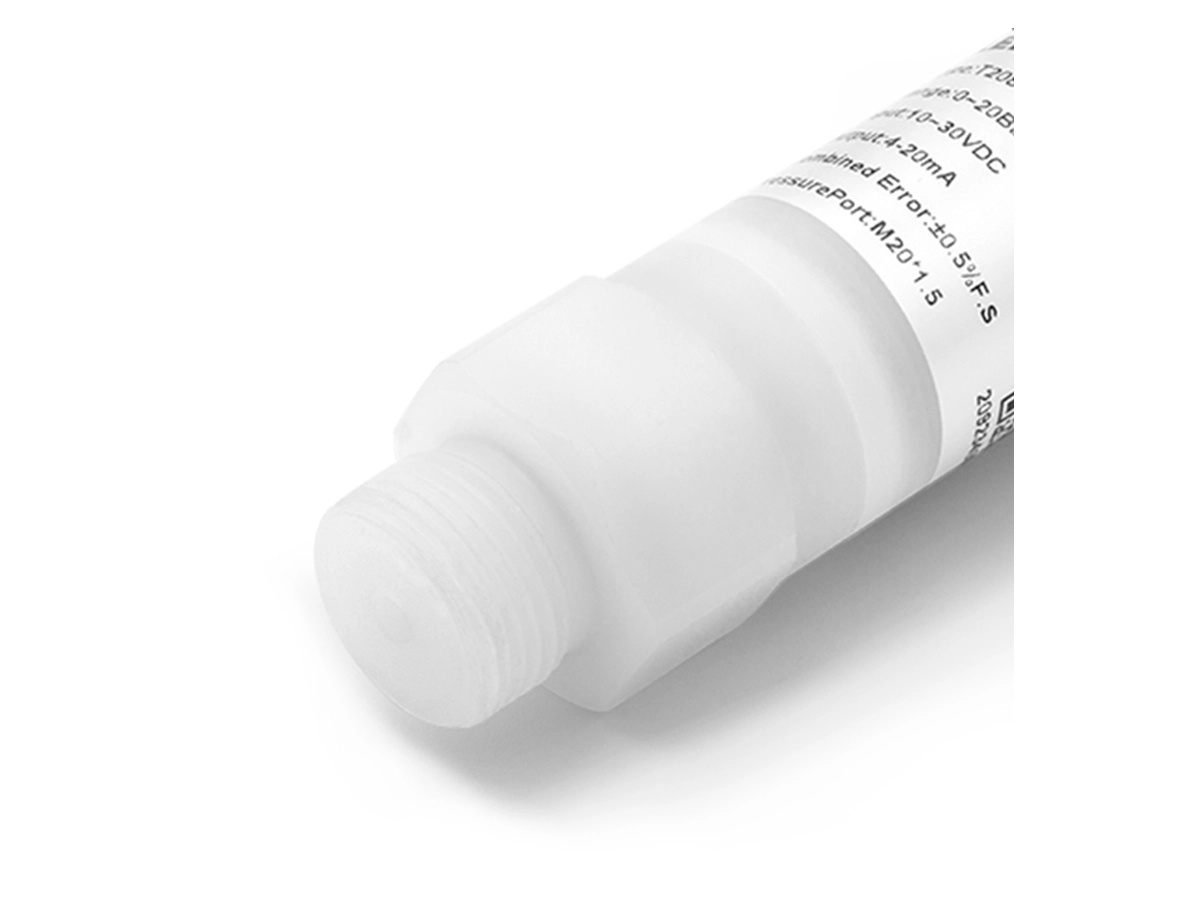

I-LFT2080 Anti-corrosion Pressure Transmitter yamukela umgogodla we-ceramic piezoresistive onomthamo omkhulu wokulayishwa ngokweqile one-anti enhle kakhulu -indlela yokushaya kanye nezakhiwo zokulwa nezingubo. Lesi sidluliseli sokucindezela kwedijithali samukela ubuchwepheshe be-ASIC futhi sisetshenziselwa kakhulu ukubulawa kwamanzi, i-chlorine, imboni yamakhemikhali, imishini yebhethri neminye imidiya eyi-asidi eqinile, i-alkali eqinile noma ezinye izimboni ezola kakhulu, kanye nokukala kwengcindezi kwezokwelapha kwezokudla nezinye izimboni.
Isici:
*Ukumelana nama-acid aqinile nama-alkalis
* Usayizi omncane, ukunemba okuphakeme
*Ukuzwela okuphezulu nokusebenza okuzinzile
*Ikhono eliqinile lokulwa nokuphazamiseka nokuzinza okuhle kwesikhathi eside
*Kusetshenziswa ubuchwepheshe be-ASlC edijithali
*Isakhiwo esishisiwe esiyinhloko, uphawu oluhle
| Uhla lwengcindezi | -100 kPa ~ 100 kPa ... 2MPa | |||
| Ingcindezi Yokulayisha Kakhulu | Izikhathi eziyi-1.5 zokucindezela okulinganisiwe | |||
| Ukubhubhisa Ingcindezi | Iziphindwe kabili ingcindezi elilinganisiwe | |||
| Ukunemba① | +0.5% F.S | |||
| Ukuzima | <0.5%F.S/nyanga | |||
| I-Tem yokusebenzayaUcisho | -20 ~ 80 ° C | |||
| Izinga lokushisa | -20 ~ 800°C | |||
| Iphakathi elilinganisiwe | Igesi noma uketshezi oluhambisana ne-1Cr18Ni9Ti, PVDF, fluoroelastomer noma injoloba ye-perfluoroether | |||
| Isidlulisi sengcindezi yokulwa ne-orrosion | ||||
| Izakhiwo zikagesi | 2 intambo | 3 intambo | ||
| Isibonakaliso esikhitshayo | 4 ~ 20mA | 0.5 ~ 4.5V | 0 ~ 5V | 0 ~ 10V |
| Ukunikezwa Kwamandlanje | 8 ~ 36 VDC | 4.75 ~ 5.25VDC | 8 ~ 36 VDC | 12 ~ 36 VDC |
Ukuxhumana kukagesi | I-DIN43650A (Big Hirschmann), i-M12 Cable ivuliwe | |||
| Bonisa isidlulisi sokucindezela ukulwa nokushaya | ||||
| Izakhiwo zikagesi | 2 intambo | 3 intambo | ||
| Isibonakaliso esikhitshayo | 4 ~ 20mA | 0 ~ 10V | ||
| Ukunikezwa Kwamandlanje | 12 ~ 30 VDC | 12 ~ 30 VDC | ||
| Ukuxhumana kukagesi | I-DIN43650A (Big Hirschmann) | |||
| Ukuvikelwa kokuvalela | IP65 | |||
| Ukuxhumana Kwengcindezi | G1 / 2 、 M20 * 1.5 | |||
| Ingcindezi yeGuge G | ||||
| Isiqinisekiso | I-RoHS | |||
Qazi①: Kulinganiswe ku-25 ° C, kufaka phakathi ukunemba okuphelele kokulingana, ukuphindaphindeka kanye ne-hysteresis.
Ukumelana nama-acid aqinile nama-alkalis
Ubukhulu obuncane, ukunemba okuphakeme
Ukuzwela okuphezulu nokusebenza okuzinzile
Ikhono eliqinile lokulwa nokuphazamiseka nokuzinza okuhle kwesikhathi eside
Kusetshenziswa ubuchwepheshe be-ASlC edijithali
Izinsimbu Ezisebenzayo:
Amagciwane amanzi
I-chlorie
Imboni yamakhemikhali
Imishini yebheri
Inhlanzeko yokudla
Kwezokwelapha
I-asidi enamandla, isilinganiso esinamandla sokucindezela kwe-alkali media.
Ezinye izimboni ezonakalisayo
