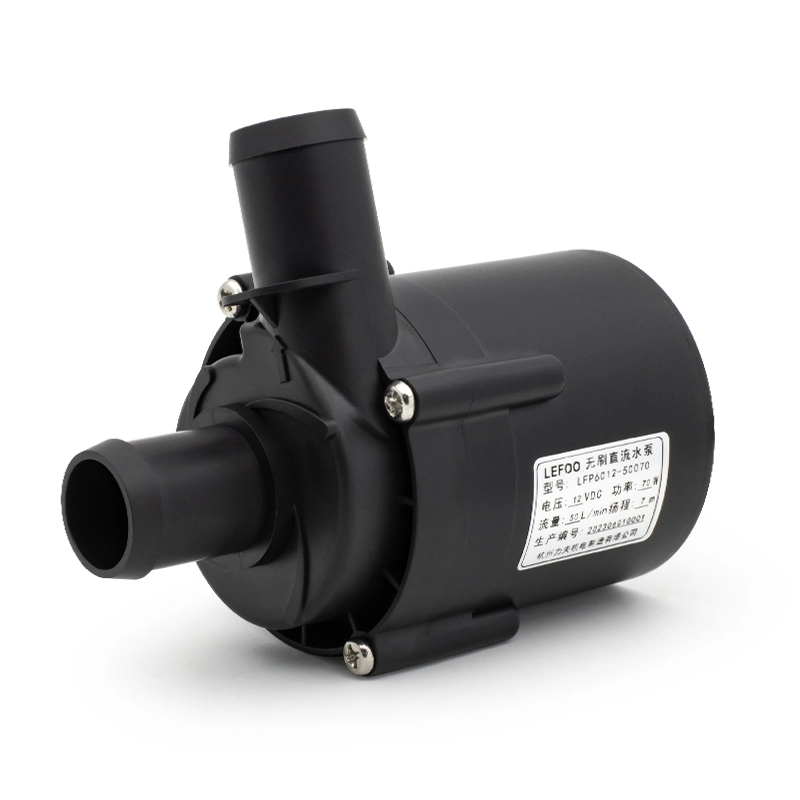

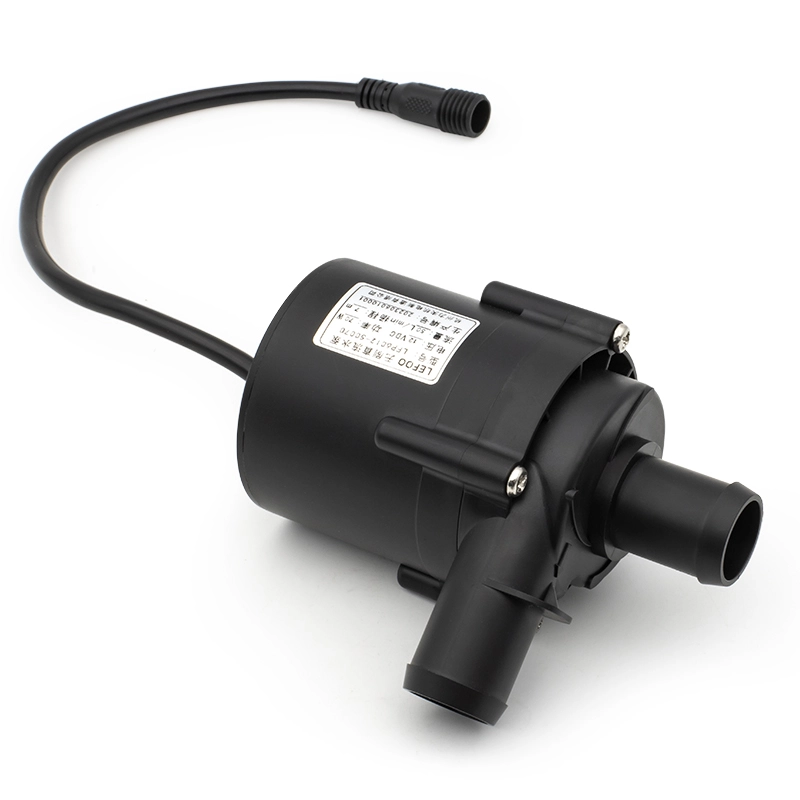

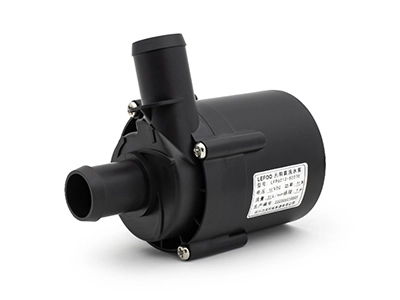

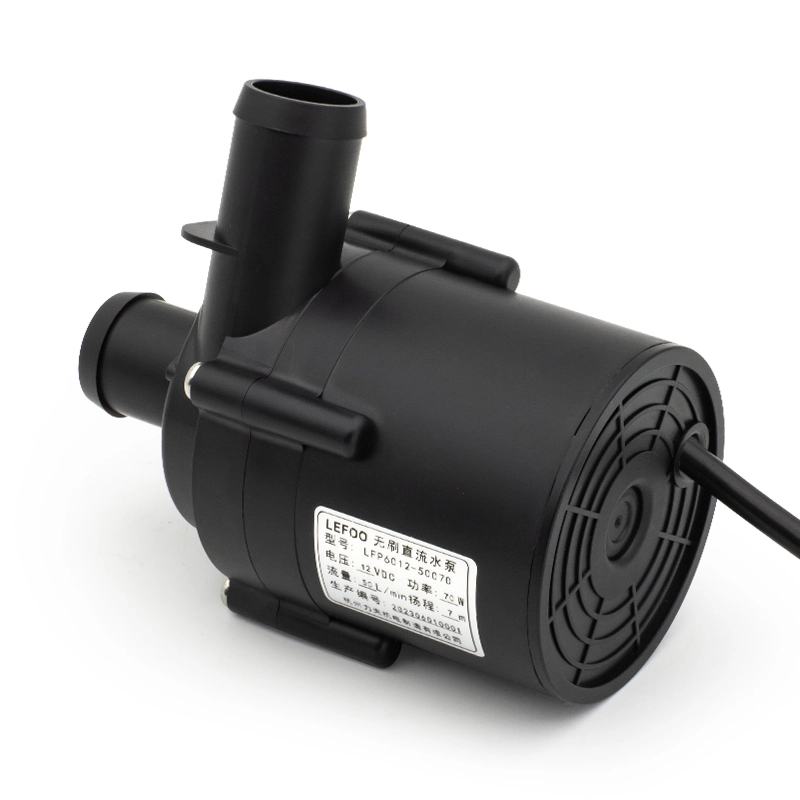

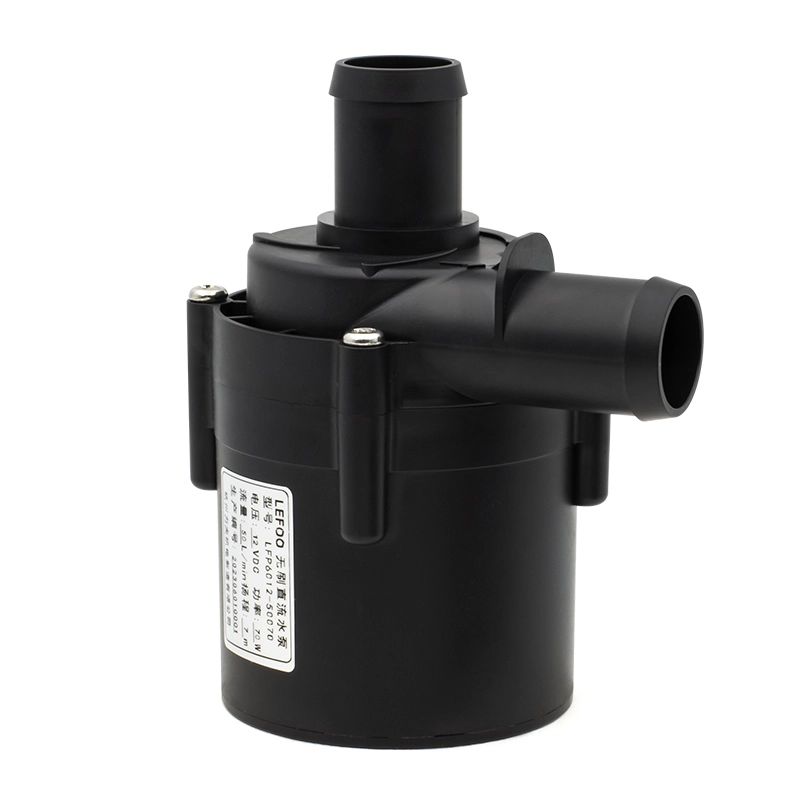

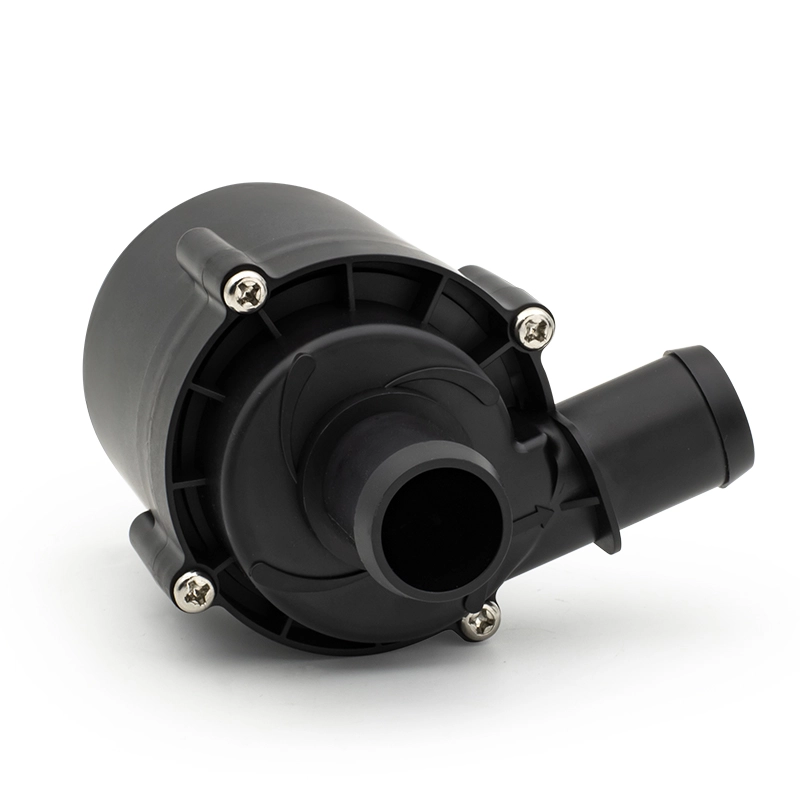

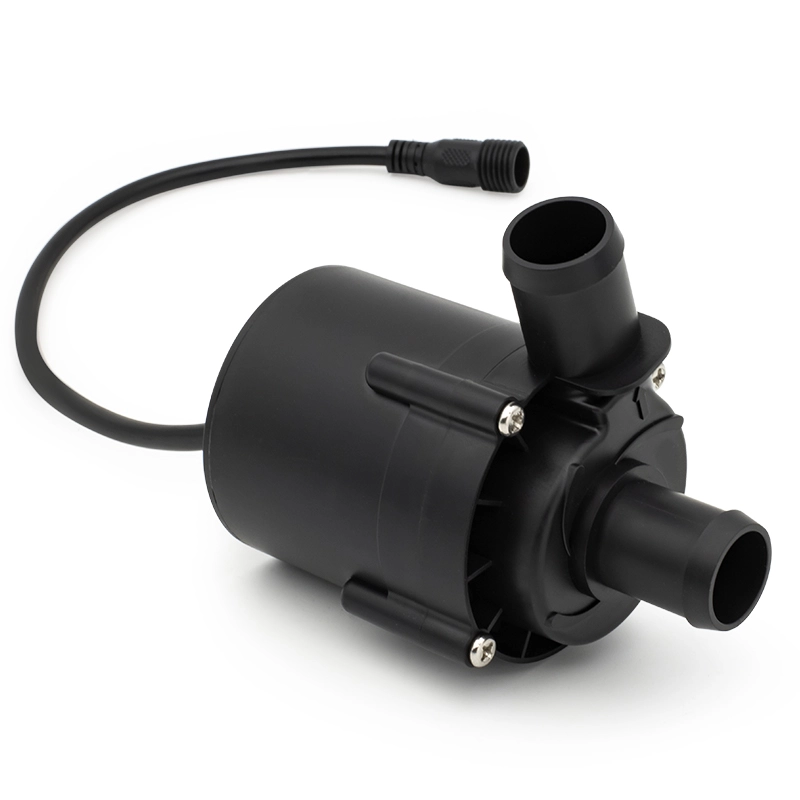

Amaphampu ajikeleza ama-microc abizwa ngokuthi amaphampu okujikeleza amanzi, aklanyelwe ukukhiqiza ukusakazwa koketshezi okuphoqelelwe ohlelweni oluvaliwe. Izibonelo ezisebenzisa uhlelo lokujikeleza ngomshini wokuhlunga amanzi noma umshini wekhofi. Amaphampu amanzi e-Mini BLDC adlulisa amanzi asheshayo kuwo wonke amapayipi. Ezimweni ezingenazo ipompa yokucwilisa, amanzi ashisayo awakwazi ukuqhubekela phambili kuze kube yilapho amanzi abandayo kumapayipi ephunyuka, okuzodala amanzi angcolile amaningi phansi komsele.
UMPHATHI WEMITHI
| Uchungechunge lwemodeli | Inombolo yomkhiqo | Amandla alinganisiwe (VDC) | Isilinganiso sokugeletha (L / min) | Okwamanje( A) | Inhloko (M) | Amandla (W) | Umsebenzi wokulungisa |
| LFP6012 | LFP6012-44060A | 12 | 44 | 3.5 | 6.0 | 42.0 | Ukukhetha PWM Umthethonqubo wejubane u-0-5V |
| LFP6012-48070A | 12 | 48 | 4.0 | 7.0 | 48.0 | ||
| LFP6012-50080A | 12 | 50 | 4.5 | 8.0 | 54.0 | ||
| LFP6012-52080A | 12 | 52 | 5.6 | 8.0 | 67.2 | ||
| LFP6012-55090A | 12 | 55 | 6.5 | 9.0 | 78.0 | ||
| LFP5012-1 | LFP5012-08040A | 12 | 8 | 4 | 1.1 | 13.2 | Isibonakaliso FG 0-5VUmthethonqubo wejubane Umlawuli wejubane we-PWM |
| LFP5012-08070A | 12 | 8 | 7 | 1.3 | 15.6 | ||
| LFP5012-10060A | 12 | 10 | 6 | 2.1 | 25.2 | ||
| LFP5012-12080A | 12 | 12 | 8 | 3.1 | 37.2 | ||
LFP5012-13120A | 12 | 13 | 12 | 4.3 | 51.6 | ||
| LFP5012-13150A | 13 | 15 | 4.3 | 51.6 | |||
| LFP5012-2 | LFP5012-17060A | 12 | 17 | 6 | 1.4 | 16.8 | Isibonakaliso FG Umthethonqubo wejubane u-0-5V Umlawuli wejubane we-PWM |
| LFP5012-20080A | 12 | 20 | 8 | 2 | 24 | ||
| LFP5012-24140A | 12 | 24 | 14 | 4.4 | 52.8 | ||
| LFP5012-22110A | 12 | 22 | 11 | 3.1 | 37.2 | ||
| LFP5012-25115A | 12 | 25 | 3.2 | 38.4 | |||
| LFP5012-25130A | 12 | 26 | 13 | 3.8 | 45.6 | ||
| LFP5012-26145A | 12 | 26 | 14.5 | 4.5 | 54 | ||
| LFP5012-3 | LFP5012-27040A | 12 | 27 | 4 | 1.5 | 18 | Isibonakaliso FG Umthethonqubo wejubane u-0-5V Umlawuli wejubane we-PWM |
| LFP5012-32060A | 12 | 32 | 6 | 2.4 | 28.8 | ||
| LFP5012-37080A | 12 | 37 | 8 | 3.8 | 45.6 | ||
| LFP5012-40080A | 12 | 40 | 8 | 3.9 | 46.8 | ||
| LFP5012-44080A | 12 | 44 | 8 | 5.1 | 61.2 | ||
| LFP5012-45100A | 12 | 45 | 10 | 5.6 | 67.2 | ||
| Izinga lokushisa | -20℃-40℃ | ||||||
| Izinga lokushisa eliphakathini | -20℃-60℃ | ||||||
| Ububanzi be-Voltagee | 8 ~ 18 noma 16 ~ 32VDC(Uchungechunge lwe-LFP50) | ||||||
| Isigaba sokugcwala | F | ||||||
| Isigaba sokuvikela | IP55 noma i-IP68 yokuzikhethela | ||||||
| 20000H | |||||||
| Umboniso | LFP5012-3, LFP6012:Ukuphuma: DN20; Inlet: DN20; LFP5012-2:Ukuphuma: DN15; Inlet: DN15; LFP5012-1:Ukuphuma: DN8; Inlet: DN12. Umxhasi ngokwezifiso. | ||||||
| Izimo zokuhlola | Imingcele yokuhlola i-BLDC yamanzi ashisayo yamaphamu ubude bepayipi lokuphuma 1m; Lapho ukujula kwethangi lamanzi kungu-0.3m, ipompo encane ye-centrifugal ingezansi yethangi lamanzi, kanye nezinga lokugeleza, Ikhanda namanje kuyalinganiswa lapho i-outlet yamanzi i-0.2m kude ngaphezulu kwamanzi. | ||||||
| Umsebenzi wokuvikela | Ukuvikelwa kokuxhuma okuphikisana nokuguquguqukayo, ukuvikelwa kwamandla kagesi aphezulu nokuphansi, ukuvikelwa okungahambi kahle, ukuvikelwa kwe-rotor okuvinjelwe, ukuvikelwa kwesigaba kokulahleka. | ||||||
| Okuphakathi | Amanzi apholile, amanzi ashisayo namanye amanzi acwebile / umlilo. | ||||||
I - BLDC PUMP 24VIyatholakala futhi.
Umsindo ophansi: Ukwamukela ukudlidliza okuphansi kanye nendlela yokulawula umsindo ephansi ye-FOC kanye nokwakhiwa kwe-rotor okumisiwe, umsindo uphansi njengo-25 dB (A)
Isikhathi sokuphila isikhathi eside: Ukufanisa izigaba ezintathu ezingenabhuhlo DC kanye nesakhiwo sokujikeleza, impilo ingaphezu kwamahora angama-20,000
Izinga lokugeleza elikhulu, ukuphakanyiswa okuphezulu kwepompo: Ukusebenzisa ukusebenza okuphezulu okuvaliwe kanye nemoto yokulawula okuhlakaniphile, ukusebenza kokugeleza nokuphakamisa kuzinzile kakhulu futhi ukuphakanyiswa kwepompo kuphakeme.
I-okwenziwe ngokwezifiso iyatholakala: Kungaba imisebenzi yezifiso efana ne-105日 medium, ibanga le-lP68, isilawuli sesivinini se-PwM, Ukulawulwa kwesivinini esingu-0-5V, njll.
Imisebenzi ephelele yokuvikela: Imisebenzi yokuvikela okuningi yokusebenza kokungalayishi, i-rotor evinjiwe, ukuxhumana okubuyela emuva, ngokweqile, njll.
Akukho ukuvuza: Idizayini yophawu lwe-Static, ihlukanisa i-stator kusuka kuketshezi, amandla aphezulu kanye nepulasitiki eliphikisana nokushisa okuphezulu, akukho ukuguqulwa futhi akukho ubungozi bokuvuza
Izitifiketi: Ukuhambisana ne-CE, RoHS, FDA, CQC izitifiketi.
Uhlelo lokupholisa lwekhompyutha
Izithelo, nomshini wokuwasha imifino
Indlu yangasese ehlakaniphile
I-dishwasher
Uhlelo lokunyusa
Ukusakazwa kwamanzi
Imboni yeziphuzo
Umthombo welanga
Umthombo omncane etafula
Umsebenzi wobuciko
Umshini wekhofi
Isihambisi samanzi
Isisetshenziswa itieyo
Ukubopha iwayini enkomishini
Ukushaba
Ingcindezi yokufudumeza yamanzi
Ukufudumeza kwamanzi
Ichibi lokubhukuda lijikelezayo
Isimisi kanye ne-surfing ebhange
Uhlelo lokupholisa lujikeleza emotweni
Greaser
I-Humidifier
Imishini yokulungisa umoya
Umshini wokuwasha
Izinto zezokwelapha nezinsimbi
Uhlelo lokupholisa lwamapholi
Imikhiqizo yegumbi lokugezela
Uphenyo Lomkhiqizo
