Izingxenye zangaphakathi ezihlobene namanzi ze-115VAC RO Diaphragm Booster Pump zonke yizinga lokudla ne-UL, I-ASF iqinisekisiwe, ingasetshenziswa ngqo emshinini wamanzi wokugqama, imishini yeziphuzo, Amahlanza amanzi neminye imishini ehlangana nokudla okuketshezi. Ububanzi besilinganiso sokuhamba kwe-50GPD-600GPD siyatholakala kwipompo yethu ye-minin menbrane ro.
| Amapharamitha we-115VAC RO Diaphragm Booster Pump | |||||||||||||
| Ukuxhumana | 3/8 "NPT 3/8NPT'O '1/4" Isixhumi esikhulu sabesifazane esisheshayo, 1/4 "Secen Female isixhumi esisheshayo, 1/4 "Isixhumi esisheshayo sesilisa | ||||||||||||
| |||||||||||||
| Imodeli yomkhiqizo | LFP5050W | LFP5075W | LFP5100W | LFP5150W | LFP5200W | LFP5300W | LFP5400W | LFP5500W | LFP5600W | ||||
| IVoltage | 115VAC | ||||||||||||
| Ingcindezi ye-Inlete | 0.2MPa | ||||||||||||
| Ingcindezi Yokukhulisa | 0.5 Mpa | 0.5 Mpa | 0.7 Mpa | 0.5 Mpa | 0.7 Mpa | ||||||||
| Umsebenzi wamanje | ≤0.17A | ≤0.19A | ≤0.3A | ≤0.35A | ≤0.45A | ≤0.6A | ≤0.63A | ≤0.7A | ≤0.8A | ≤0.75A | ≤0.85A | ||
| Ukuhamba komsebenzi | ≥ 600ml / min | ≥ 750ml / min | ≥ 980ml / min | ≥ 1500ml / min | ≥ 1900ml / min | ≥ 2700ml / min | ≥ 2950ml / min | ≥ 3250ml / min | ≥ 2800ml / min | ≥ 3200ml / min | |||
| Vula ukuphuma | ≥ 1600ml / min | ≥1800ml / min | ≥ 2000ml / min | ≥ 2200ml / min | ≥ 2500ml / min | ≥3500ml / min | ≥ 4000 ml / min | ≥ 4800ml / min | ≥ 5500ml / min | ||||
| Ingcindezi Yokugqasa | 0.8 ~ 1.05 Mpa | ||||||||||||
| Ukhulu lwamanje | ≤0.24A | ≤0.28A | ≤0.4A | ≤0.55A | ≤0.65A | ≤0.85A | ≤0.97A | ≤1.05A | |||||
| Iziqinisekiso | I-NSF, FDA, CE, ROHS, UL, REACH, EU Food Grade, BPA Free. | ||||||||||||
Ukubuka konke: I-115V AC RO Diaphragm Booster Pump efakwe ngemoto enamandla ye-DC enomsindo ophansi, Ukudlidliza okuphansi. Izingxenye ezimanzi zihambisana nezidingo zezinga lokudla ezinezinto zepulasitiki ezinamandla aphezulu nezensimbi, futhi izinto zezingxenye zokuvala zonke zingenisiwe. Ukulawulwa kwekhwalithi yenqubo ephelele kugesi, uphawu nokukhiqiza amanzi.
Imodeli: 115VAC50 / 60HZ, okuyindawo kazibuthe ehlala njalo enemodi yokupholisa yemvelo;

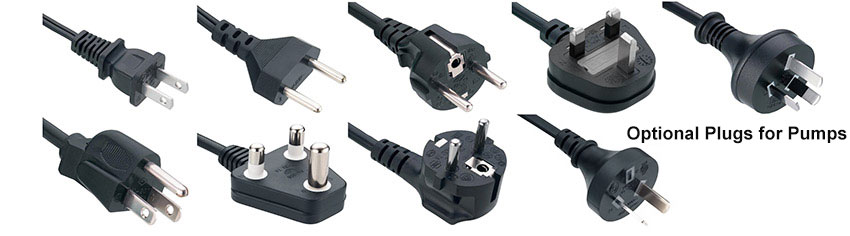

I-Power Line: Iyakwazi ukufaniswa kwamamitha ayi-1 noma ubude obungahleliwe bentambo yamandla amathathu engu-18AWG ngobude obungu-350 mm.
Uhlelo lokusebenza: Ngokwezimo ezahlukahlukene zokusebenza, i-S1 isebenza ngokuqhubekayo kepha i-S3 isebenza ngezikhathi ezithile.
Ukulungiswa: Lapho izinga lokushisa legobolondo likhuphukela ku-64℃, imoto izoyeka ukusebenza kuze kube yilapho izinga lokushisa legobolondo lehla liye ku-35℃ ngenxa yohlelo lokuvikela okungaphezulu kokushisa kuwo.
Ngezansi: Imoto ingakhethwa noma ngaphandle kwesisekelo.
Pump: Impompo ye-diaphragm enamakamelo amathathu enomsebenzi wokuzimela futhi ikhanda lingakhetha amalunga ahlukene ngokuya nge-plu ehlukile izidingo.
Isicelo esijwayelekile: Isetshenziselwa ukudlulisa noma ukucindezela amanzi okuphuza noma okunye uketshezi.
Pump: PA66 (polyamide-66)
Isithombe: EPDM
I-Diaphragm: Santoprene (SP)
Ngokushesha: Insimbi ye-slainless (SS)
Ukushisa Kwemvelo Okusebenzayo: 5℃ ~ 40℃
Ukushisa kwamanzi: 5℃-38℃
Isitifiketi sokuqinisekisa: ROSH, CE, CQC, UL, NSF
Ijika lokukhuphuka kwezinga lokushisa: Kukhonjiswa esibalweni 4 ukuthi amajika okushisa akhuphuka e-inlet 30PSI, indawo engu-70psi ne-100psi kumazinga okushisa ahambisanayo angama-31℃.
Ijika lakwamanje: I-Pls ihlola ishadi lesihlanu futhi ijika lesici lingu-30PSI lokungena kwamanzi.
Impilo:> amahora angama-2000 (ngenlet 30PSI, indawo engu-70psi)
Umsindo: ≤35 dB (A) (inlet 3)0PSI, indawo engu-70psi)
Ukuvumelana neRohs, CE, CQC
Isakhiwo Esidlala esifakwe ngezingxenye Zokudla
Ifaka kalula, umsindo ophansi, nokulawulwa okuvelele kokudlidliza
Ukulawulwa kwekhwalithi yenqubo ephelele kugesi, uphawu nokukhiqiza amanzi.
Ngi. Ukuvikelwa Okuphelele Kokuphepha Ukuthula Ingqondo
I-115V AC diaphragm booster pump ihlanganisa ukuvikelwa okushisayo, ukuvikelwa ngokweqile, kanye nezici zokuvikela ngokweqile, ukuvimbela kahle ukulimala kwemishini okubangelwe ukulayishwa ngokweqile noma ukusebenza okungajwayelekile. Lo mklamo awupheli nje kuphela isikhathi sokuphila kwepompo kepha futhi kunciphisa kakhulu izindleko zokulungiswa, ukuqinisekisa abasebenzisi bajabulela izinga eliphakeme kakhulu lokuphepha ngesikhathi sokusebenza.
II. Iziqinisekiso Zomhlaba Wonke Zokuqinisekisa Kwezinga
Ngezitifiketi ezivela ku-NSF, UL, FDA, ne-CE, kufaka phakathi ukuhambisana namazinga we-EU Food Grade, umkhiqizo ugcizelela ubuhle bayo ekukhetheni izinto ezibonakalayo, izinqubo zokukhiqiza, nokusebenza. Lezi zitifiketi akuzona nje kuphela ubufakazi bekhwalithi yomkhiqizo kepha futhi nokuzibophezela empilweni yabathengi.
III. Izinto Zokudla Zamanzi Okuphuza Aphilo
Zonke izinto ezixhumana namanzi zenziwe ngezinto zokudla, ukuqinisekisa ukuthi wonke amathonsi amanzi adlula kule pompu ahlala emsulwa futhi ahlanzekile. Lesi sici senza i-booster booster engu-115V ibe ukukhetha okufanele ukukhiqiza amanzi okuphuza asezingeni eliphakeme, amanzi akhazimulayo, namanzi we-soda.
IV. Ukufakwa okulula Nokwakhiwa Kokuvikela Isikhalayo
Ukuxhuma ngqo kumthombo wamandla we-115 V, ipompo isusa isidingo sama-adaptha angeziwe, Ukwenza lula inqubo yokufaka kanye nomkhiqizo omusha wochungechunge ufunyisiwe futhi kugcina isikhala esibalulekile nesisindo kubasebenzisi. Lo mklamo unenzuzo ikakhulukazi ezilungiselelweni zokuhweba ezivinjelwe umkhathi ezinjengamakhefu, izindawo zokudlela nemishini yokuthengisa.
V. Umsindo Ophansi Nokuzinza Okude
Ihlome ngobuchwepheshe obuthuthukile bokwehlisa umsindo, iphampa ye-booster engu-115V isebenza emazingeni omsindo aphansi, ukunikeza indawo yokusebenza ethule. Ukuzinza kwayo okuphakeme kwesikhathi eside kuqinisekisa ukusebenza okuqhubekayo nokusebenza kahle, kunciphise isikhathi sokwehlisa nokuthuthukisa ukusebenza kahle.
Ububanzi Bokuhlela
Imishini Yamanzi Akhazimulayo: Ukuthuthukisa ukunambitheka kweziphuzo ngamabhamuza.
Amanzi Ahlanza: Ukuhlunga kahle amanzi okuphuza okuphephile, ipomp yamanzi ephuzayo.
Imishini yamanzi yaseSoda: Ukulungiselela ngokushesha amanzi e-soda ukuhlangabezana nezidingo ezahlukahlukene.
Ama-spray Systems: Kusetshenziswa ekuhlanzeni nasekumswakama ukuthuthukisa ukunethezeka kwemvelo.
I-I-diaphragm booster pompuIngasetshenziswa kulezi zimo ezilandelayo:
Impompo ye-RO yamanzi ehlanzekile, I-Aeroponics ne-hydronics RO uhlelo, ingcindezi yokungeza ipompa
Ukwelashwa Kwamanzi / RO
Izinhlelo zeCarbonations
Izinhlelo zesiphuzo / Ikhofi
Ukuthengisa Amanzi, Ukuhlakazwa
I-Hydroponics / I-Aeroponics
Izinhlelo Zokukhubaza
Ukuhlanza
Ukushaya
Ukuhlanzwa Kwekhodi ye-HVAC
ILab Water Yezokwelaphayo
Izinhlelo ze-Autoclave
Ukusetshenziswa kabusha kwe-Endoscope
Imjovo yamakhemikhali eDialisi
Umjovo Wamanzi
Umshini Wamanzi Onqamulayo
Umshini Wamanzi Ohamba Amanzi
Umshini Wamanzi Wezohwebo
Izinhlelo zeCarbonations
Umenzi Wamanzi Wezentengiselwane
Abagibeli bamanzi
Umshini weSoda
I-RO Resifier
I-RO Water Respenern
Ukupholisa Kwamanzi
Isimiso Sokunyula
Imboni Yokuhlanza Amazinyo
